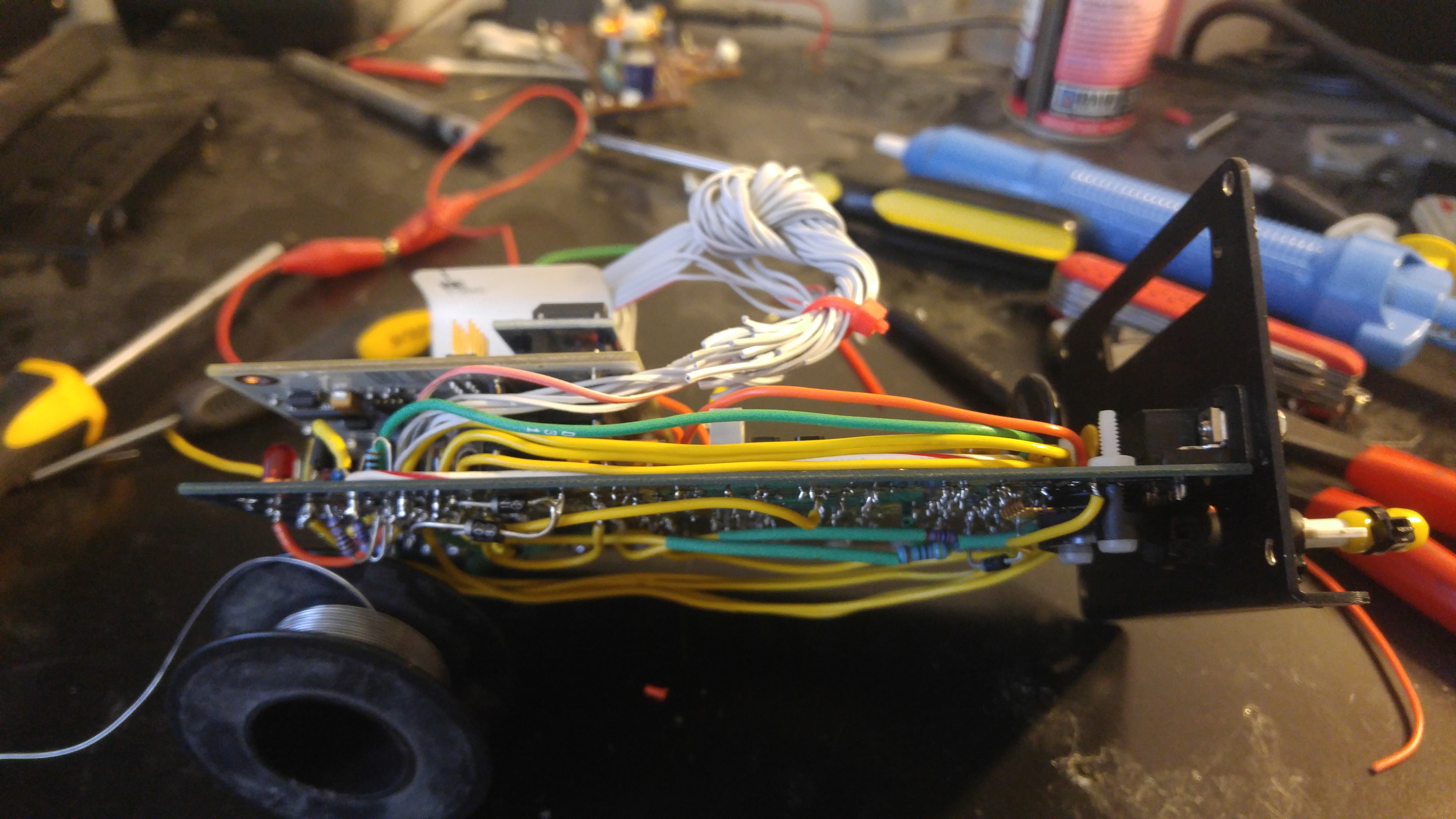

So I rewired my MS to use MS3 outputs instead of MS2, like I should have to begin with.
Isnt is beautiful?
![Name: 20161204_131229_zpsp0ffvy7d.jpg
Views: 342
Size: 5.87 MB](https://www.miataturbo.net/attachments/build-threads-57/182446d1501203443-seans-cheap-thrills-90-1-6-subaru-td04-20161204_131229_zpsp0ffvy7d.jpg)
![Name: 20161204_131159_zpsz2zdfdlz.jpg
Views: 331
Size: 6.12 MB](https://www.miataturbo.net/attachments/build-threads-57/182447d1501203443-seans-cheap-thrills-90-1-6-subaru-td04-20161204_131159_zpsz2zdfdlz.jpg)

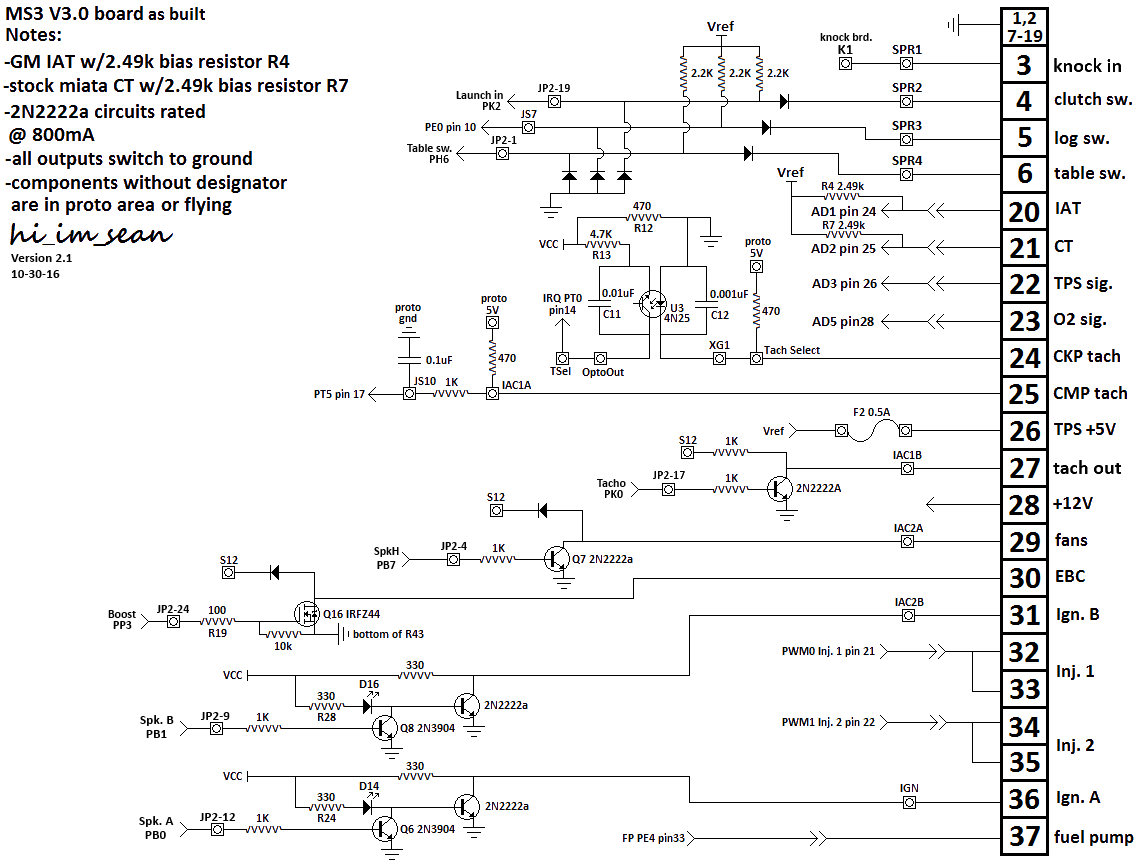

New wiring diagram
![Name: new%20MS3boardasbuilt_zps3zhuayyb.png
Views: 275
Size: 45.7 KB](https://www.miataturbo.net/attachments/build-threads-57/182448d1501203443-seans-cheap-thrills-90-1-6-subaru-td04-new%2520ms3boardasbuilt_zps3zhuayyb.png)
My tach works! It helps when you wire the harness properly. Also installed rev tach face FTW.
I verified the 99 motor in the garage has its knock sensor, I need to steal it and mount it. Wire is ran to pass side of block, just need to splice the connector in near the TB and connect the sensor. Then Ill mount oil cooler, and hopefully a tune and some track time by january.
Any input on knock control setup in tuner studio is appreciated.
Isnt is beautiful?
![Name: 20161204_131229_zpsp0ffvy7d.jpg
Views: 342
Size: 5.87 MB](https://www.miataturbo.net/attachments/build-threads-57/182446d1501203443-seans-cheap-thrills-90-1-6-subaru-td04-20161204_131229_zpsp0ffvy7d.jpg)
![Name: 20161204_131159_zpsz2zdfdlz.jpg
Views: 331
Size: 6.12 MB](https://www.miataturbo.net/attachments/build-threads-57/182447d1501203443-seans-cheap-thrills-90-1-6-subaru-td04-20161204_131159_zpsz2zdfdlz.jpg)
New wiring diagram
![Name: new%20MS3boardasbuilt_zps3zhuayyb.png
Views: 275
Size: 45.7 KB](https://www.miataturbo.net/attachments/build-threads-57/182448d1501203443-seans-cheap-thrills-90-1-6-subaru-td04-new%2520ms3boardasbuilt_zps3zhuayyb.png)
My tach works! It helps when you wire the harness properly. Also installed rev tach face FTW.
I verified the 99 motor in the garage has its knock sensor, I need to steal it and mount it. Wire is ran to pass side of block, just need to splice the connector in near the TB and connect the sensor. Then Ill mount oil cooler, and hopefully a tune and some track time by january.
Any input on knock control setup in tuner studio is appreciated.
#1425
Elite Member
iTrader: (1)
Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 3,098
Total Cats: 558
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Just log the sensor to begin with and figure out a base or background range. You will likely see spikes at low rpm and load so you can see what to disregard for retard settings. At boost it should be pretty quiet compared to say, idle. This is where you want to retard timing if you see spikes above what will be a slightly lower baseline than idle and low rpm cruise. I usually see around 83% in boost and consider anything above 84.2% to be actual knock and retard 10*. When it activates, it feels like something went wrong(at least how I have it set up) but it will show in the timing log. It has only activated a few times when I filled up at an unusual gas station and very early on. In contrast I often see random 85% values at idle with 10* of timing.
Last edited by sonofthehill; 12-10-2016 at 12:23 PM. Reason: Typo
#1429
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I stole the knock sensor and oil warmer from the 99 motor.

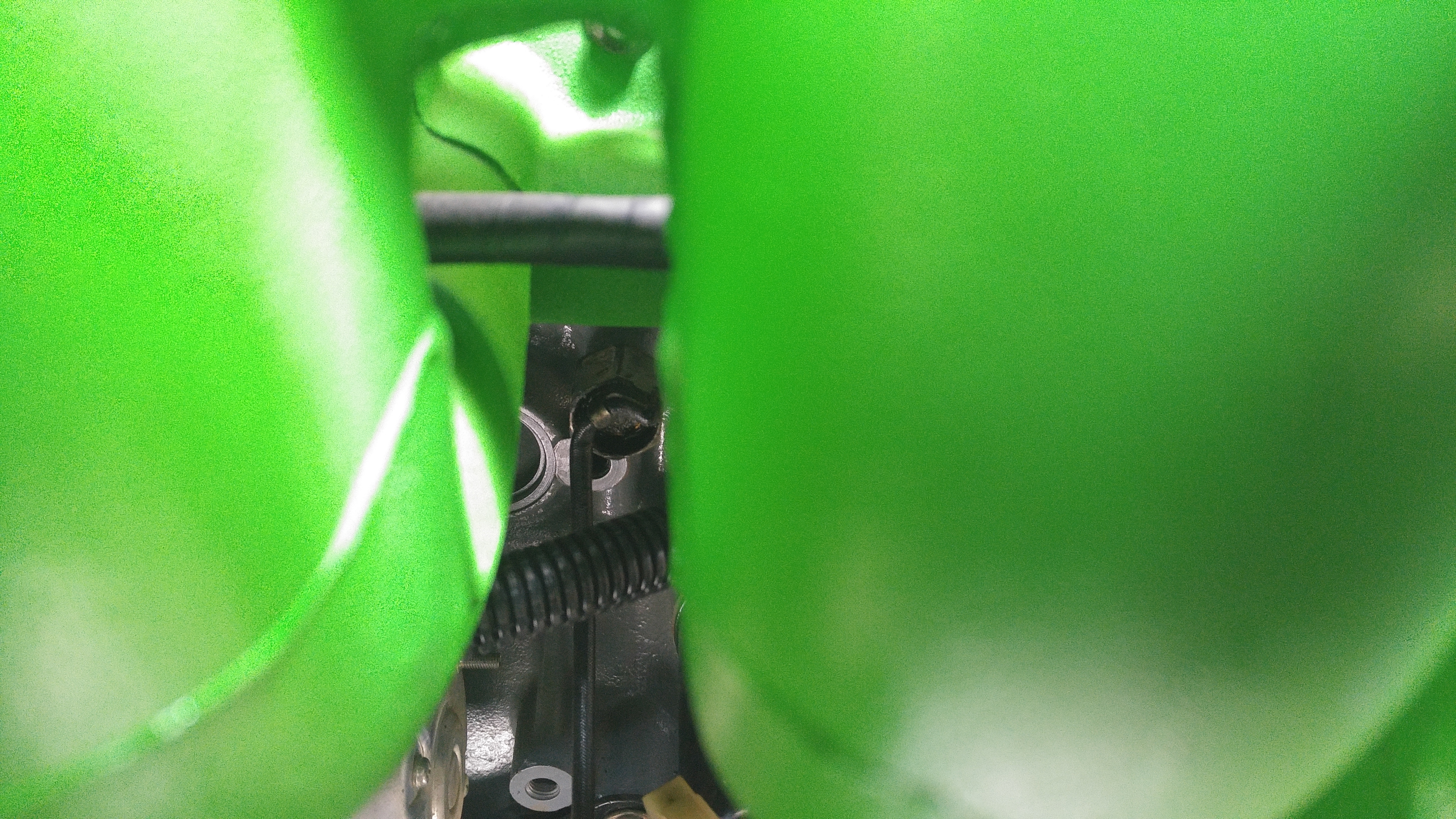

With the stock knock location, NA oil sender will not fit. Google showed me to just extend the sender out from the block with a ~1" union.
![Name: 20170101_151437_zpsm8m80nwk.jpg
Views: 318
Size: 8.75 MB](https://www.miataturbo.net/attachments/build-threads-57/182313d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170101_151437_zpsm8m80nwk.jpg)

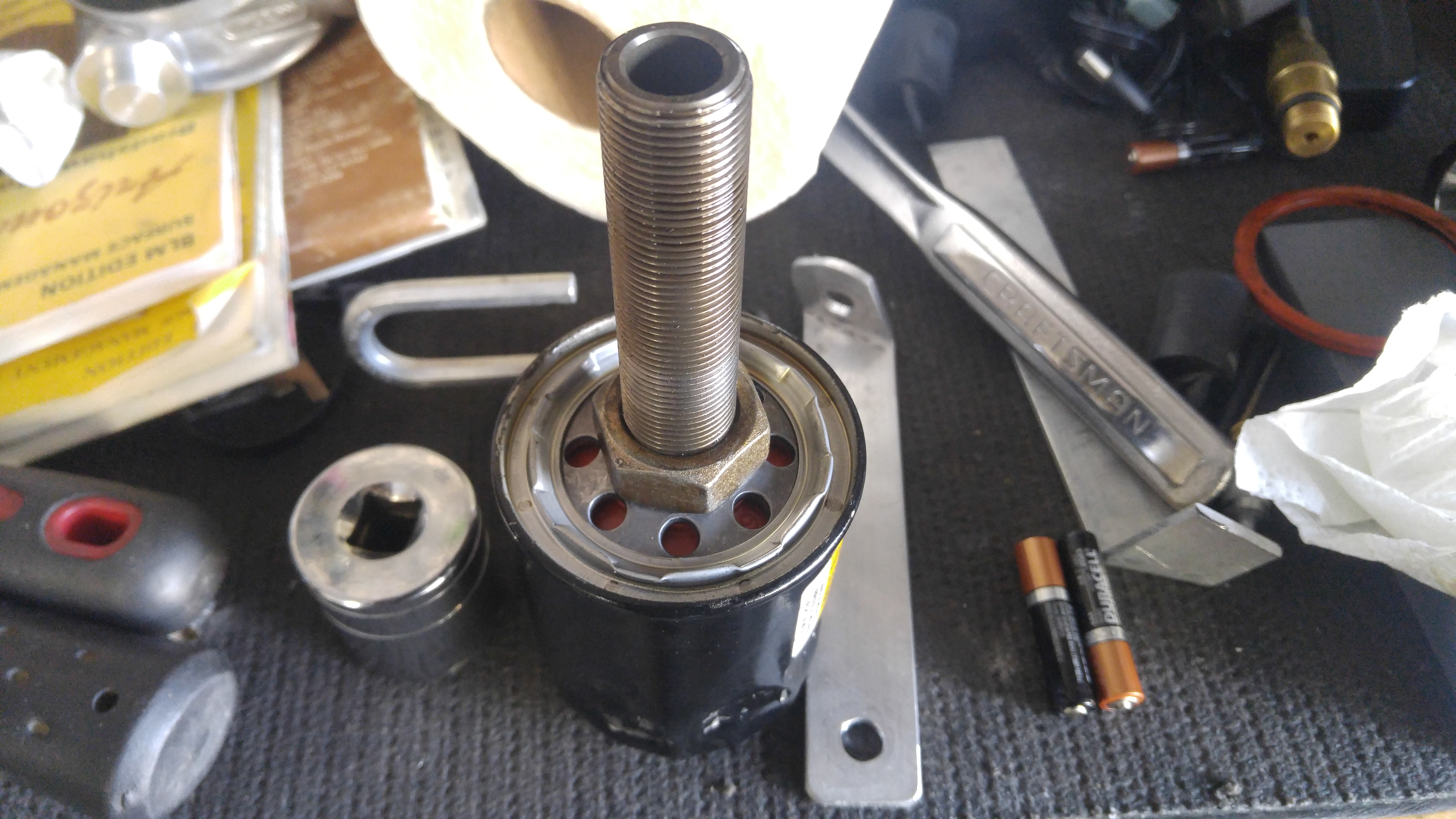

Oil filter double nut FTW.
![Name: 20170104_155258_zpsl1vq9esg.jpg
Views: 324
Size: 5.98 MB](https://www.miataturbo.net/attachments/build-threads-57/182314d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170104_155258_zpsl1vq9esg.jpg)

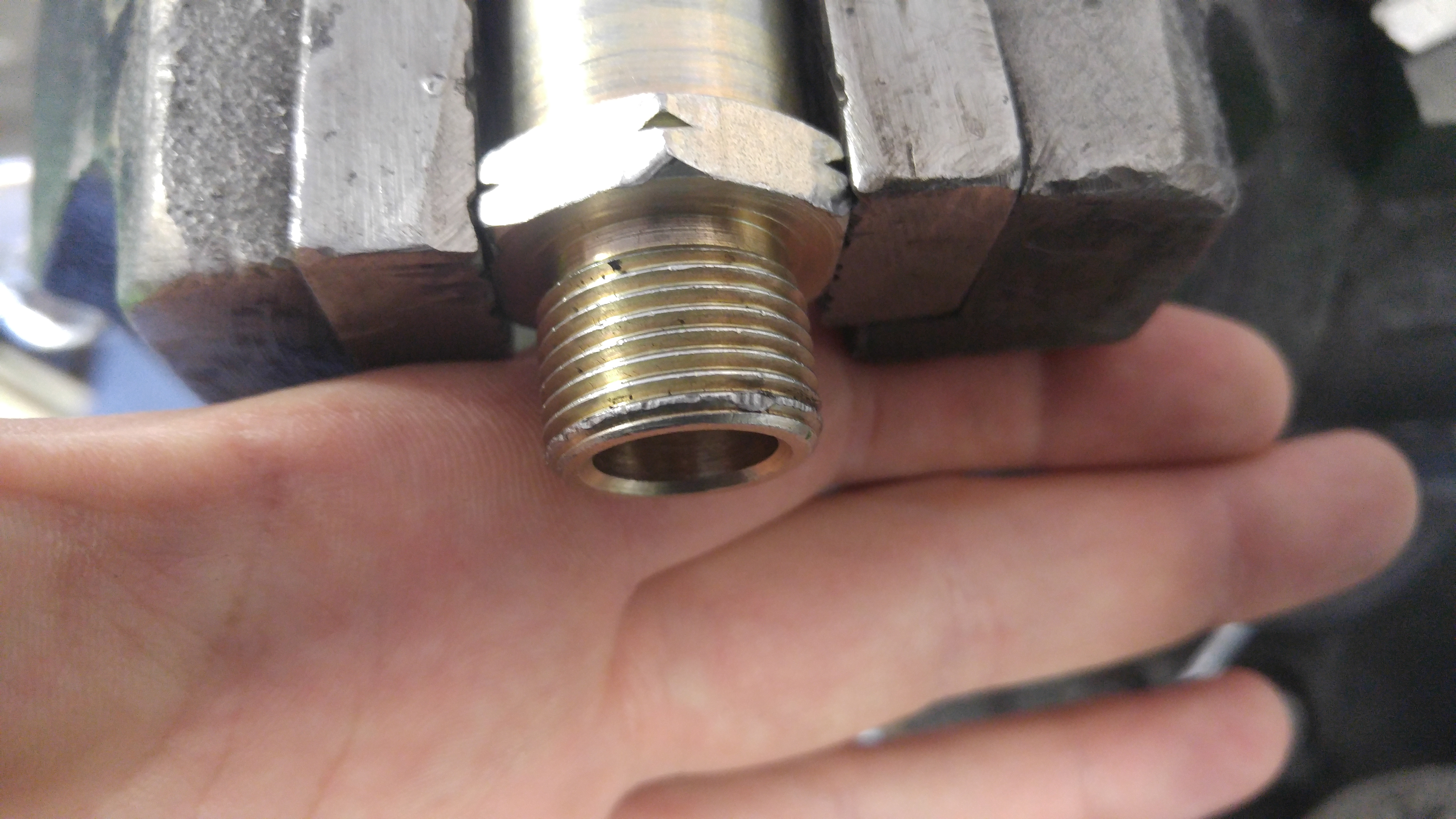

Some *** used pliers on the threads... instead of the hex....
![Name: 20170106_1007081_zpsiwkboe7f.jpg
Views: 315
Size: 5.78 MB](https://www.miataturbo.net/attachments/build-threads-57/182315d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_1007081_zpsiwkboe7f.jpg)

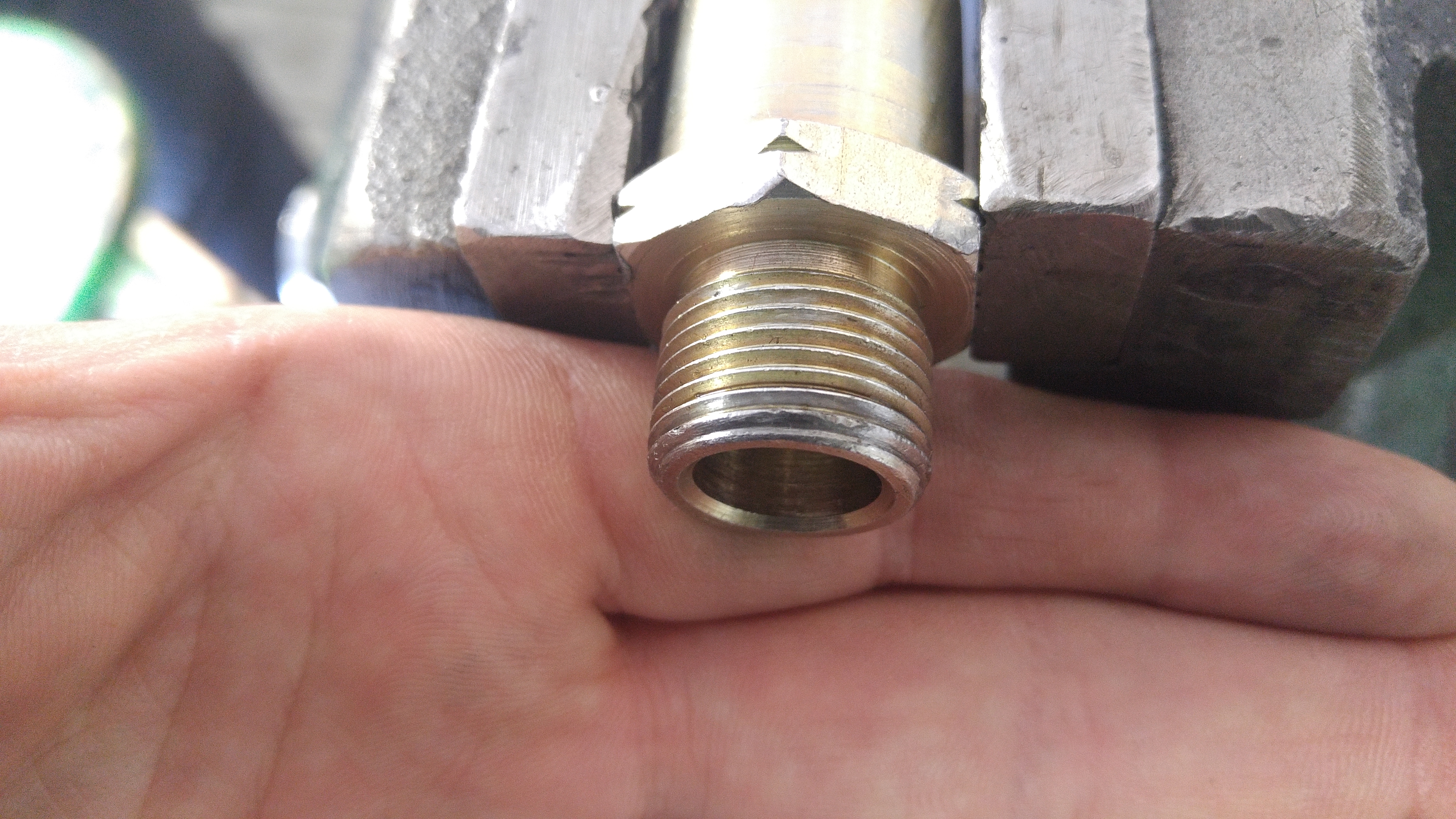

Thread filed
![Name: 20170106_101551_zpsdtxs43bk.jpg
Views: 298
Size: 7.42 MB](https://www.miataturbo.net/attachments/build-threads-57/182316d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_101551_zpsdtxs43bk.jpg)

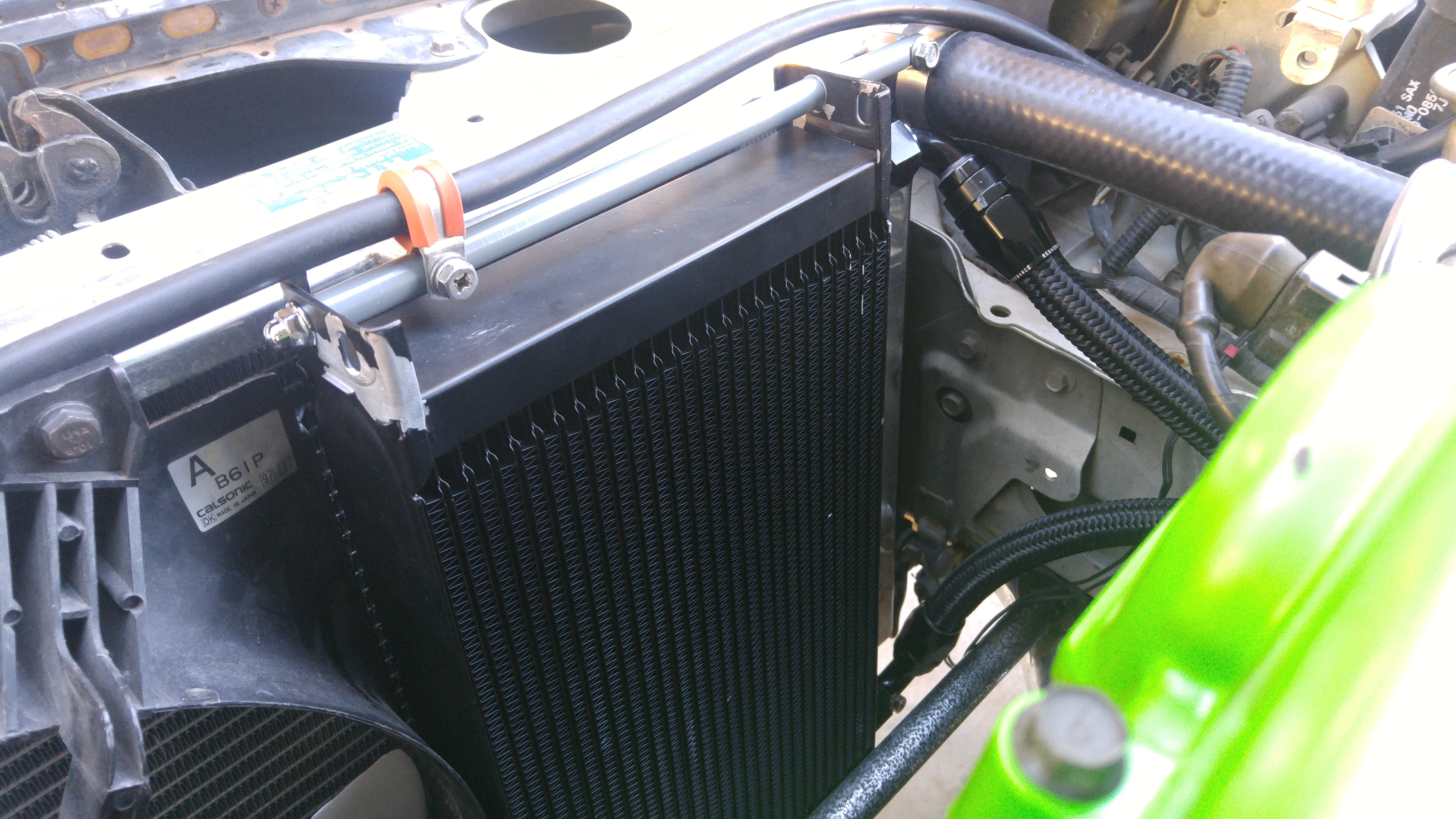

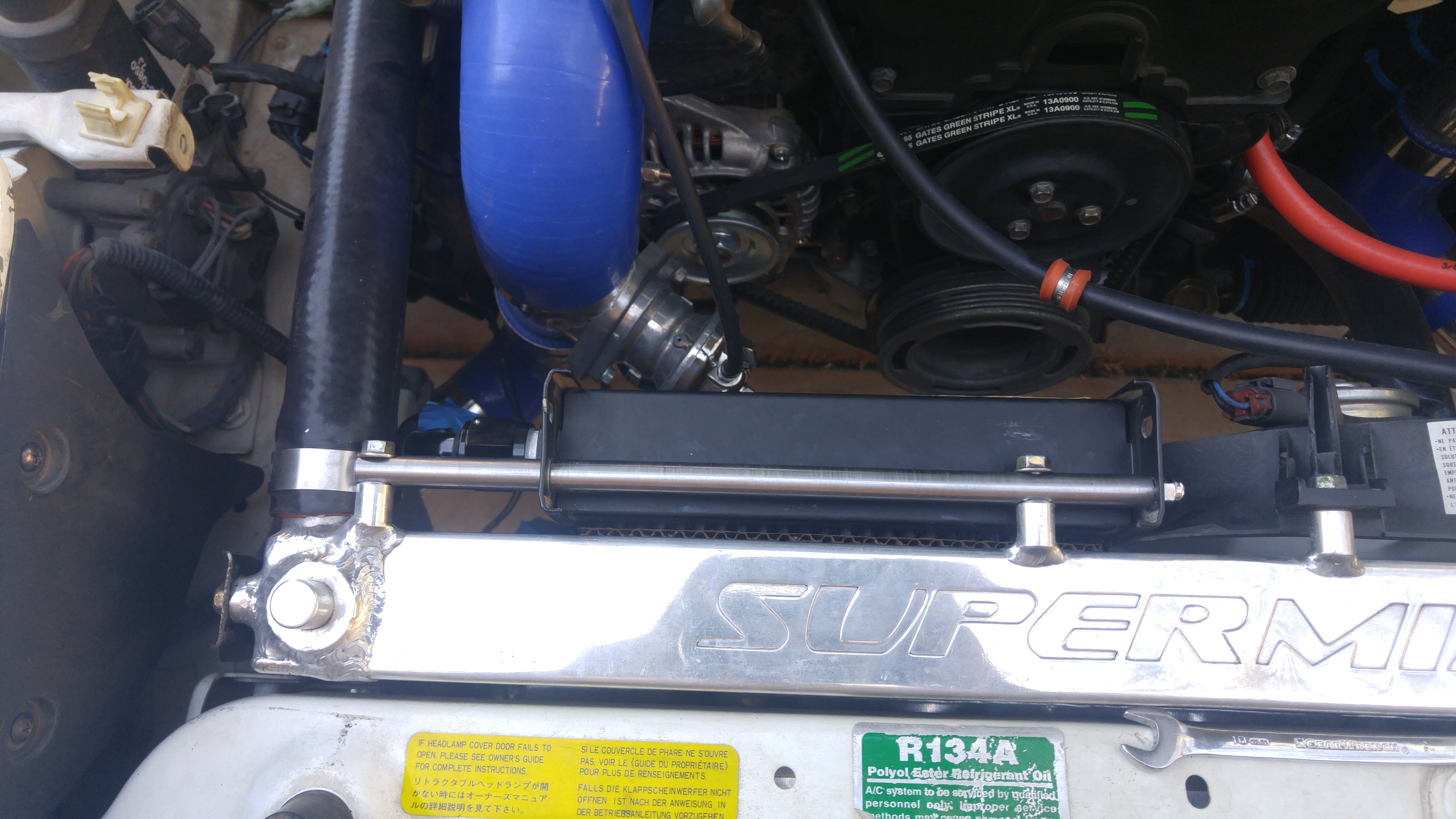

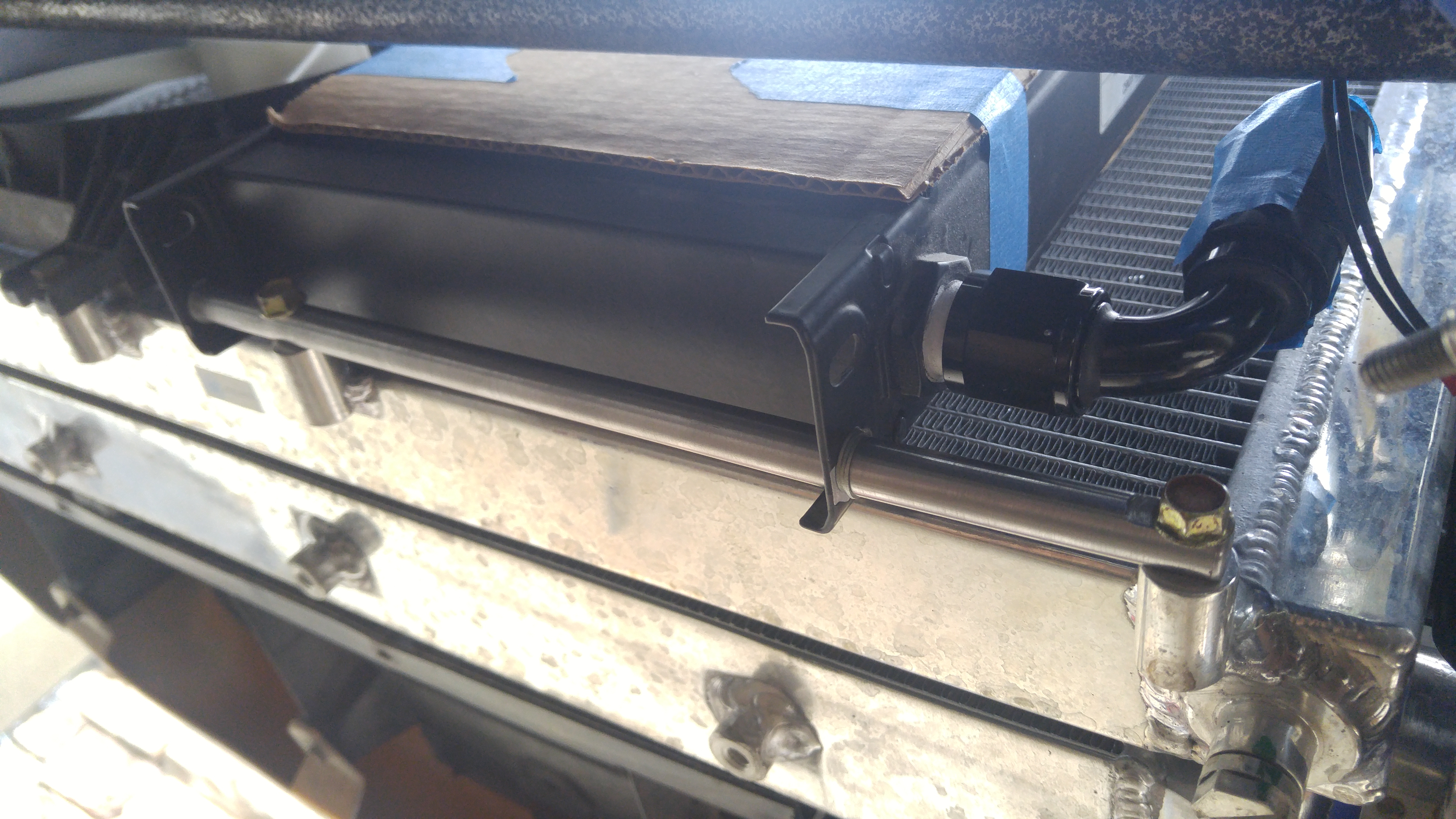

I painted the brackets, trimmed the fan shroud a little, fabbed lines and mounted the cooler permanently.
![Name: 20170106_132913_zps9dzyaukh.jpg
Views: 324
Size: 5.98 MB](https://www.miataturbo.net/attachments/build-threads-57/182317d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_132913_zps9dzyaukh.jpg)

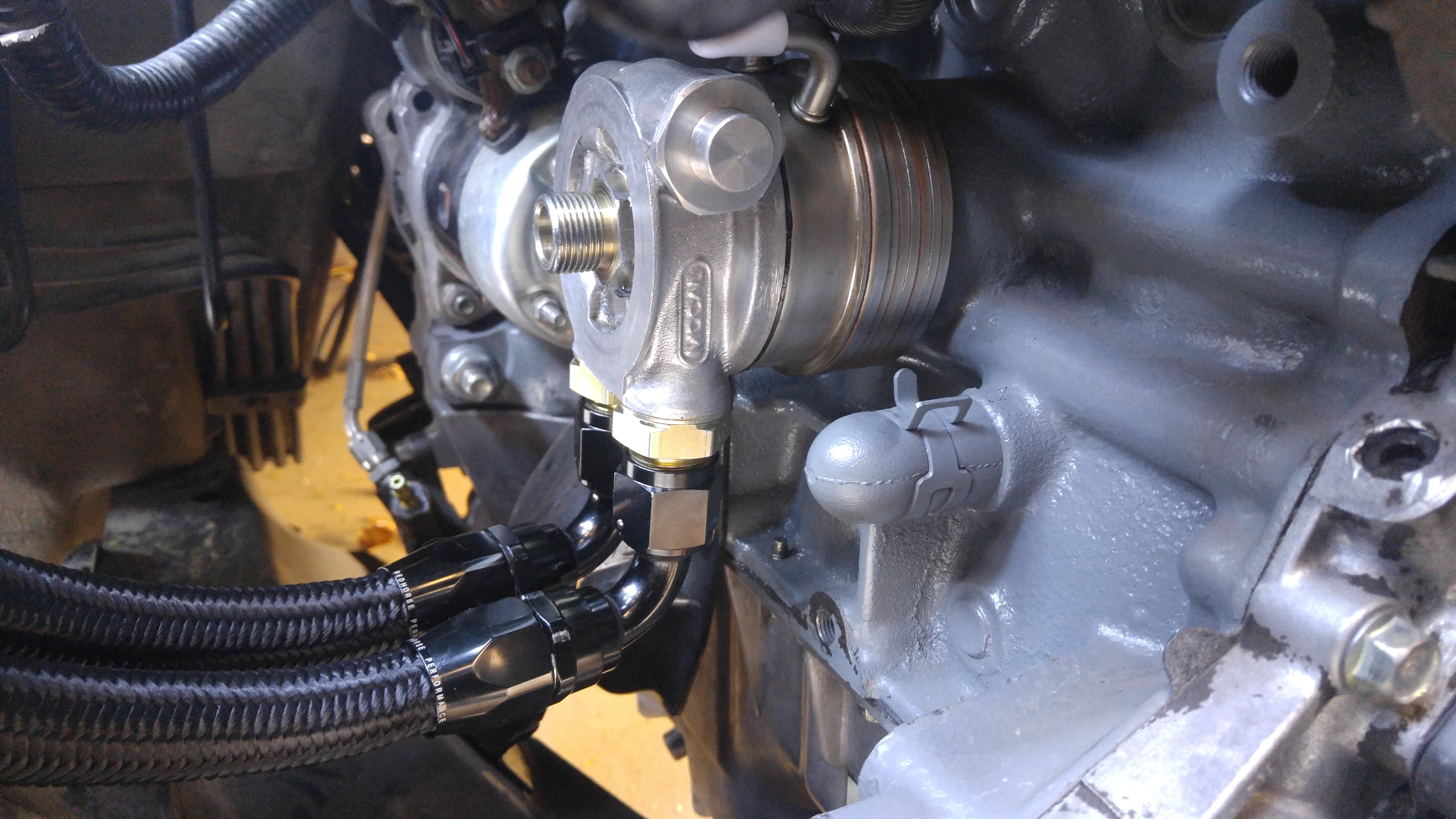

Redhorse is the ****. I don't think ill ever use another fitting.
![Name: 20170106_133112_zpsfvdjklbf.jpg
Views: 351
Size: 6.66 MB](https://www.miataturbo.net/attachments/build-threads-57/182318d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_133112_zpsfvdjklbf.jpg)
![Name: 20170106_133146_zpsbkhkcfxk.jpg
Views: 294
Size: 6.26 MB](https://www.miataturbo.net/attachments/build-threads-57/182319d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_133146_zpsbkhkcfxk.jpg)

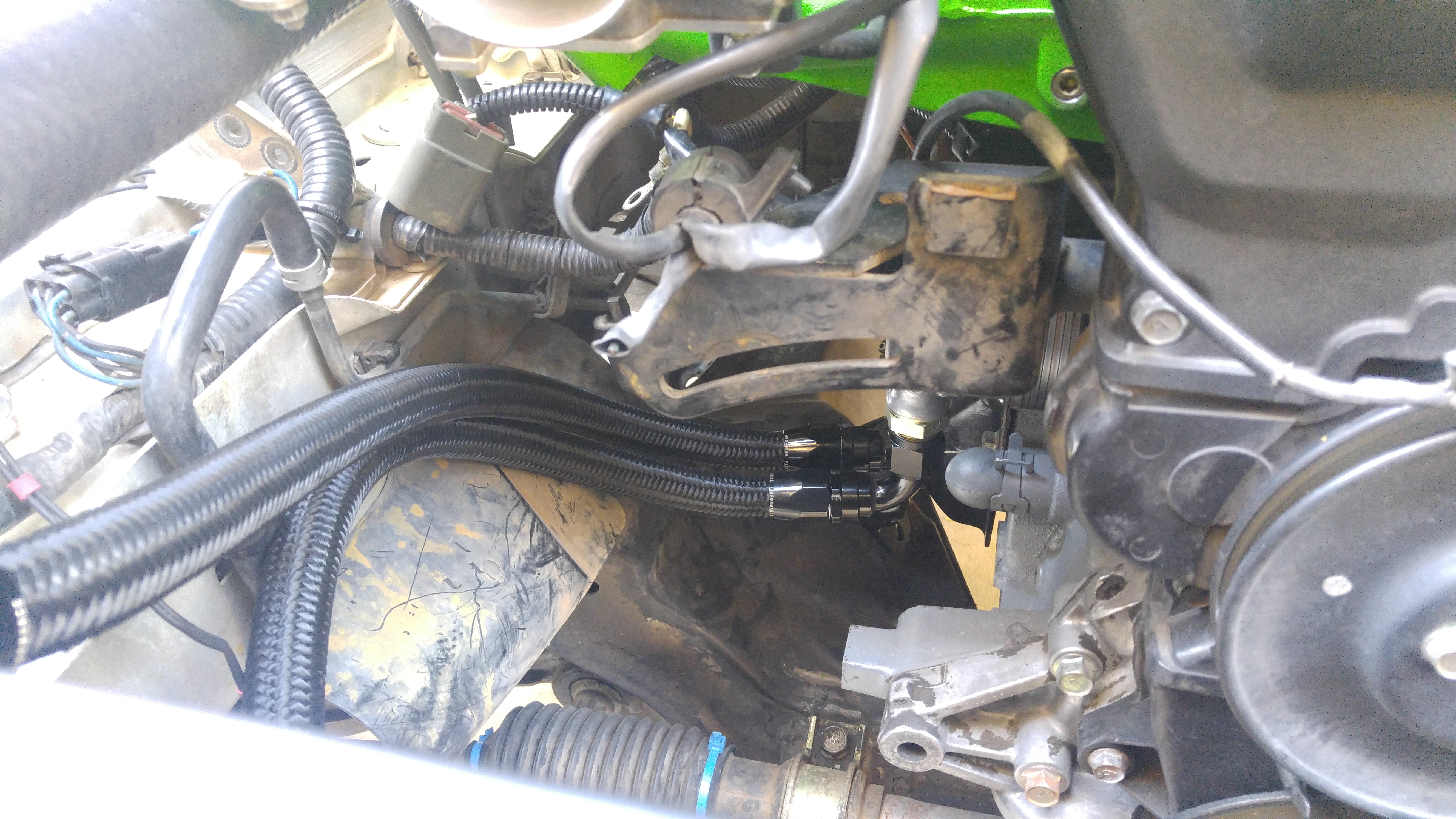

Clears intake piping and alt. with plenty of room to spare. I was able to do the entire oil cooler setup for about $230.
With the stock knock location, NA oil sender will not fit. Google showed me to just extend the sender out from the block with a ~1" union.
![Name: 20170101_151437_zpsm8m80nwk.jpg
Views: 318
Size: 8.75 MB](https://www.miataturbo.net/attachments/build-threads-57/182313d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170101_151437_zpsm8m80nwk.jpg)
Oil filter double nut FTW.
![Name: 20170104_155258_zpsl1vq9esg.jpg
Views: 324
Size: 5.98 MB](https://www.miataturbo.net/attachments/build-threads-57/182314d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170104_155258_zpsl1vq9esg.jpg)
Some *** used pliers on the threads... instead of the hex....
![Name: 20170106_1007081_zpsiwkboe7f.jpg
Views: 315
Size: 5.78 MB](https://www.miataturbo.net/attachments/build-threads-57/182315d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_1007081_zpsiwkboe7f.jpg)
Thread filed
![Name: 20170106_101551_zpsdtxs43bk.jpg
Views: 298
Size: 7.42 MB](https://www.miataturbo.net/attachments/build-threads-57/182316d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_101551_zpsdtxs43bk.jpg)
I painted the brackets, trimmed the fan shroud a little, fabbed lines and mounted the cooler permanently.
![Name: 20170106_132913_zps9dzyaukh.jpg
Views: 324
Size: 5.98 MB](https://www.miataturbo.net/attachments/build-threads-57/182317d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_132913_zps9dzyaukh.jpg)
Redhorse is the ****. I don't think ill ever use another fitting.
![Name: 20170106_133112_zpsfvdjklbf.jpg
Views: 351
Size: 6.66 MB](https://www.miataturbo.net/attachments/build-threads-57/182318d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_133112_zpsfvdjklbf.jpg)
![Name: 20170106_133146_zpsbkhkcfxk.jpg
Views: 294
Size: 6.26 MB](https://www.miataturbo.net/attachments/build-threads-57/182319d1501203025-seans-cheap-thrills-90-1-6-subaru-td04-20170106_133146_zpsbkhkcfxk.jpg)
Clears intake piping and alt. with plenty of room to spare. I was able to do the entire oil cooler setup for about $230.
![](https://www.miataturbo.net/images/smilies/smile.gif)
#1430
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

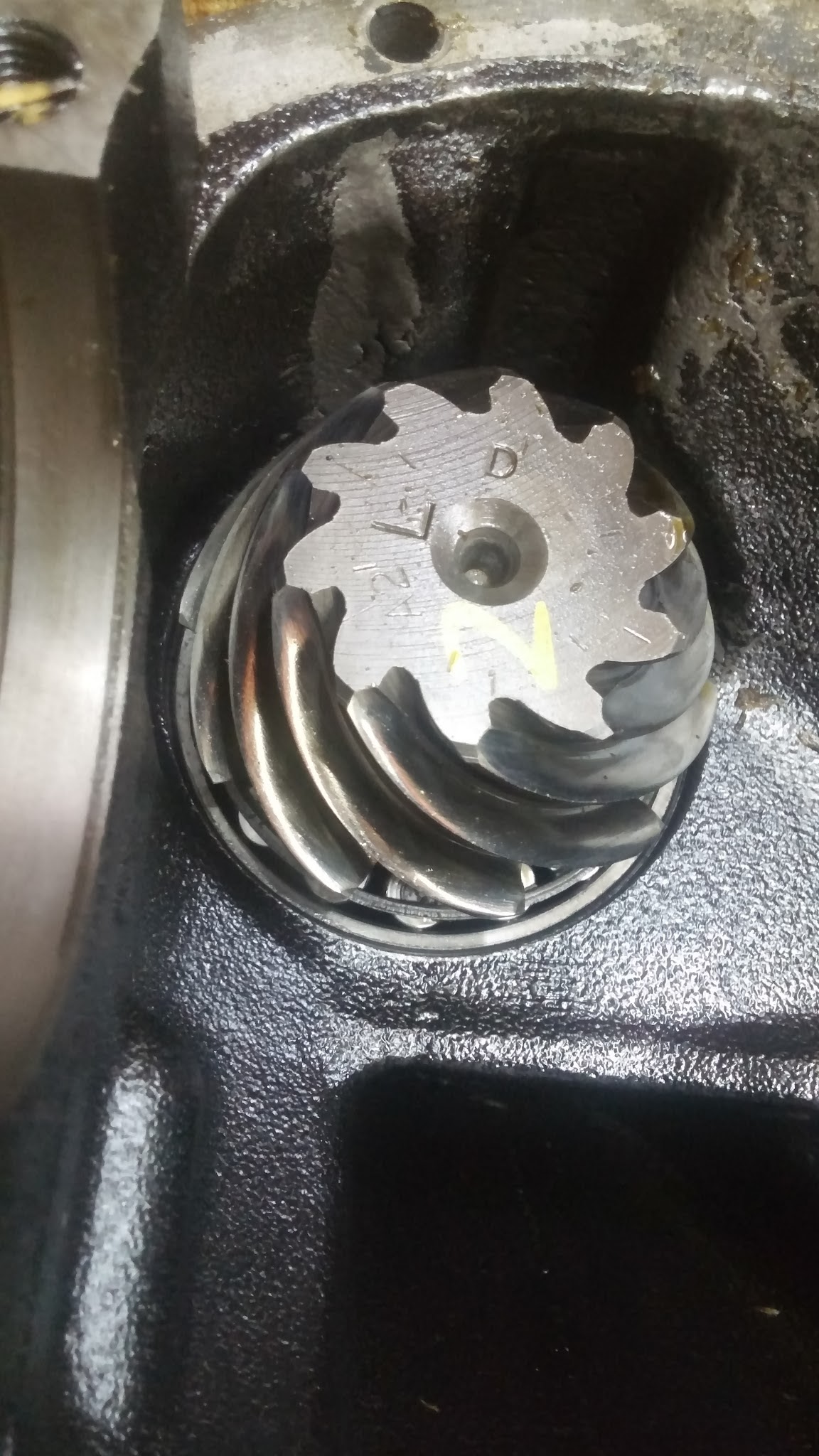

Hive mind, please help. Some *** wants to sell me a 3.9, but the pinion looks fuked to me. Ive rebuilt many rear ends and have never seen a pinion machined like this, but its so uniform and clean, it doesn't look like it wore that way too.
See the the sides of the teeth? Looks like the ring gear is wearing the pinion teeth faces down?
![Name: download_20170222_124145_zps0qiibeje.jpg
Views: 228
Size: 383.0 KB](https://www.miataturbo.net/attachments/build-threads-57/181816d1501201971-seans-cheap-thrills-90-1-6-subaru-td04-download_20170222_124145_zps0qiibeje.jpg)
As opposed to
See the the sides of the teeth? Looks like the ring gear is wearing the pinion teeth faces down?
![Name: download_20170222_124145_zps0qiibeje.jpg
Views: 228
Size: 383.0 KB](https://www.miataturbo.net/attachments/build-threads-57/181816d1501201971-seans-cheap-thrills-90-1-6-subaru-td04-download_20170222_124145_zps0qiibeje.jpg)
As opposed to
![](https://www.miataturbo.net/attachments/suspension-brakes-drivetrain-49/173935d1465875297-ring-pinon-swap-help-setting-pinion-depth-new-pinion.jpg)
#1439
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So many sensitive variables. Cmon Mr. Tribology.... Unlikely and odd yes, but not impossible. It still looks like a 2nd machining operation though.
Regarding the cooler mount as ive been asked a few times: its just 1/2" steel round with holes drilled through it to mount to the a/c fan bosses on the radiator. Its 4 pieces with the longer 2 drilled and tapped at each end for m6, the shorter ones are only drilled and tapped at one end. A threaded stud connects the long and short rods and captures the passenger side cooler tab in between them. Then a small m6 goes in the other side of the longer rod and captures tbe drivers side mounting tabs.
Regarding the cooler mount as ive been asked a few times: its just 1/2" steel round with holes drilled through it to mount to the a/c fan bosses on the radiator. Its 4 pieces with the longer 2 drilled and tapped at each end for m6, the shorter ones are only drilled and tapped at one end. A threaded stud connects the long and short rods and captures the passenger side cooler tab in between them. Then a small m6 goes in the other side of the longer rod and captures tbe drivers side mounting tabs.
#1440
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Some things/pic dump
Got a 3d printer, doing 3d printer things

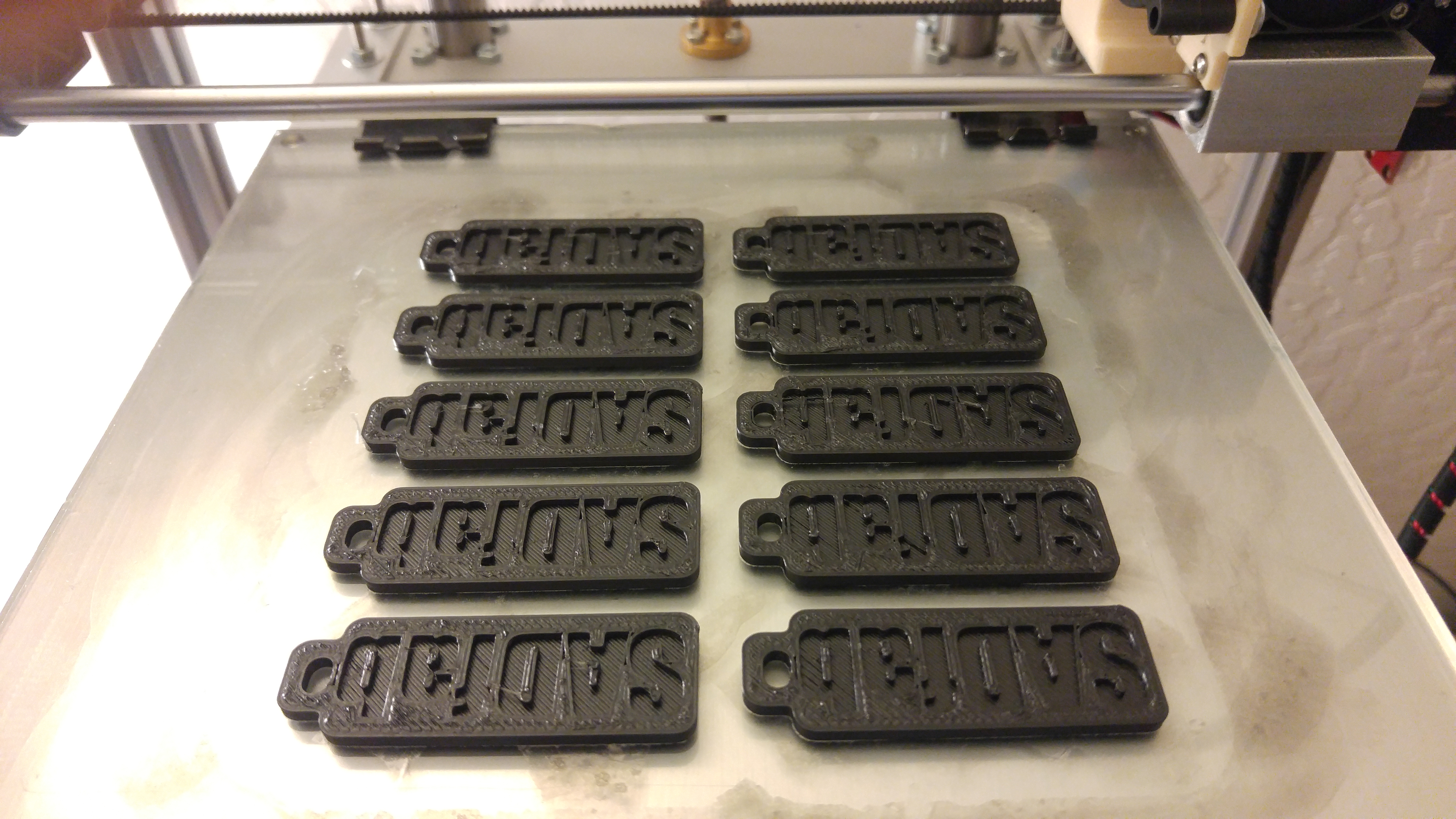

Keychains!
![Name: 20170208_175646_zpsto4wjzhu.jpg
Views: 315
Size: 5.53 MB](https://www.miataturbo.net/attachments/build-threads-57/181795d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170208_175646_zpsto4wjzhu.jpg)

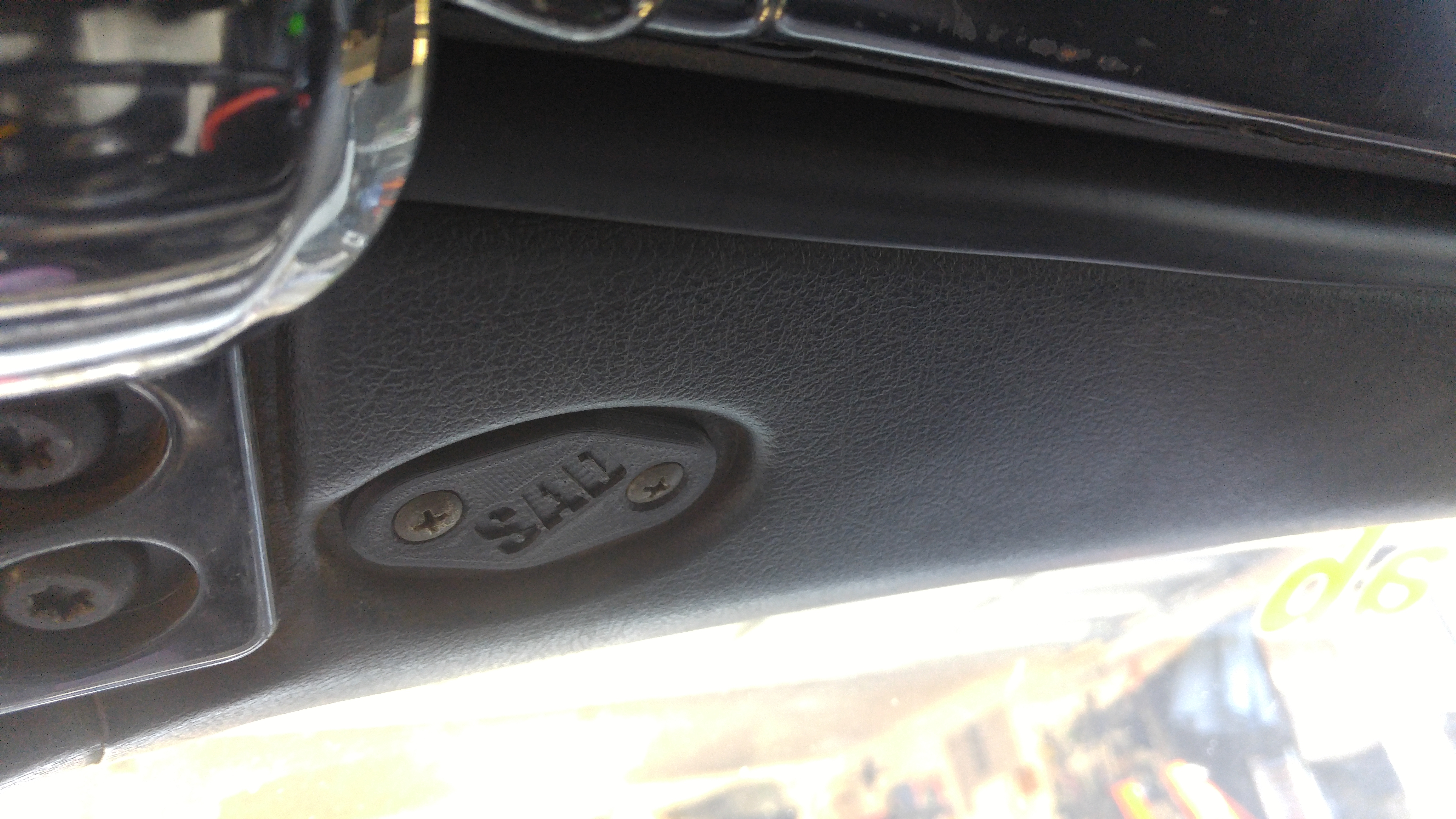

Visor blank plates, customizable "your name here"
![Name: 20170210_105345_zpsidfyq8mm.jpg
Views: 321
Size: 5.28 MB](https://www.miataturbo.net/attachments/build-threads-57/181796d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170210_105345_zpsidfyq8mm.jpg)

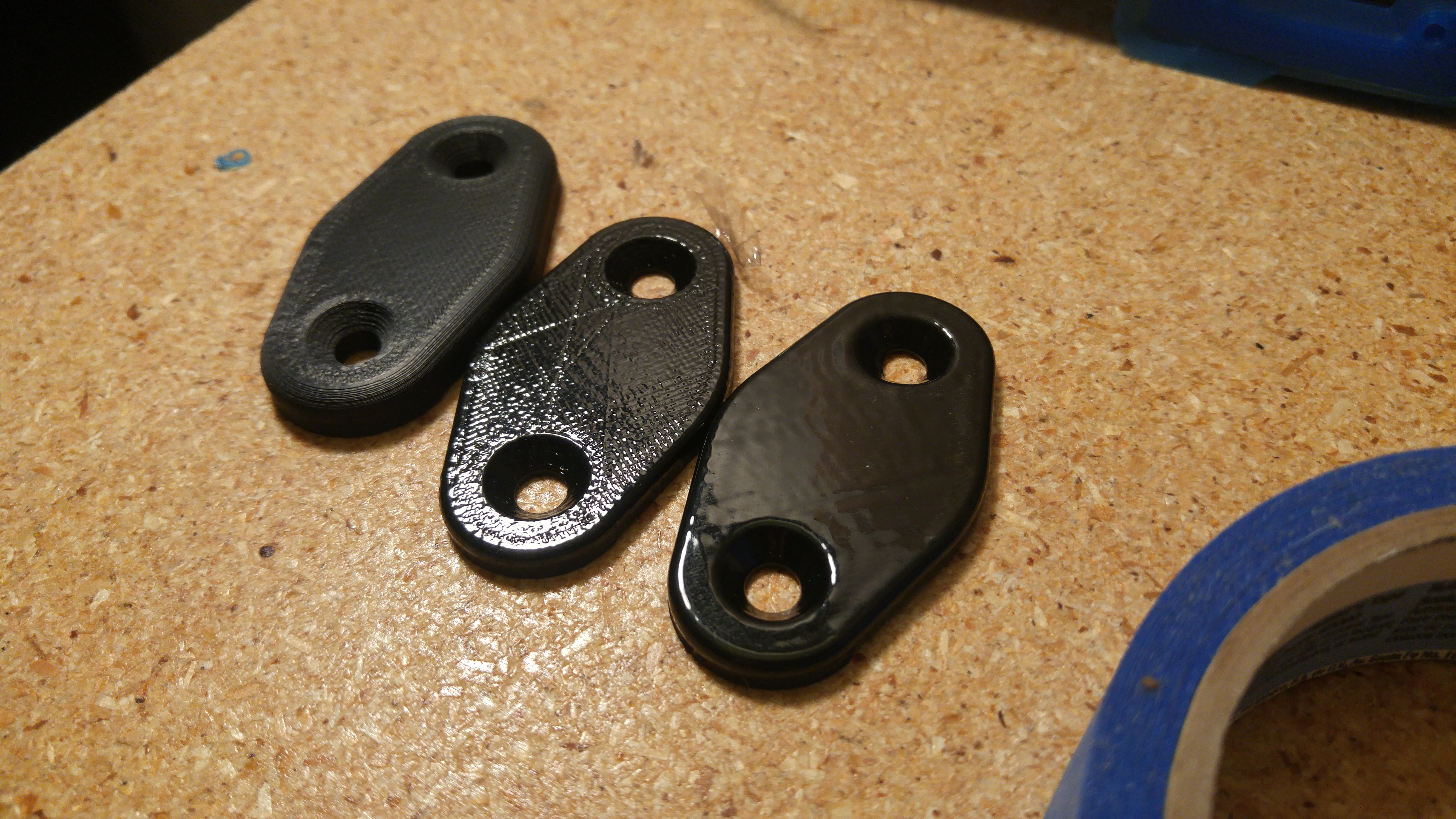

Messing with acetone vapor smoothing
![Name: 20170214_193300_zpsshaosnoj.jpg
Views: 324
Size: 6.83 MB](https://www.miataturbo.net/attachments/build-threads-57/181797d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170214_193300_zpsshaosnoj.jpg)

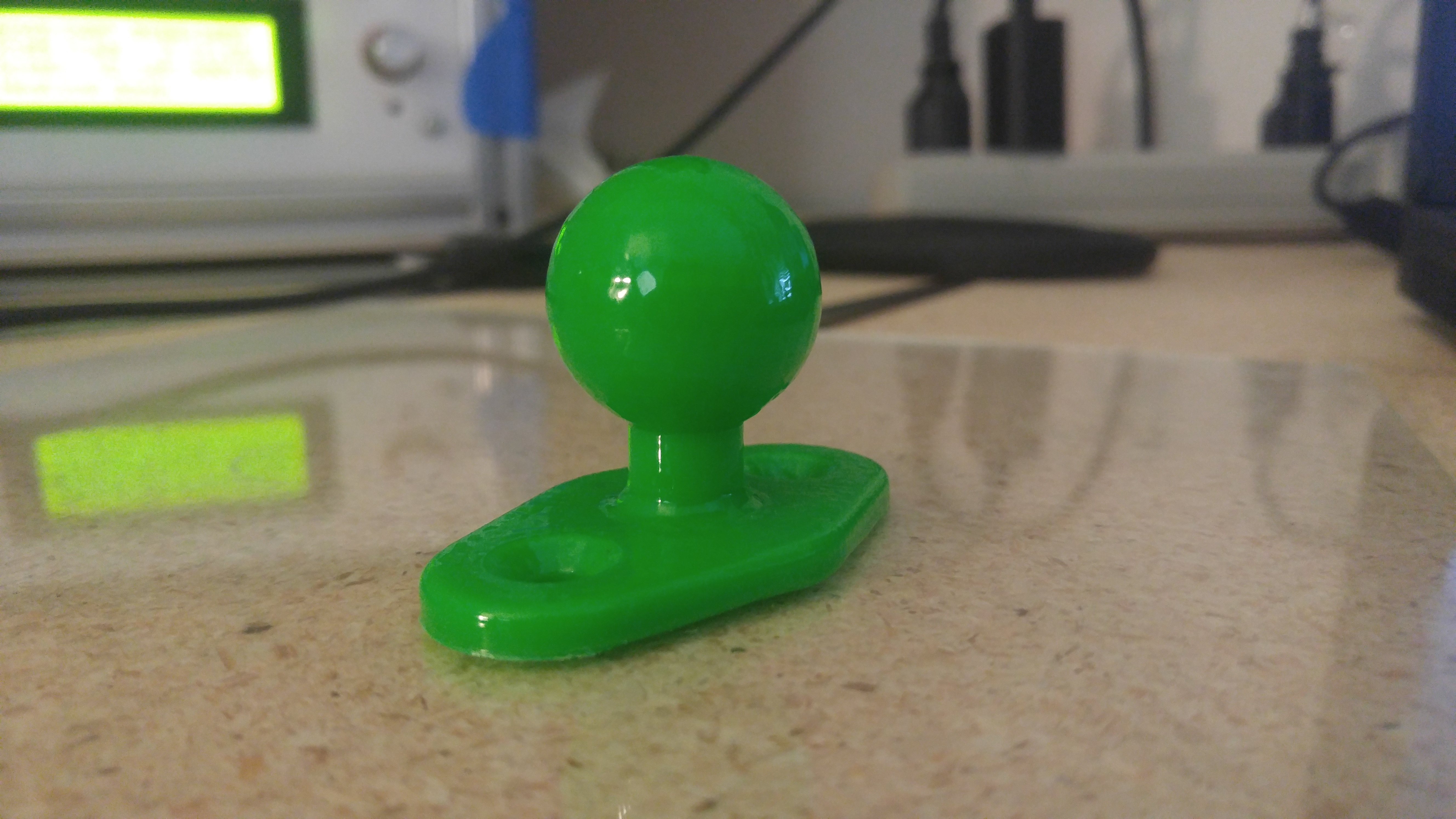

Ram ball mount visor delete thing. Hang a gopro or gps with RAM mounts where your visor screws in. Vapor treated.
![Name: 20170224_162025_zpsany4wfj5.jpg
Views: 299
Size: 5.27 MB](https://www.miataturbo.net/attachments/build-threads-57/181798d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170224_162025_zpsany4wfj5.jpg)

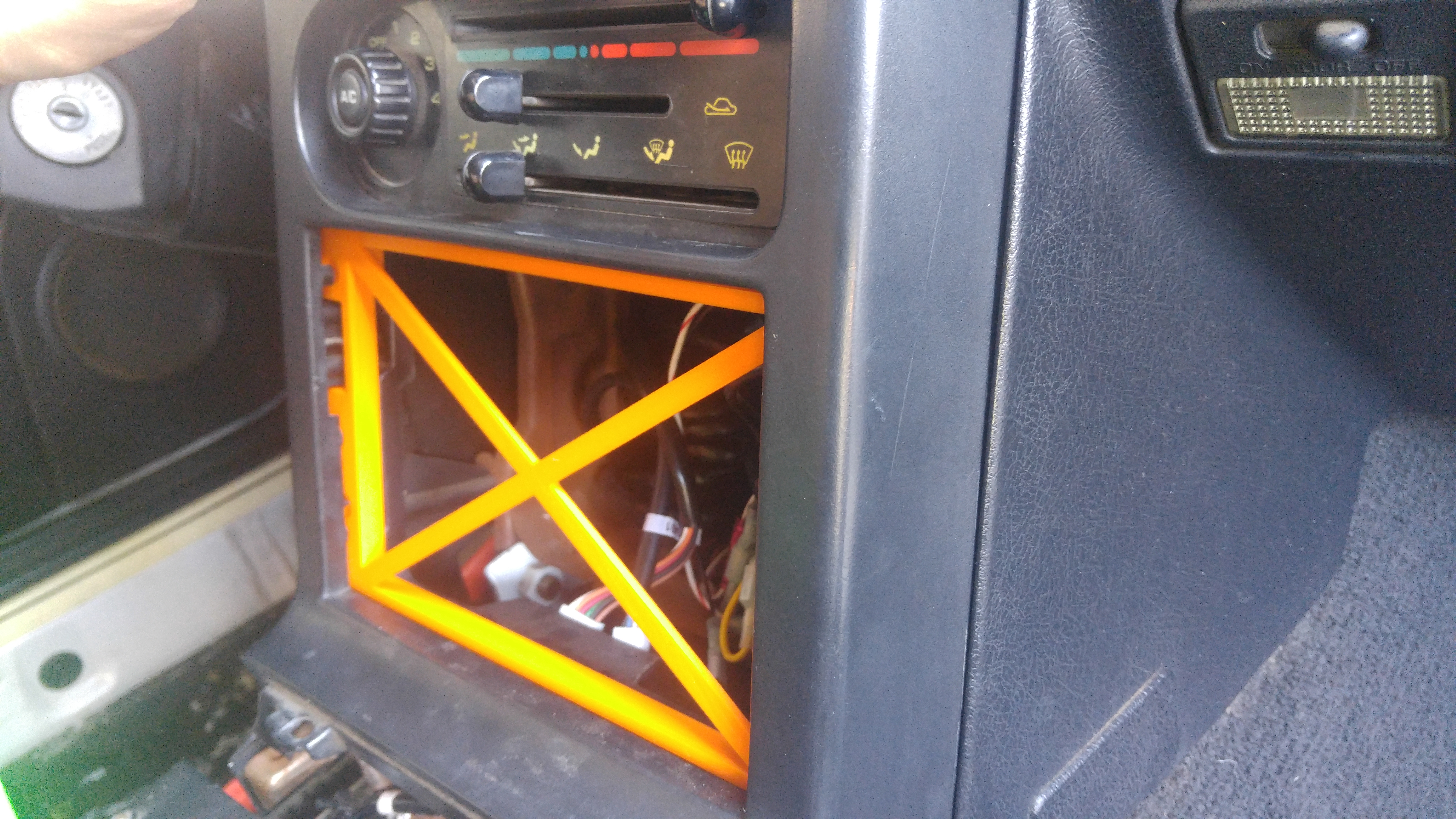

Custom gauge/switch panels and radio delete. Test piece.
![Name: 20170220_162225_zps4wt0d75m.jpg
Views: 299
Size: 6.76 MB](https://www.miataturbo.net/attachments/build-threads-57/181799d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170220_162225_zps4wt0d75m.jpg)
Sad trubo kitty
Got a 3d printer, doing 3d printer things
Keychains!
![Name: 20170208_175646_zpsto4wjzhu.jpg
Views: 315
Size: 5.53 MB](https://www.miataturbo.net/attachments/build-threads-57/181795d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170208_175646_zpsto4wjzhu.jpg)
Visor blank plates, customizable "your name here"
![Name: 20170210_105345_zpsidfyq8mm.jpg
Views: 321
Size: 5.28 MB](https://www.miataturbo.net/attachments/build-threads-57/181796d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170210_105345_zpsidfyq8mm.jpg)
Messing with acetone vapor smoothing
![Name: 20170214_193300_zpsshaosnoj.jpg
Views: 324
Size: 6.83 MB](https://www.miataturbo.net/attachments/build-threads-57/181797d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170214_193300_zpsshaosnoj.jpg)
Ram ball mount visor delete thing. Hang a gopro or gps with RAM mounts where your visor screws in. Vapor treated.
![Name: 20170224_162025_zpsany4wfj5.jpg
Views: 299
Size: 5.27 MB](https://www.miataturbo.net/attachments/build-threads-57/181798d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170224_162025_zpsany4wfj5.jpg)
Custom gauge/switch panels and radio delete. Test piece.
![Name: 20170220_162225_zps4wt0d75m.jpg
Views: 299
Size: 6.76 MB](https://www.miataturbo.net/attachments/build-threads-57/181799d1501201863-seans-cheap-thrills-90-1-6-subaru-td04-20170220_162225_zps4wt0d75m.jpg)
Sad trubo kitty
![Name: 20170221_175804_zpscd013uyc.jpg
