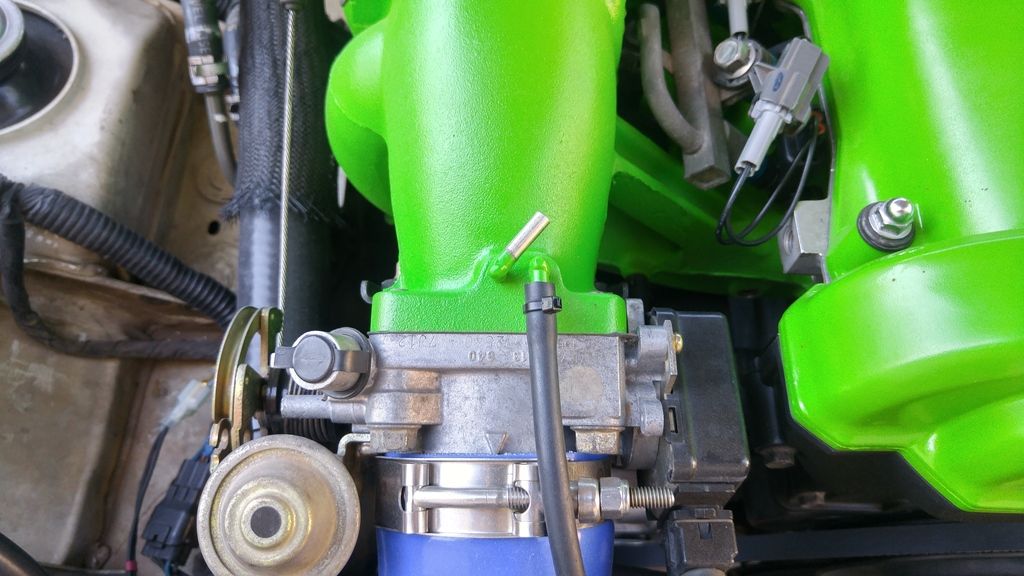

I dialed up the WG a little, to spike at 14psi, this happened immediately
![likecat](https://www.miataturbo.net/images/smilies/likecat.png)
![](https://www.miataturbo.net/attachments/build-threads-57/166430-seans-cheap-thrills-90-1-6-subaru-td04-80-20160324_151413_hdr_zpsaomovpfk_540b61d2d02fed2ab48af081651d7d1ce555ad63.jpg?dateline=1458937947)

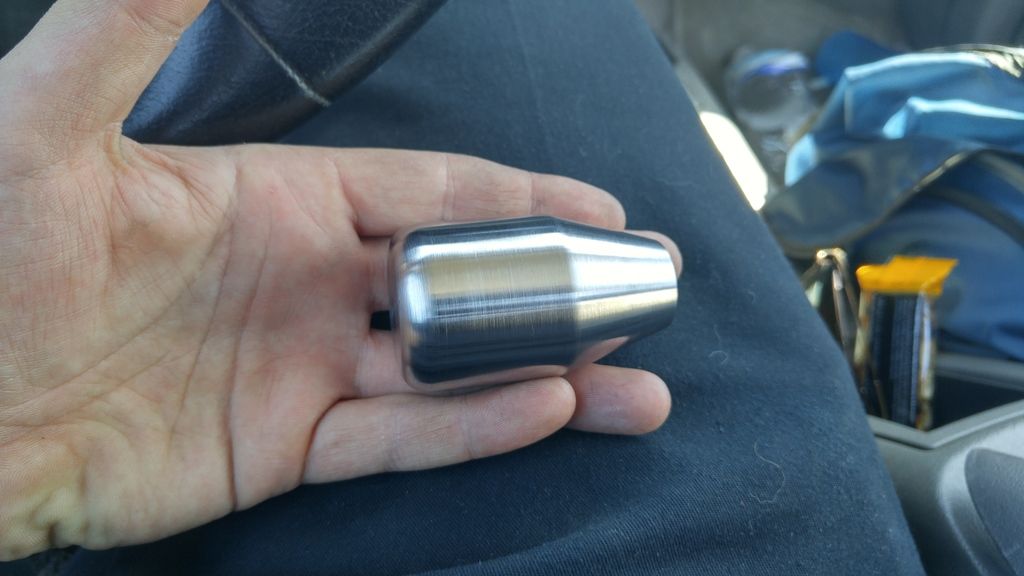

One of my cowoerker lost my shift **** on the way to the powder coaters. I bet its on someones honda now. So I made a better one, its probably a half pound heavier than the old one.
![](https://www.miataturbo.net/attachments/build-threads-57/166431-seans-cheap-thrills-90-1-6-subaru-td04-80-20160325_115557_hdr_zps6amgfbnn_77a030b22f603039b6f7af7f27d88ae1ee9c6646.jpg?dateline=1458937947)

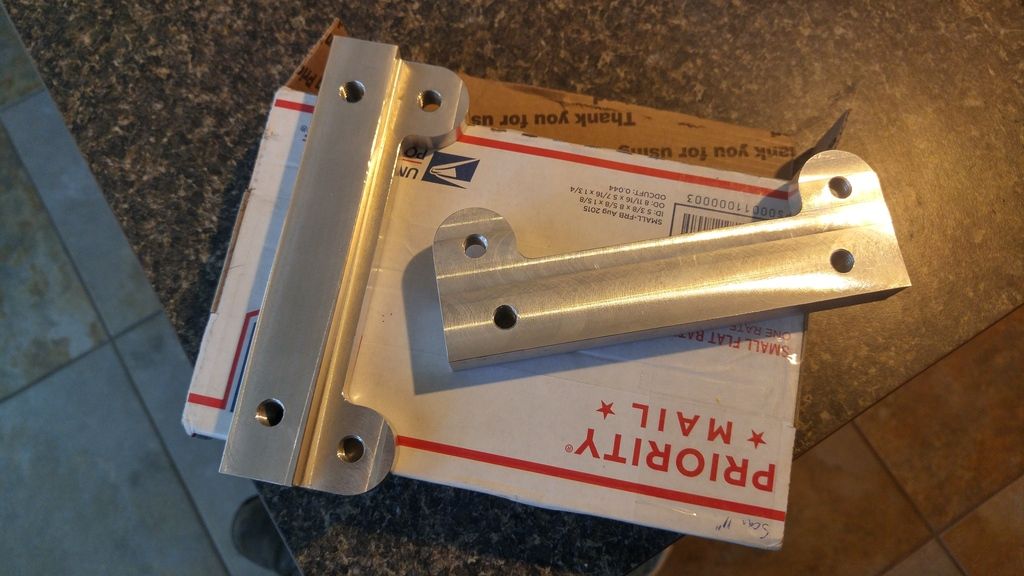

SADfab BBK brackets! I went with 11" setup because the 11.5" is over 3lbs more unsprung weight per corner, and I hope I wont need the thermal capacity.
![likecat](https://www.miataturbo.net/images/smilies/likecat.png)
![](https://www.miataturbo.net/attachments/build-threads-57/166430-seans-cheap-thrills-90-1-6-subaru-td04-80-20160324_151413_hdr_zpsaomovpfk_540b61d2d02fed2ab48af081651d7d1ce555ad63.jpg?dateline=1458937947)
One of my cowoerker lost my shift **** on the way to the powder coaters. I bet its on someones honda now. So I made a better one, its probably a half pound heavier than the old one.
![](https://www.miataturbo.net/attachments/build-threads-57/166431-seans-cheap-thrills-90-1-6-subaru-td04-80-20160325_115557_hdr_zps6amgfbnn_77a030b22f603039b6f7af7f27d88ae1ee9c6646.jpg?dateline=1458937947)
SADfab BBK brackets! I went with 11" setup because the 11.5" is over 3lbs more unsprung weight per corner, and I hope I wont need the thermal capacity.
![](https://www.miataturbo.net/attachments/build-threads-57/166432-seans-cheap-thrills-90-1-6-subaru-td04-80-20160325_124939_hdr_zpsnjoegyxa_ff83d587fdf115c54de4a2b165e40b7d3e141f7c.jpg?dateline=1458937947)
#1249
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
waiting for my ******* cops!!!! ebay, got 4 D585s for $30 shipped, with the LSX bracket and mini harness.... in due time. That cap had a ziptie, it either failed, or wasnt tight enough.
ănal
ănal
#1250
SADFab Destructive Testing Engineer
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/moderator.png)
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Attachment 166264
Try this. Super cool cool coil mount
Zipped up drawing that anyone with a laser or autocaad should be able to use.
Try this. Super cool cool coil mount
Zipped up drawing that anyone with a laser or autocaad should be able to use.
#1253
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So I made one of those things by hand, which was a total PITA. I then modified it for 1.6 fitment, which required slotting 3 of the 5 holes and removing a chunk for the PCV. It would be pretty easy to make a 1 fits all valve covers.

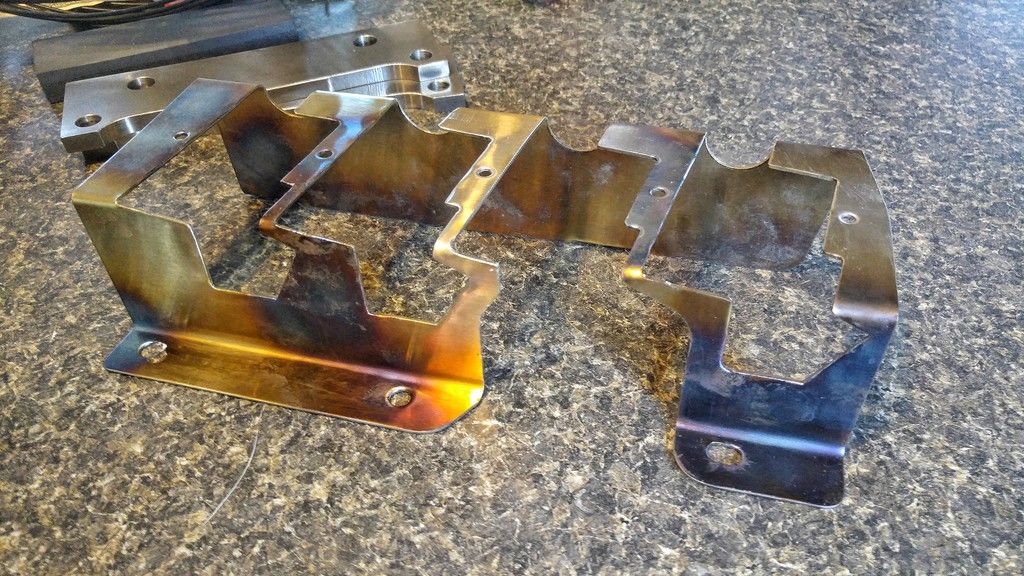

I used 16ga SS and torched it to make it all gay rainbow for aidan.
![](https://www.miataturbo.net/attachments/build-threads-57/167264-seans-cheap-thrills-90-1-6-subaru-td04-80-20160402_172814_hdr2_zpswviupu6d_64997cc0c3a077a5a1db9fb34909829025ff2d33.jpg?dateline=1459738616)

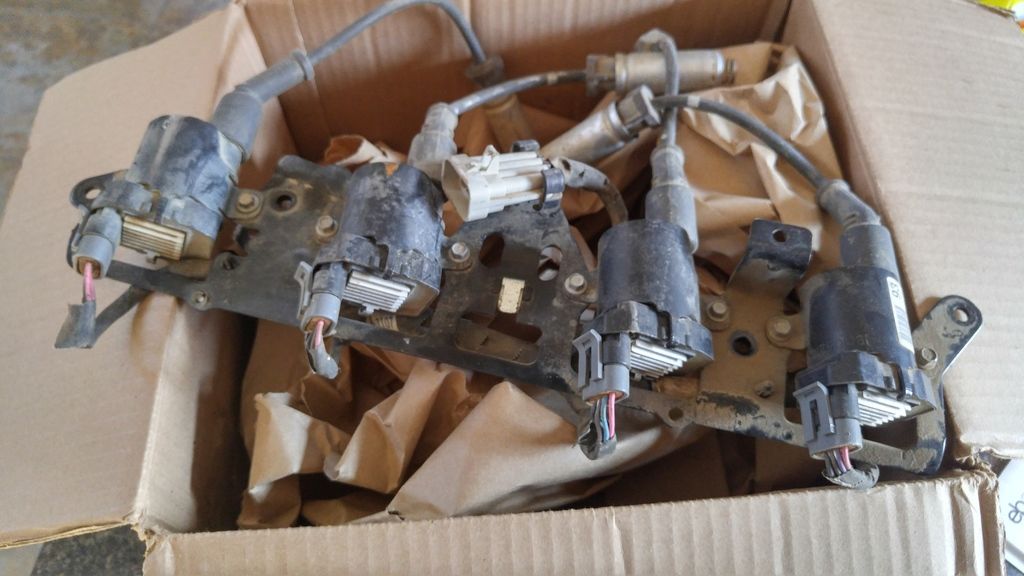

I got 4 used GM coils from a truck, on the bracket with the harness and plug wire for $30, shipped, from ebay.
![](https://www.miataturbo.net/attachments/build-threads-57/167265-seans-cheap-thrills-90-1-6-subaru-td04-80-20160326_164331_hdr_zpsmabzoudf_97a76a20666f75dbcaf4bc0b8317577c355a988e.jpg?dateline=1459738616)

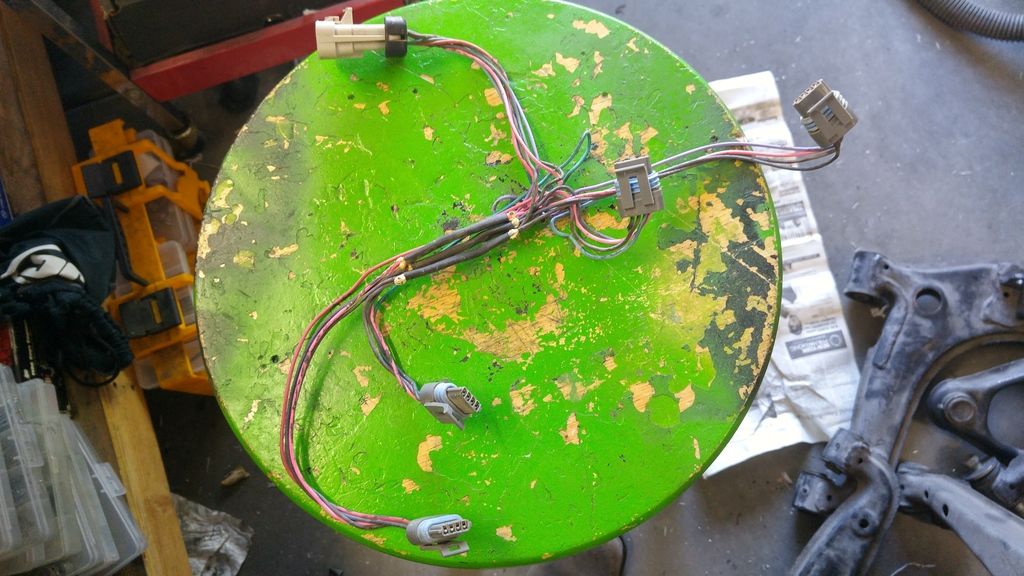

Heres the harness after i unraveled the cloth tape.
![](https://www.miataturbo.net/attachments/build-threads-57/167266-seans-cheap-thrills-90-1-6-subaru-td04-80-20160402_154602_hdr_zpsalmphiow_304fde7f221ef11b17b832747a218e169597d31b.jpg?dateline=1459738616)
I unraveled it and oragami-ed it in a different way and made it fit pretty dam well with no cutting.
![](https://www.miataturbo.net/attachments/build-threads-57/167267-seans-cheap-thrills-90-1-6-subaru-td04-80-20160402_190215_hdr_zpssxz8nioh_c6c91fb173d185aecbe17bbd26bf3a792f057b59.jpg?dateline=1459738616)

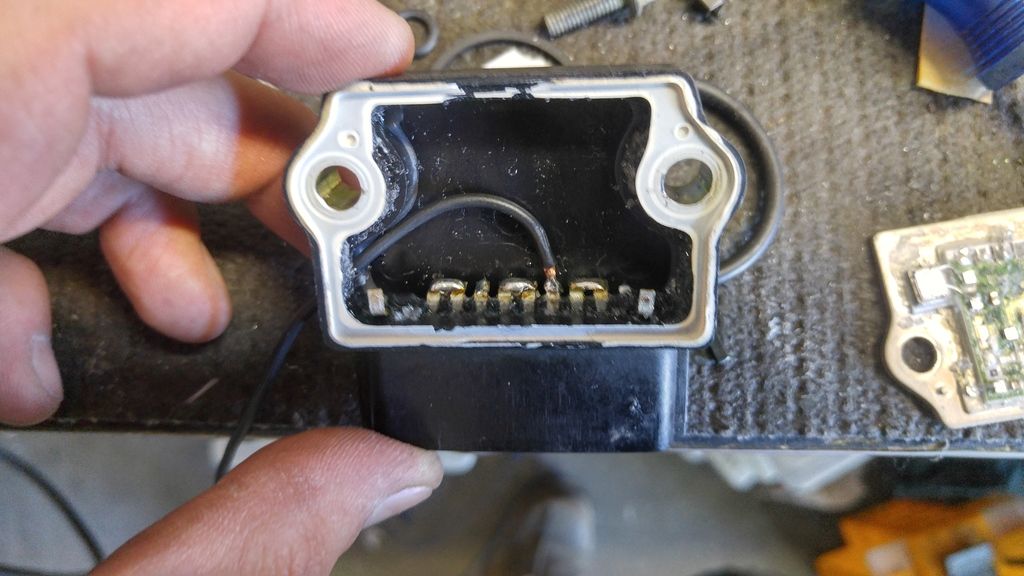

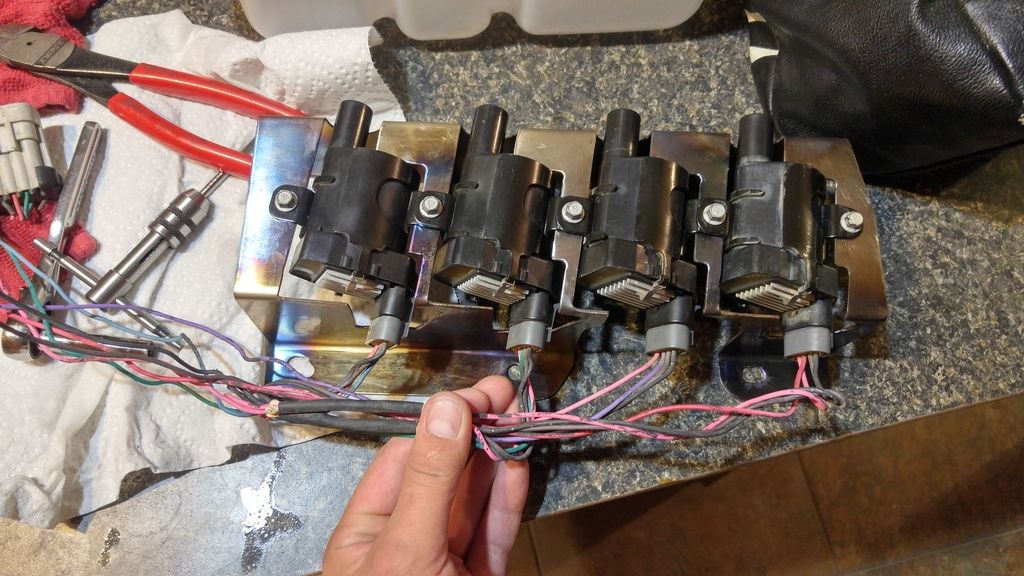

I kept my old igniter that had a fried tach circuit, and used that as a jumper box. It was full of robot jizz.
![](https://www.miataturbo.net/attachments/build-threads-57/167268-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_145445_hdr_zpss6qdxtig_735c4a634d3804faffb87255748ea4b7346bcb8f.jpg?dateline=1459738616)
(I left the good igniter on the radiator, and now its on the freeway somewhere)

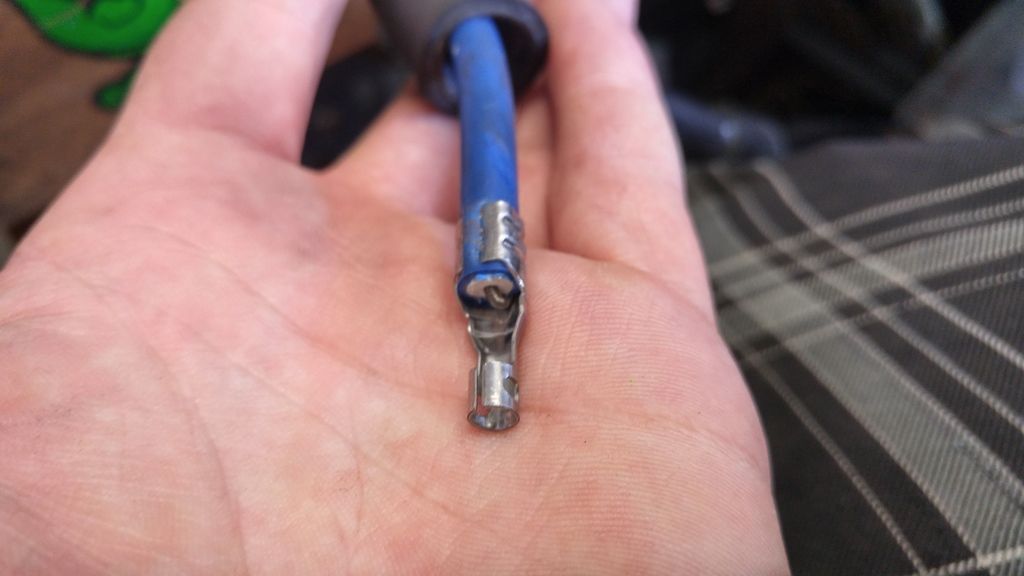

I removed the coil side plug wire contacts from the truck wires and re-crimped them onto trimmed miata wires.
![](https://www.miataturbo.net/attachments/build-threads-57/167269-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_151438_hdr_zpsocwqdwz8_d31d607bf73a0dae223b57edc4c2bf2f5a3d48b1.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167270-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_152549_hdr_zps4xm9az6r_8a82d2396e7d4368d6dbcdf55c7f87c4447c7de9.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167271-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_152559_hdr_zps7duimh36_1ef7362d8ab482d9020283b3039098604657bc94.jpg?dateline=1459738616)

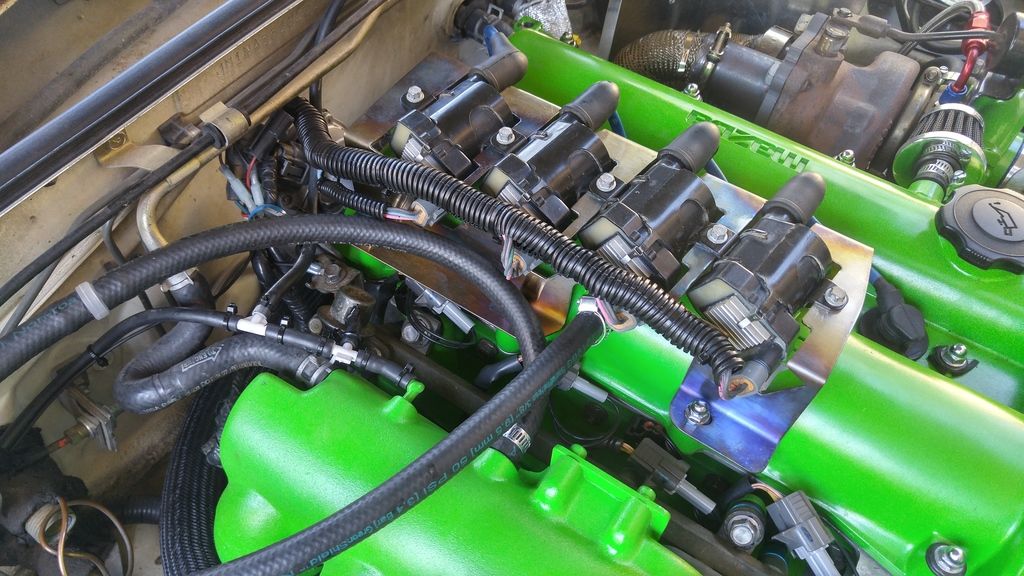

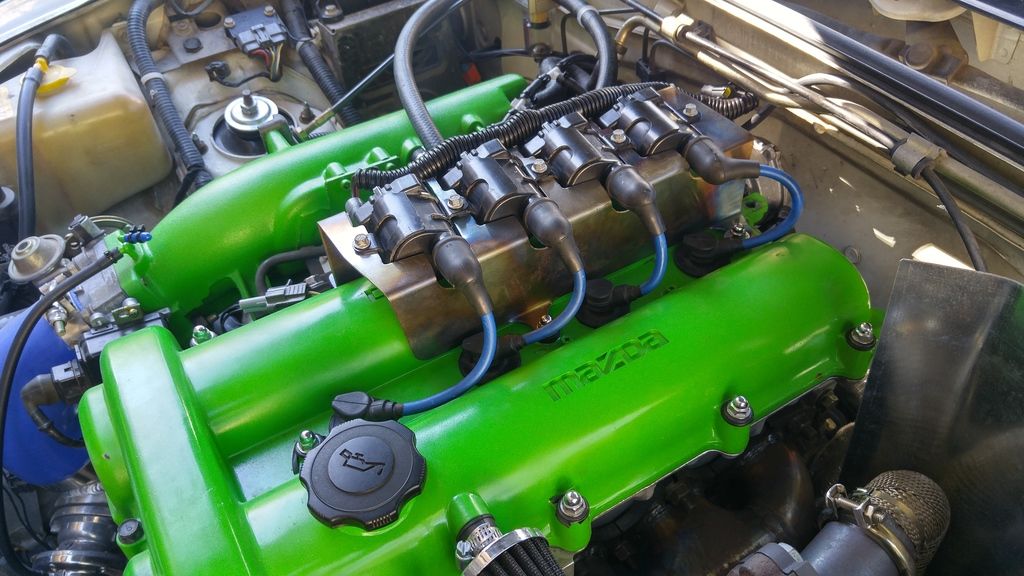

Started right up and runs great. It wasnt $18.50, but the total investment was about $35.36.

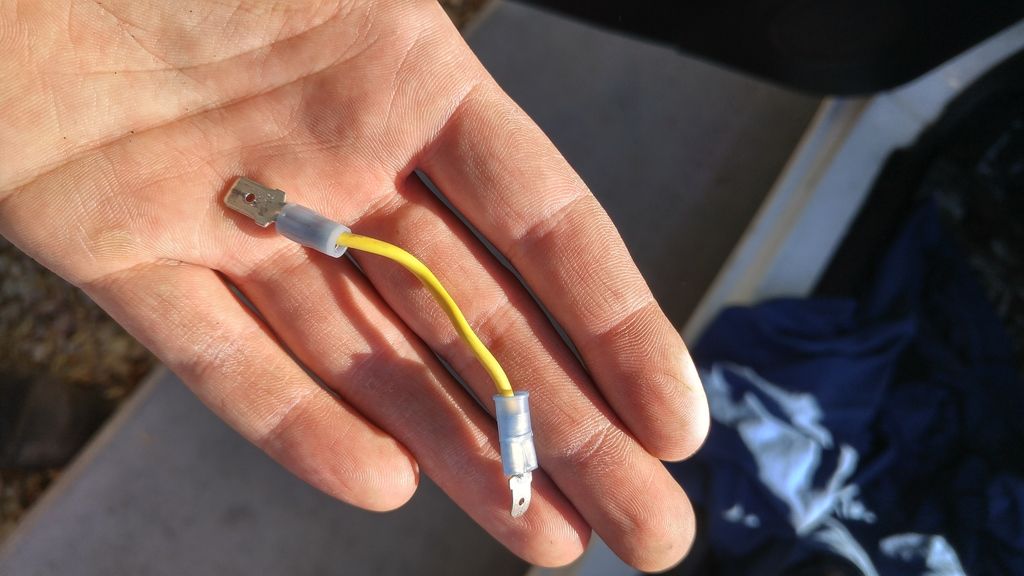

Did a clutch interlock delete, finally.
![](https://www.miataturbo.net/attachments/build-threads-57/167272-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_162428_hdr_zpsibjb5pfx_5d21b791f0aa5c0c5fc3f87f3c98b0812d7424aa.jpg?dateline=1459738616)

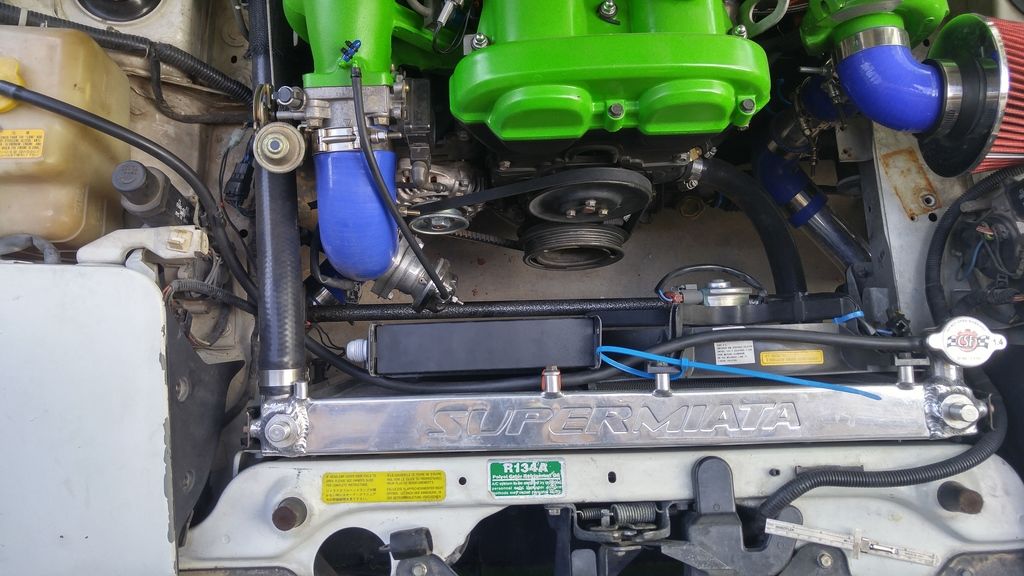

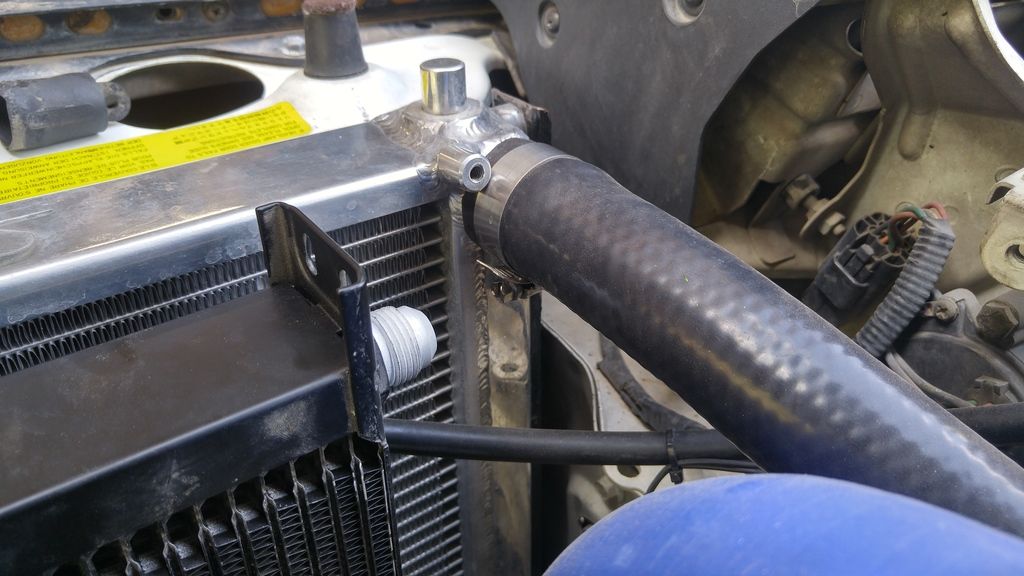

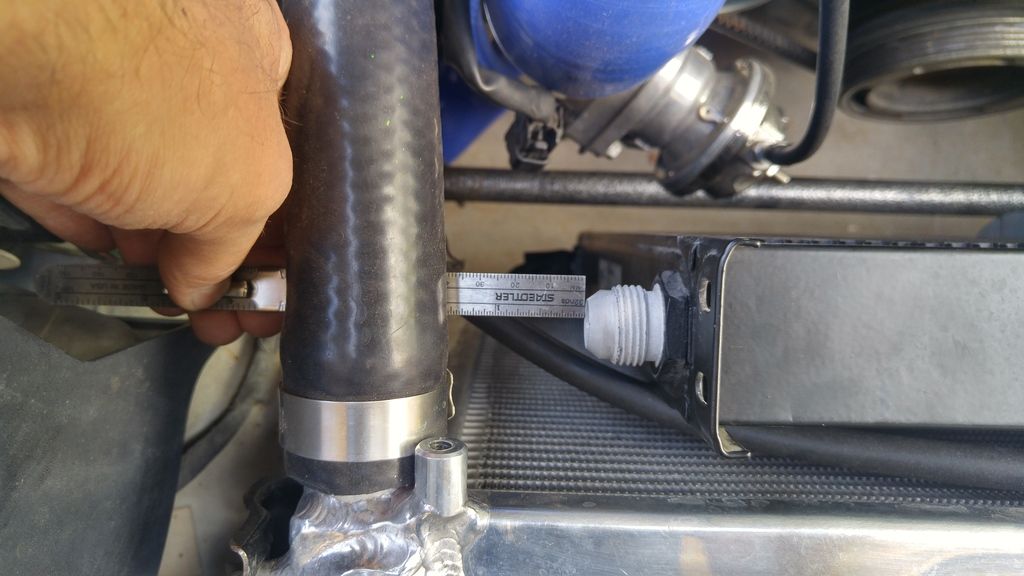

Test fit oil cooler,. It will be close.
![](https://www.miataturbo.net/attachments/build-threads-57/167273-seans-cheap-thrills-90-1-6-subaru-td04-80-20160328_110127_hdr_zpssjwf01aq_38e39f7ddacc37e0b11cb500f04623d940258dc9.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167274-seans-cheap-thrills-90-1-6-subaru-td04-80-20160328_110231_hdr_zpsle5dsphk_ce923c7a891a8b8d9a0daf4b05d0519bd50559be.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167275-seans-cheap-thrills-90-1-6-subaru-td04-80-20160328_110139_hdr_zps0y9h2x6k_200b7d6e2fc8f947ed5c3741608bd2a55ee22fc1.jpg?dateline=1459738616)
thanks again for the cad ryan!
I used 16ga SS and torched it to make it all gay rainbow for aidan.
![](https://www.miataturbo.net/attachments/build-threads-57/167264-seans-cheap-thrills-90-1-6-subaru-td04-80-20160402_172814_hdr2_zpswviupu6d_64997cc0c3a077a5a1db9fb34909829025ff2d33.jpg?dateline=1459738616)
I got 4 used GM coils from a truck, on the bracket with the harness and plug wire for $30, shipped, from ebay.
![](https://www.miataturbo.net/attachments/build-threads-57/167265-seans-cheap-thrills-90-1-6-subaru-td04-80-20160326_164331_hdr_zpsmabzoudf_97a76a20666f75dbcaf4bc0b8317577c355a988e.jpg?dateline=1459738616)
Heres the harness after i unraveled the cloth tape.
![](https://www.miataturbo.net/attachments/build-threads-57/167266-seans-cheap-thrills-90-1-6-subaru-td04-80-20160402_154602_hdr_zpsalmphiow_304fde7f221ef11b17b832747a218e169597d31b.jpg?dateline=1459738616)
I unraveled it and oragami-ed it in a different way and made it fit pretty dam well with no cutting.
![](https://www.miataturbo.net/attachments/build-threads-57/167267-seans-cheap-thrills-90-1-6-subaru-td04-80-20160402_190215_hdr_zpssxz8nioh_c6c91fb173d185aecbe17bbd26bf3a792f057b59.jpg?dateline=1459738616)
I kept my old igniter that had a fried tach circuit, and used that as a jumper box. It was full of robot jizz.
![](https://www.miataturbo.net/attachments/build-threads-57/167268-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_145445_hdr_zpss6qdxtig_735c4a634d3804faffb87255748ea4b7346bcb8f.jpg?dateline=1459738616)
(I left the good igniter on the radiator, and now its on the freeway somewhere)
I removed the coil side plug wire contacts from the truck wires and re-crimped them onto trimmed miata wires.
![](https://www.miataturbo.net/attachments/build-threads-57/167269-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_151438_hdr_zpsocwqdwz8_d31d607bf73a0dae223b57edc4c2bf2f5a3d48b1.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167270-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_152549_hdr_zps4xm9az6r_8a82d2396e7d4368d6dbcdf55c7f87c4447c7de9.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167271-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_152559_hdr_zps7duimh36_1ef7362d8ab482d9020283b3039098604657bc94.jpg?dateline=1459738616)
Started right up and runs great. It wasnt $18.50, but the total investment was about $35.36.
Did a clutch interlock delete, finally.
![](https://www.miataturbo.net/attachments/build-threads-57/167272-seans-cheap-thrills-90-1-6-subaru-td04-80-20160403_162428_hdr_zpsibjb5pfx_5d21b791f0aa5c0c5fc3f87f3c98b0812d7424aa.jpg?dateline=1459738616)
Test fit oil cooler,. It will be close.
![](https://www.miataturbo.net/attachments/build-threads-57/167273-seans-cheap-thrills-90-1-6-subaru-td04-80-20160328_110127_hdr_zpssjwf01aq_38e39f7ddacc37e0b11cb500f04623d940258dc9.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167274-seans-cheap-thrills-90-1-6-subaru-td04-80-20160328_110231_hdr_zpsle5dsphk_ce923c7a891a8b8d9a0daf4b05d0519bd50559be.jpg?dateline=1459738616)
![](https://www.miataturbo.net/attachments/build-threads-57/167275-seans-cheap-thrills-90-1-6-subaru-td04-80-20160328_110139_hdr_zps0y9h2x6k_200b7d6e2fc8f947ed5c3741608bd2a55ee22fc1.jpg?dateline=1459738616)
thanks again for the cad ryan!
#1258
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
The seller almost immediately doubled the price, lol.
4 GM Chevrolet 4 8L 5 3L 6 0L 8 1L Engine Ignition Coil Pack Part 610 2828 | eBay
This is the cheapest thing on there right now.
GM OEM Ignition Coil Packs Bracket Wiring 4 8L 5 3L 6 0L Part 19005218 | eBay
check car-part.com too.
Also forgot to mention my tach isnt working. I made a tach circuit in MS, but apparently its not working.
#1260
SadFab CEO
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (3)
Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Initial spool report.
And should I install a restrictor on the wastegate? Notice all the EBC induced noise on the map and resulting injector DC/PW.
![](https://www.miataturbo.net/attachments/build-threads-57/167360-seans-cheap-thrills-90-1-6-subaru-td04-80-initial_20spool_zpsrvoie2ya_a40bb39d51c4631bcaecc9cb583c5d86ff65133a.jpg?dateline=1459802788)

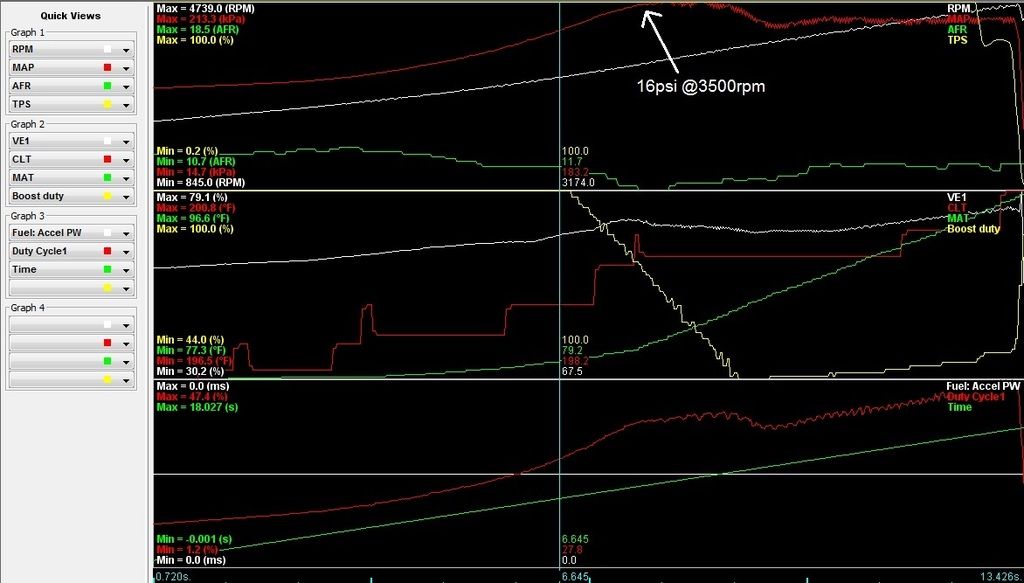

12psi by 3175rpm right before the wastegate opens, and 16psi by 3500rpm, but the wastegate started opening at 3200. 5th gear pull.
And should I install a restrictor on the wastegate? Notice all the EBC induced noise on the map and resulting injector DC/PW.
![](https://www.miataturbo.net/attachments/build-threads-57/167360-seans-cheap-thrills-90-1-6-subaru-td04-80-initial_20spool_zpsrvoie2ya_a40bb39d51c4631bcaecc9cb583c5d86ff65133a.jpg?dateline=1459802788)
12psi by 3175rpm right before the wastegate opens, and 16psi by 3500rpm, but the wastegate started opening at 3200. 5th gear pull.
