so, cheesy title, I get it.
Anyway, heres the documentation for my build thread as it slowly comes together. It came together quickly but the installation will probably be over the next months time in an attempt to get the car together for August 28th (local event with about $10K in prize money).
Everyone laughs when I tell them what size my turbo is however I bought it for $50 and then I mostly get nods of "**** it, why not?" Which is why I bought this setup, I was looking for a moderate boost in power from my weakazz m45 setup and when the turbo came up for sale I figured now was the time to pull the trigger. The only thing cheap (read knockoff) about the build is the turbo, Everything else is pretty quality as I only like doing it right once.
Anyway, enough backstory here's what's happened so far.

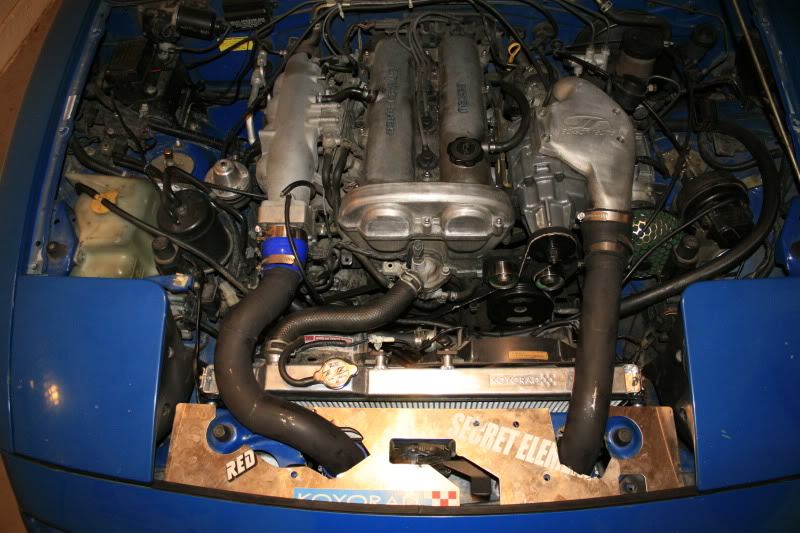

This is being replaced:
![Name: 081309_1888.jpg
Views: 284
Size: 108.3 KB](https://www.miataturbo.net/attachments/build-threads-57/196352d1501234266-project-lagwagon-to4e-1-6l-081309_1888.jpg)
Bought:

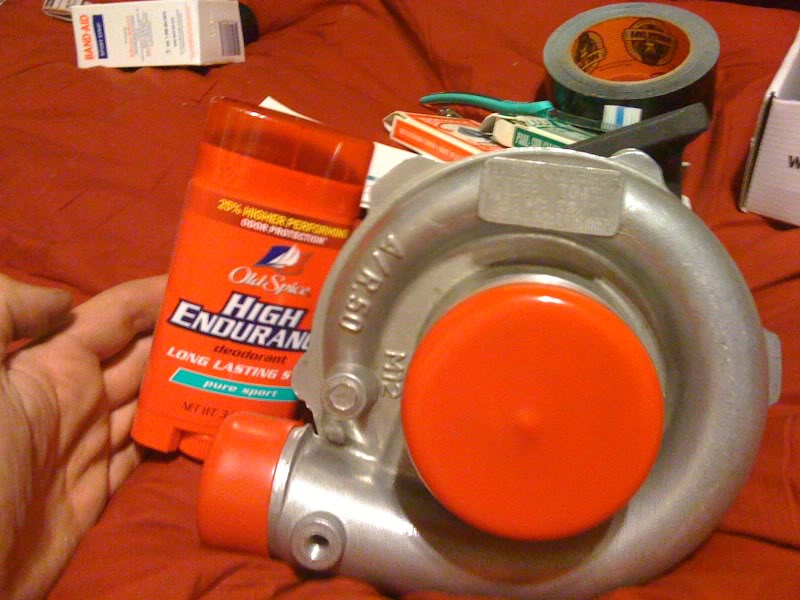

T04E ( .57 trim .48 compressor/.64 turbine a/r)
![Name: iphone6-30027.jpg
Views: 233
Size: 88.5 KB](https://www.miataturbo.net/attachments/build-threads-57/196353d1501234266-project-lagwagon-to4e-1-6l-iphone6-30027.jpg)

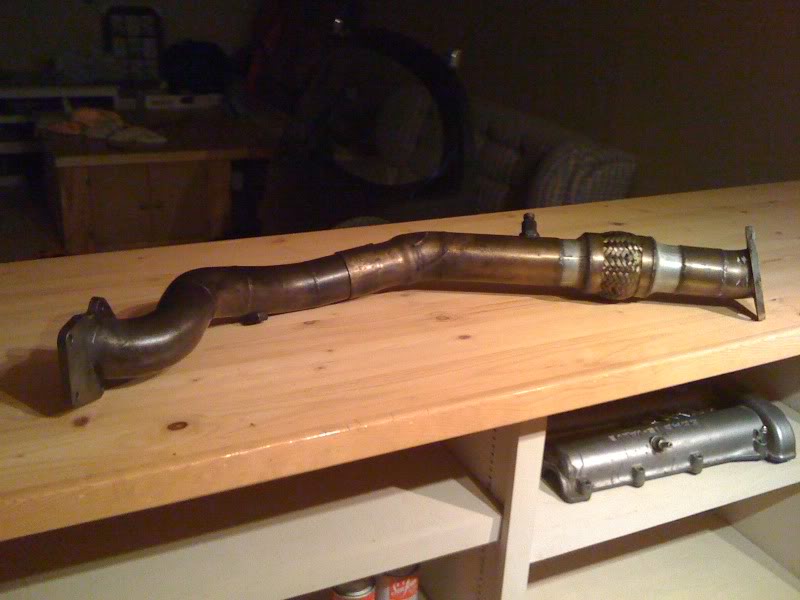

BEGI 3"downpipe
![Name: iphone6-30075.jpg
Views: 242
Size: 54.5 KB](https://www.miataturbo.net/attachments/build-threads-57/196354d1501234266-project-lagwagon-to4e-1-6l-iphone6-30075.jpg)

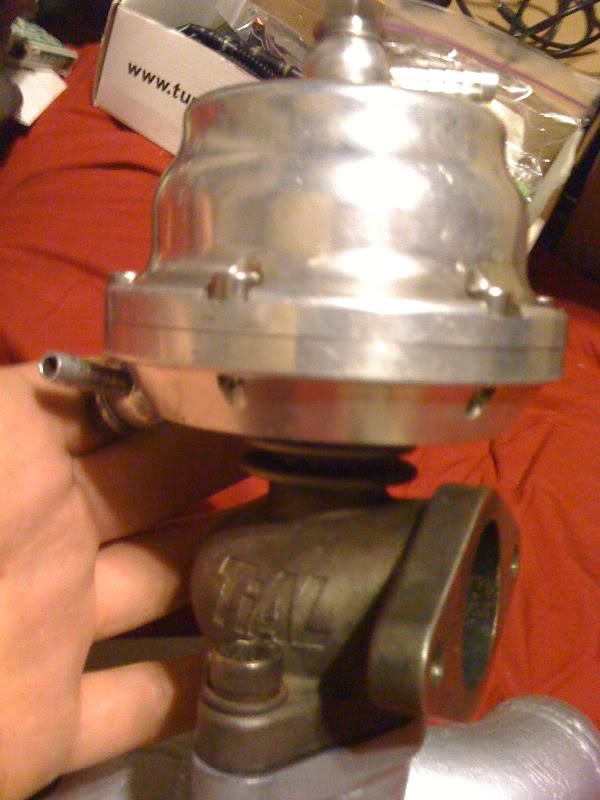

Tial 38mm wastegate
![Name: iphone6-30074.jpg
Views: 255
Size: 68.5 KB](https://www.miataturbo.net/attachments/build-threads-57/196355d1501234266-project-lagwagon-to4e-1-6l-iphone6-30074.jpg)

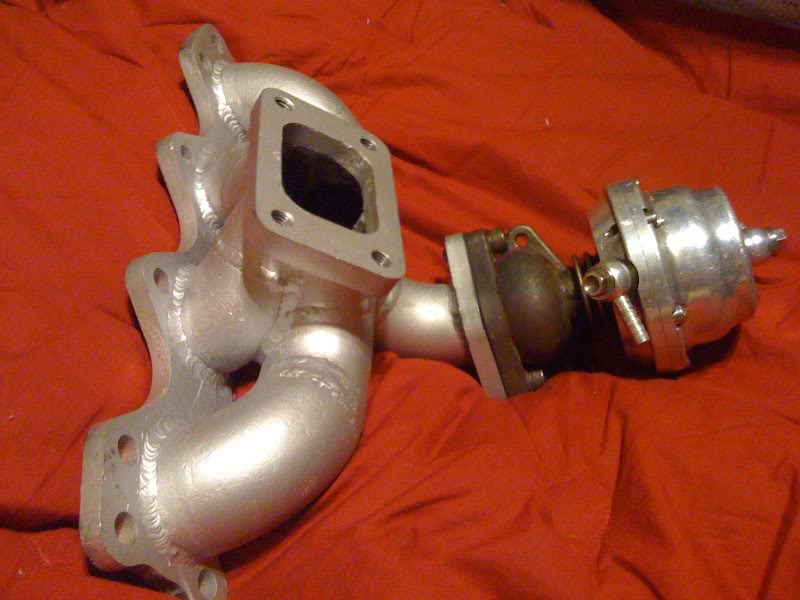

1.6L M-tuned shorty manifold w/external gate
![Name: iphone6-30073.jpg
Views: 272
Size: 68.0 KB](https://www.miataturbo.net/attachments/build-threads-57/196356d1501234266-project-lagwagon-to4e-1-6l-iphone6-30073.jpg)

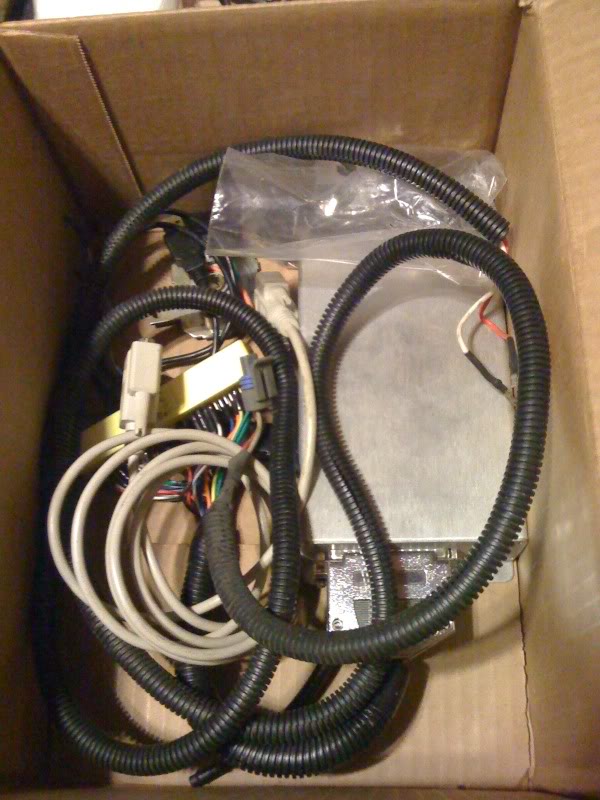

quickslvr's megasquirt with boost controller/IAT sensor (to run map)/ and a ford tps
![Name: iphone6-30001.jpg
Views: 236
Size: 82.4 KB](https://www.miataturbo.net/attachments/build-threads-57/196357d1501234266-project-lagwagon-to4e-1-6l-iphone6-30001.jpg)

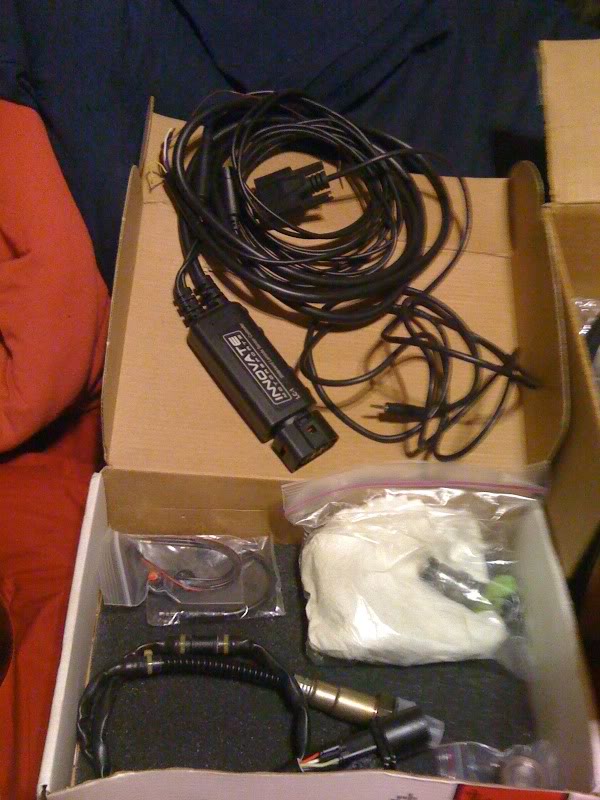

LC-1 wideband controller+305cc injectors
![Name: iphone6-30044.jpg
Views: 244
Size: 88.3 KB](https://www.miataturbo.net/attachments/build-threads-57/196358d1501234266-project-lagwagon-to4e-1-6l-iphone6-30044.jpg)
boring boost gauge
WHATS COMING:
460cc injectors as 305's wont be enough
HKS BOV
AFR gauge
full 3" exhaust (vband?) driver side exit with a special sumthin sumthin.
I plan to patch the hole on the pax side to make the drivers exit look oem just for something different instead of just cutting the bumper up.
I think thats it I plan to have it tuned at the shop by our dyno guy for cheap/free and then I'll be the snot out of it. I have a spare motor, which I'm cleaning up the head currently to swap on, then I'll do a full build on that after the car is all sorted and such.
