Mini_FD '99 Flyin' Miata Turbo Build
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I'm going to start this new build thread with pictures of the items I have already received for my future installation. I have bought a used\BNIB older style Flyin' Miata GT2560R turbo kit.

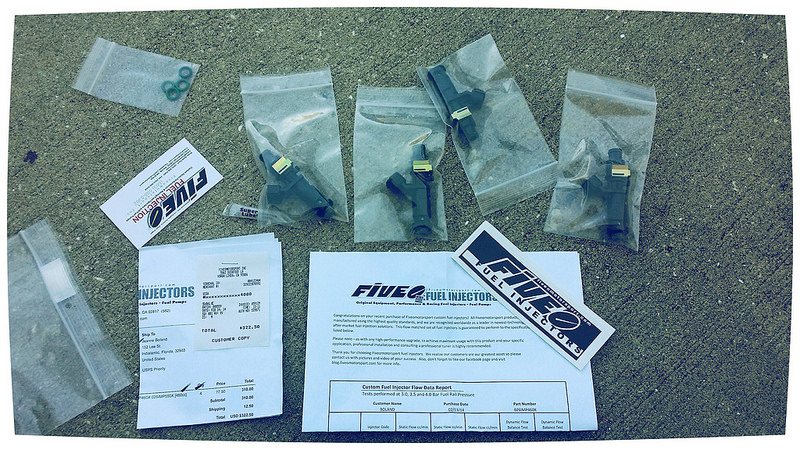

I also purchased a used Built by Reverant MegaSquirt 2v.3 ecu to run my system. My goals are low and efficient since this is my first turbo install and I'm daily driving my miata. Ive owned the car for 4 years now. My cherry is being popped. I have fiveo motorsports ev14 460cc plug and play injectors with a Walboro 195lph fuel pump.
Here is the first picture
![](https://www.miataturbo.net/attachments/build-threads-57/104316-mini_fd-99-flyin-miata-turbo-build-12755366245_0bd8919b24_c.jpg?dateline=1393277844)
Untitled by rocketeerbandit, on Flickr

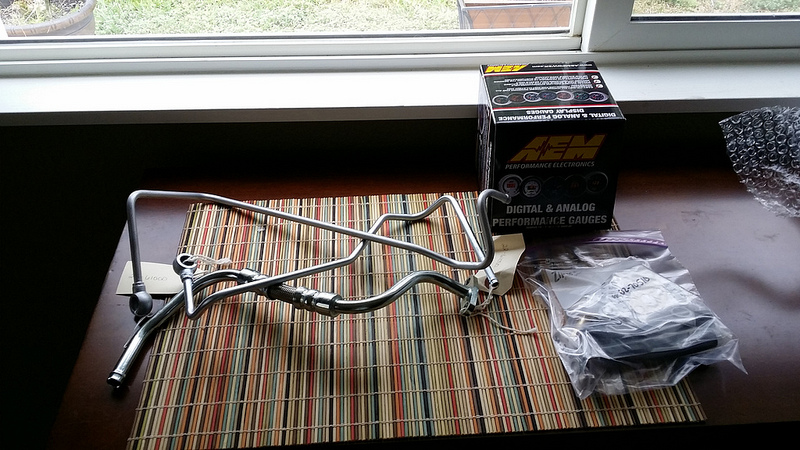

Hard oil and water lines from Flyin' Miata along with an AEM digital boost gauge.
I have the silicone piping and Flyin' Miata intercooler on its way .
This is all I have for now. I might make a for sale thread for the older piping and intercooler. Just not sure how much it is worth for a fair price.
Keep you all updated and I hope I don't disappoint and looking forward to those who contribute on advice and help in the future.
I also purchased a used Built by Reverant MegaSquirt 2v.3 ecu to run my system. My goals are low and efficient since this is my first turbo install and I'm daily driving my miata. Ive owned the car for 4 years now. My cherry is being popped. I have fiveo motorsports ev14 460cc plug and play injectors with a Walboro 195lph fuel pump.
Here is the first picture
![](https://www.miataturbo.net/attachments/build-threads-57/104316-mini_fd-99-flyin-miata-turbo-build-12755366245_0bd8919b24_c.jpg?dateline=1393277844)
Untitled by rocketeerbandit, on Flickr
Hard oil and water lines from Flyin' Miata along with an AEM digital boost gauge.
I have the silicone piping and Flyin' Miata intercooler on its way .
This is all I have for now. I might make a for sale thread for the older piping and intercooler. Just not sure how much it is worth for a fair price.
Keep you all updated and I hope I don't disappoint and looking forward to those who contribute on advice and help in the future.
#3
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

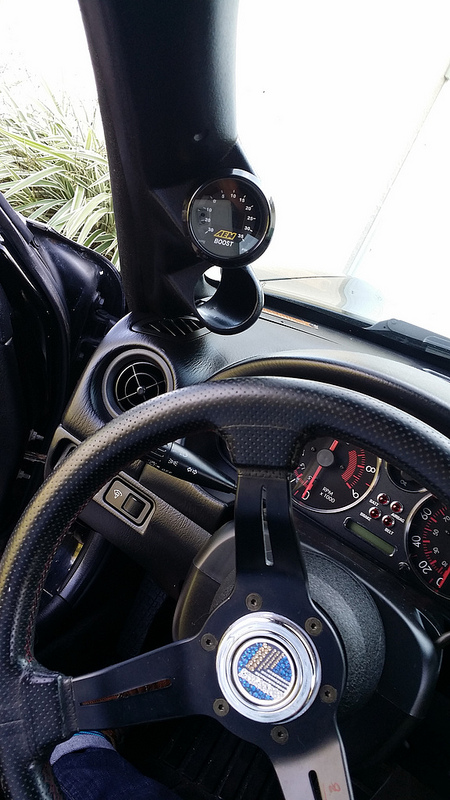

I did a test fit and took pictures of what it will look like with moss miatas dual gauge pod.
![](https://www.miataturbo.net/attachments/build-threads-57/104419-mini_fd-99-flyin-miata-turbo-build-12784746545_8790a5a9f0_c.jpg?dateline=1393387367)
gauges upon gauges by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/104420-mini_fd-99-flyin-miata-turbo-build-12785189624_64d605dd20_c.jpg?dateline=1393387367)
From my eyes by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/104421-mini_fd-99-flyin-miata-turbo-build-12785213184_5f41a280e8_c.jpg?dateline=1393387367)

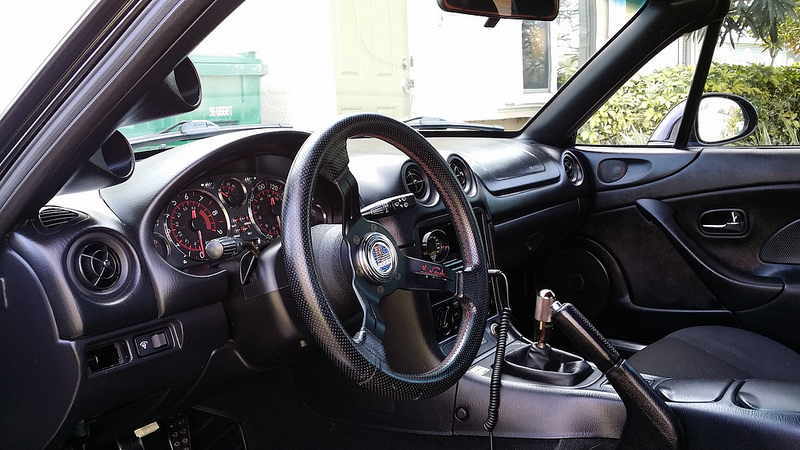

interior by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/104422-mini_fd-99-flyin-miata-turbo-build-12784738985_882a56a918_c.jpg?dateline=1393387367)

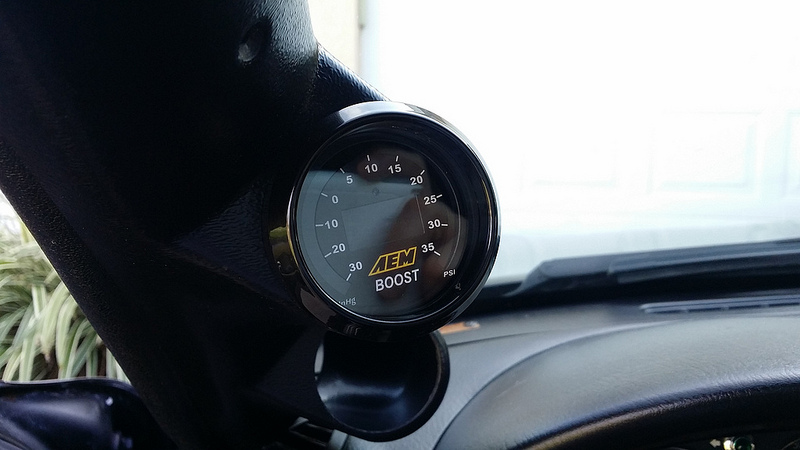

AEM Boost Gauge by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/104419-mini_fd-99-flyin-miata-turbo-build-12784746545_8790a5a9f0_c.jpg?dateline=1393387367)
gauges upon gauges by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/104420-mini_fd-99-flyin-miata-turbo-build-12785189624_64d605dd20_c.jpg?dateline=1393387367)

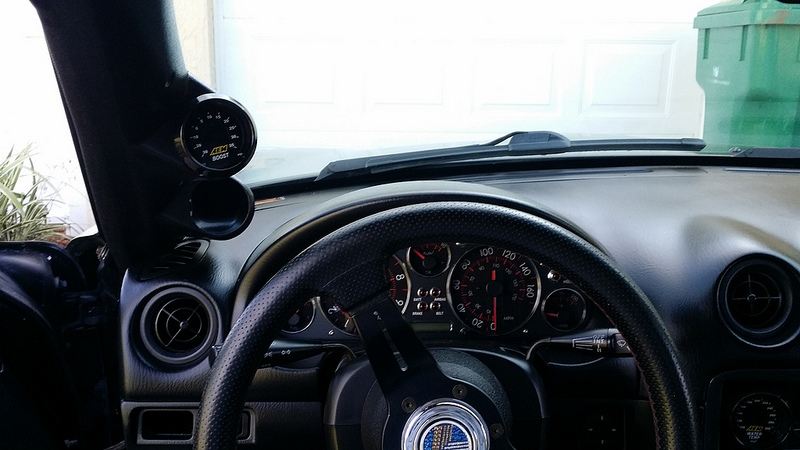

From my eyes by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/104421-mini_fd-99-flyin-miata-turbo-build-12785213184_5f41a280e8_c.jpg?dateline=1393387367)
interior by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/104422-mini_fd-99-flyin-miata-turbo-build-12784738985_882a56a918_c.jpg?dateline=1393387367)
AEM Boost Gauge by rocketeerbandit, on Flickr
#4
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

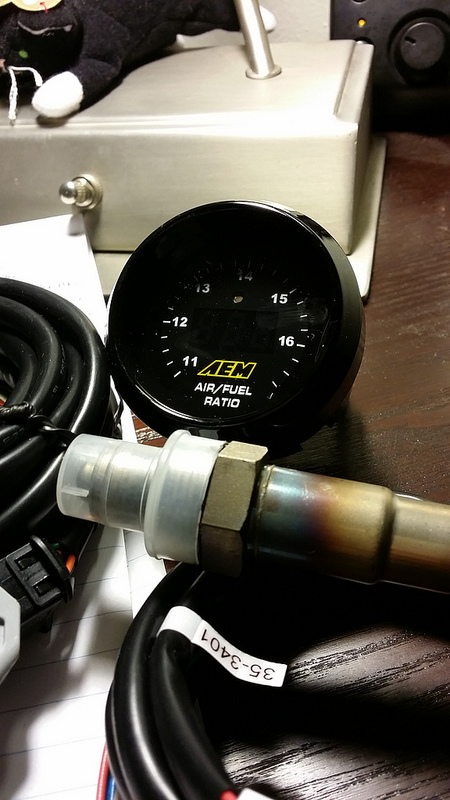

Last gauge just came in. One more package coming in from Colorado tuesday. Pic for now
![](https://www.miataturbo.net/attachments/build-threads-57/104879-mini_fd-99-flyin-miata-turbo-build-12869851053_62164e70e6_c.jpg?dateline=1393734544)
air/fuel by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/104879-mini_fd-99-flyin-miata-turbo-build-12869851053_62164e70e6_c.jpg?dateline=1393734544)
air/fuel by rocketeerbandit, on Flickr
#5
Elite Member
iTrader: (37)
Join Date: Apr 2010
Location: Very NorCal
Posts: 10,448
Total Cats: 1,900
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I had that same boost and UEGO wideband gauge in the same a pillar pod on my 2000. The blinking lights drove me BONKERS and were clearly view-able from behind and outside the car at night.
They are nice gauges though![](https://www.miataturbo.net/images/smilies/smile.gif)
Our builds are almost identical ...that is, once I get mine started
They are nice gauges though
![](https://www.miataturbo.net/images/smilies/smile.gif)
Our builds are almost identical ...that is, once I get mine started
![facepalm](https://www.miataturbo.net/images/smilies/facepalm.gif)
#8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

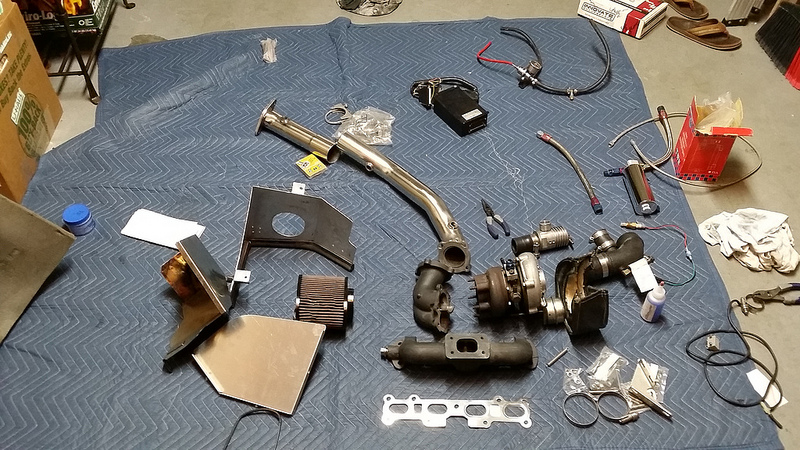

What am I missing here? I believe I have everything.
![](https://www.miataturbo.net/attachments/build-threads-57/105079-mini_fd-99-flyin-miata-turbo-build-12917215654_109286a02b_c.jpg?dateline=1393894295)
Do I have everything? by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/105080-mini_fd-99-flyin-miata-turbo-build-12917217874_1e630b6fac_c.jpg?dateline=1393894295)
turbo by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/105081-mini_fd-99-flyin-miata-turbo-build-12916912343_234e43b95c_c.jpg?dateline=1393894295)
exhaust by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/105082-mini_fd-99-flyin-miata-turbo-build-12916916553_ccc7a89fc3_c.jpg?dateline=1393894295)
intake by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/105083-mini_fd-99-flyin-miata-turbo-build-12917227084_93355dc381_c.jpg?dateline=1393894295)
exhaust 2 by rocketeerbandit, on Flickr![](https://www.miataturbo.net/attachments/build-threads-57/105084-mini_fd-99-flyin-miata-turbo-build-12916810155_ab3cc792d9_c.jpg?dateline=1393894295)
oil catch can tps by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105079-mini_fd-99-flyin-miata-turbo-build-12917215654_109286a02b_c.jpg?dateline=1393894295)
Do I have everything? by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105080-mini_fd-99-flyin-miata-turbo-build-12917217874_1e630b6fac_c.jpg?dateline=1393894295)

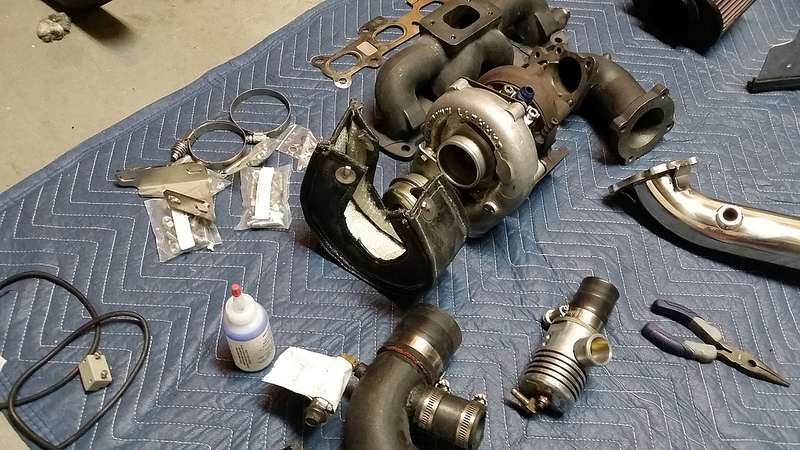

turbo by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105081-mini_fd-99-flyin-miata-turbo-build-12916912343_234e43b95c_c.jpg?dateline=1393894295)

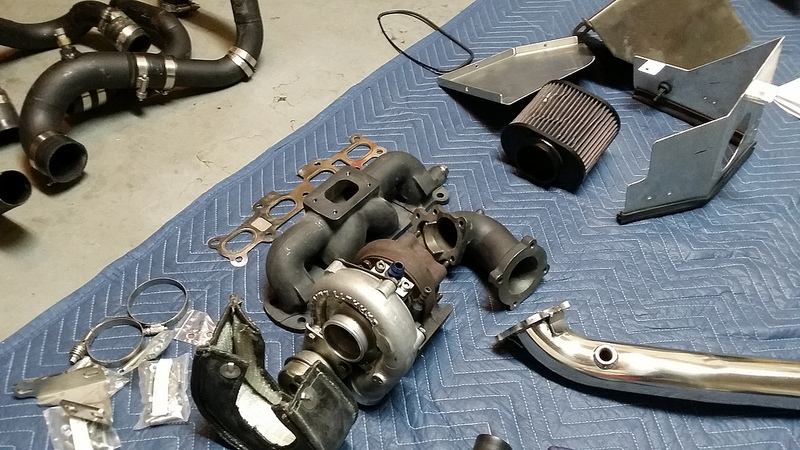

exhaust by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105082-mini_fd-99-flyin-miata-turbo-build-12916916553_ccc7a89fc3_c.jpg?dateline=1393894295)

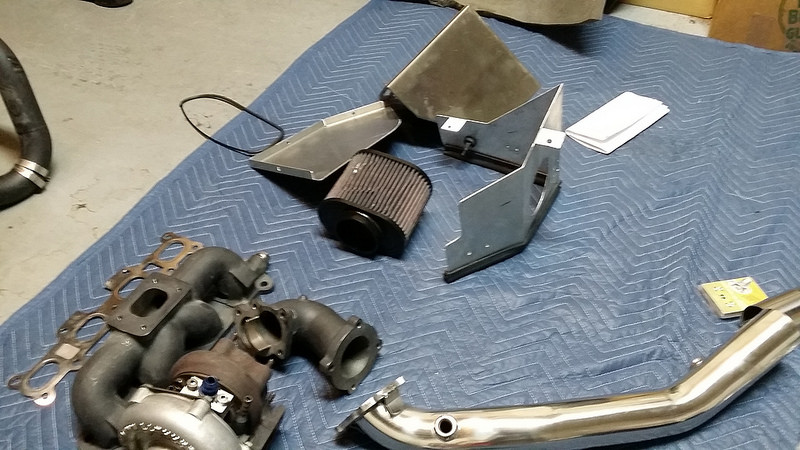

intake by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105083-mini_fd-99-flyin-miata-turbo-build-12917227084_93355dc381_c.jpg?dateline=1393894295)

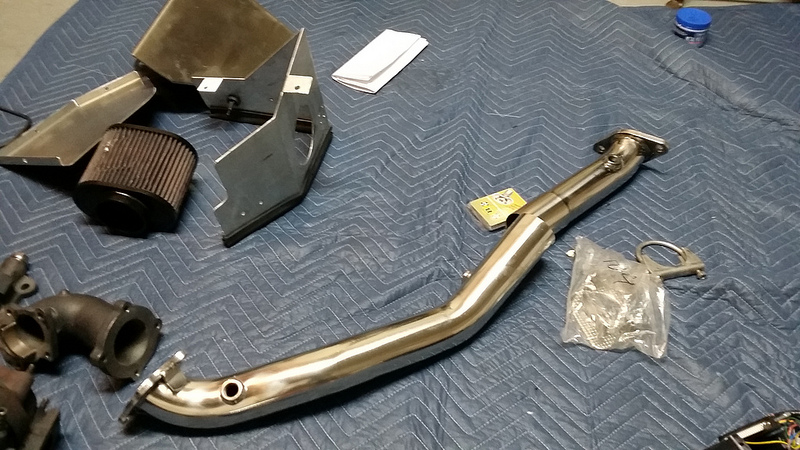

exhaust 2 by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105084-mini_fd-99-flyin-miata-turbo-build-12916810155_ab3cc792d9_c.jpg?dateline=1393894295)

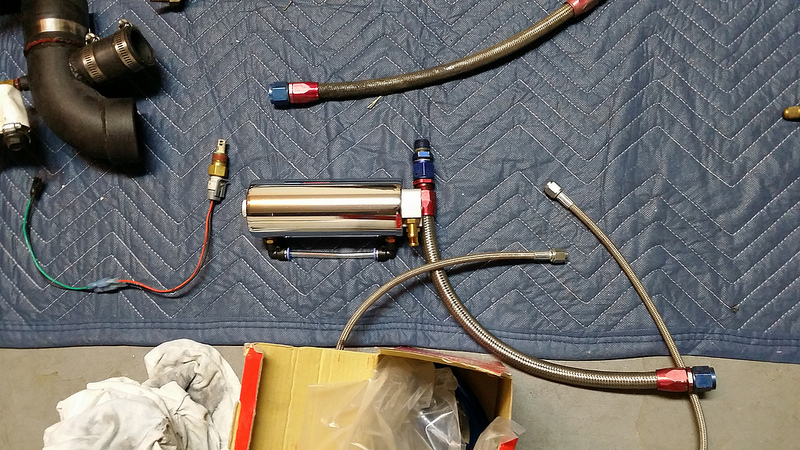

oil catch can tps by rocketeerbandit, on Flickr
#11
Elite Member
iTrader: (37)
Join Date: Apr 2010
Location: Very NorCal
Posts: 10,448
Total Cats: 1,900
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Looks pretty good other than maybe hardware? I've got my entire hotside assembled with OEM Nissan 8mm inconel studs n nuts. It seems like pretty solid stuff for a street car.
Your oil feed assembly appears to me missing the BSP to NPT adapter, oil T and a 90° fitting? I can get pics of mine if you are missing them (though they should be common enough.)
Your oil feed assembly appears to me missing the BSP to NPT adapter, oil T and a 90° fitting? I can get pics of mine if you are missing them (though they should be common enough.)
#13
Elite Member
iTrader: (37)
Join Date: Apr 2010
Location: Very NorCal
Posts: 10,448
Total Cats: 1,900
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

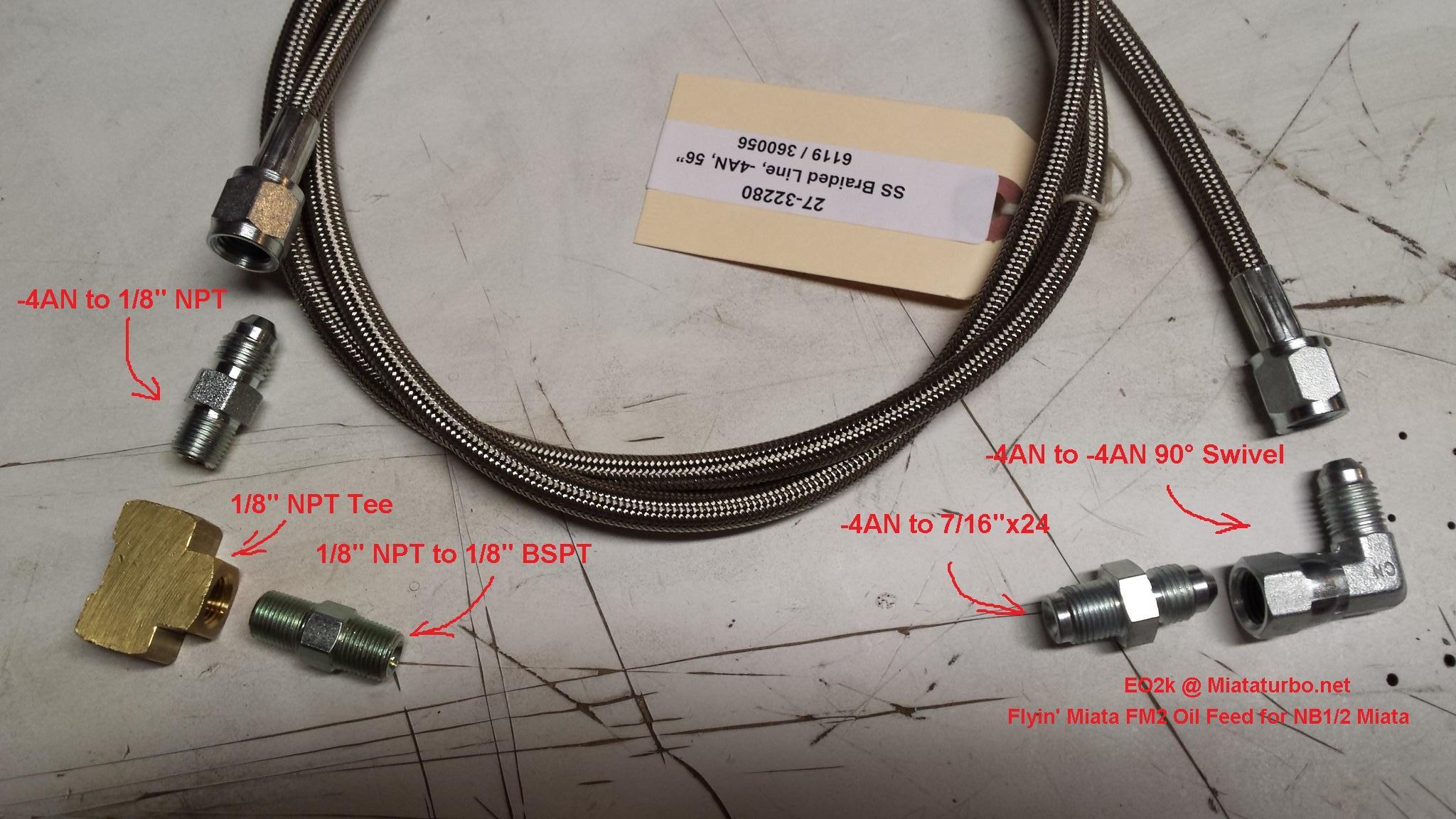

Your coolant and drain lines look fine, I was referring to the oil feed. Pic will make this easier:
![Name: 66yTjvo.jpg
Views: 42
Size: 276.6 KB](https://www.miataturbo.net/attachments/build-threads-57/239331d1683056152-mini_fd-99-flyin-miata-turbo-build-66ytjvo.jpg)
The 1/8" BSPT goes into the block and the 7/16"x24 goes into the turbo. They want you to jam your stock 1/8" BSPT sender into the other side of the Tee, not sure I like that. I also have a steel Tee somewhere in the garage, I'm not wild about this brass one. Also, my oil feed fitting at the turbo is unrestricted if that counts for anything. I haven't run it yet so I guess I'll find out if I need one or not.
![Name: 66yTjvo.jpg
Views: 42
Size: 276.6 KB](https://www.miataturbo.net/attachments/build-threads-57/239331d1683056152-mini_fd-99-flyin-miata-turbo-build-66ytjvo.jpg)
The 1/8" BSPT goes into the block and the 7/16"x24 goes into the turbo. They want you to jam your stock 1/8" BSPT sender into the other side of the Tee, not sure I like that. I also have a steel Tee somewhere in the garage, I'm not wild about this brass one. Also, my oil feed fitting at the turbo is unrestricted if that counts for anything. I haven't run it yet so I guess I'll find out if I need one or not.
Last edited by EO2K; 03-04-2014 at 10:48 AM.
#17
Elite Member
iTrader: (37)
Join Date: Apr 2010
Location: Very NorCal
Posts: 10,448
Total Cats: 1,900
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Working now?
The smaller stainless line next to your catch can looks like the correct feed line, but I didn't see the other fittings. Don't forget to sleeve that thing in something to prevent it from sawing through everything in your engine bay.
Are you going to be running the FM one-piece silicone intercooler pipes?
The smaller stainless line next to your catch can looks like the correct feed line, but I didn't see the other fittings. Don't forget to sleeve that thing in something to prevent it from sawing through everything in your engine bay.
Are you going to be running the FM one-piece silicone intercooler pipes?
#18
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I am, and I'll make a new feed line. What would I sleeve it with?
![](https://www.miataturbo.net/attachments/build-threads-57/105121-mini_fd-99-flyin-miata-turbo-build-12930968044_4ec1516c3b_c.jpg?dateline=1393954537)

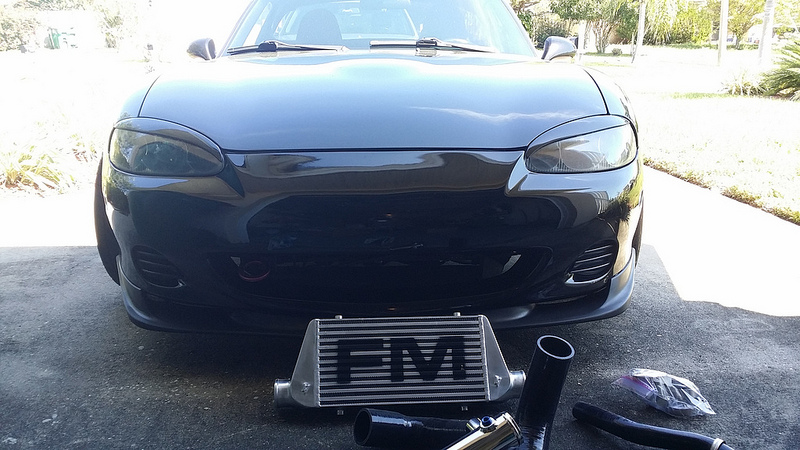

FM silicone piping and intercooler by rocketeerbandit, on Flickr
![](https://www.miataturbo.net/attachments/build-threads-57/105121-mini_fd-99-flyin-miata-turbo-build-12930968044_4ec1516c3b_c.jpg?dateline=1393954537)
FM silicone piping and intercooler by rocketeerbandit, on Flickr
#19
Elite Member
iTrader: (37)
Join Date: Apr 2010
Location: Very NorCal
Posts: 10,448
Total Cats: 1,900
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I always thought black was a good color for the Miata. My NA was black. I miss the color but don't miss washing it ![rofl](https://www.miataturbo.net/images/smilies/rofl1.gif)
The FM kit for the SS feed line includes some sections of rubber hose of some sort and clamps. I believe the intent is to split it and slip over the SS anywhere it comes in contact with anything behind the engine and on the drivers side framerail. While I'm sure its functional, it looks a bit hackneyed to me. I haven't figured out what to do about it yet to make it prettier. Plastic splitloom looks like crap so I might try some of the nylon "chinese finger trap" style expandable wire loom and rubber coated wire clamps to secure it along the firewall.
Want to do me a favor and measure the length on the aluminum section of your intercooler plumbing? The section right before the throttle body 90° silicone section. I think that's the ONE part I'm missing and I don't have everything installed yet to get a measurement. Pretty please?
![rofl](https://www.miataturbo.net/images/smilies/rofl1.gif)
The FM kit for the SS feed line includes some sections of rubber hose of some sort and clamps. I believe the intent is to split it and slip over the SS anywhere it comes in contact with anything behind the engine and on the drivers side framerail. While I'm sure its functional, it looks a bit hackneyed to me. I haven't figured out what to do about it yet to make it prettier. Plastic splitloom looks like crap so I might try some of the nylon "chinese finger trap" style expandable wire loom and rubber coated wire clamps to secure it along the firewall.
Want to do me a favor and measure the length on the aluminum section of your intercooler plumbing? The section right before the throttle body 90° silicone section. I think that's the ONE part I'm missing and I don't have everything installed yet to get a measurement. Pretty please?
![wink](https://www.miataturbo.net/images/smilies/wink.gif)
