The Mazzder MX FIVE Build
#181
Senior Member
Thread Starter
iTrader: (5)
Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 567
Total Cats: 7
Made several videos of the pulls I did. I think I have open loop boost control enough to where I am happy moving onto closed loop. Here is a 3rd and 4th gear pull with the MKEFRTURBO Setup. This car is pretty fast. I pulled on a stock Camaro earlier and that driver was not happy...ENJOY!
#182
Senior Member
Thread Starter
iTrader: (5)
Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 567
Total Cats: 7
So I bought a welding machine so I can learn and touch up a few items on the miata. At some point I want to get good enough at Tig to make a decent intercooler piping setup for my car. I got the 6 speed shifter turrent rebuilt with the brass bushing from 5xracing. Still need to get some help from Vlad in tuning my car. Have not made any progress on that in months and want to get it ready for dyno day.
Happy New Years.
Happy New Years.
#183
Senior Member
Thread Starter
iTrader: (5)
Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 567
Total Cats: 7
Just bought some teflon lined braided ss hose from the local hydraulic shop to replace my current line that runs right over my turbine. Going to take measurements today and have shop make up ends to route around turbo so heat becomes less of an issue. Also will mount neatly, I hope, in engine bay.
#188
Senior Member
Thread Starter
iTrader: (5)
Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 567
Total Cats: 7
Great day at MKTurbo Dyno day! Got to meet some cool people and see some interesting cars!!
I've got a long list now to hammer out before I revisit the dyno!
Throttle cable
VICS needs enabling
VVTi needs enabling and tuning
Idle air valve needs adjustment
Need to now tune boost solenoid in closed loop at 16to18psi
Need to advance timing -table needs improvements! Big time!
Need to clean up fuelling above 5200rpm
Need to fix fuelling on throttle lift off.
Maybe move my boost reference to back of intake head.
Here are my pulls:
I'll post more pics tomorrow from computer!
I've got a long list now to hammer out before I revisit the dyno!
Throttle cable
VICS needs enabling
VVTi needs enabling and tuning
Idle air valve needs adjustment
Need to now tune boost solenoid in closed loop at 16to18psi
Need to advance timing -table needs improvements! Big time!
Need to clean up fuelling above 5200rpm
Need to fix fuelling on throttle lift off.
Maybe move my boost reference to back of intake head.
Here are my pulls:
I'll post more pics tomorrow from computer!
#189
Senior Member
Thread Starter
iTrader: (5)
Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 567
Total Cats: 7

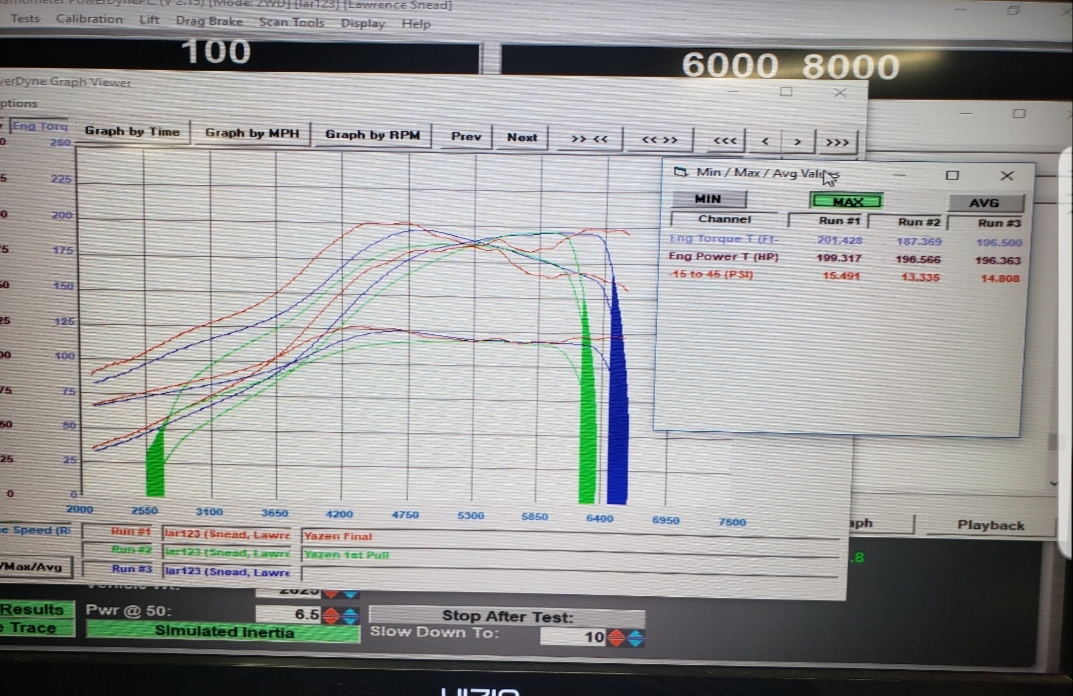

This was my dyno graph:
We added 20% to it for mustang dyno. I think I may have added a bit much but I am tuning now with a buddy and we are working out kinks with this boost controller. Mostly tuning 5th gear.
We added 20% to it for mustang dyno. I think I may have added a bit much but I am tuning now with a buddy and we are working out kinks with this boost controller. Mostly tuning 5th gear.
Last edited by ysleem; 05-29-2019 at 05:41 AM.
