Lugie's 03 Build
#1
Newb
Thread Starter
iTrader: (1)
Join Date: May 2009
Location: Cleveland, OH
Posts: 26
Total Cats: 0
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I lost a little steam the past few weeks, but I did find an older digi cam. So here is my build thus far. I'll add in details tonight, I took the next two days off to work on it, so I want to make the most of my time. I'm doing this at my apartment instead of the shop, which is making everything interesting. I really feel for you guys that don't have lifts, pulling the tranny is annoying me right now.
Specs:
Begi S4 manifold, Downpipe 3"
Garrett GT2560R
Deatschwerks 600CC injectors
Spec Stage 2 Clutch
CXRacing IC- 2.5" pipes
Begi Coolant Reroute
AEM boost/Wideband
all AN SS fittings.
Greddy knockoff BOV
Begi S4 manifold, GT2560R
![Name: IMG_1577.jpg
Views: 92
Size: 98.8 KB](https://www.miataturbo.net/attachments/build-threads-57/204852d1501250676-lugies-03-build-img_1577.jpg)
Adaptronic- I'll take it off and get a good shot of the braket, it's super simple and fits like a glove.
![Name: IMG_1574.jpg
Views: 89
Size: 52.3 KB](https://www.miataturbo.net/attachments/build-threads-57/204853d1501250676-lugies-03-build-img_1574.jpg)
CXRacing 28X7X3 IC
![Name: IMG_1569.jpg
Views: 64
Size: 47.4 KB](https://www.miataturbo.net/attachments/build-threads-57/204854d1501250676-lugies-03-build-img_1569.jpg)
Lower brackets- Still need to clean them up
![Name: IMG_1570.jpg
Views: 87
Size: 44.4 KB](https://www.miataturbo.net/attachments/build-threads-57/204855d1501250676-lugies-03-build-img_1570.jpg)
![Name: IMG_1586.jpg
Views: 98
Size: 33.6 KB](https://www.miataturbo.net/attachments/build-threads-57/204856d1501250676-lugies-03-build-img_1586.jpg)
Upper Bracket- I used some 1"box and some 1" steel strap for the main support. The lower alum. brackets are really just to keep it from wiggling. I'll get better pics of it when I clean out the intercooler.
![](http://img.photobucket.com/albums/v239/lugie/miata/IMG_1571.jpg)

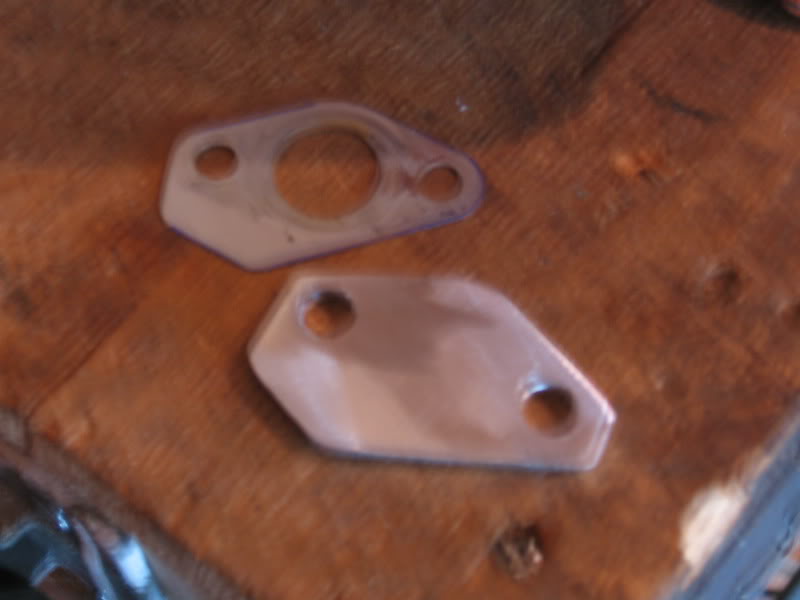

EGR tube blockoff
![Name: IMG_1584.jpg
Views: 103
Size: 39.7 KB](https://www.miataturbo.net/attachments/build-threads-57/204857d1501250676-lugies-03-build-img_1584.jpg)
Not sure what else I'm going to do here. I have an egr block-off plate from Begi as well, and I think I'll end up using the egr wire to control my EBC. Guess I have to read up here to see what all needs to be gone.
None of the right equipment lol:
![Name: IMG_1582.jpg
Views: 105
Size: 63.0 KB](https://www.miataturbo.net/attachments/build-threads-57/204858d1501250676-lugies-03-build-img_1582.jpg)
![Name: IMG_1584.jpg
Views: 103
Size: 39.7 KB](https://www.miataturbo.net/attachments/build-threads-57/204857d1501250676-lugies-03-build-img_1584.jpg)
Misc pics:
![Name: IMG_1575.jpg
Views: 97
Size: 52.1 KB](https://www.miataturbo.net/attachments/build-threads-57/204860d1501250676-lugies-03-build-img_1575.jpg)
![Name: IMG_1578.jpg
Views: 117
Size: 72.1 KB](https://www.miataturbo.net/attachments/build-threads-57/204861d1501250676-lugies-03-build-img_1578.jpg)
Specs:
Begi S4 manifold, Downpipe 3"
Garrett GT2560R
Deatschwerks 600CC injectors
Spec Stage 2 Clutch
CXRacing IC- 2.5" pipes
Begi Coolant Reroute
AEM boost/Wideband
all AN SS fittings.
Greddy knockoff BOV
Begi S4 manifold, GT2560R
![Name: IMG_1577.jpg
Views: 92
Size: 98.8 KB](https://www.miataturbo.net/attachments/build-threads-57/204852d1501250676-lugies-03-build-img_1577.jpg)
Adaptronic- I'll take it off and get a good shot of the braket, it's super simple and fits like a glove.
![Name: IMG_1574.jpg
Views: 89
Size: 52.3 KB](https://www.miataturbo.net/attachments/build-threads-57/204853d1501250676-lugies-03-build-img_1574.jpg)
CXRacing 28X7X3 IC
![Name: IMG_1569.jpg
Views: 64
Size: 47.4 KB](https://www.miataturbo.net/attachments/build-threads-57/204854d1501250676-lugies-03-build-img_1569.jpg)
Lower brackets- Still need to clean them up
![Name: IMG_1570.jpg
Views: 87
Size: 44.4 KB](https://www.miataturbo.net/attachments/build-threads-57/204855d1501250676-lugies-03-build-img_1570.jpg)
![Name: IMG_1586.jpg
Views: 98
Size: 33.6 KB](https://www.miataturbo.net/attachments/build-threads-57/204856d1501250676-lugies-03-build-img_1586.jpg)
Upper Bracket- I used some 1"box and some 1" steel strap for the main support. The lower alum. brackets are really just to keep it from wiggling. I'll get better pics of it when I clean out the intercooler.
![](http://img.photobucket.com/albums/v239/lugie/miata/IMG_1571.jpg)
EGR tube blockoff
![Name: IMG_1584.jpg
Views: 103
Size: 39.7 KB](https://www.miataturbo.net/attachments/build-threads-57/204857d1501250676-lugies-03-build-img_1584.jpg)
Not sure what else I'm going to do here. I have an egr block-off plate from Begi as well, and I think I'll end up using the egr wire to control my EBC. Guess I have to read up here to see what all needs to be gone.
None of the right equipment lol:
![Name: IMG_1582.jpg
Views: 105
Size: 63.0 KB](https://www.miataturbo.net/attachments/build-threads-57/204858d1501250676-lugies-03-build-img_1582.jpg)
![Name: IMG_1584.jpg
Views: 103
Size: 39.7 KB](https://www.miataturbo.net/attachments/build-threads-57/204857d1501250676-lugies-03-build-img_1584.jpg)
Misc pics:
![Name: IMG_1575.jpg
Views: 97
Size: 52.1 KB](https://www.miataturbo.net/attachments/build-threads-57/204860d1501250676-lugies-03-build-img_1575.jpg)
![Name: IMG_1578.jpg
Views: 117
Size: 72.1 KB](https://www.miataturbo.net/attachments/build-threads-57/204861d1501250676-lugies-03-build-img_1578.jpg)
![Name: IMG_1587.jpg
Views: 107
Size: 73.8 KB](https://www.miataturbo.net/attachments/build-threads-57/204862d1501250676-lugies-03-build-img_1587.jpg)
#2
Newb
Thread Starter
iTrader: (1)
Join Date: May 2009
Location: Cleveland, OH
Posts: 26
Total Cats: 0
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Got the cold side routed, tranny is almost out. My tranny jack is useless in the situation. I'll need an extra set of hands to yank it.
Mounted the map, ran wires for the guages, just little junk.
Map mounted
![Name: IMG_1588.jpg
Views: 122
Size: 71.1 KB](https://www.miataturbo.net/attachments/build-threads-57/204834d1501250604-lugies-03-build-img_1588.jpg)
Stopped taking pictures for some reason. I'll grab more in the morning. Still waiting on a package from ATP for the final fittings. Hopefully finish up the clutch tomorrow and mount the turbo for good.
Mounted the map, ran wires for the guages, just little junk.
Map mounted
![Name: IMG_1588.jpg
Views: 122
Size: 71.1 KB](https://www.miataturbo.net/attachments/build-threads-57/204834d1501250604-lugies-03-build-img_1588.jpg)
Stopped taking pictures for some reason. I'll grab more in the morning. Still waiting on a package from ATP for the final fittings. Hopefully finish up the clutch tomorrow and mount the turbo for good.
