Lazarus:making something out of nothing
#524
Cpt. Slow
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (25)
Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,326
Total Cats: 1,181
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
As far as I know nothing else was changed beyond standard rebuild parts. Same compressor and turbine housing, just bored out for a bigger compressor wheel.
And this was Oregon 92 pump gas. No plans for e85, its a pain to get around here.
And this was Oregon 92 pump gas. No plans for e85, its a pain to get around here.
#525
Senior Member
Thread Starter
iTrader: (3)
Join Date: Nov 2011
Location: Beaverton, OR
Posts: 771
Total Cats: 39
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Just a comp wheel upgrade, nothing else. I'd love to try e85 but really this is more power than I ever wanted and frankly more power than this Miata really needs. First track event should be in a couple weeks assuming my new suspension shows up.
#526
Cpt. Slow
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (25)
Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,326
Total Cats: 1,181
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

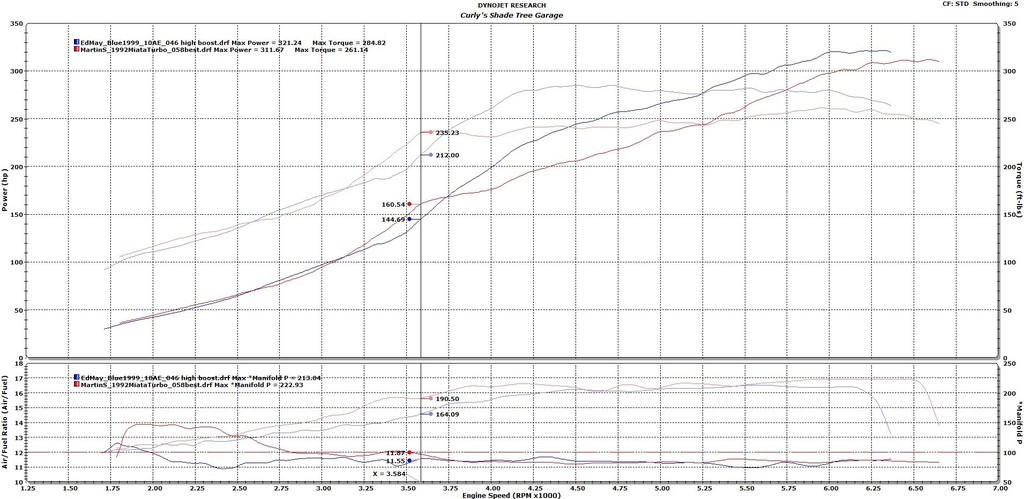

Can't help but compare dyno graphs as I get more and more files from cars I've tuned.
Now that Laz is making ~310hp, I can compare it to Ed's 10ae/msm/vvt/absurdflow car that makes 320.
![](https://www.miataturbo.net/attachments/build-threads-57/163879-lazarus-making-something-out-nothing-ed%2520vs%2520laz_zpsm4czex7i.jpg?dateline=1456774947)
This graph basically illustrates the trade off of big turbo vs. small turbo. Ed's bigger turbo spools slower, which can be seen in the 3200-3700 range. But after that he's stays 10-25kpa lower and has a 30-45ft/lb advantage from 4000-5700, where I think the Honda manifold on Laz just barely starts to claw back some of the tiny turbo's disadvantage.
Now that Laz is making ~310hp, I can compare it to Ed's 10ae/msm/vvt/absurdflow car that makes 320.
![](https://www.miataturbo.net/attachments/build-threads-57/163879-lazarus-making-something-out-nothing-ed%2520vs%2520laz_zpsm4czex7i.jpg?dateline=1456774947)
This graph basically illustrates the trade off of big turbo vs. small turbo. Ed's bigger turbo spools slower, which can be seen in the 3200-3700 range. But after that he's stays 10-25kpa lower and has a 30-45ft/lb advantage from 4000-5700, where I think the Honda manifold on Laz just barely starts to claw back some of the tiny turbo's disadvantage.
#528
Senior Member
Thread Starter
iTrader: (3)
Join Date: Nov 2011
Location: Beaverton, OR
Posts: 771
Total Cats: 39
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

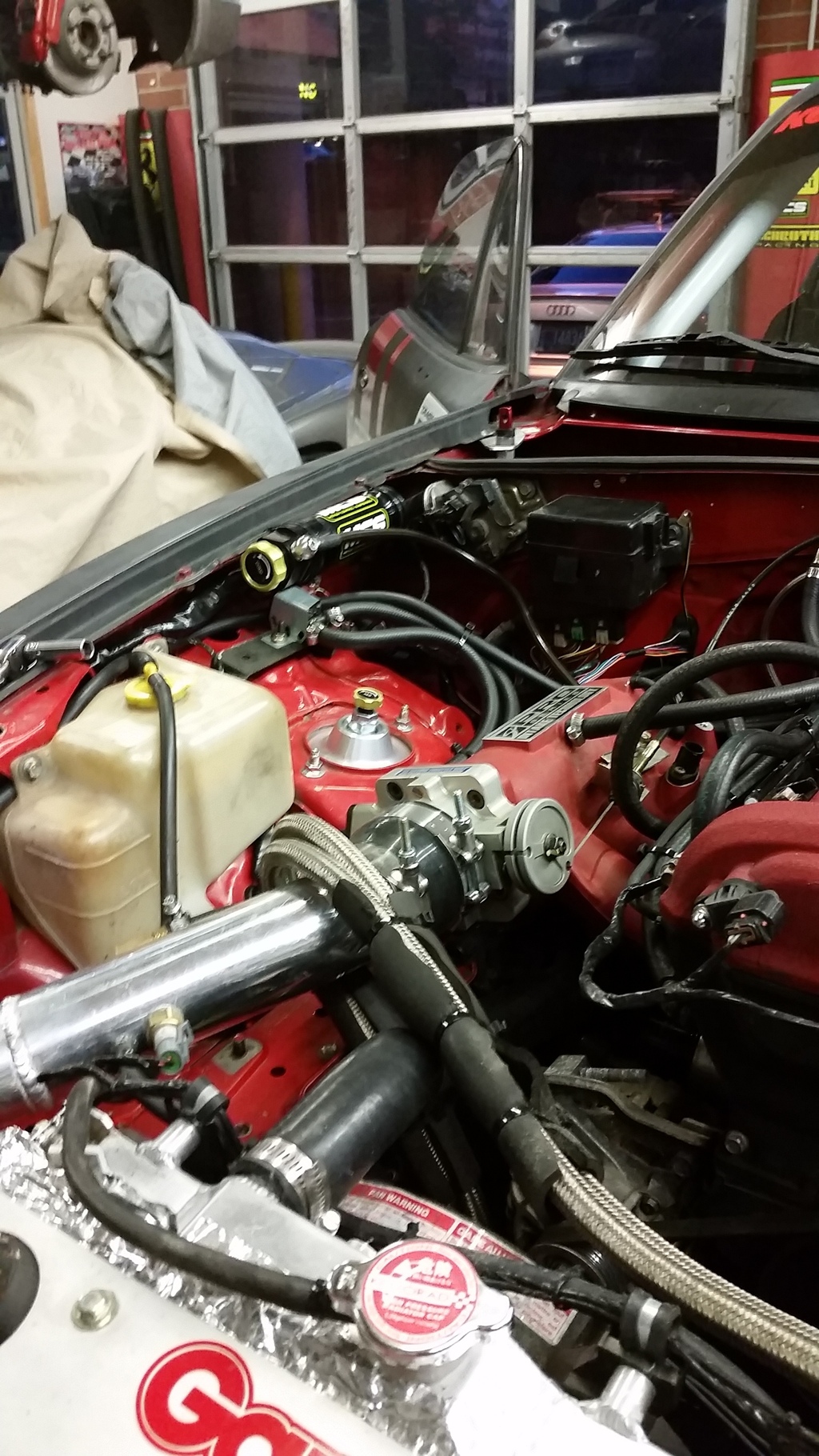

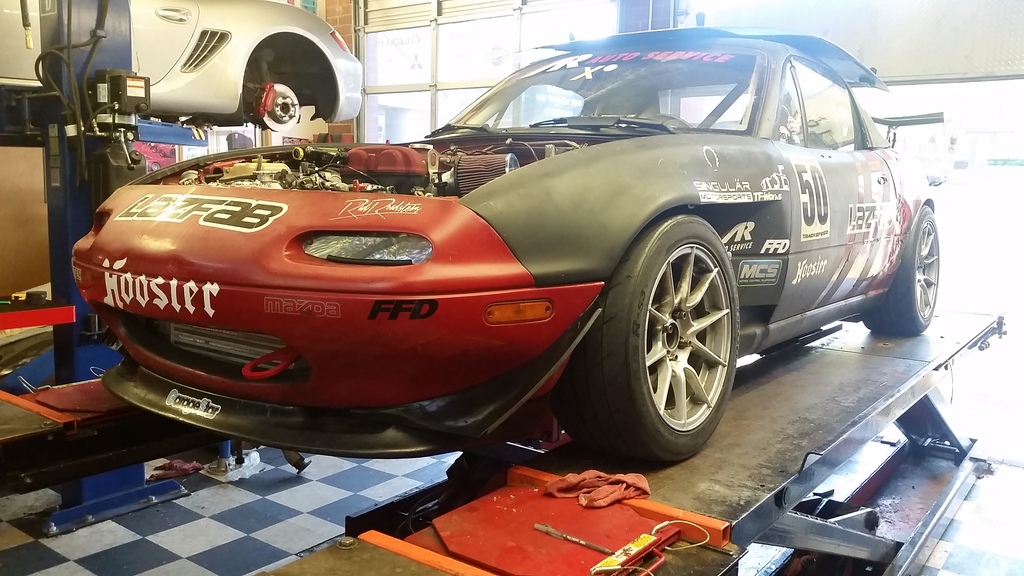

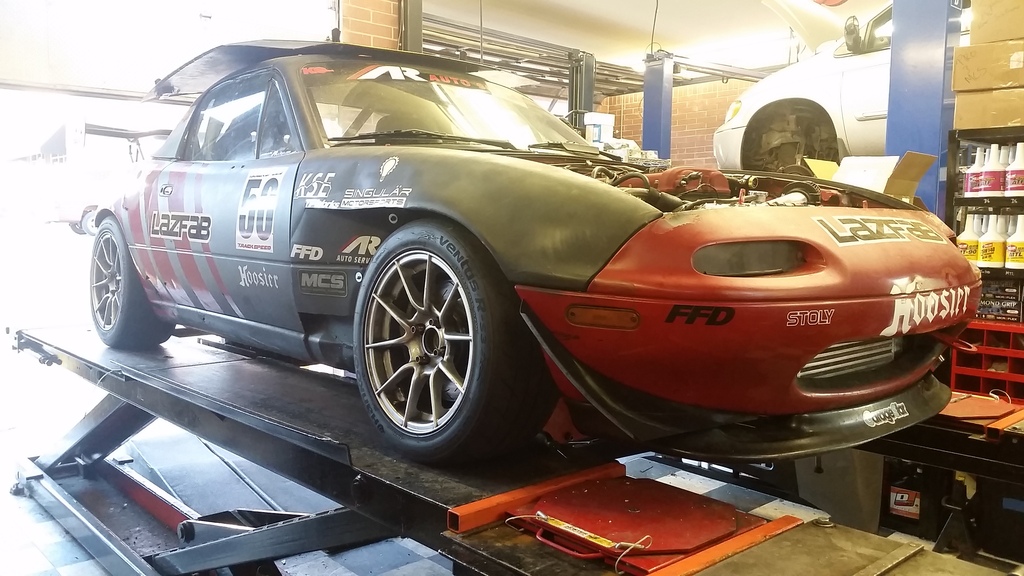

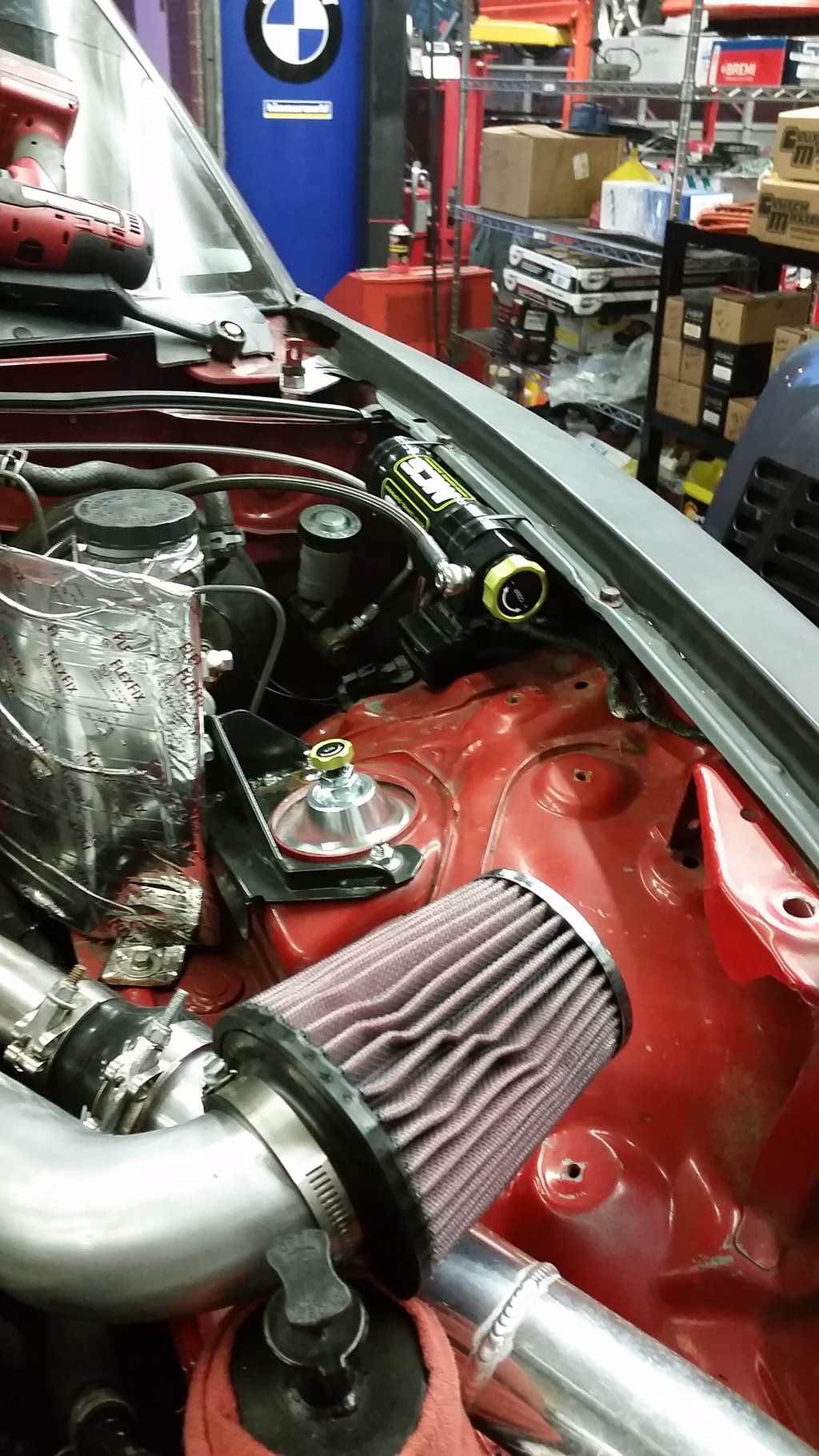

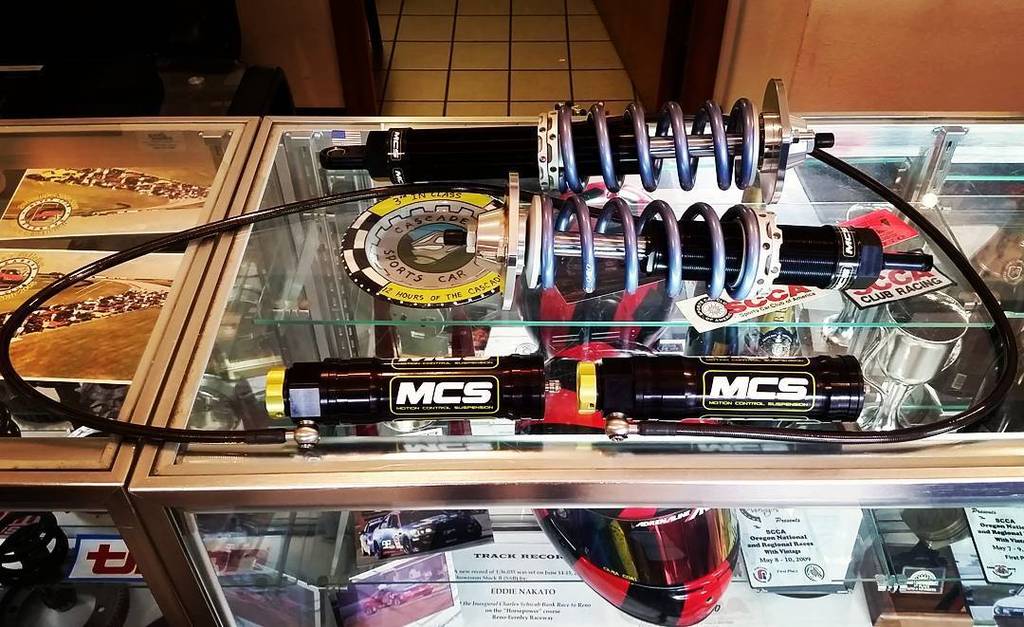

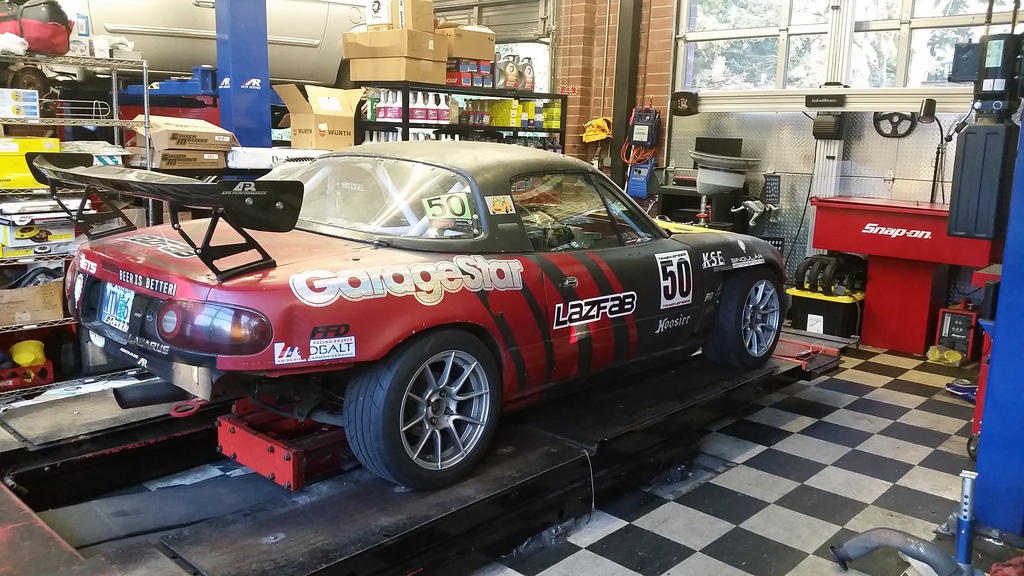

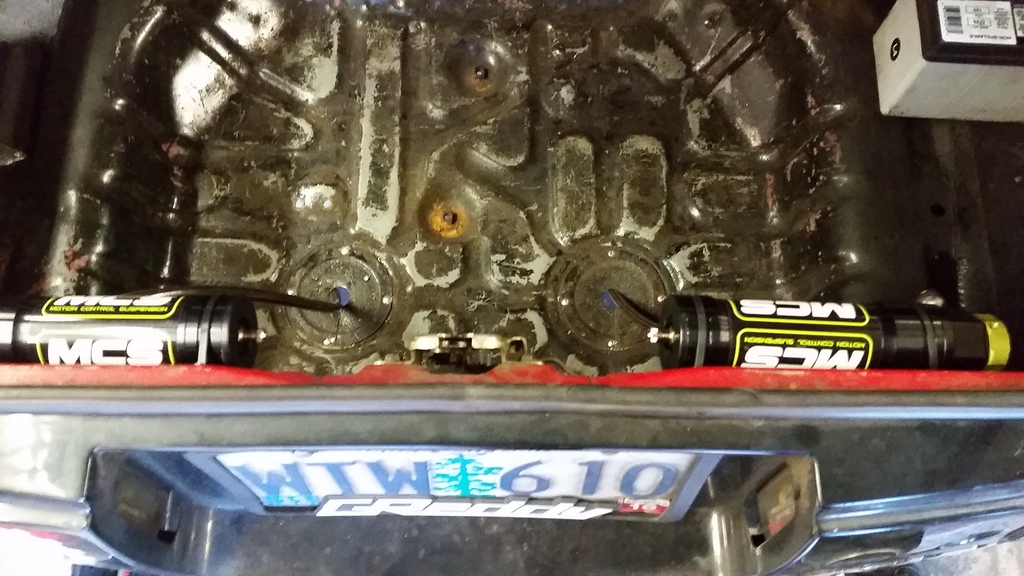

A few updates, shocks are on, resevoirs are mounted, corner weighted and aligned. -4 up front -2.8 out back.

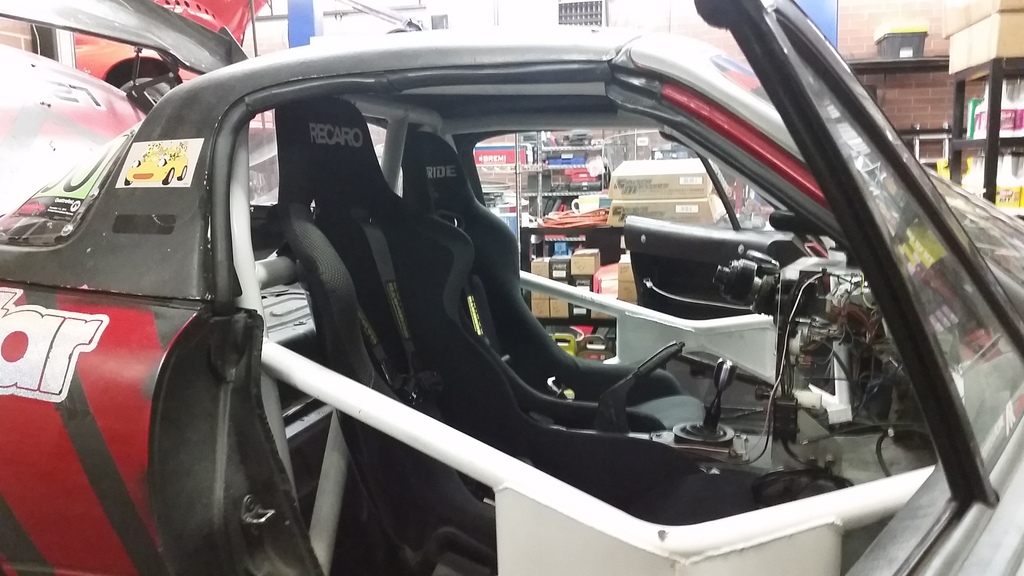

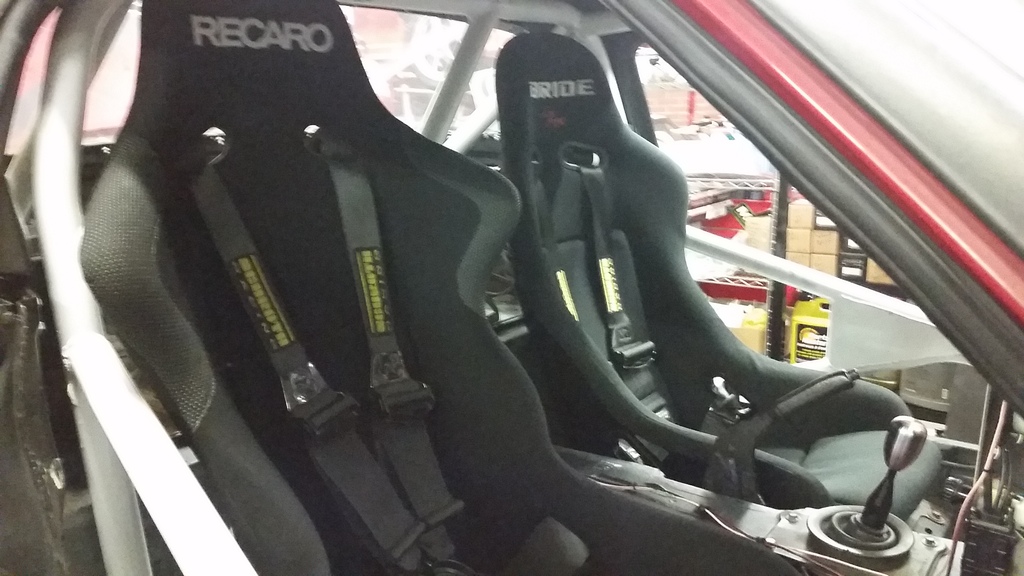

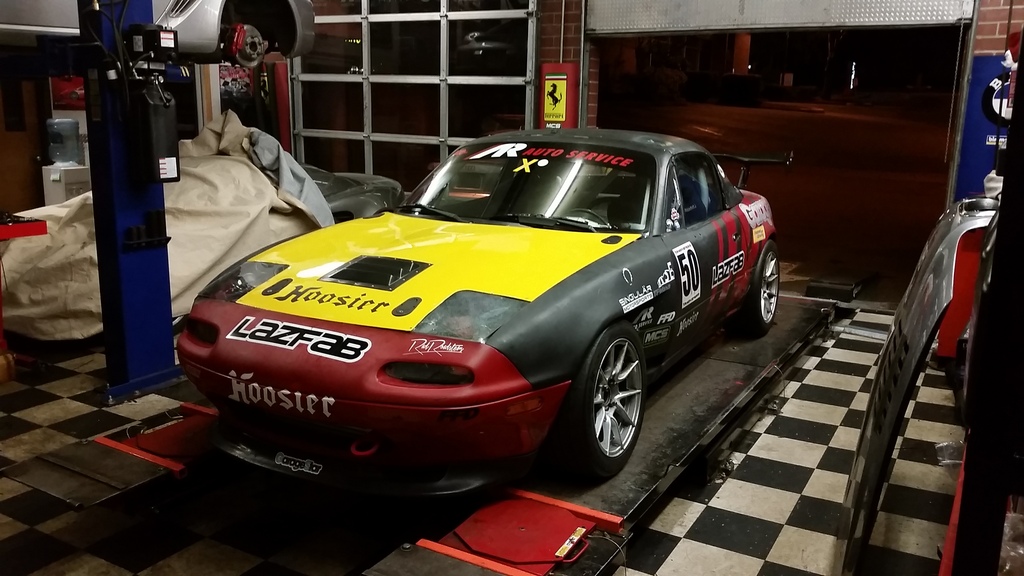

Passenger seat back in, axis power hood has been mounted, just waiting to mount my gv canards and a splitter once Henry makes the bracket for it. Also has risers for the wing to put on as well.
![](https://www.miataturbo.net/attachments/build-threads-57/166480-lazarus-making-something-out-nothing-20160325_203933_zpsejlt2uy3.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166481-lazarus-making-something-out-nothing-20160325_215436_zpsjemihxc5.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166482-lazarus-making-something-out-nothing-20160325_203916_zpsuguclswz.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166483-lazarus-making-something-out-nothing-20160325_194810_zpsrqynjq9x.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166484-lazarus-making-something-out-nothing-20160325_194803_zpsgrqqzk9h.jpg?dateline=1459018717)
Passenger seat back in, axis power hood has been mounted, just waiting to mount my gv canards and a splitter once Henry makes the bracket for it. Also has risers for the wing to put on as well.
![](https://www.miataturbo.net/attachments/build-threads-57/166480-lazarus-making-something-out-nothing-20160325_203933_zpsejlt2uy3.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166481-lazarus-making-something-out-nothing-20160325_215436_zpsjemihxc5.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166482-lazarus-making-something-out-nothing-20160325_203916_zpsuguclswz.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166483-lazarus-making-something-out-nothing-20160325_194810_zpsrqynjq9x.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166484-lazarus-making-something-out-nothing-20160325_194803_zpsgrqqzk9h.jpg?dateline=1459018717)
![](https://www.miataturbo.net/attachments/build-threads-57/166485-lazarus-making-something-out-nothing-20160325_191653_zpsgrh5yu1s.jpg?dateline=1459018717)
#530
Senior Member
Thread Starter
iTrader: (3)
Join Date: Nov 2011
Location: Beaverton, OR
Posts: 771
Total Cats: 39
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Traction mainly, and the rear has the wing to keep it glued down at higher speeds but I want it to rotate at lower speeds. I'm going to do some testing and see, might go to 3 degrees in the back.

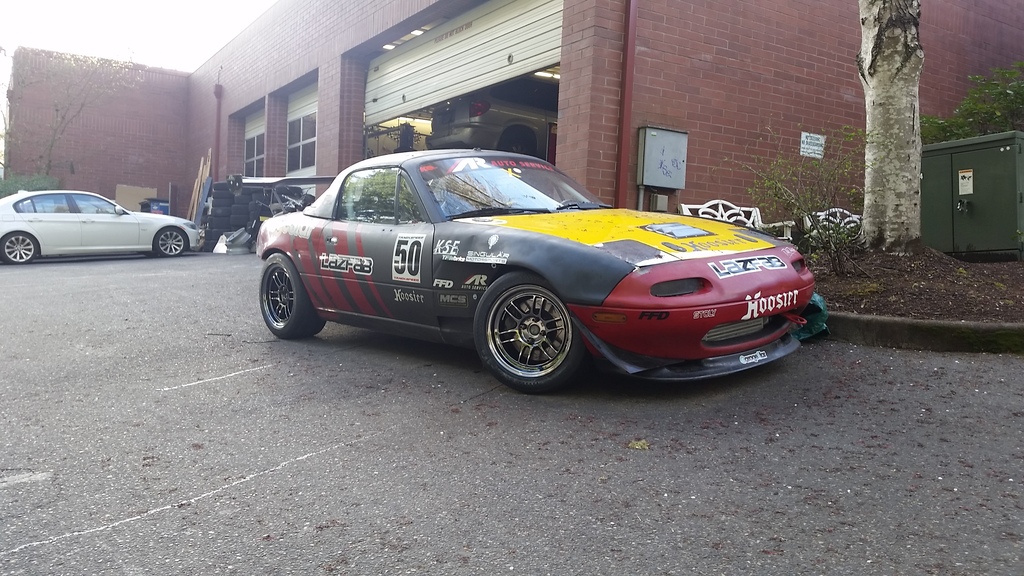

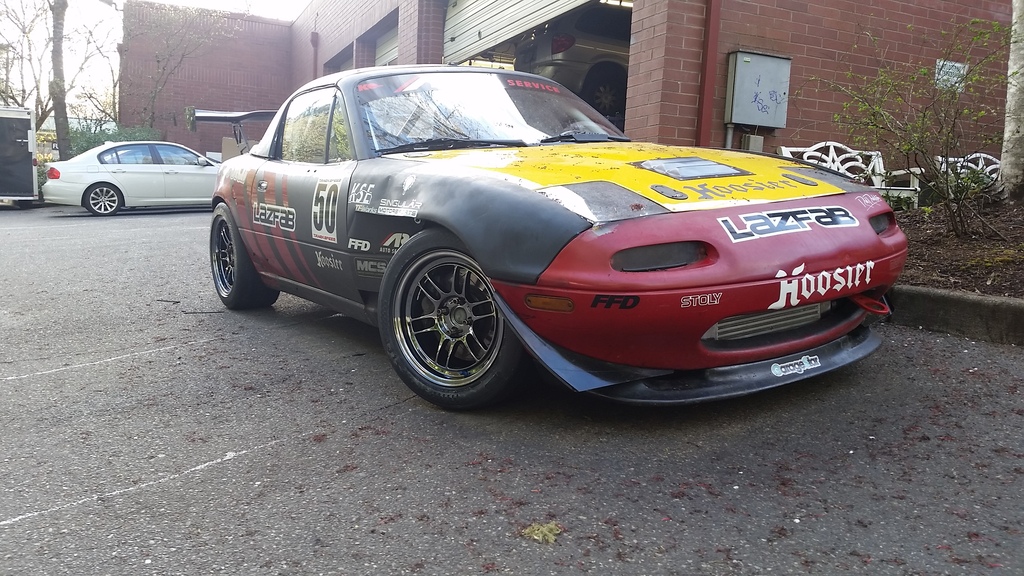

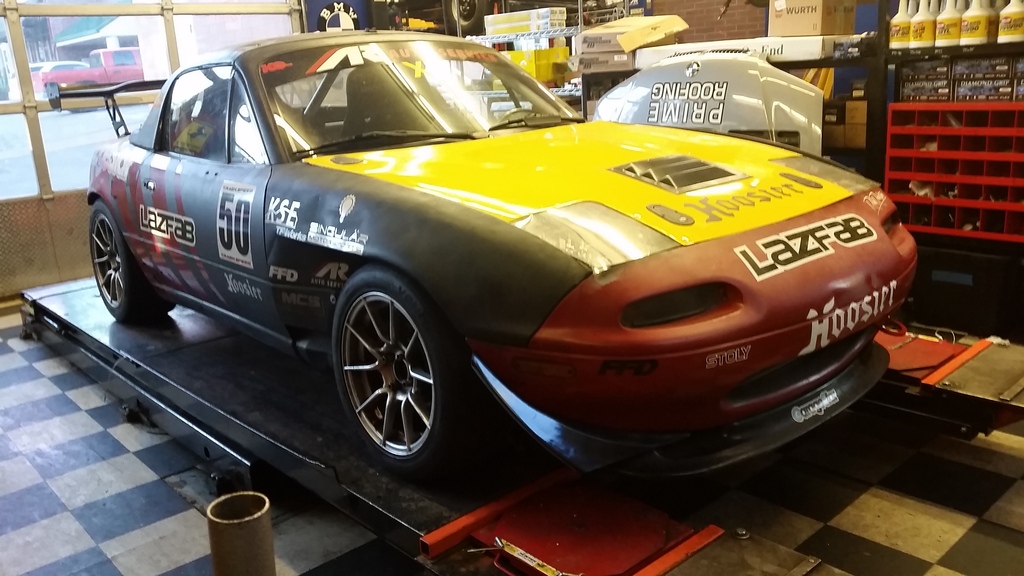

Car will get a full respray, but for now I kinda dig the ridiculous yellow hood
Car will get a full respray, but for now I kinda dig the ridiculous yellow hood
