So I was taking a closer look at the plates for the Rear-Main hoop I had in-laid into the indentations built into the Miata unibody. I really liked the way everything was laying-in, but wanted to be triple-sure that the three plates were all fused together as one unit - and I had removed (in my estimation) 50% of that fusion when grinding the top flat (as shown in the previous post)

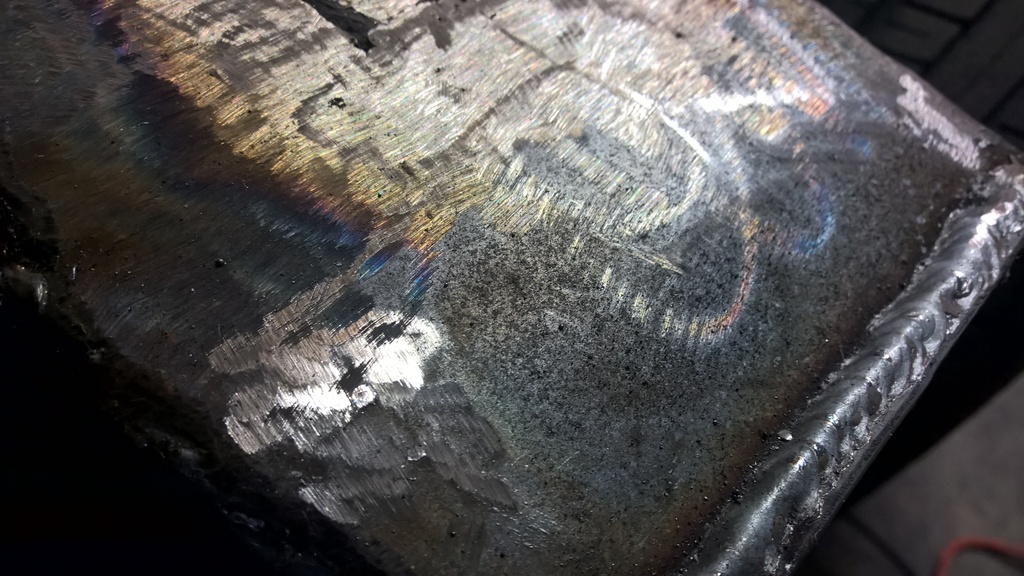

So I fired up the welder, and lined up my setting for 3/16" (the plate is 1/8") - lots of heat, lots of filler - it helped a lot - I then made the top surface smooth (again):

[img]https://i.imgur.com/sbacfjE.jpg[/img]

With the rear reinforcement all lined up I moved onto the front!

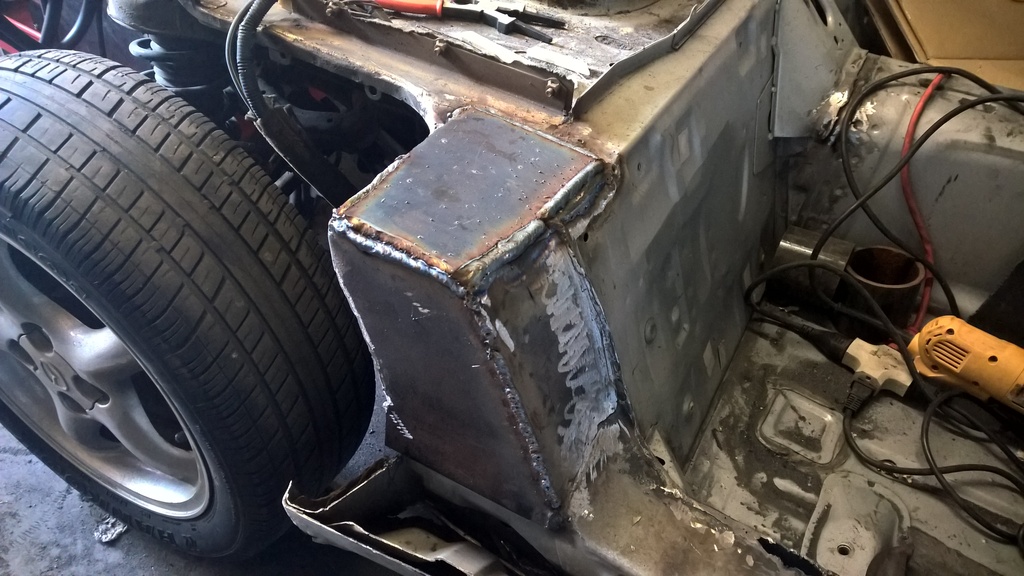

The box-section was already very strong - so I flattened it out, started laying on plate! (Also - don't hate on the Bessey wood clamp - my set isn't very expansive yet, so I worked with what I've got!)
[img]https://i.imgur.com/lNtAOca.jpg[/img]

bawward

iTrader: (3)

Update (cont'd)

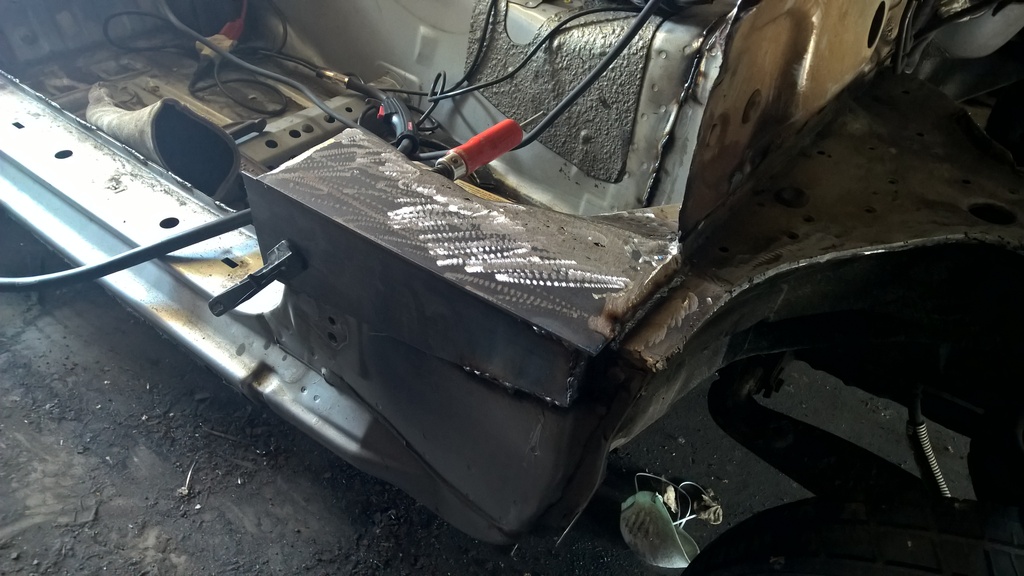

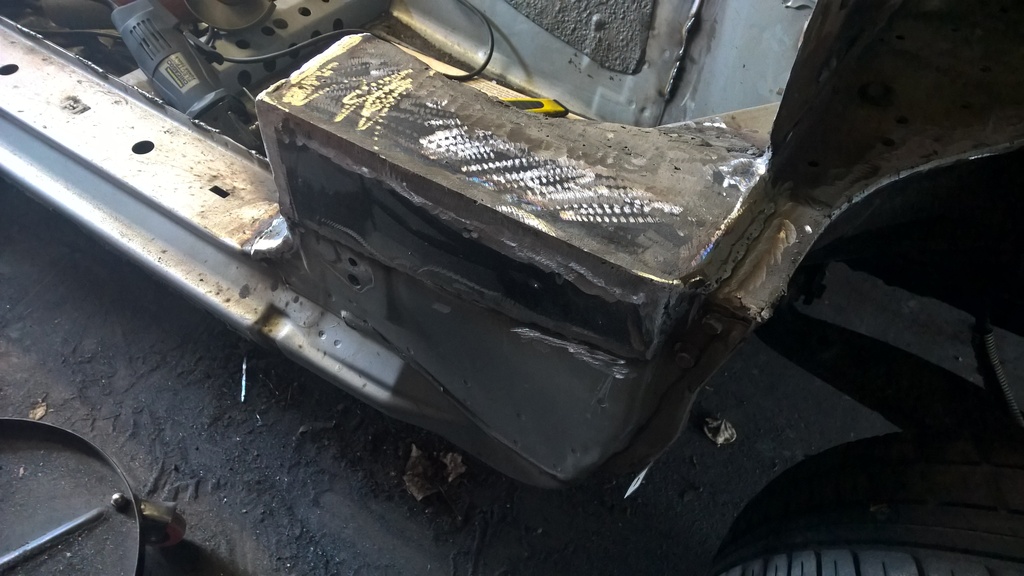

After I got the top plate and the side plate all lined up, I turned my attention to the curved door-bar plate. My door-bar design will essentially be an "X" shape, so the lower left and right points each needed base-plates.

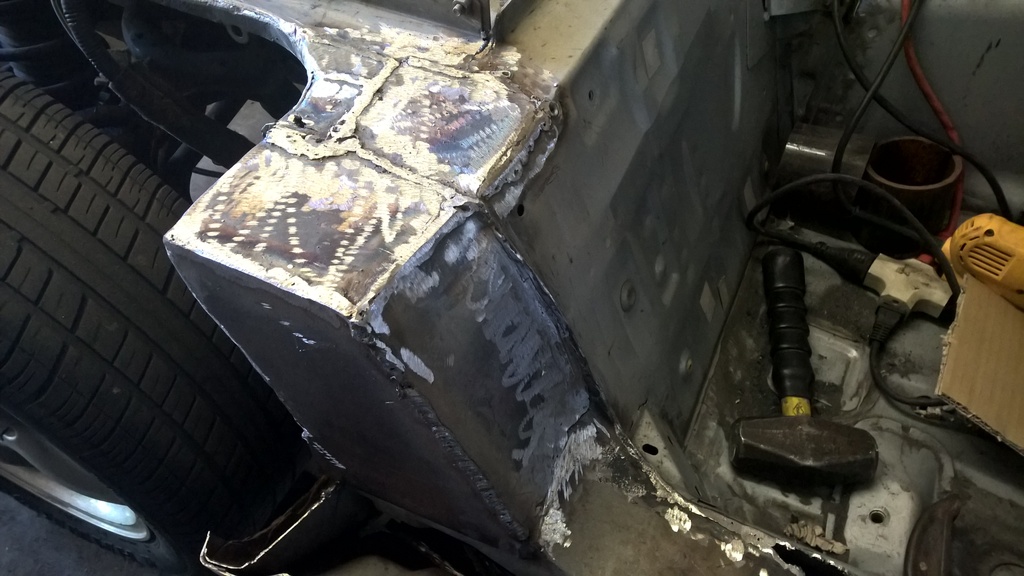

I put the torch set to this piece - heated the crap out of it, then hammered the crap out of it to get the shape correct - seen here:

[img]https://i.imgur.com/xSxkvfG.jpg[/img]

All cleaned up

[img]https://i.imgur.com/cyao4SL.jpg[/img]

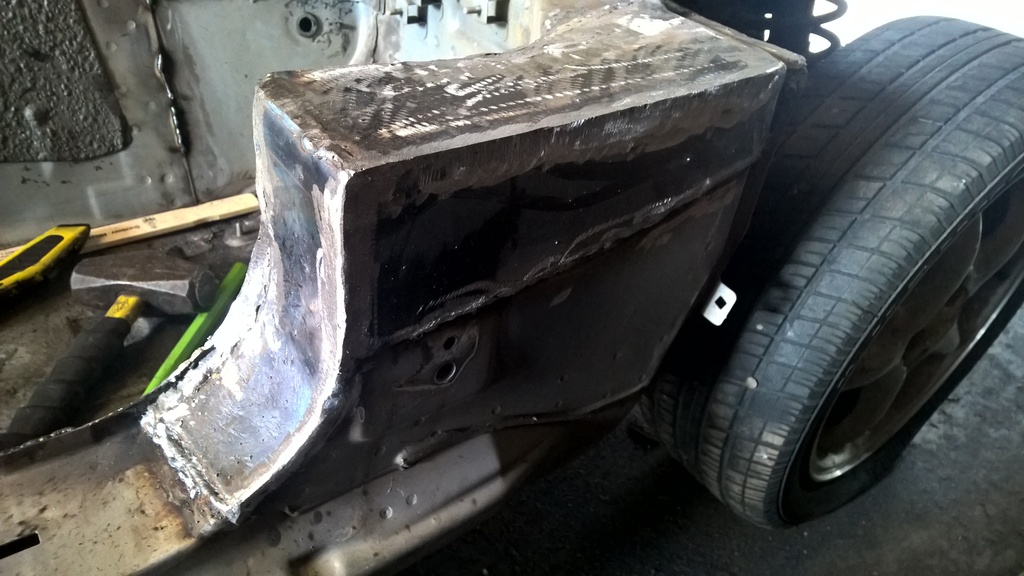

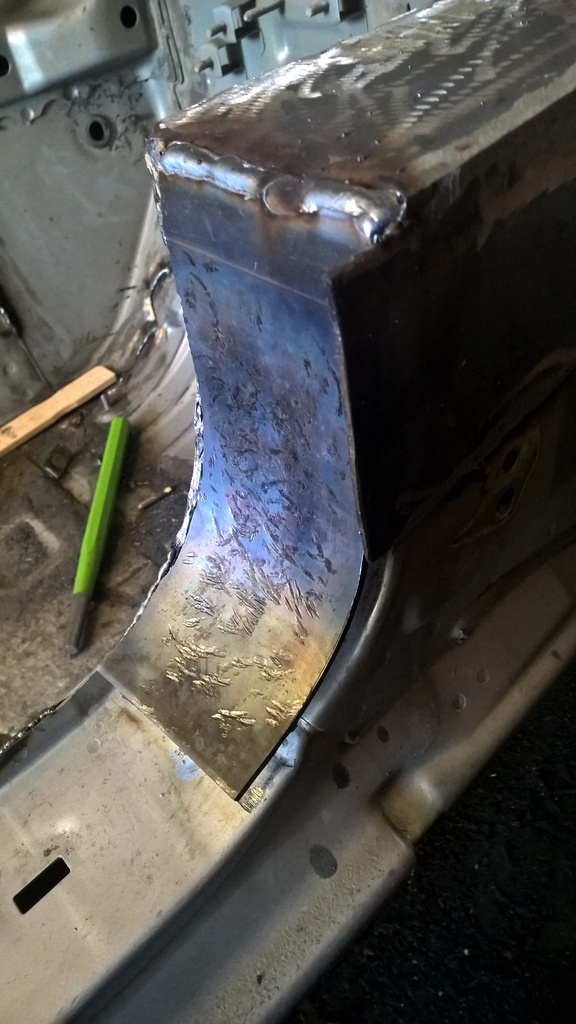

This is the front mounting point, all cleaned up, ready for the hoop!

[img]https://i.imgur.com/lokhTqj.jpg[/img]

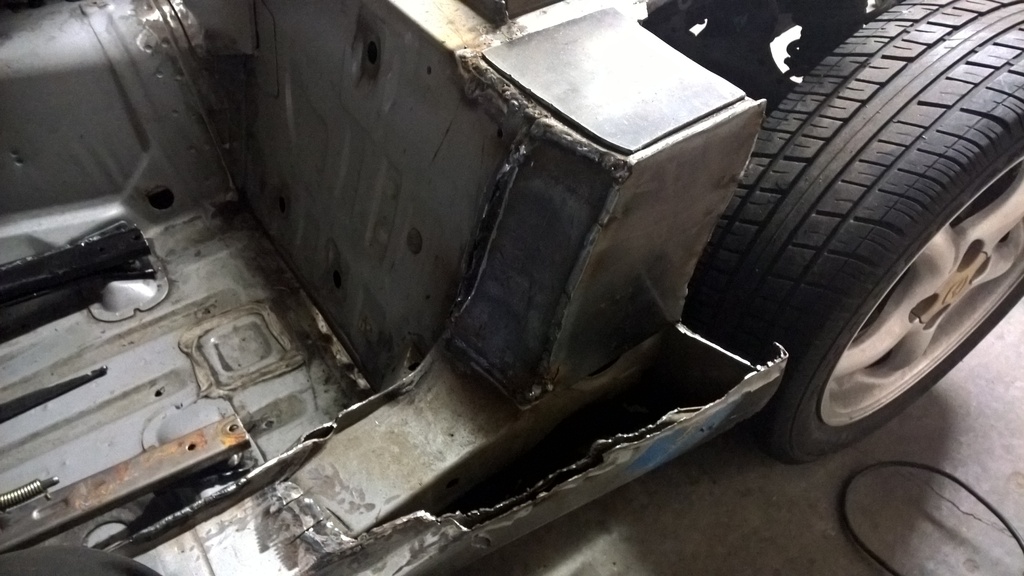

At this point, I turned my attention to the rear again - time for the "actual" base plate - with the reinforcing pieces I had inlaid (previous posts) I was able to use full-heat when welding this plate - without ricking burn-through.

Seen here:

[img]https://i.imgur.com/Ter9lr3.jpg[/img]

[img]https://i.imgur.com/tzCme5g.jpg[/img]

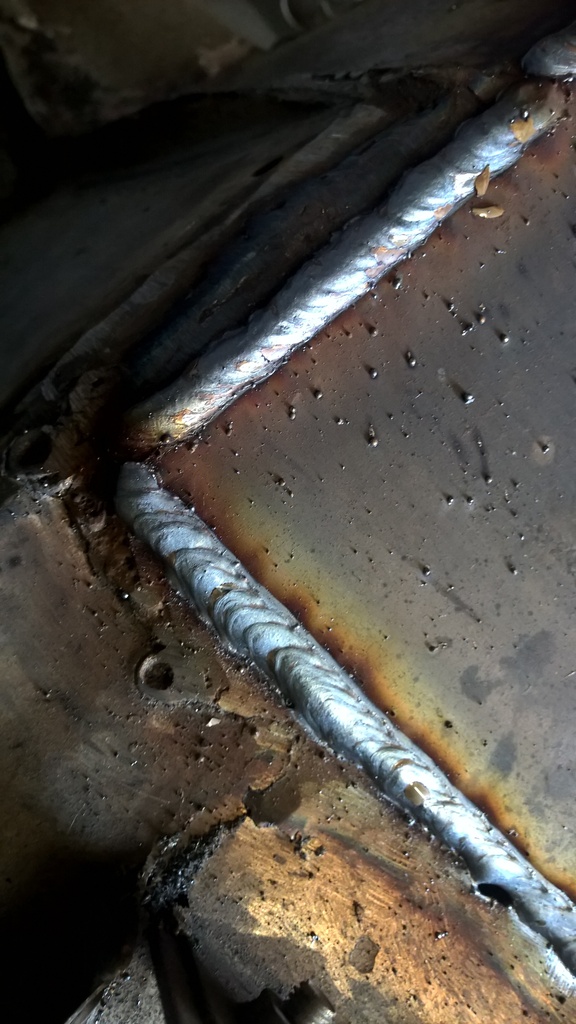

And now the obligatory welding close-up for all that online flaming "shoulda-done this!" comments!

[img]https://i.imgur.com/8Az5OQv.jpg[/img]

Self critique - I had a weak corner-finish, had some undercutting (moving too slow), had a bit too-tall of a welding bead profile (also moving a bit too slow) - however I was able to get good heat and good penetration - it will hold

bawward

iTrader: (3)

Well, it was a productive weekend!

I was going to finish this plate last weekend, but ran out of C25!!! (I think I left the valve open)

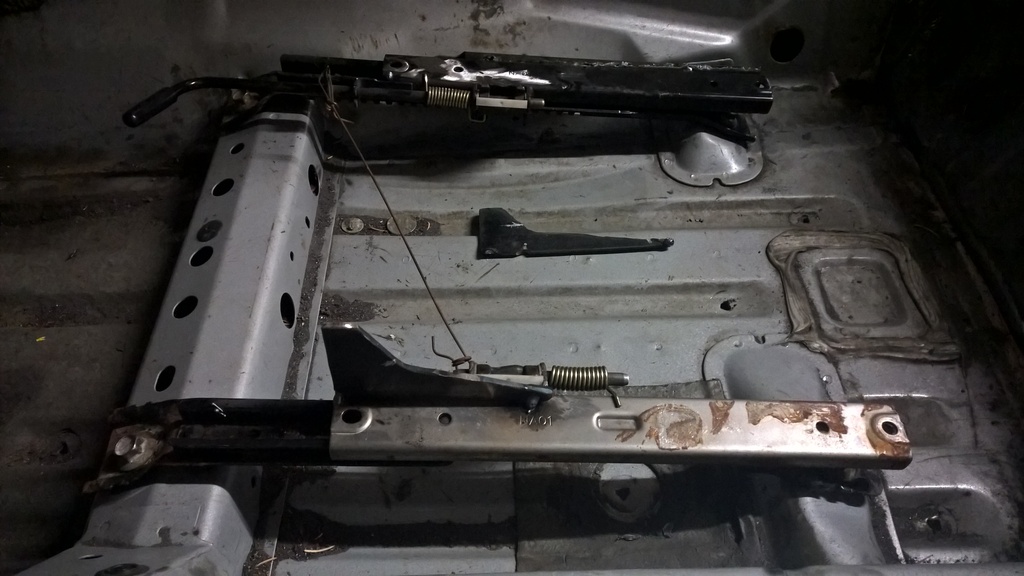

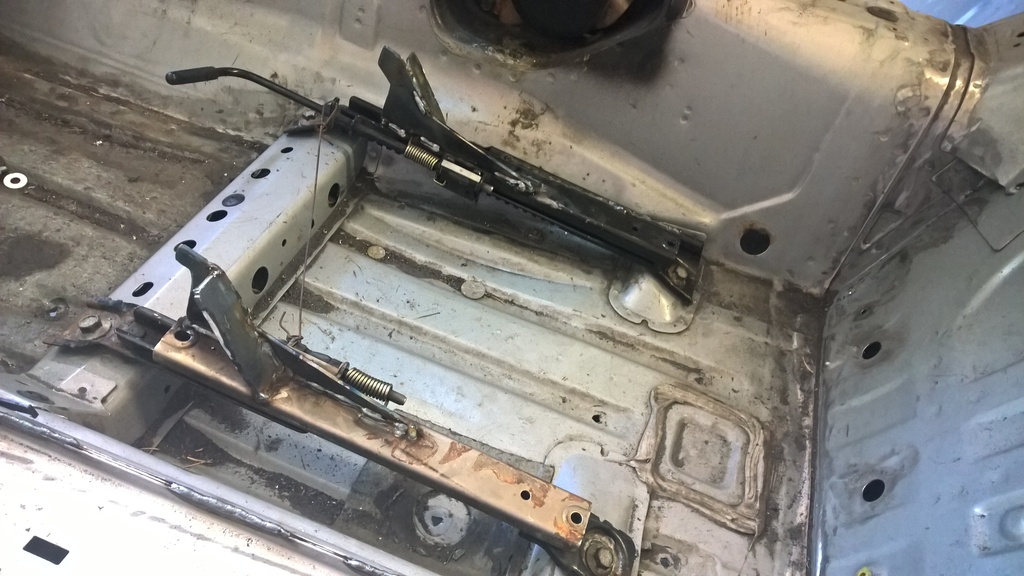

So... I moved on to the seats! I need to establish my head ht. based on using the stock sliders (I'm 6'3", my wife is 5'2" - sliders are needed!)


So, using cardboard, I made some templates, and using the plasma cutter and some grinding, I thought I was all set!

[img]https://i.imgur.com/H17heu9.jpg[/img]

Nope.

Something went crazy wrong - they didn't fit up at all. So - remove - replace.

These were much, much better - within a 1/16" on all contacting surfaces:

[img]https://i.imgur.com/0yIpnMr.jpg[/img]

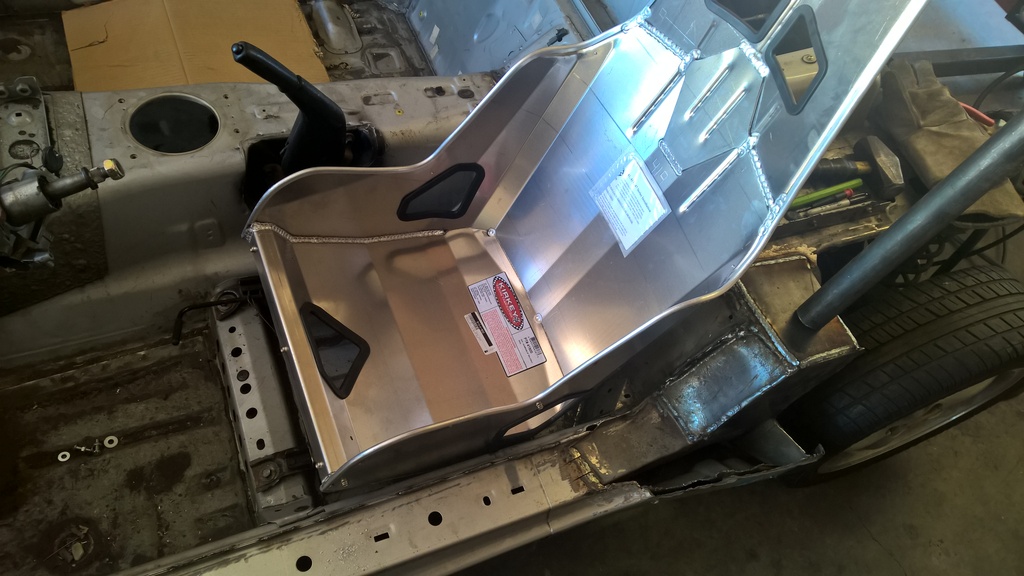

Seat fit in great - left it unbolted for now so I can adjust side-to-side (steering wheel centerline) until I get a dash bar in and secure the steering column:

[img]https://i.imgur.com/vLvlTih.jpg[/img]

I then proceeded to clean out the shop - HOLY CRAP - there's SO MUCH dust! It was EVERYWHERE - the photo doesn't do it justice:

[img]https://i.imgur.com/QD0urUs.jpg[/img]


Next - trim the legs for the main front/rear hoops - tack them in place - start ACTUALLY working on the rest of the cage!
