Inglarīs 2001 Sport
#141
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
The diff is back in the car now. Used the new pinion spacer. Didnīt bather to chack with the old one. Happy with the help I got from hf-mx5t. have never tried this before so it is great to get help from someone who has done this before. A lot of adjustment before the diff was finished. If you are planning to do this, buy a micromeeter (or what it is called in english
)
![](https://www.miataturbo.net/images/smilies/smile.gif)
I`m STILL waiting on new bearings. Should be here today as long as Posten.no hasn`t gone on easter holiday yet.
#143
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

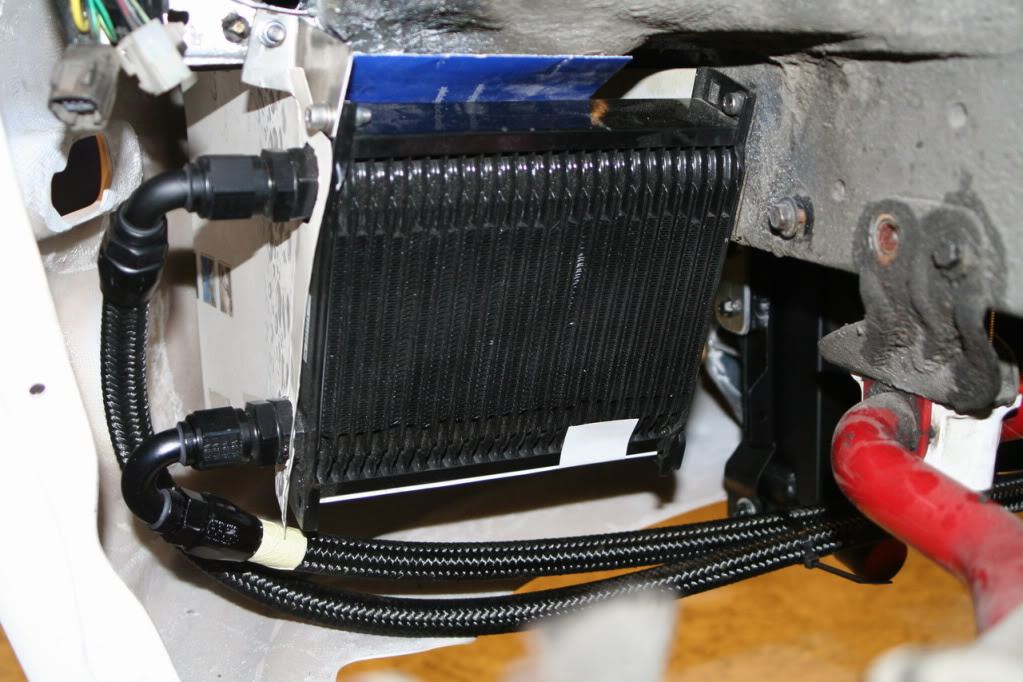

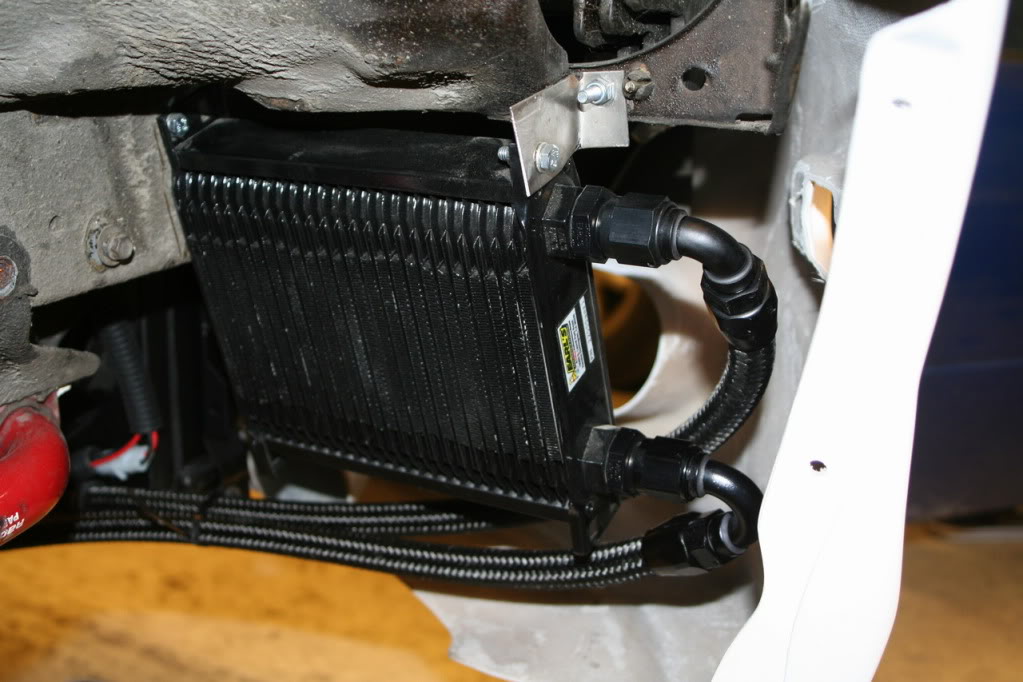

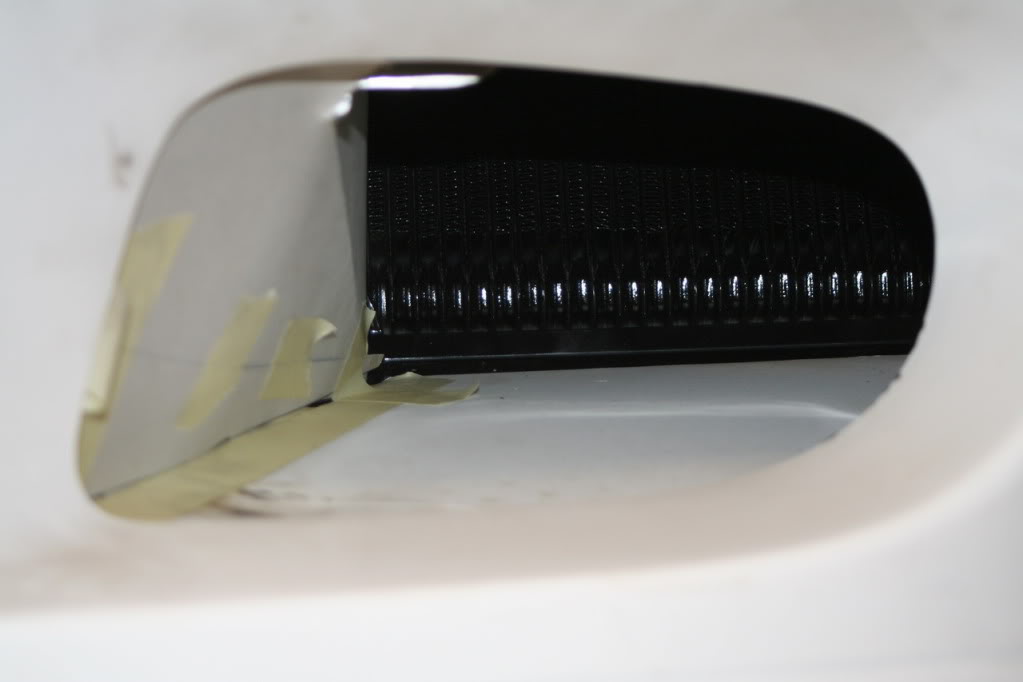

Hooked up the oil coolers and the oil thermostat. And started on the ducting to the coolers and air box.
![Name: oljekjoler5.jpg
Views: 503
Size: 104.4 KB](https://www.miataturbo.net/attachments/build-threads-57/189569d1501221011-inglar%B4s-2001-sport-oljekjoler5.jpg)
![Name: oljekjoler6.jpg
Views: 409
Size: 130.7 KB](https://www.miataturbo.net/attachments/build-threads-57/189570d1501221011-inglar%B4s-2001-sport-oljekjoler6.jpg)
![Name: oljekjoler7.jpg
Views: 423
Size: 36.4 KB](https://www.miataturbo.net/attachments/build-threads-57/189571d1501221011-inglar%B4s-2001-sport-oljekjoler7.jpg)

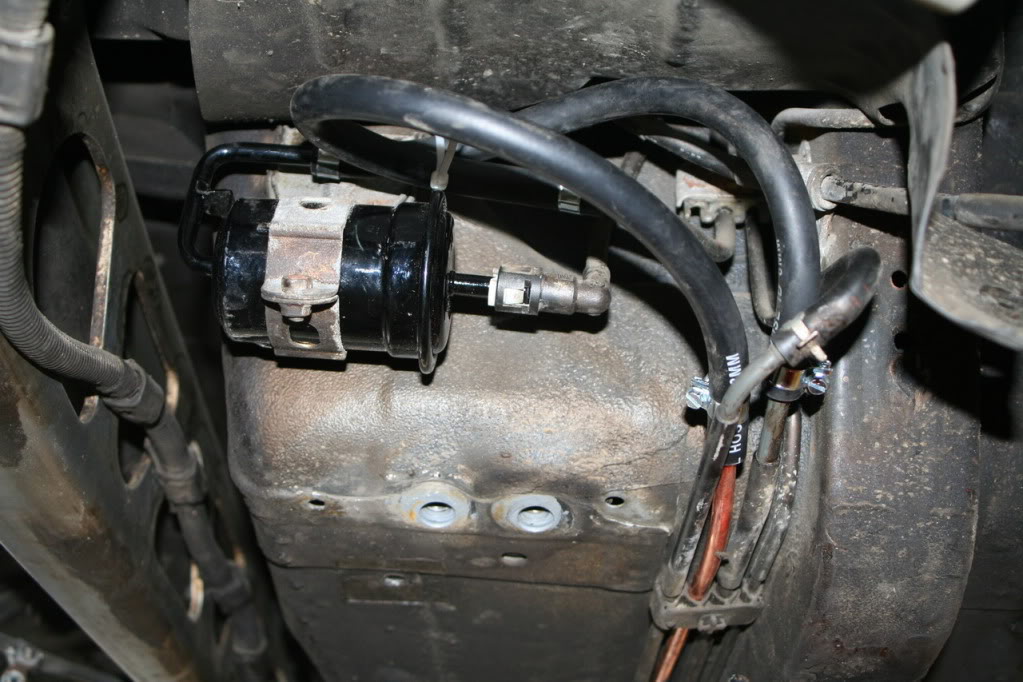

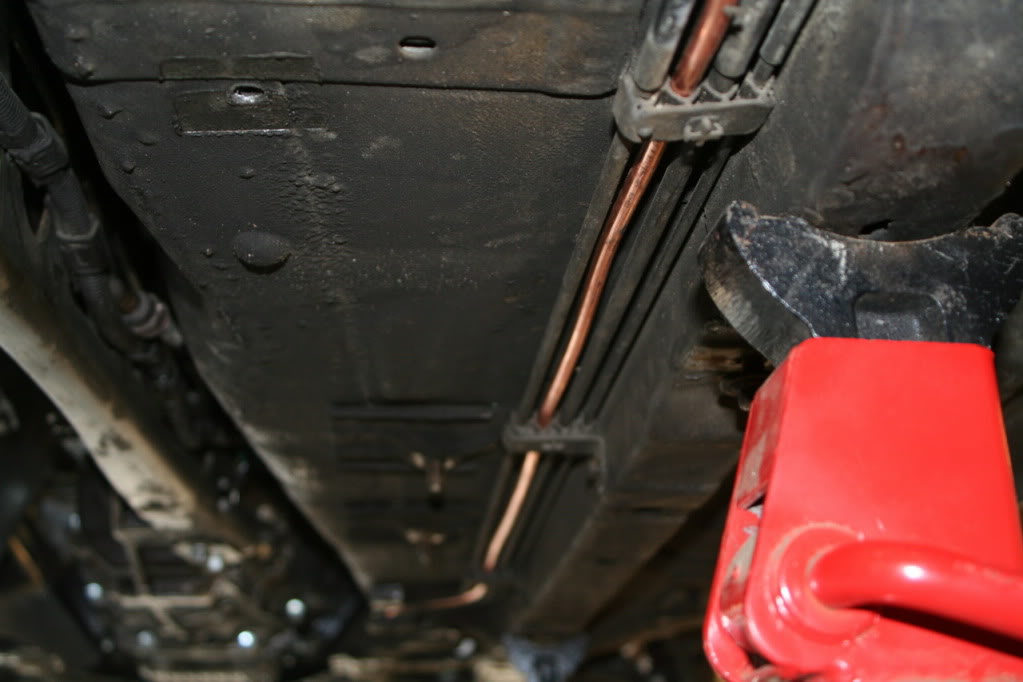

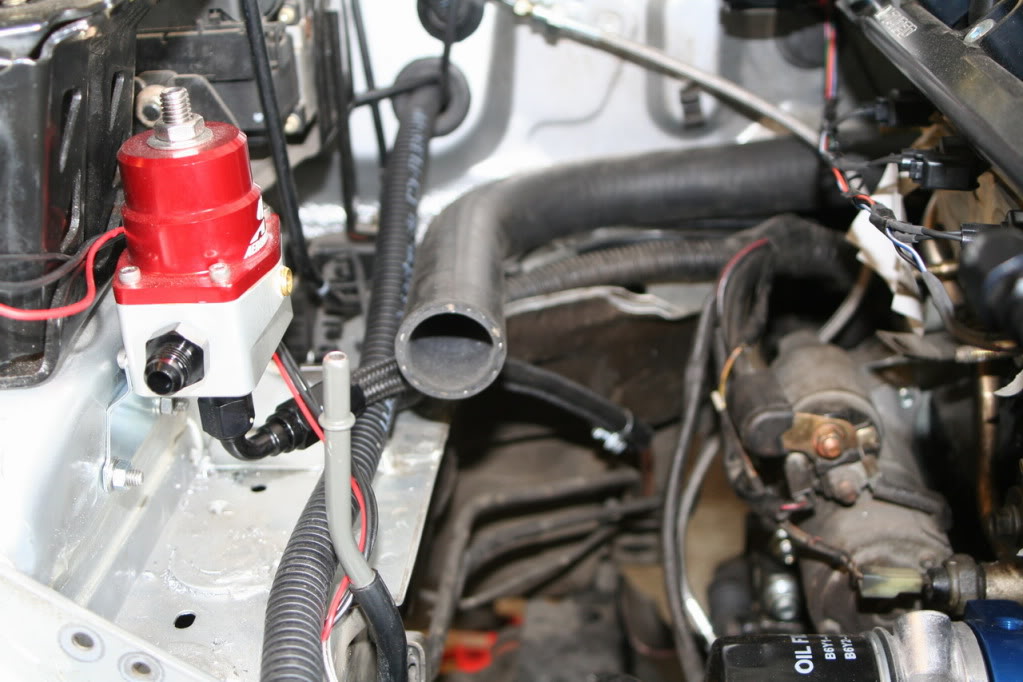

Had to change the fuel lines. Have an external fuel pressure regulator so I had to remove the original one an run a new line to the engine bay. Not my finest work, but it wil hopefully work. Used the free spase where the original lines go. Easy running the new line, but a bitch to hook it all up under the car.
![Name: bensin1.jpg
Views: 506
Size: 123.7 KB](https://www.miataturbo.net/attachments/build-threads-57/189572d1501221011-inglar%B4s-2001-sport-bensin1.jpg)
![Name: bensin2.jpg
Views: 404
Size: 78.2 KB](https://www.miataturbo.net/attachments/build-threads-57/189573d1501221011-inglar%B4s-2001-sport-bensin2.jpg)
![Name: oljekjoler5.jpg
Views: 503
Size: 104.4 KB](https://www.miataturbo.net/attachments/build-threads-57/189569d1501221011-inglar%B4s-2001-sport-oljekjoler5.jpg)
![Name: oljekjoler6.jpg
Views: 409
Size: 130.7 KB](https://www.miataturbo.net/attachments/build-threads-57/189570d1501221011-inglar%B4s-2001-sport-oljekjoler6.jpg)
![Name: oljekjoler7.jpg
Views: 423
Size: 36.4 KB](https://www.miataturbo.net/attachments/build-threads-57/189571d1501221011-inglar%B4s-2001-sport-oljekjoler7.jpg)
Had to change the fuel lines. Have an external fuel pressure regulator so I had to remove the original one an run a new line to the engine bay. Not my finest work, but it wil hopefully work. Used the free spase where the original lines go. Easy running the new line, but a bitch to hook it all up under the car.
![Name: bensin1.jpg
Views: 506
Size: 123.7 KB](https://www.miataturbo.net/attachments/build-threads-57/189572d1501221011-inglar%B4s-2001-sport-bensin1.jpg)
![Name: bensin2.jpg
Views: 404
Size: 78.2 KB](https://www.miataturbo.net/attachments/build-threads-57/189573d1501221011-inglar%B4s-2001-sport-bensin2.jpg)
![Name: bensin3.jpg
Views: 474
Size: 111.5 KB](https://www.miataturbo.net/attachments/build-threads-57/189574d1501221011-inglar%B4s-2001-sport-bensin3.jpg)
#158
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Long time no pictures. But here is a few.

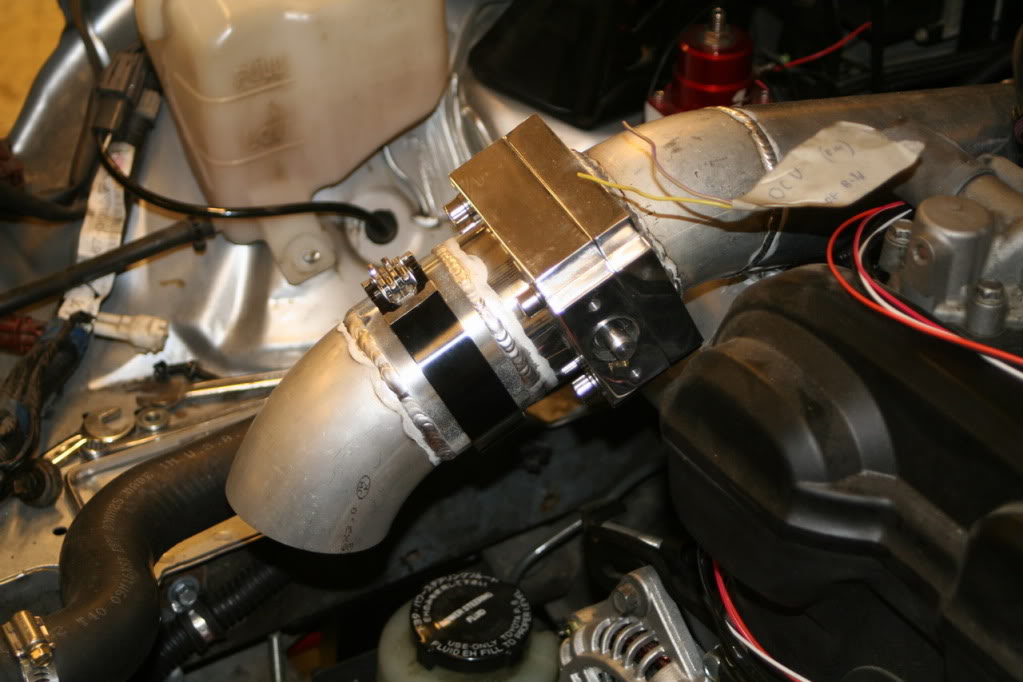

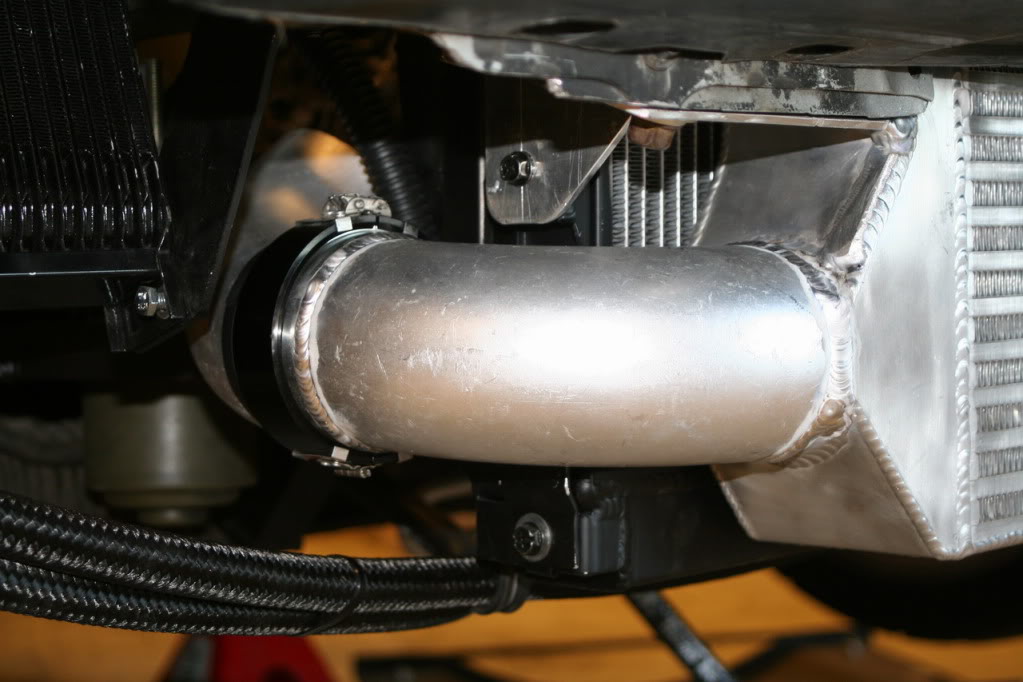

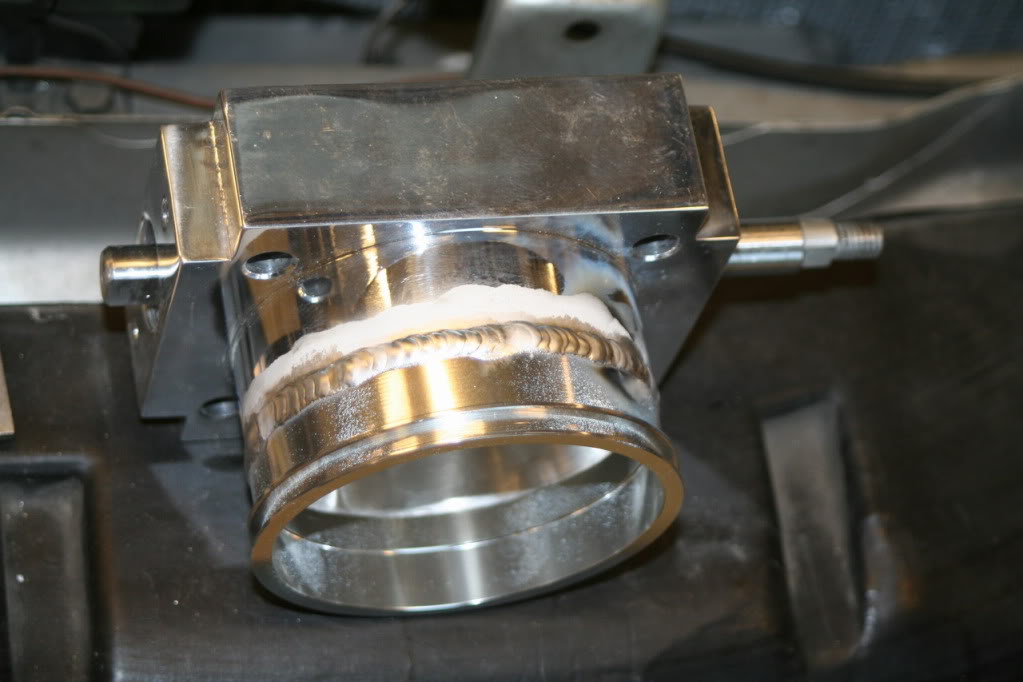

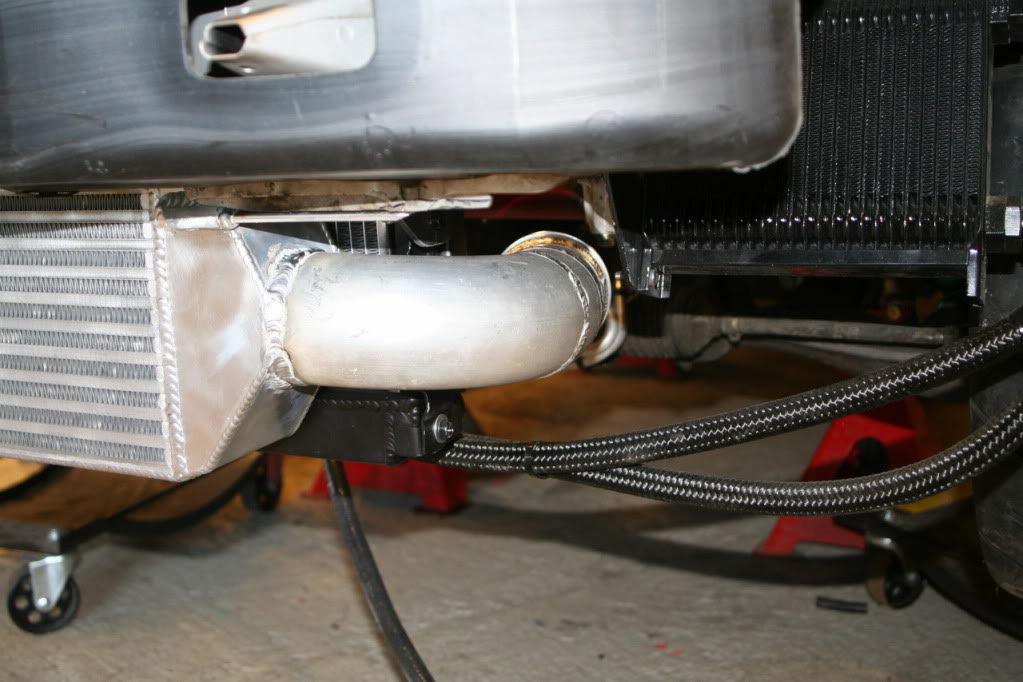

Started welding intercooler pipes, and a new throtle body. Using wiggins (well it is actually fake wiggins, Pegasus. Not willing to pay over $500 a pop for 4") on all the piping.
![Name: intercooler11.jpg
Views: 456
Size: 91.9 KB](https://www.miataturbo.net/attachments/build-threads-57/188949d1501219927-inglar%B4s-2001-sport-intercooler11.jpg)
![Name: intercooler10.jpg
Views: 416
Size: 101.0 KB](https://www.miataturbo.net/attachments/build-threads-57/188950d1501219927-inglar%B4s-2001-sport-intercooler10.jpg)
![Name: gasspjell1.jpg
Views: 421
Size: 73.8 KB](https://www.miataturbo.net/attachments/build-threads-57/188951d1501219927-inglar%B4s-2001-sport-gasspjell1.jpg)
![Name: gasspjell2.jpg
Views: 490
Size: 91.7 KB](https://www.miataturbo.net/attachments/build-threads-57/188952d1501219927-inglar%B4s-2001-sport-gasspjell2.jpg)

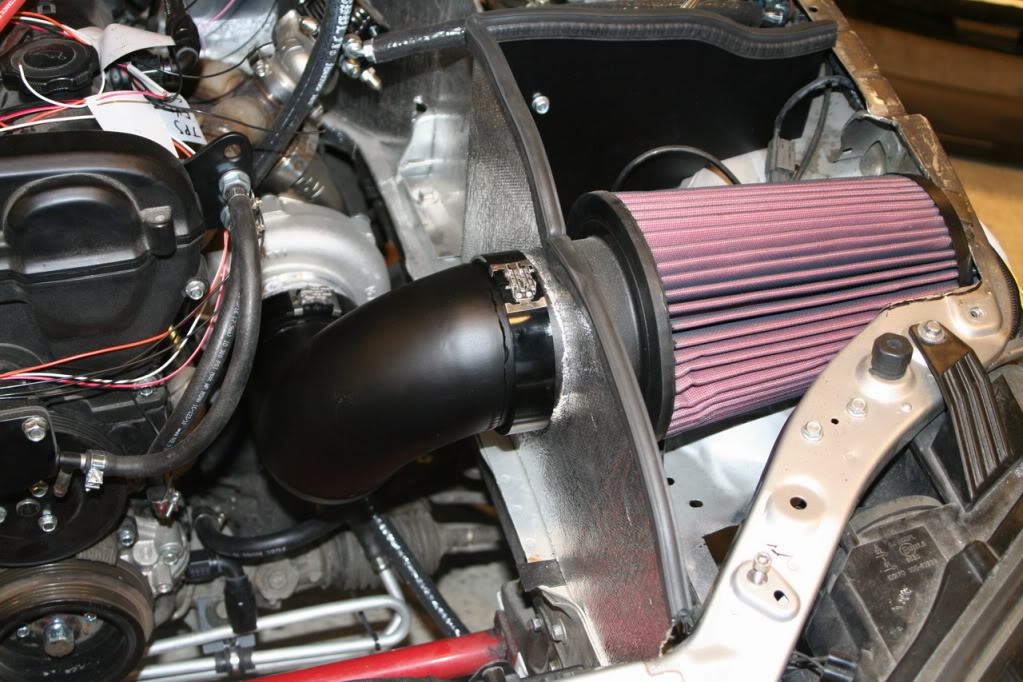

Airfilter to turbo is done. Just need to paint the turbo black.
![Name: luftfilterboks11.jpg
Views: 540
Size: 142.9 KB](https://www.miataturbo.net/attachments/build-threads-57/188953d1501219927-inglar%B4s-2001-sport-luftfilterboks11.jpg)

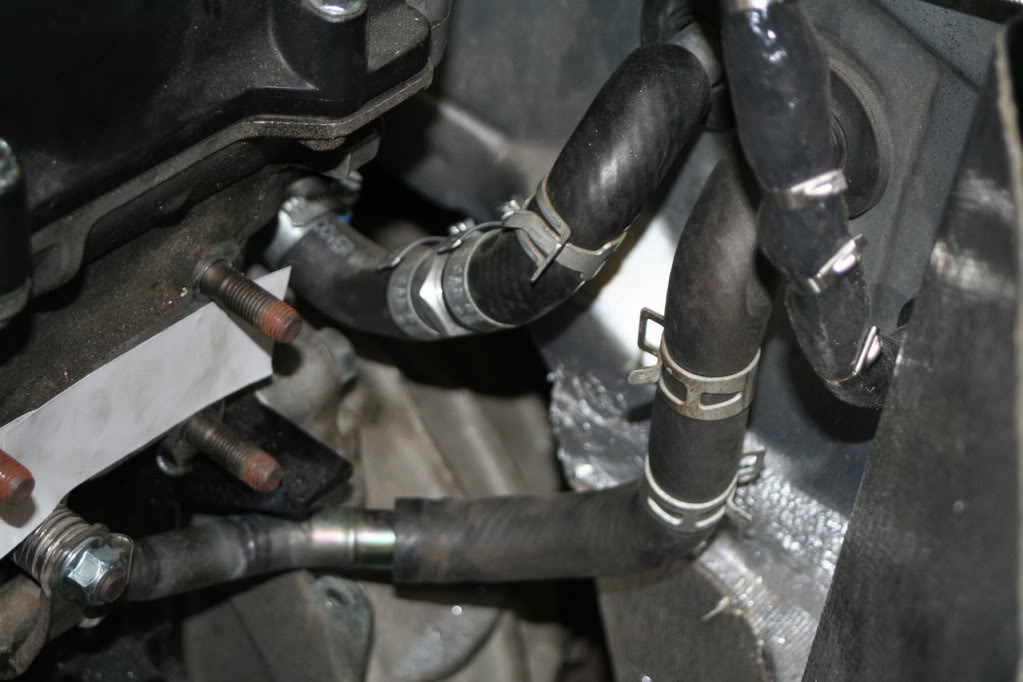

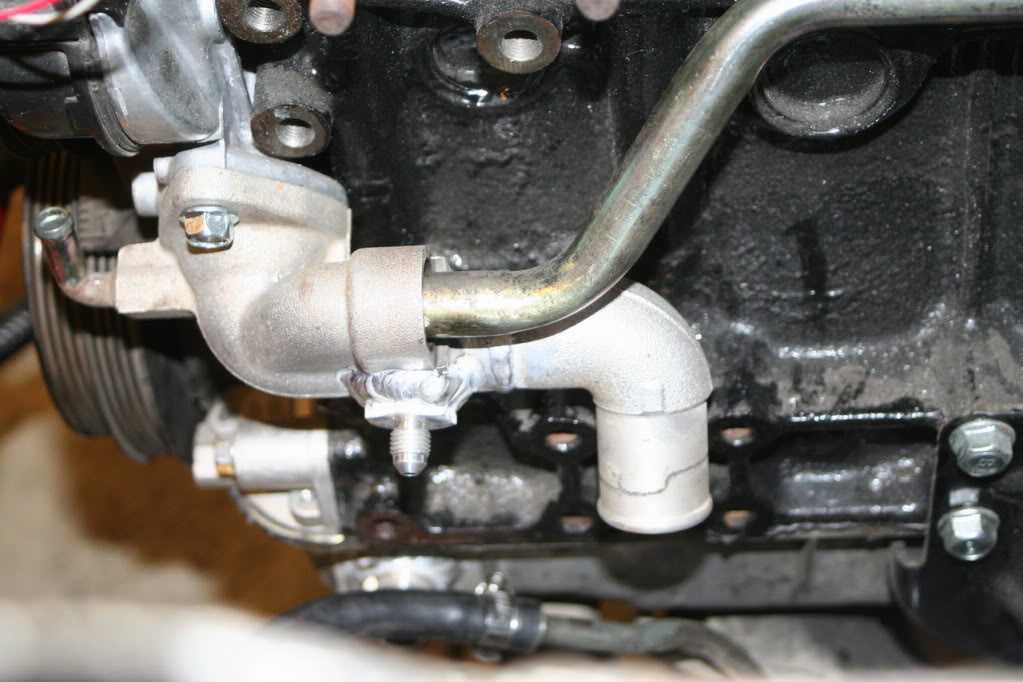

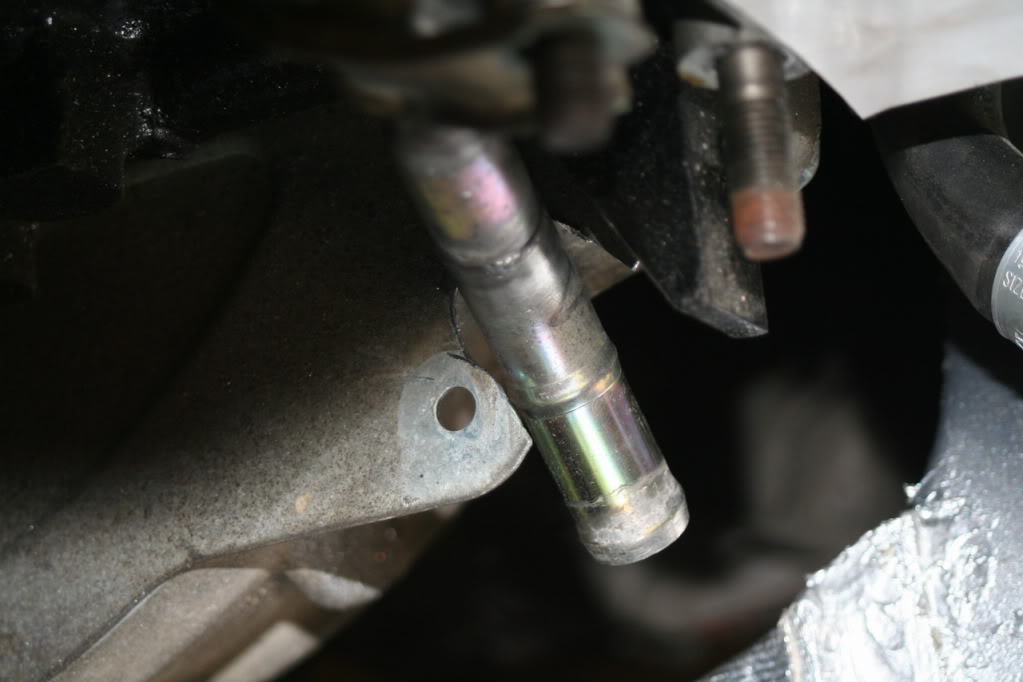

Modified the water lines to get them further away from the exhaust manifold and make better room for the downpipe from the wastegate. Added some weld in bungs ++
![Name: vannror2.jpg
Views: 387
Size: 64.1 KB](https://www.miataturbo.net/attachments/build-threads-57/188954d1501219927-inglar%B4s-2001-sport-vannror2.jpg)
![Name: vannror3.jpg
Views: 548
Size: 79.6 KB](https://www.miataturbo.net/attachments/build-threads-57/188955d1501219927-inglar%B4s-2001-sport-vannror3.jpg)
Started welding intercooler pipes, and a new throtle body. Using wiggins (well it is actually fake wiggins, Pegasus. Not willing to pay over $500 a pop for 4") on all the piping.
![Name: intercooler11.jpg
Views: 456
Size: 91.9 KB](https://www.miataturbo.net/attachments/build-threads-57/188949d1501219927-inglar%B4s-2001-sport-intercooler11.jpg)
![Name: intercooler10.jpg
Views: 416
Size: 101.0 KB](https://www.miataturbo.net/attachments/build-threads-57/188950d1501219927-inglar%B4s-2001-sport-intercooler10.jpg)
![Name: gasspjell1.jpg
Views: 421
Size: 73.8 KB](https://www.miataturbo.net/attachments/build-threads-57/188951d1501219927-inglar%B4s-2001-sport-gasspjell1.jpg)
![Name: gasspjell2.jpg
Views: 490
Size: 91.7 KB](https://www.miataturbo.net/attachments/build-threads-57/188952d1501219927-inglar%B4s-2001-sport-gasspjell2.jpg)
Airfilter to turbo is done. Just need to paint the turbo black.
![Name: luftfilterboks11.jpg
Views: 540
Size: 142.9 KB](https://www.miataturbo.net/attachments/build-threads-57/188953d1501219927-inglar%B4s-2001-sport-luftfilterboks11.jpg)
Modified the water lines to get them further away from the exhaust manifold and make better room for the downpipe from the wastegate. Added some weld in bungs ++
![Name: vannror2.jpg
Views: 387
Size: 64.1 KB](https://www.miataturbo.net/attachments/build-threads-57/188954d1501219927-inglar%B4s-2001-sport-vannror2.jpg)
![Name: vannror3.jpg
Views: 548
Size: 79.6 KB](https://www.miataturbo.net/attachments/build-threads-57/188955d1501219927-inglar%B4s-2001-sport-vannror3.jpg)
![Name: vannror4.jpg
Views: 512
Size: 103.4 KB](https://www.miataturbo.net/attachments/build-threads-57/188956d1501219927-inglar%B4s-2001-sport-vannror4.jpg)
#160
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

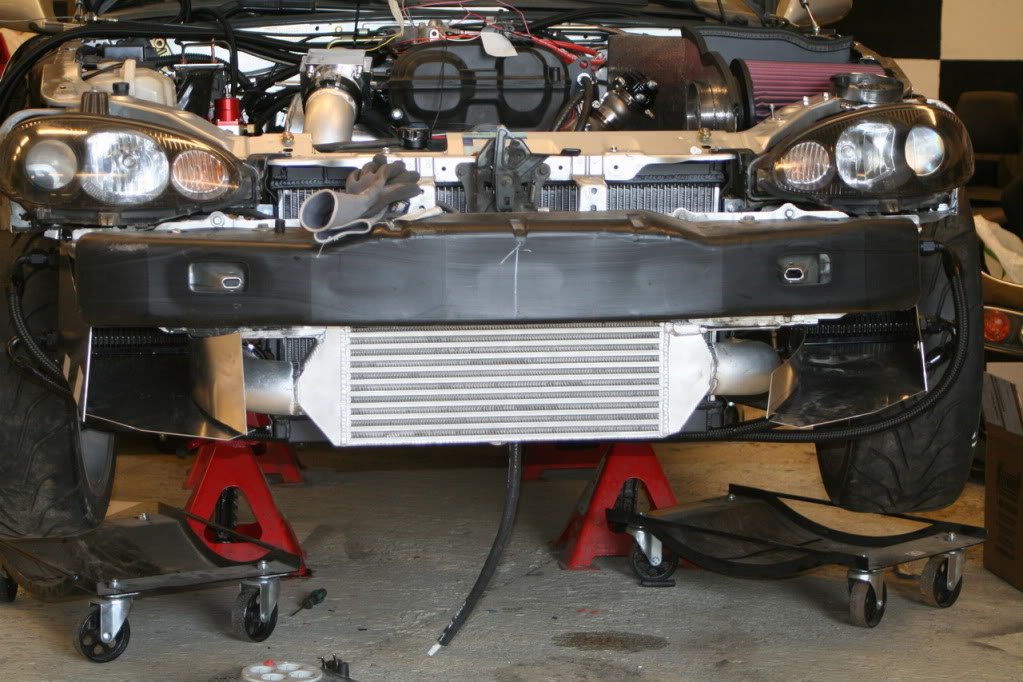

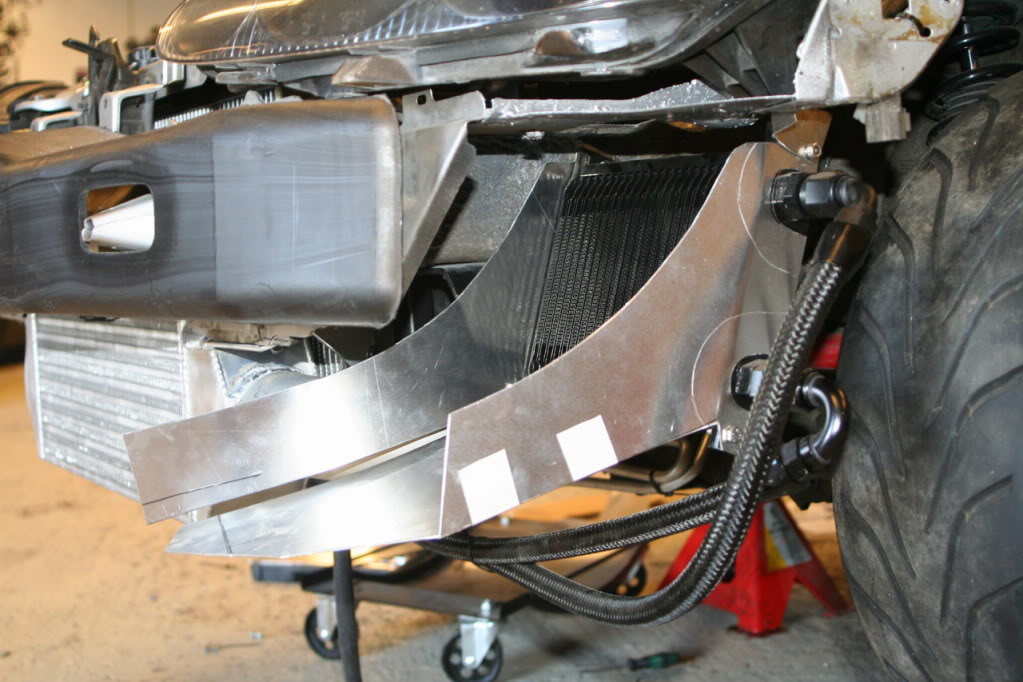

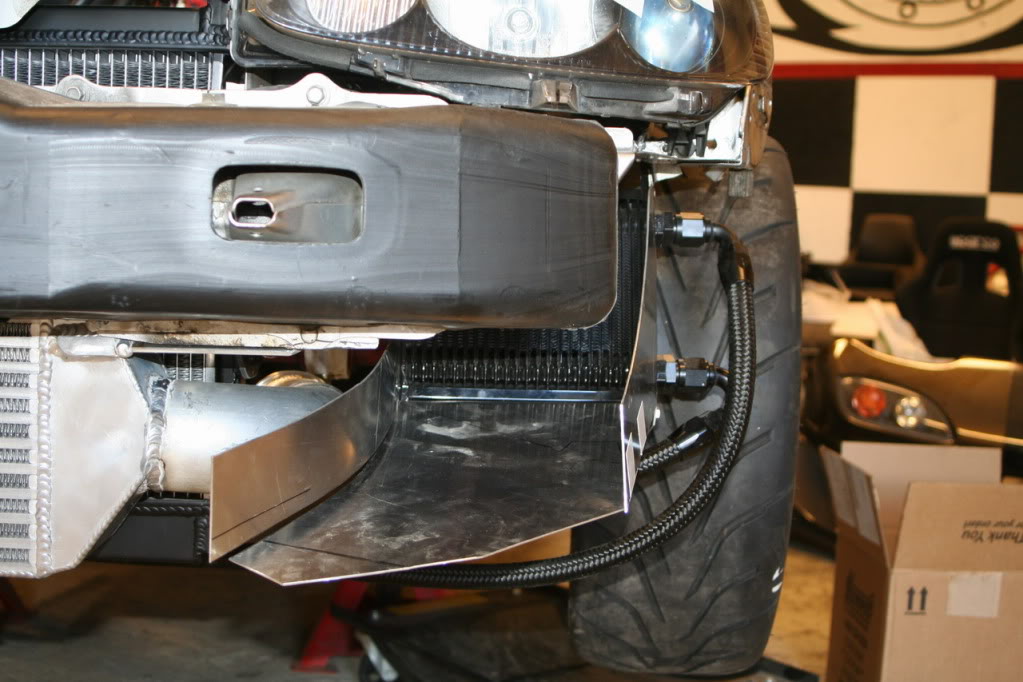

Had to redesign the ducting for the oil coolers but they look better now and clear the front bumper. Just not looking forward to paint the suckers inside.
![Name: oljekjoler8.jpg
Views: 484
Size: 109.3 KB](https://www.miataturbo.net/attachments/build-threads-57/188887d1501219817-inglar%B4s-2001-sport-oljekjoler8.jpg)
![Name: oljekjoler9.jpg
Views: 452
Size: 113.9 KB](https://www.miataturbo.net/attachments/build-threads-57/188888d1501219817-inglar%B4s-2001-sport-oljekjoler9.jpg)
![Name: oljekjoler10.jpg
Views: 495
Size: 137.3 KB](https://www.miataturbo.net/attachments/build-threads-57/188889d1501219817-inglar%B4s-2001-sport-oljekjoler10.jpg)

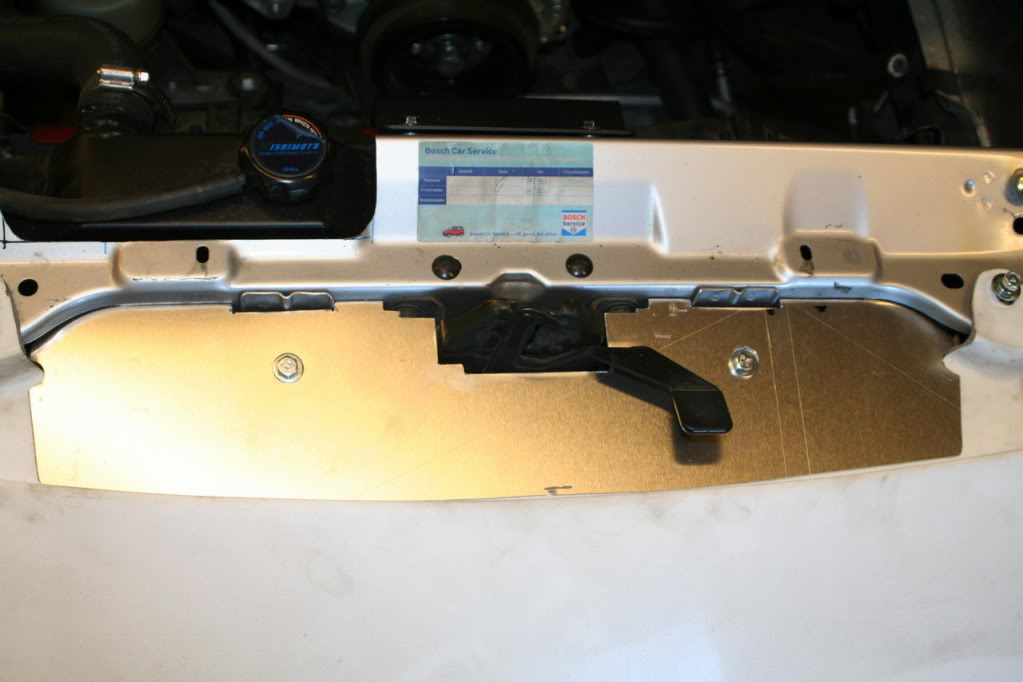

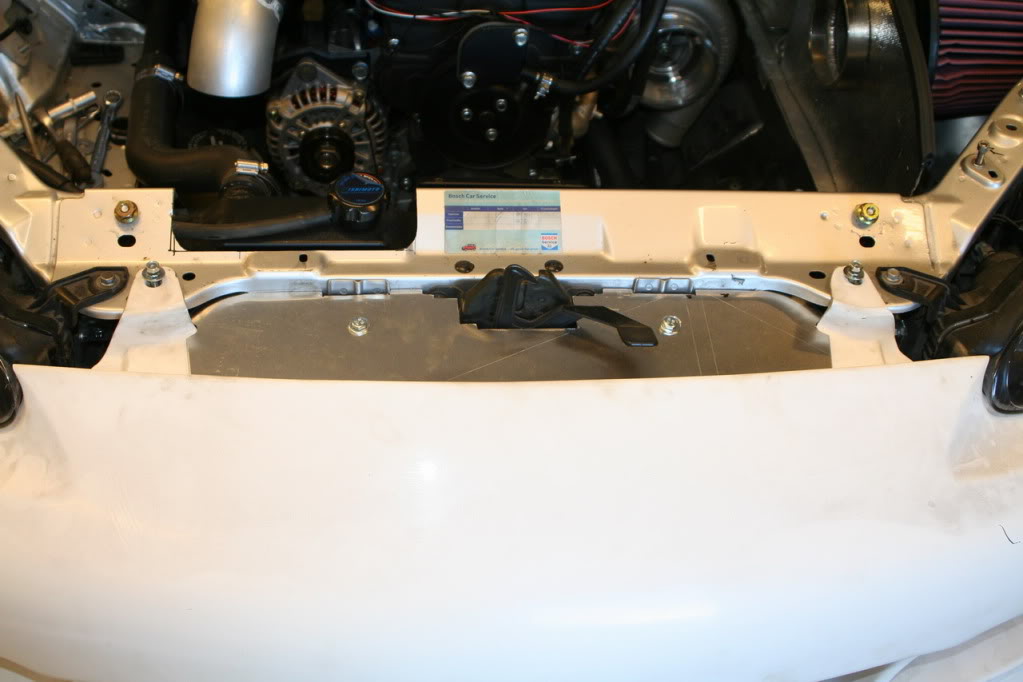

Ducting for the radiator
![Name: ducting1.jpg
Views: 481
Size: 70.6 KB](https://www.miataturbo.net/attachments/build-threads-57/188890d1501219817-inglar%B4s-2001-sport-ducting1.jpg)
![Name: ducting2.jpg
Views: 465
Size: 61.6 KB](https://www.miataturbo.net/attachments/build-threads-57/188891d1501219817-inglar%B4s-2001-sport-ducting2.jpg)

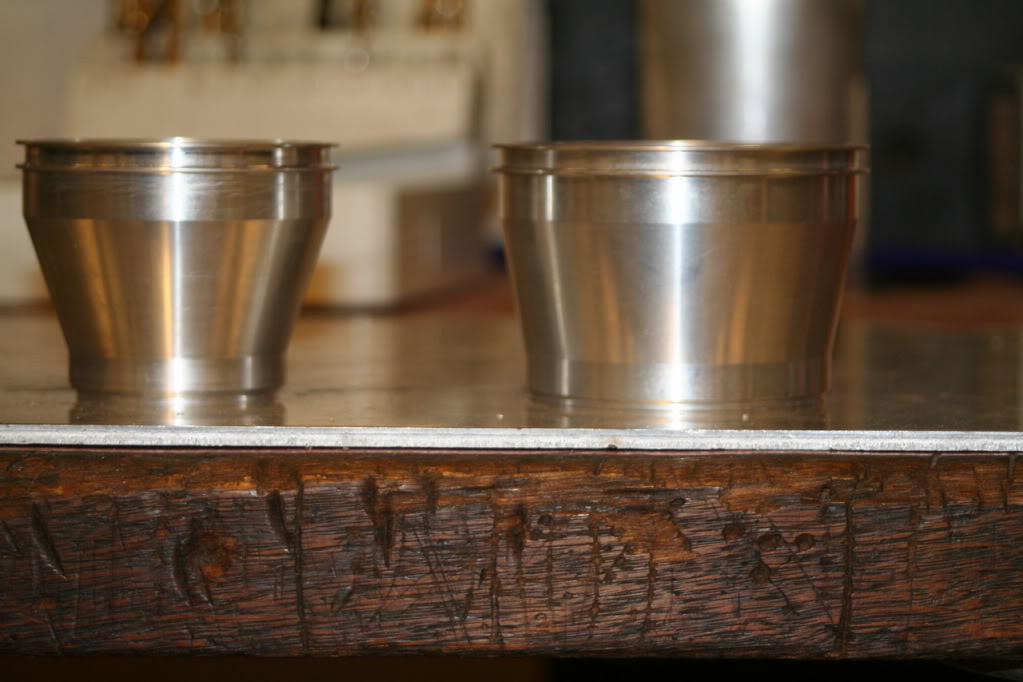

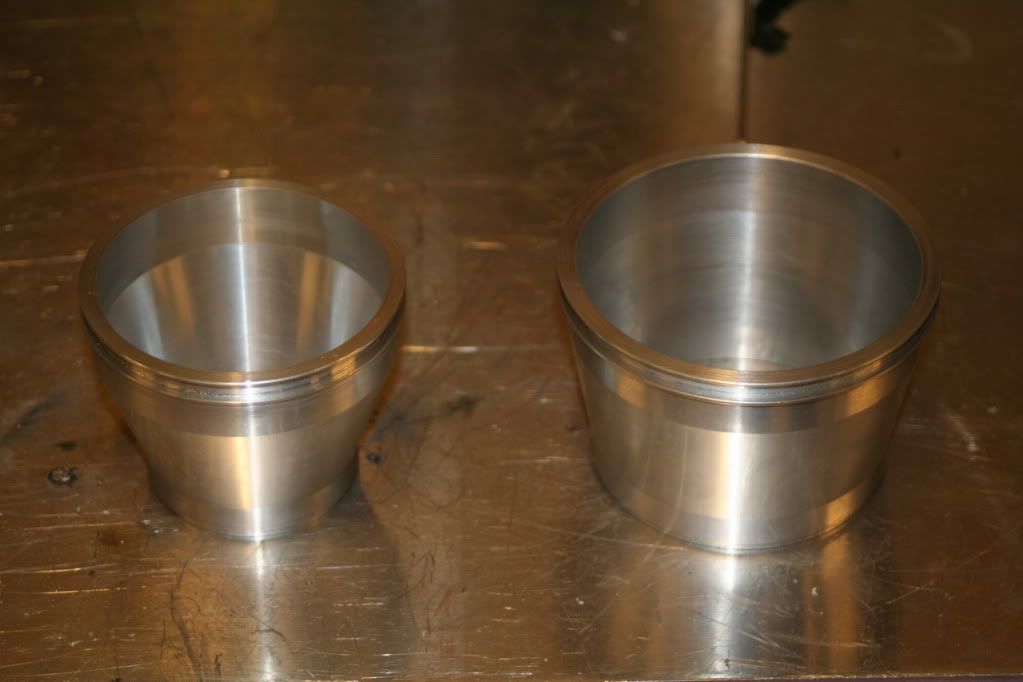

Some home made cones for the piping from the turbo to the intercooler.
![Name: intercooler14.jpg
Views: 432
Size: 85.5 KB](https://www.miataturbo.net/attachments/build-threads-57/188892d1501219817-inglar%B4s-2001-sport-intercooler14.jpg)
![Name: intercooler13.jpg
Views: 473
Size: 55.4 KB](https://www.miataturbo.net/attachments/build-threads-57/188893d1501219817-inglar%B4s-2001-sport-intercooler13.jpg)

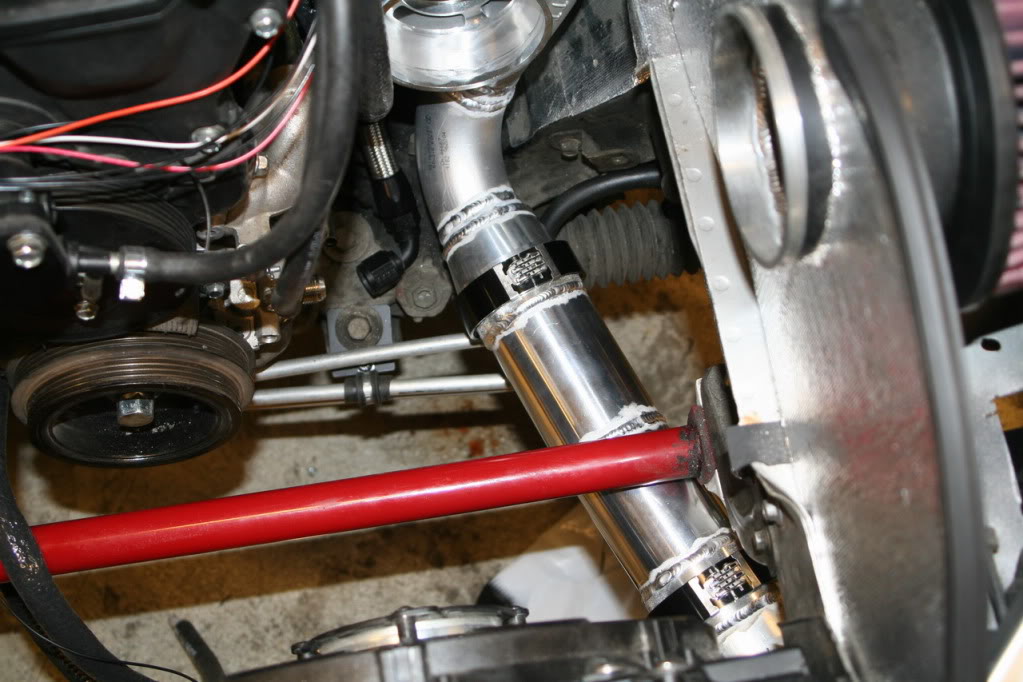

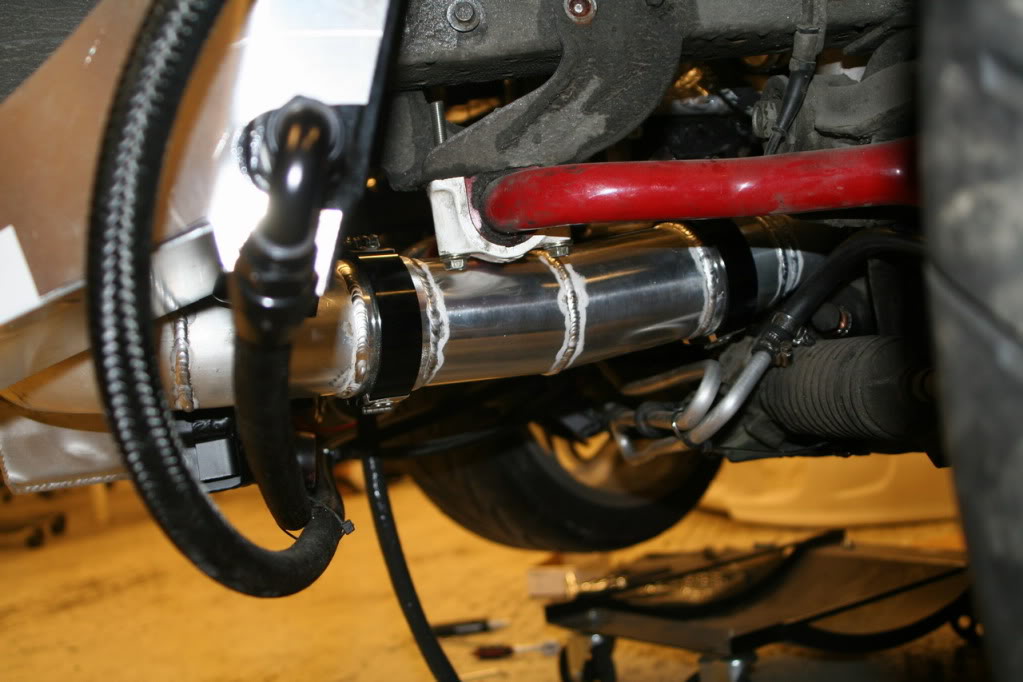

Pipe from the turbo to the intercooler all compleeted. Quite a lot of grinding as well hehe. Just have to paint everything black.
![Name: intercooler15.jpg
Views: 420
Size: 95.0 KB](https://www.miataturbo.net/attachments/build-threads-57/188894d1501219817-inglar%B4s-2001-sport-intercooler15.jpg)
![Name: intercooler19.jpg
Views: 497
Size: 74.8 KB](https://www.miataturbo.net/attachments/build-threads-57/188895d1501219817-inglar%B4s-2001-sport-intercooler19.jpg)
![Name: intercooler21.jpg
Views: 445
Size: 111.1 KB](https://www.miataturbo.net/attachments/build-threads-57/188896d1501219817-inglar%B4s-2001-sport-intercooler21.jpg)
![Name: oljekjoler8.jpg
Views: 484
Size: 109.3 KB](https://www.miataturbo.net/attachments/build-threads-57/188887d1501219817-inglar%B4s-2001-sport-oljekjoler8.jpg)
![Name: oljekjoler9.jpg
Views: 452
Size: 113.9 KB](https://www.miataturbo.net/attachments/build-threads-57/188888d1501219817-inglar%B4s-2001-sport-oljekjoler9.jpg)
![Name: oljekjoler10.jpg
Views: 495
Size: 137.3 KB](https://www.miataturbo.net/attachments/build-threads-57/188889d1501219817-inglar%B4s-2001-sport-oljekjoler10.jpg)
Ducting for the radiator
![Name: ducting1.jpg
Views: 481
Size: 70.6 KB](https://www.miataturbo.net/attachments/build-threads-57/188890d1501219817-inglar%B4s-2001-sport-ducting1.jpg)
![Name: ducting2.jpg
Views: 465
Size: 61.6 KB](https://www.miataturbo.net/attachments/build-threads-57/188891d1501219817-inglar%B4s-2001-sport-ducting2.jpg)
Some home made cones for the piping from the turbo to the intercooler.
![Name: intercooler14.jpg
Views: 432
Size: 85.5 KB](https://www.miataturbo.net/attachments/build-threads-57/188892d1501219817-inglar%B4s-2001-sport-intercooler14.jpg)
![Name: intercooler13.jpg
Views: 473
Size: 55.4 KB](https://www.miataturbo.net/attachments/build-threads-57/188893d1501219817-inglar%B4s-2001-sport-intercooler13.jpg)
Pipe from the turbo to the intercooler all compleeted. Quite a lot of grinding as well hehe. Just have to paint everything black.
![Name: intercooler15.jpg
Views: 420
Size: 95.0 KB](https://www.miataturbo.net/attachments/build-threads-57/188894d1501219817-inglar%B4s-2001-sport-intercooler15.jpg)
![Name: intercooler19.jpg
Views: 497
Size: 74.8 KB](https://www.miataturbo.net/attachments/build-threads-57/188895d1501219817-inglar%B4s-2001-sport-intercooler19.jpg)
![Name: intercooler21.jpg
Views: 445
Size: 111.1 KB](https://www.miataturbo.net/attachments/build-threads-57/188896d1501219817-inglar%B4s-2001-sport-intercooler21.jpg)
![Name: intercooler22.jpg
Views: 473
Size: 90.1 KB](https://www.miataturbo.net/attachments/build-threads-57/188897d1501219817-inglar%B4s-2001-sport-intercooler22.jpg)
