Rivals on clearance where?

Tire Rack. Looking at it now, though, the 205s are the normal $122 price. These were $25 off.

--Ian

The clearance Rivals were/are 2013 production.

Just FYI to anyone considering them...may not be an issue for some but something to consider regardless.

Humm... 2013 production 205 Rivals or stick with my 2010 production 225 RS3 https://www.miataturbo.net/attachmen...ine=1426521356

$338 for the Rivals after the $70 MasterCard Reward card rebate thing. That's tempting.

Yeah, the tires they replaced were ~ 2009 production Neovas. These are just street tires, the Seven isn't legal for any class that uses 200 treadwear tires. :)

--Ian

Argh, the car has been really frustrating.

As I think I mentioned earlier, on Saturday, I filled it up with gas and we went out to tune the boost control maps. Problem is, the moment I ran it up to 200 kpa it started knocking, with the same MS3 settings it had the previous week when it was running 220 kpa just fine. Saturday was warmer (high was close to 90, I think), but this was later in the day when it wasn't more than 70 out, and it was still doing it in the evening when it had gotten down to the 60s. It also did it tonight, with the weather report at 61. So I don't think it's ambient-temperature related.

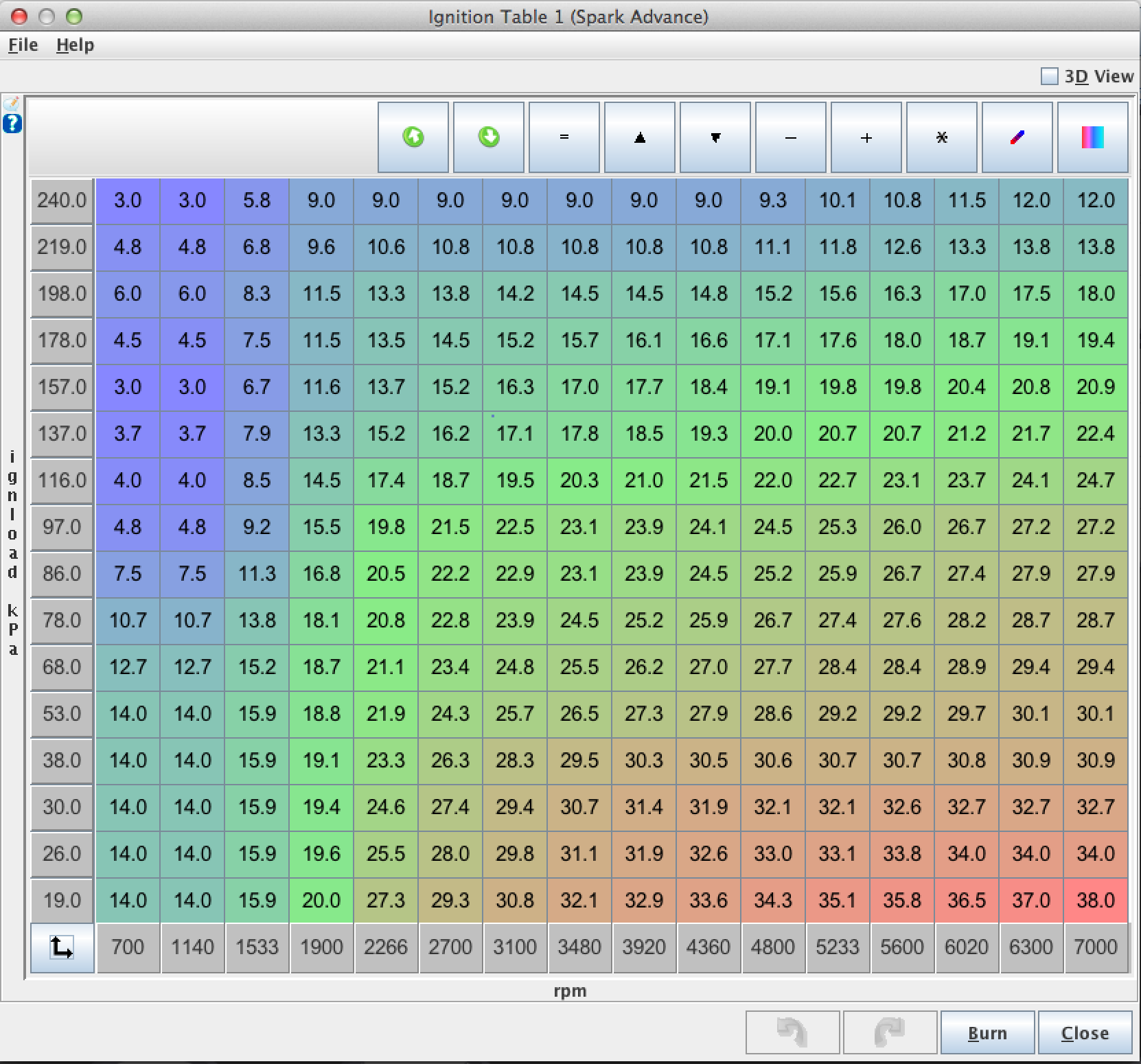

Here's the ignition map. It's basically just the base map that was loaded in the ECU when I got it (which I assume is Reverant's base map), except for 2-3 degrees of extra timing in the top right that we added when it started getting excessive EGTs on 200 kpa runs.

http://www.codrus.com/miata/fm2r/Mar17/spark.png

Does this look semi-reasonable as a starting point, or is it totally stupid? It's a 9.0:1 motor, but I'm running 95 octane (50/50 mix of 100 and 91), and previously this combination has been almost bulletproof against knocking. It's pinging a lot at 200, some at 180, and occasionally at 160.

So the working theory I have right now is that there's something wrong with the gas, and that the tanker guy filled up the 100 octane tank with 91 by mistake or something. I'm down to about a quarter of that tank left, so I plan to run it as close to empty as possible and refill it at the other 100 octane station in town.

The issue is that my dyno appointment is on Wednesday, and I don't want to do that if it's pinging for unknown reasons.

The other issue is that the knock sensor isn't working. Pretty much no matter what happens I was getting zero out on the data logs. I poked around and found y8s' thread here:
https://www.miataturbo.net/megasquir...-thread-67946/

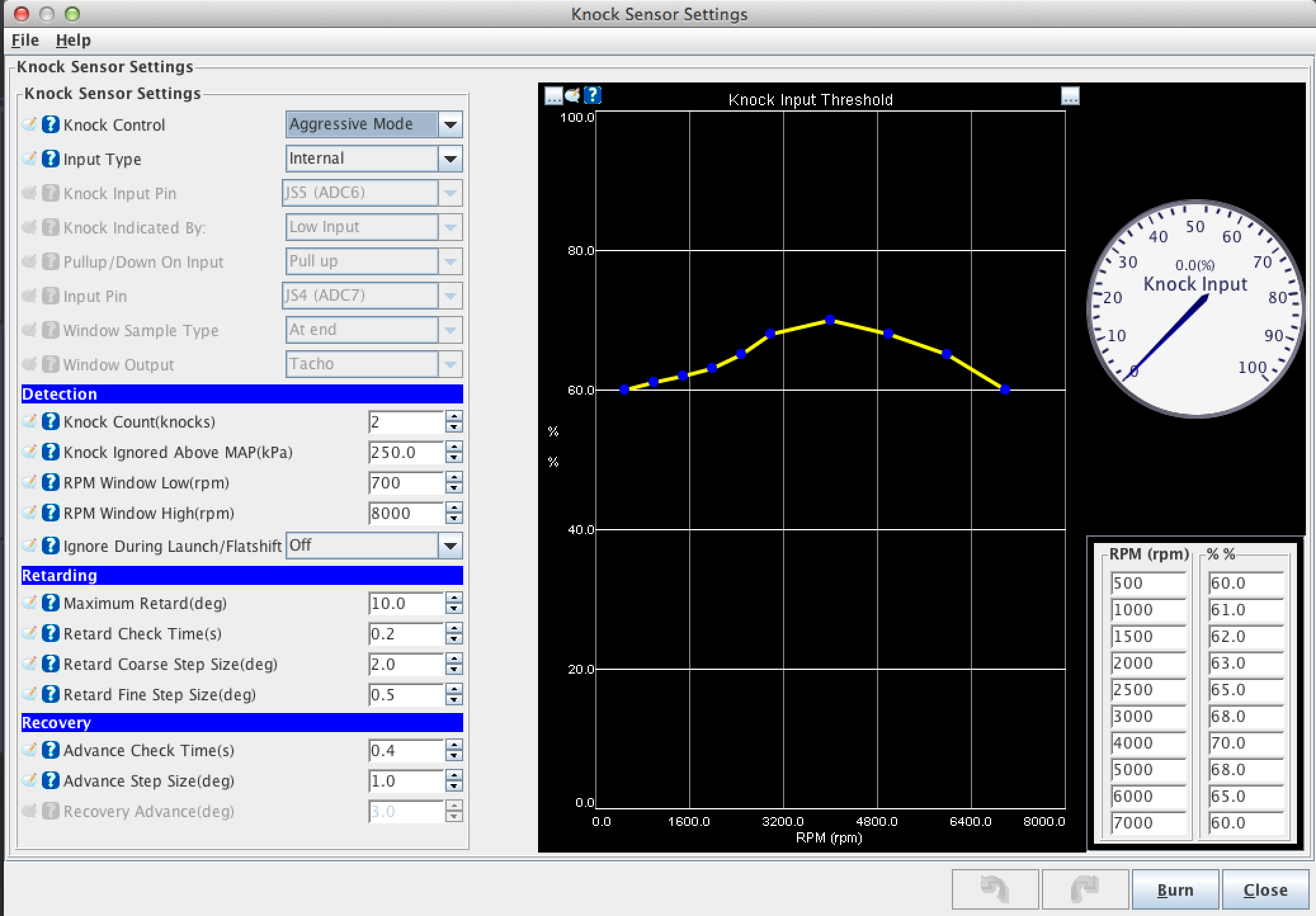

My knock window settings were totally wacky, so I loaded the y8s settings and started seeing stuff, but it didn't correlate very well with actual knock events. My settings currently are:

https://www.miataturbo.net/attachmen...ine=1426579642
http://www.codrus.com/miata/fm2r/Mar...r-settings.png
http://www.codrus.com/miata/fm2r/Mar...w-settings.png
https://www.miataturbo.net/attachmen...ine=1426579642

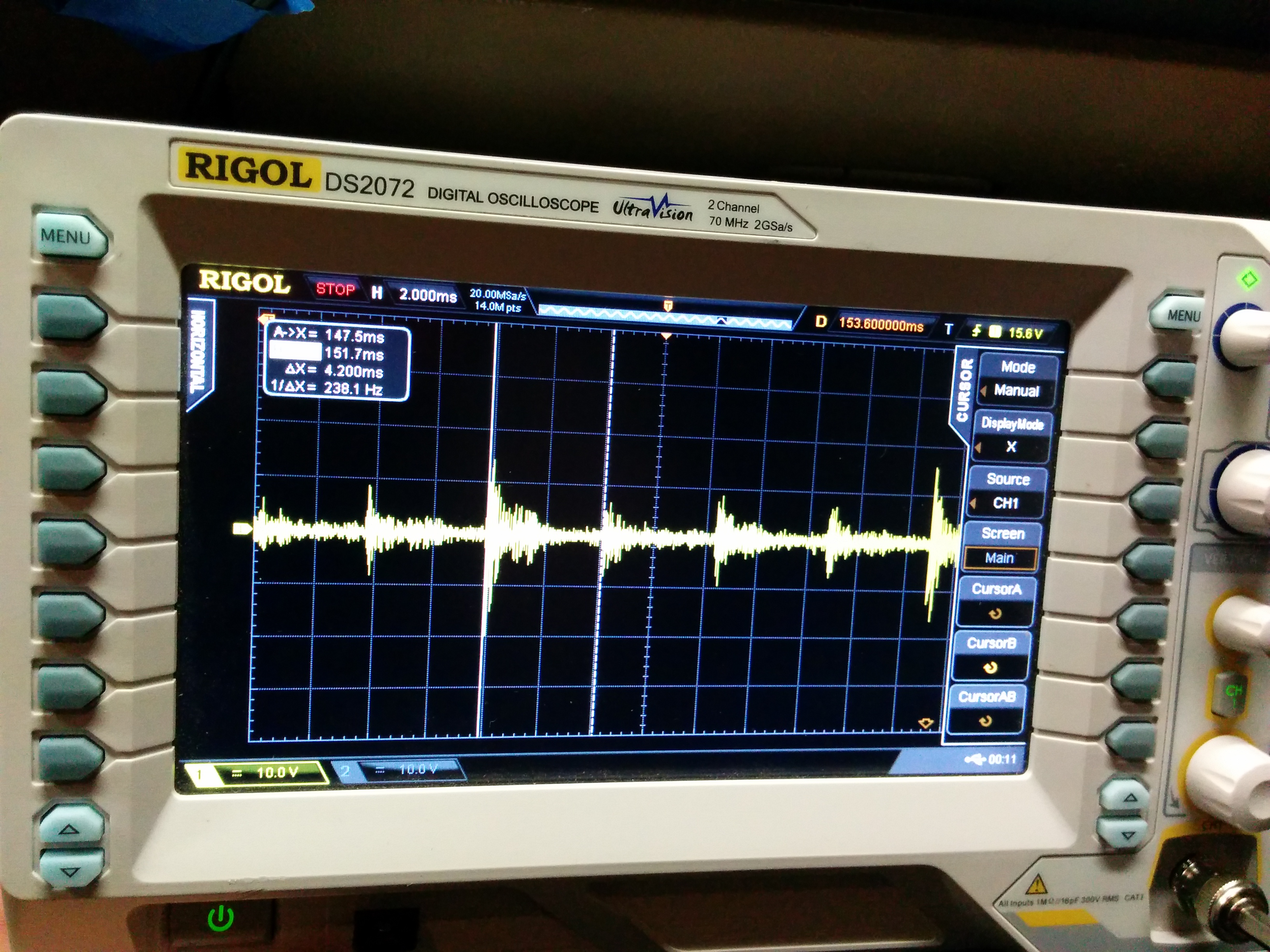

Since we couldn't get the MS3 knock sensor logic to behave appropriately, we hooked up the scope to listen to the knock sensor manually. We reloaded the injector dead time settings (found a new spreadsheet from ID that I hadn't seen before with updated numbers), rescaled reqfuel and added a bunch of fuel to the base map and went out to autotune it with the timing retarded a whole bunch above 2500 RPM for safety. The scope still triggered on noise, but it looks a bit odd:

http://www.codrus.com/miata/fm2r/Mar17/scope1.jpg

It's 1 big pulse followed by 3 smaller ones, and the gap between them works out to about 7200 RPM, with frequency rising over the course of the noise event. Since it's not knocking at redline, the theory is that this is valve noise or something, not knock. Alas, we never got a good capture of an actual knock event on the scope.

--Ian

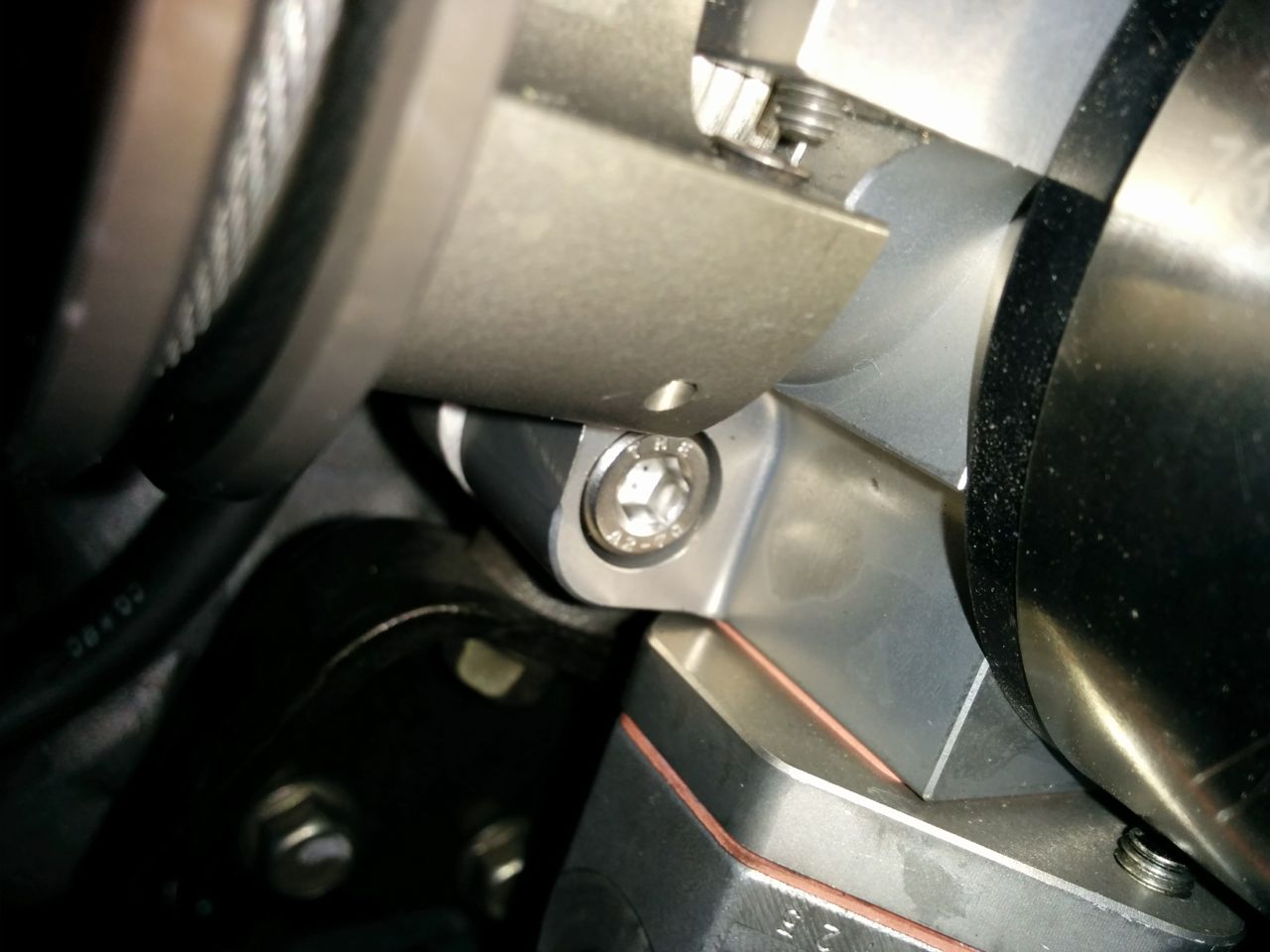

OK, so THIS must be the Skunk2 throttle body screw everyone's telling me to loctite! I think I did every screw/bolt/nut on it EXCEPT this one.

Limped the car home with a 2500 RPM idle last night...

http://www.codrus.com/miata/fm2r/tb-screw.jpg

--Ian

The stop screw, or am I missing something?

None of the hardware with my Skunk2 is correct, I need to spend 20 minutes in the hardware aisle at Ace buying some random screws and bolts :facepalm:

No, not the stop screw. there's another screw in the actual rotating portion that appears to be the piece the stop screw contacts, presumably to prevent the steel stop from damaging the aluminum lever arm. It's unscrewed a few threads, which is what the slight raised bit under the stop screw is.

Can you post photos of the fasteners that came with yours? Mine looked totally insane until I spent a while puzzling it out.

--Ian

Winning, thanks for the heads up :bigtu: I'm not sure I even noticed it before now.

The ones we captured on Monday are mostly 22khz and up.

https://www.miataturbo.net/attachmen...1&d=1427097272


We ran it around some more on Tuesday and managed to catch a few real knocks. They look distinctly different: they're more of a "whack" than a decaying bell sound, but they're right on 6.5 kHz:

https://www.miataturbo.net/attachmen...1&d=1427099058

https://www.miataturbo.net/attachmen...1&d=1427097272

That's raw sensor data. I'm not sure what the MS3's input filtering does to it. It's configured for 6.94kHz but I don't know if it's a simple bandpass (and if so, what Q value), or if they have something smarter (I remember there being some kind of DSP on the board... I'll have to look and see what it was).

No updates from me because I spent the weekend driving this:

http://photos.codrus.com/Cars/Sears-...P7A0475-X2.jpg

Around here:

http://photos.codrus.com/Cars/Sears-...P7A0248-X2.jpg

And it looked something like this:



We finished 30th out of ~ 180 cars.

--Ian

As I mentioned in this thread: https://www.miataturbo.net/diy-turbo...pinging-83645/ I've been having trouble with the car pinging. I'm still not entirely sure why, but I did run it at the dyno today at Blacktrax.

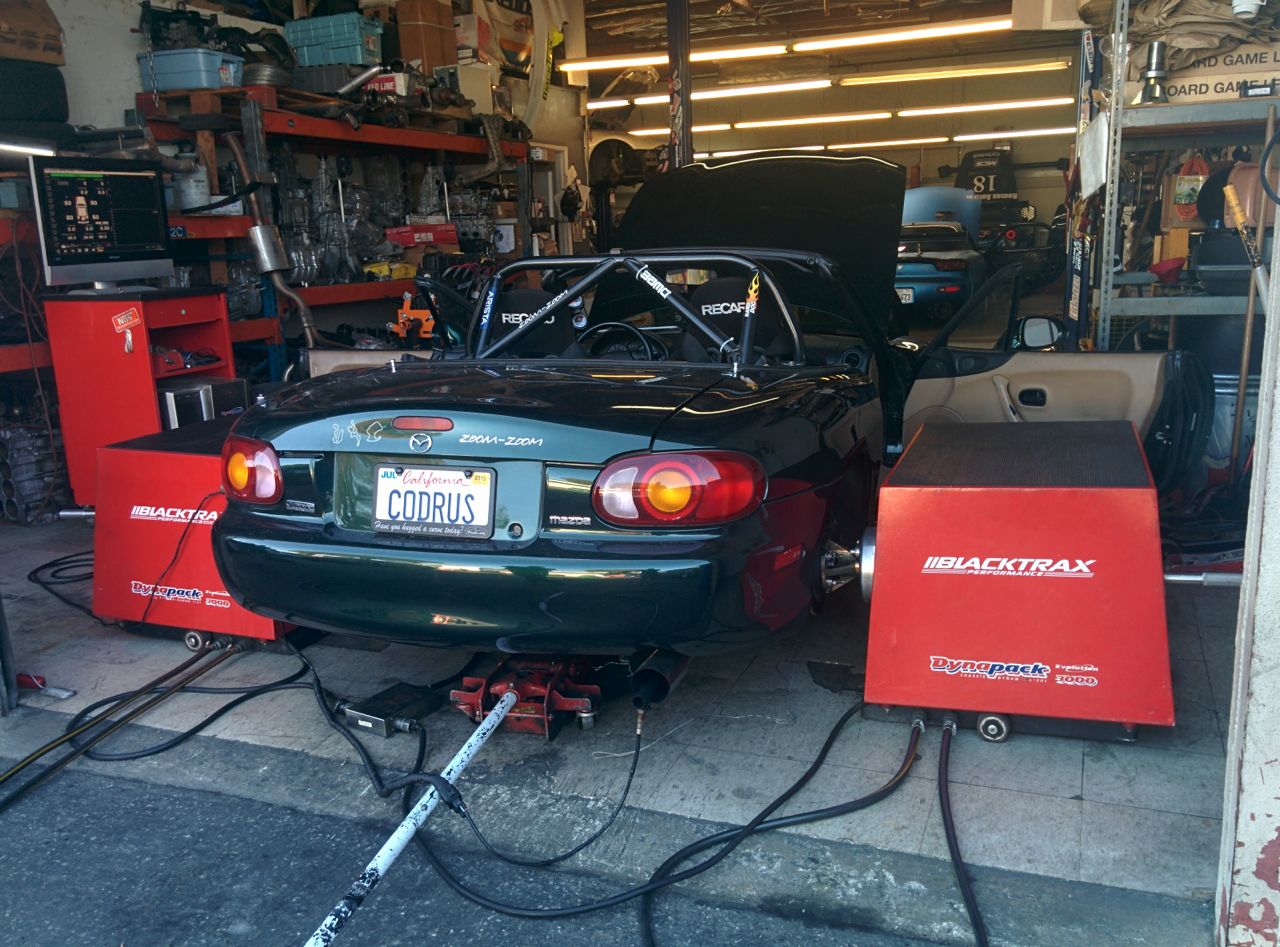

http://www.codrus.com/miata/fm2r/miata-on-dyno.jpg

The good news is that ping wasn't a major issue. It managed to hit MBT at 190 kpa and below, was very slightly pingey at MBT at 215, and was spark limited at 230 kpa. The bad news is that it only made 275/275, barely more than it made with the 2560 on the Dynapack at AGP.

Today's dyno at 230 kpa:

https://www.miataturbo.net/attachmen...ine=1427350406

AGP a couple years ago at 200 kpa (look at the almost-invisible blue trace, the magenta one is what it did with the 2.5" exhaust running slightly more boost):

http://www.codrus.com/dyno/agp/ian-power.png

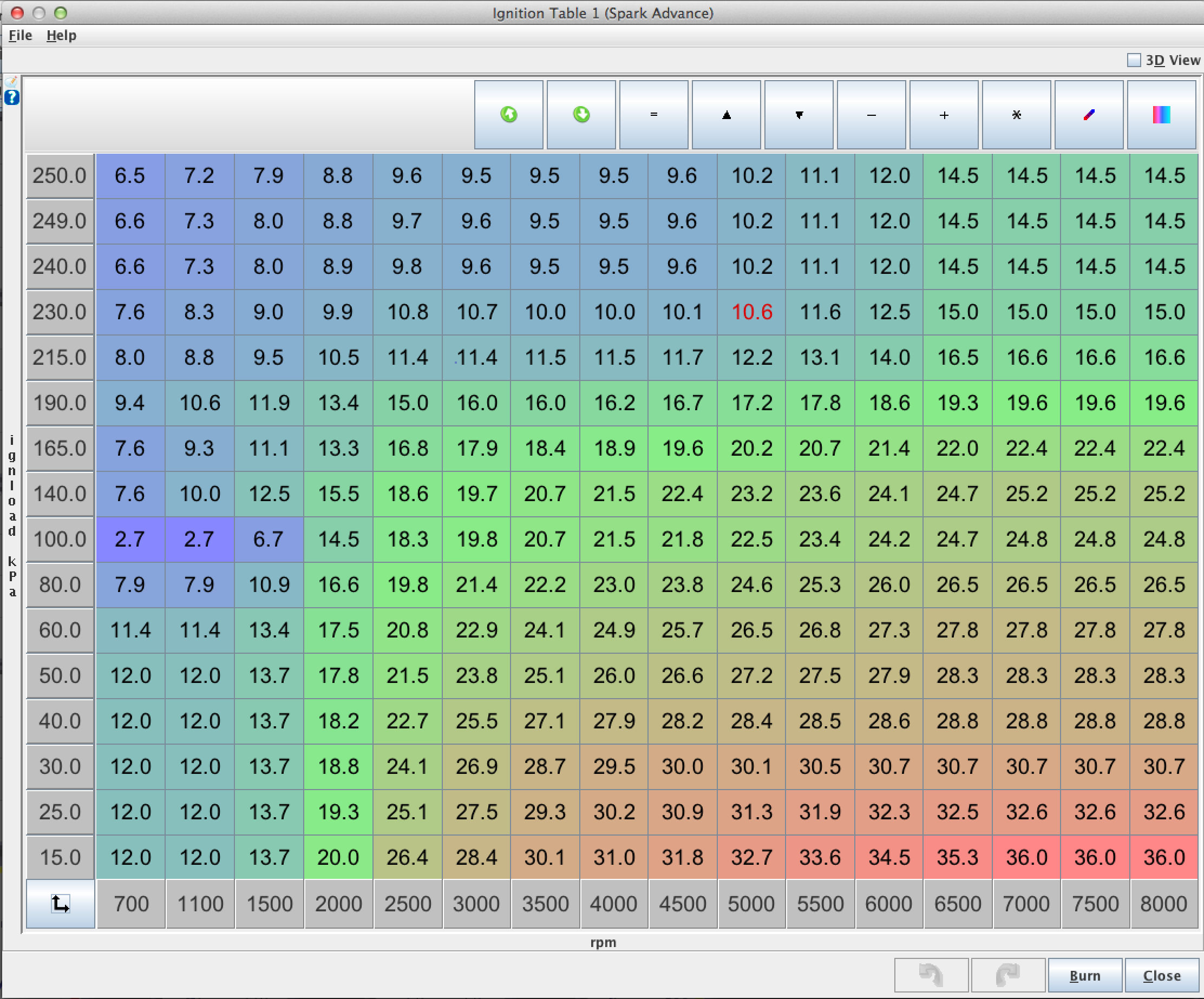

I wound up with this spark map. It still needs a bit of cleaning up and smoothing:

http://www.codrus.com/miata/fm2r/Mar...-post-dyno.png

So the 2863 spools up 500 RPM later than the 2560, and only adds a small area under the curve above 6200 or so, despite running 30 kpa more boost. It's also more inclined to ping, and I don't know why. I'm disappointed, I'd expected a lot better out of it. Jason commented that the motor doesn't seem to be responding to timing as much as he would expect. We'd add a couple degrees and torque would go up, but only a little bit. A few possibilities occur to me:

- Maybe there's a restriction in the intake somewhere. Perhaps the FM intercooler isn't enough? I think I have the latest iteration that they sell, but I dunno.

- Perhaps it's time to give up on the 99 VICS intake manifold and go with a square top?

- Maybe the head doesn't flow as well as I'd hoped. It's got +1 intake valves, stock size exhaust ones. Perhaps I should cough up the dough for a 949 head?

- There's a small (I think) boost leak at one of the charge pipes that gives off a whistle. Perhaps it's big enough to be making the turbo work extra hard?

--Ian

Oh, the Toda adjustable cam gear proved totally worthless. Going one way from 0 lost power up top and didn't add spool, going the other way it lost a ton of spool and only added a few hp, so we wound up back at 0. Totally not what I expected.

--Ian

Digging through the log files shows something interesting. On the dyno, and in every log file dated 3/14 and later, it doesn't hit 200 kpa until over 4000 RPM (4050 or so on the dyno, 4100-4200 in street pulls). On the 3/8 log file (the most recent one before 3/14) it hits it at 3750. There's something broken in there...

--Ian

Sorry I don't have more to add, but I'm digging the well documented and methodical approach you are taking to solve this issue. I'm learning a lot just by reading over your shoulder. Many props sir.

Are you thinking IAT or loss in the intercooler itself? Both should be relatively easy to confirm.

I know you aren't the kind of guy to just throw parts at a problem, but I've got Sav's Precision 600 sitting in my garage that I will most likely not be using on my build. Shoot me a PM or poke me on FB and I can drop it off the next time I'm in SJ if you are interested.

The IATs were pretty high on the dyno, but most likely that's due to heat soak and lack of good airflow when sitting still. I'm going to measure pressure drop across the intercooler to determine if it's up to snuff or not. IIRC, FM use this intercooler on a lot of high-power builds, so it *should* be good, but if it turns out not to be I may just take you up on that. :)

I think at this point my primary theories are a boost leak in the intake, an exhaust restriction, or perhaps the WG getting blown open.

--Ian

damaged comressor wheel shaft etc would reduce turbo efficieny add heat to the air charge and exhaust back pressure, a rag or packing material on th IC inlet would do the same ...

The turbo's brand new, so I really hope I haven't broken it somehow!

I thought about the rag in the intercooler -- I've done stupider things than that before, but it was working well on 3/8 and I haven't had those bits apart since then.

thanks,
--Ian

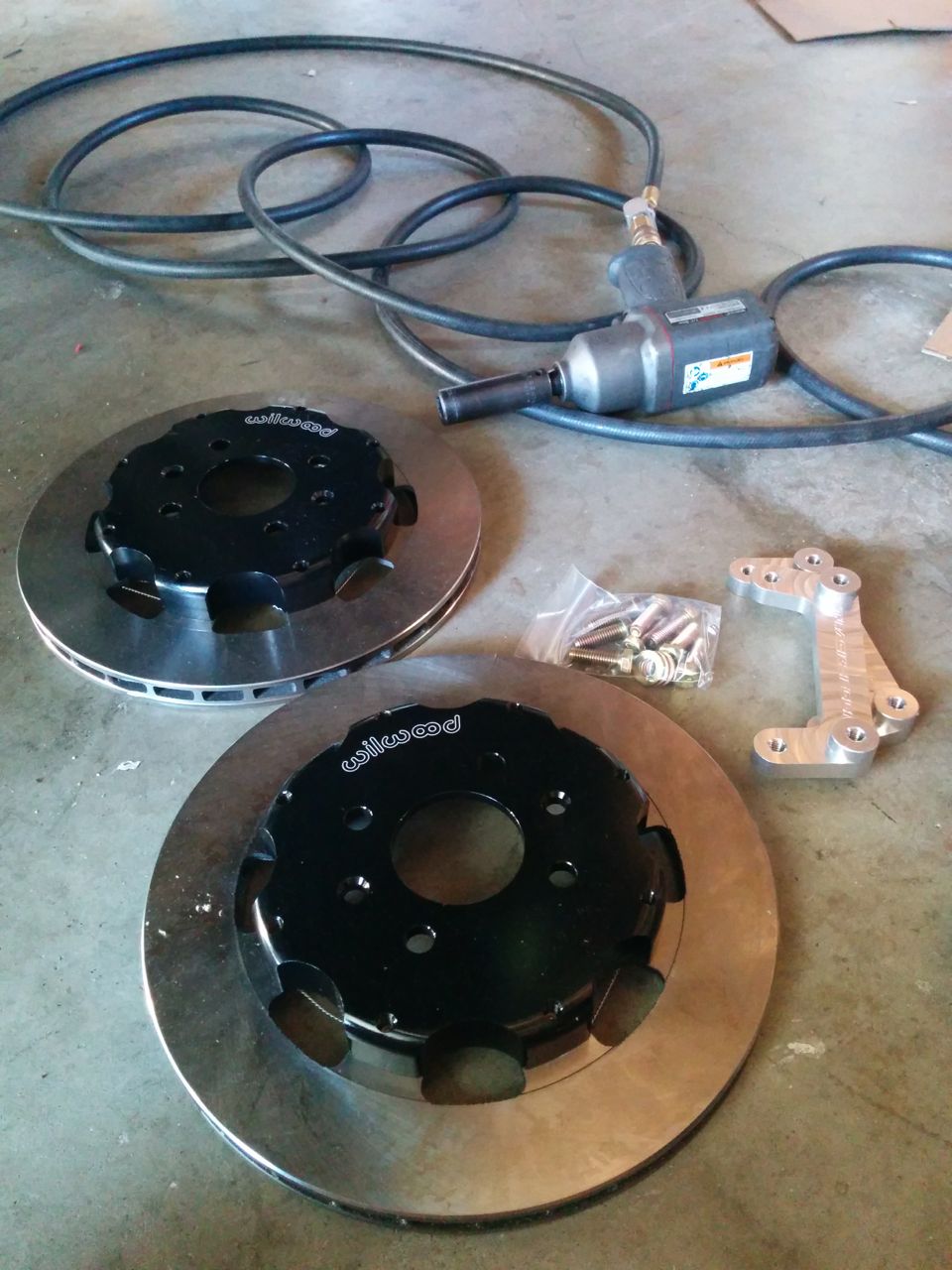

So today I put the TSE 11.75s in:

http://www.codrus.com/miata/fm2r/1175-01.jpg

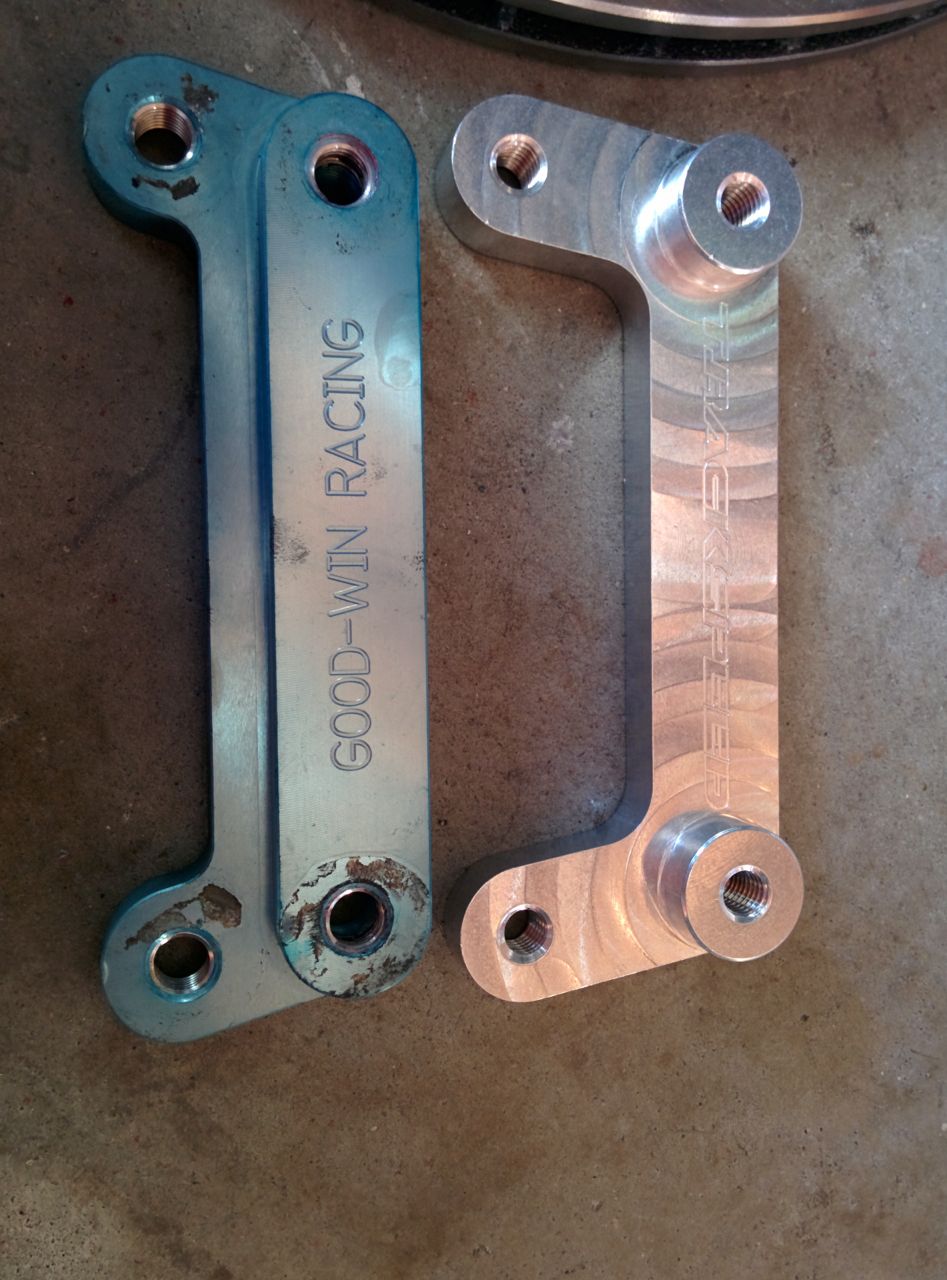

TSE brackets vs Goodwin brackets:

http://www.codrus.com/miata/fm2r/1175-03.jpg

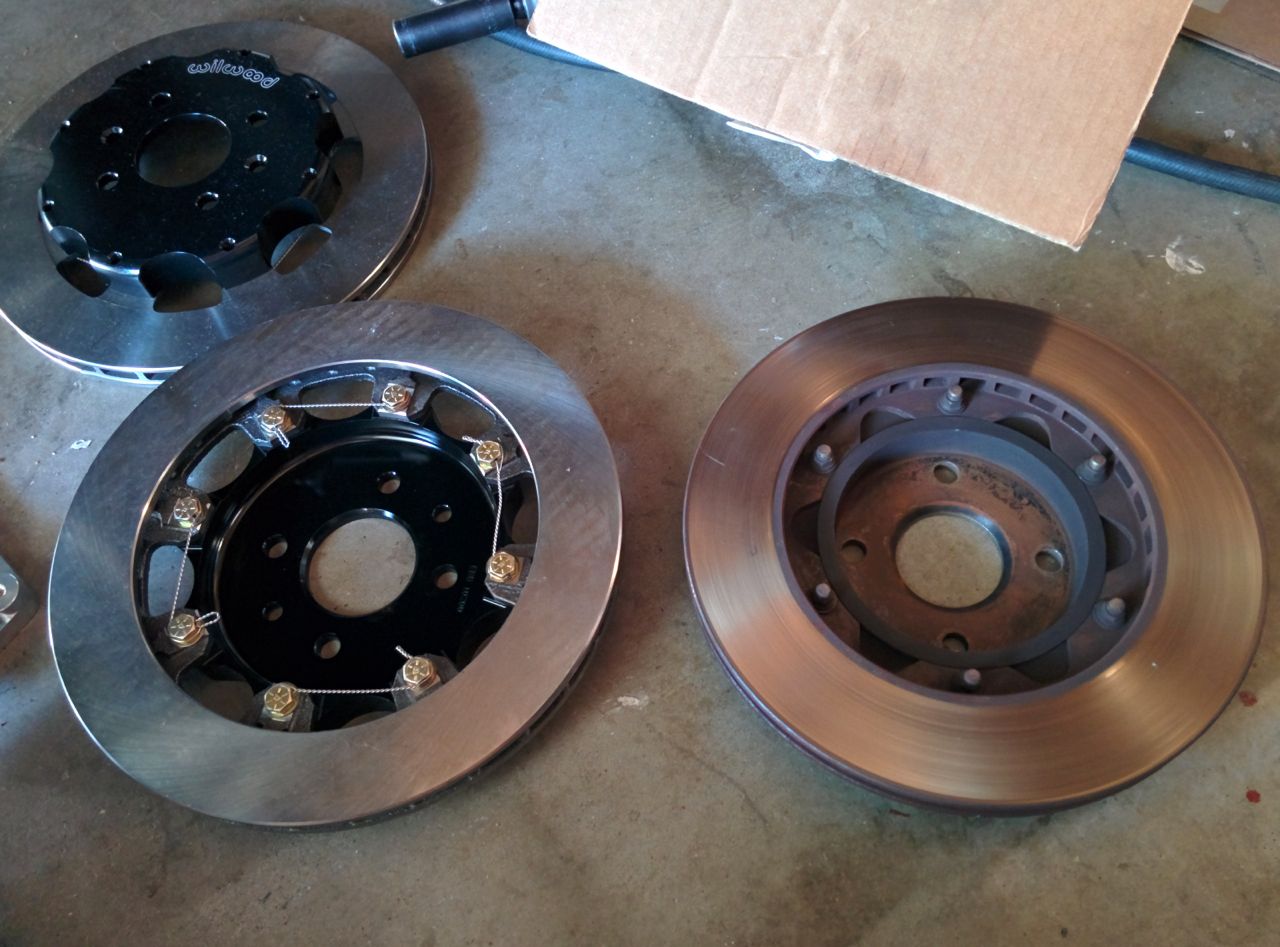

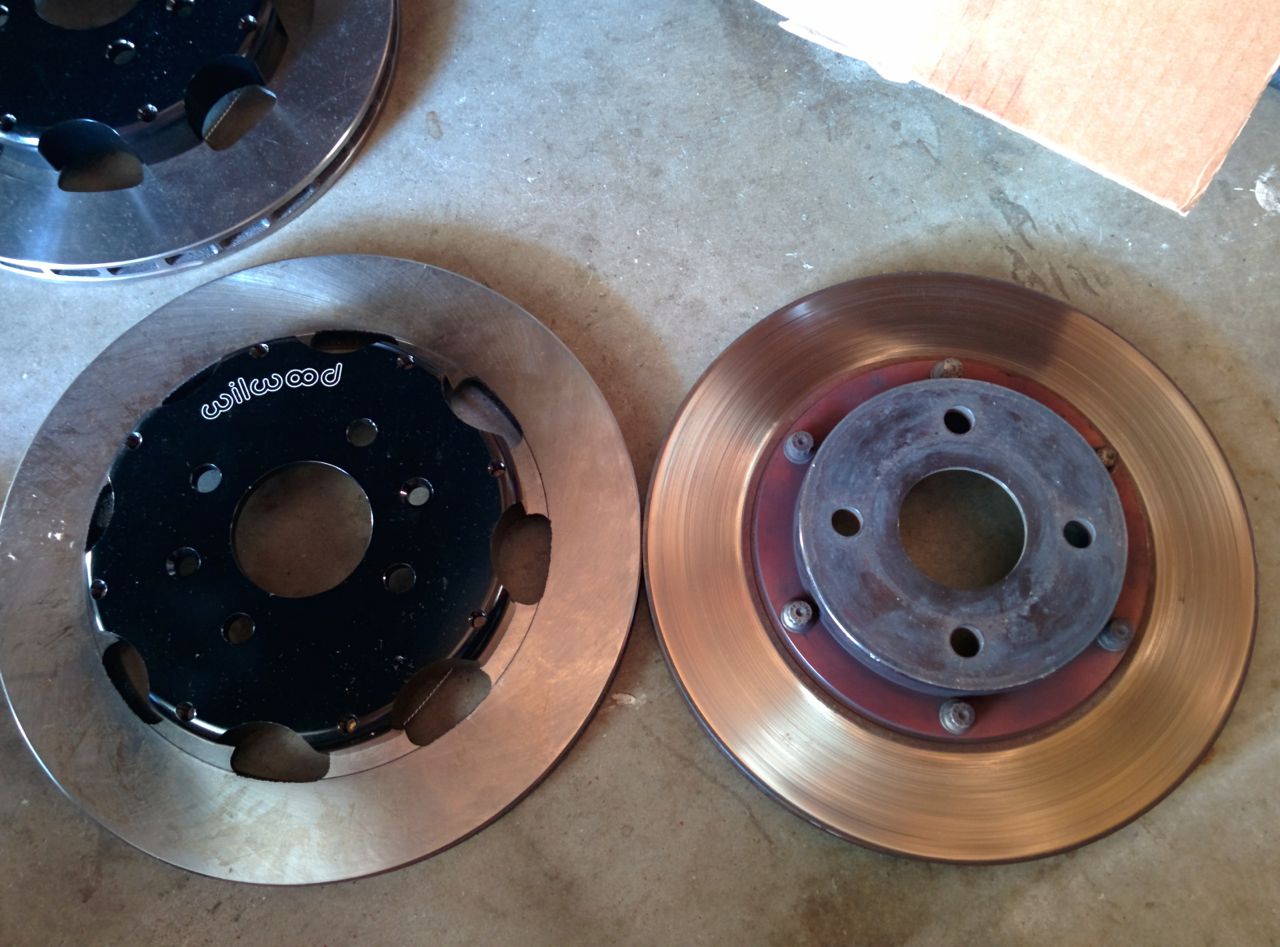

Rotors:

http://www.codrus.com/miata/fm2r/1175-04.jpg
http://www.codrus.com/miata/fm2r/1175-05.jpg

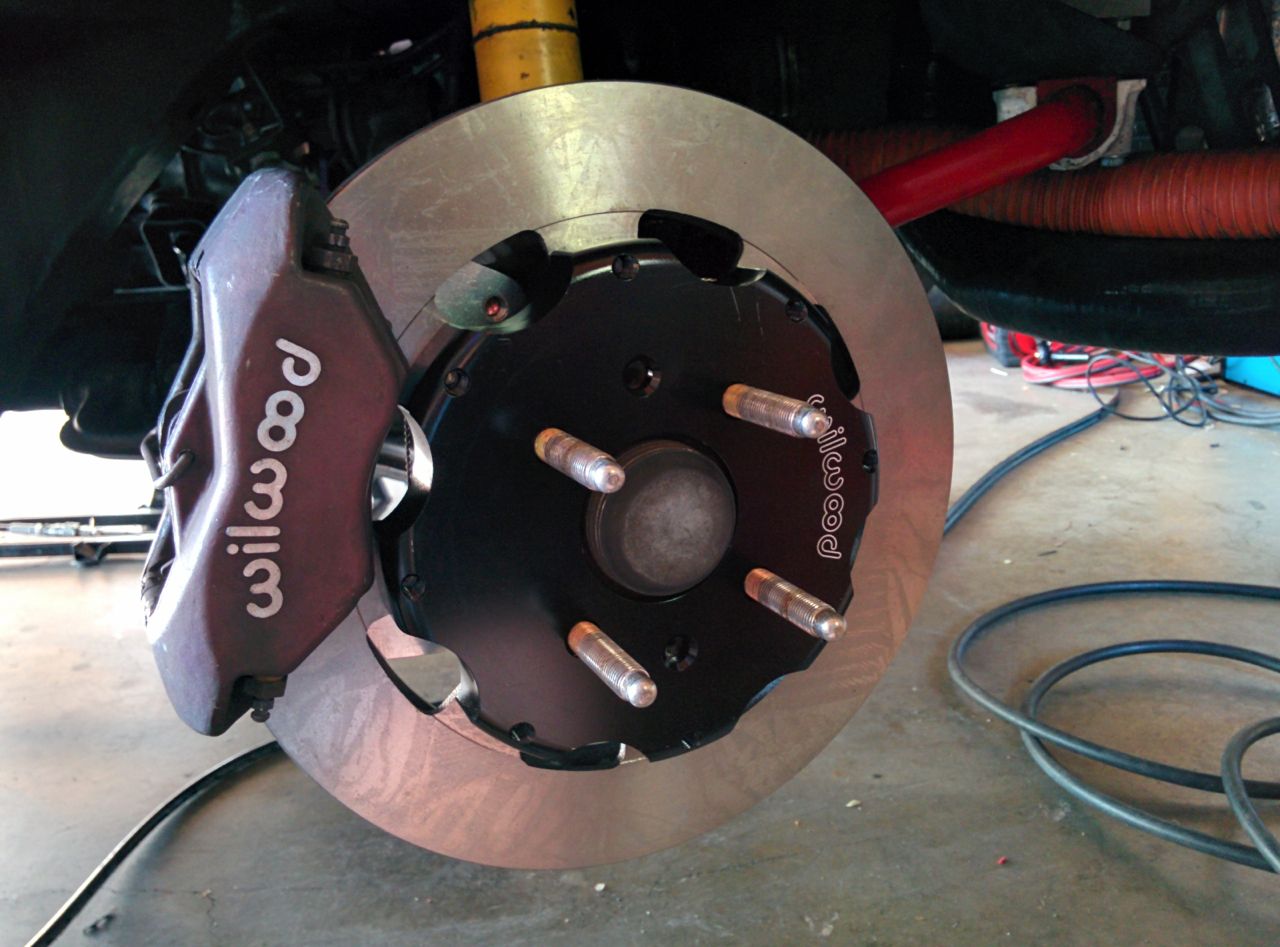

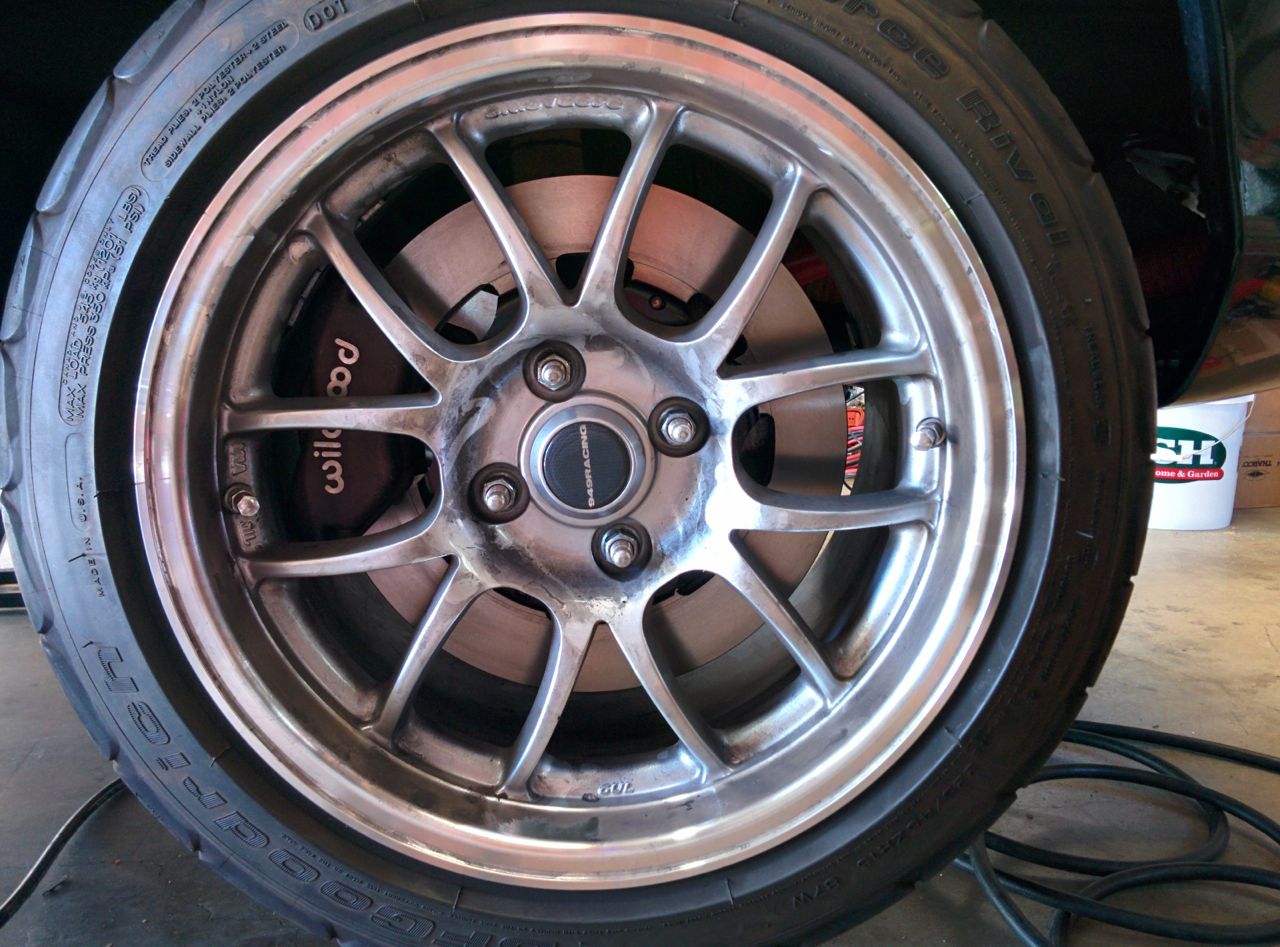

Installed:

http://www.codrus.com/miata/fm2r/1175-12.jpg
http://www.codrus.com/miata/fm2r/1175-14.jpg

I also pulled the cat off and looked at it -- it's fine, not the cause of the poor spool.

--Ian
