Lightly coat with oil, clingfilm it, largest ziploc you can find. Done.
|
I'm loving the attention to detail and all the fancy tools you're using (like that wiseco ring compressor, didn't even know about those, been using a craptastic vatozone one)
|
Originally Posted by NiklasFalk
(Post 1181866)
Nothing stays shiny, unless you make sure of it.
Unpack any shipment with engine internals as soon as you get them and give it a workover with WD40 or similar, to prevent rust. And without immediate inspection it's tough to complain about the state. Shipping always mean that stuff travels in a mixed temperatures and moisture will condensate. There are stickier stuff than WD40 to use that will stay on for longer, but anything is better than leaving it dry (or moist). There are no Cam-shaped (long and narrow, does not need lobes :)) Ziploc bags I guess. But yes, I did follow that procedure with all the parts that came back from the machine shop. :) --Ian |
Originally Posted by 18psi
(Post 1181899)
I'm loving the attention to detail and all the fancy tools you're using (like that wiseco ring compressor, didn't even know about those, been using a craptastic vatozone one)
The ring compressor is simple -- it's just an aluminum cylinder with a hole through it, 84mm on one side, tapering out to a few mm larger on other. It works very well. --Ian |
So 10 minutes with a scotch-brite pad and the MSM cam cleaned up pretty well. I went to put it in and, unsurprisingly, need a bunch of new shims. Ordered.

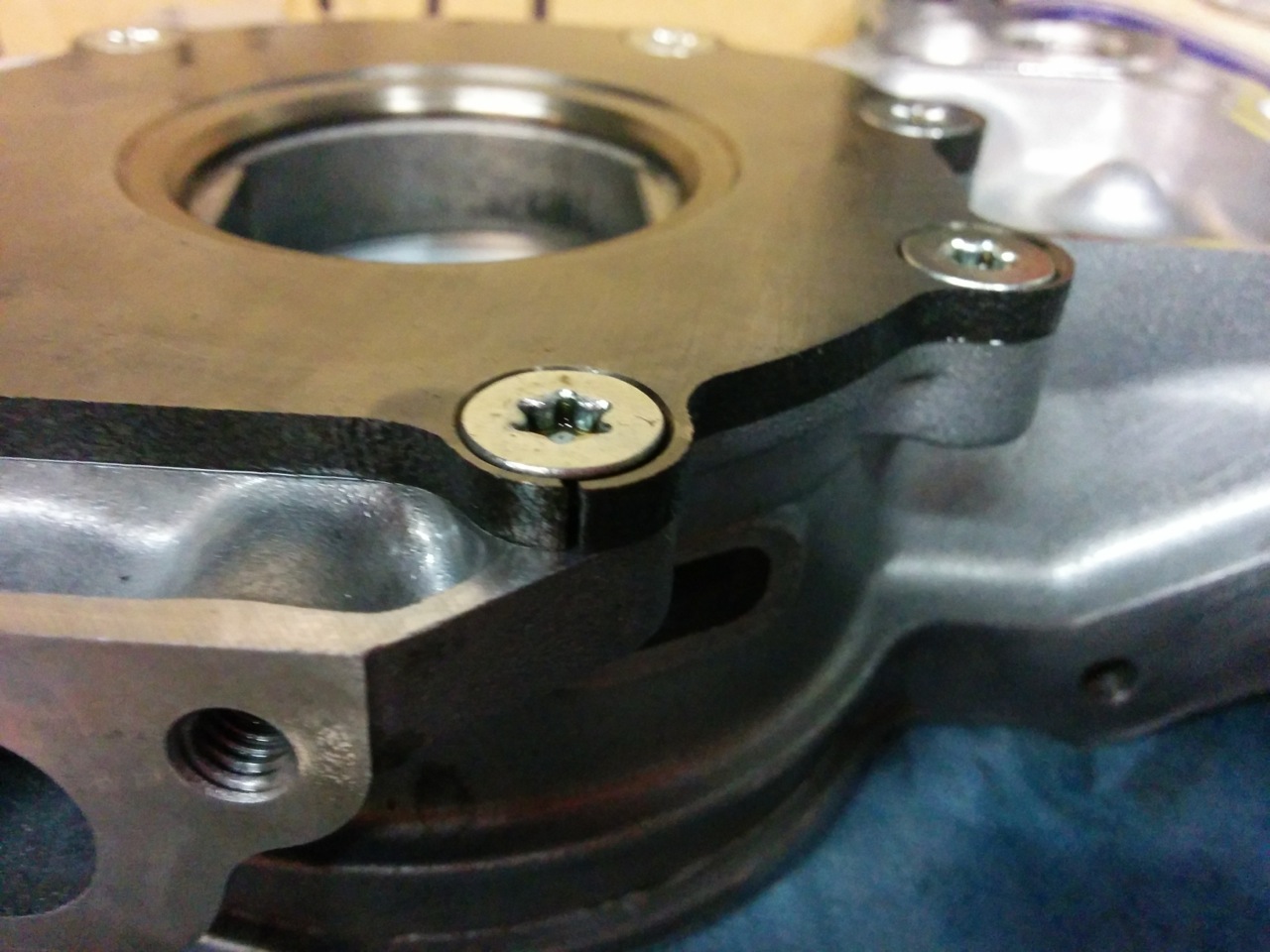

Then I disassembled, inspected, and reassembled the oil pump. While tightening one of the screws, it felt a bit funny. I looked at it and the rear case is cracked: http://www.codrus.com/miata/fm2r/oil-pump-broken.jpg Doh. I dunno how that happened -- pretty sure I didn't crack it while torquing, I wasn't putting much torque on it at all. I have another used pump from the donor motor that's high-mile (and I'm not going to use), but theoretically I could just steal the rear case from it. OTOH, it's not clear to me if the pump parts are fully interchangeable. The two pumps have different casting numbers on them, and the high-mile one uses phillips-head screws instead of the torx on this one. Different parts suppliers for Mazda, perhaps? Ah well, I'd been sort of on the fence about buying a Boundary pump anyway. This was an OEM pump that I put it when I built the motor 4 years ago, since it only had 10K miles on it and no oil-related damage I figured it was OK to reuse, but if something happened to crack the rear case, I dunno. I all looks normal inside, but this is an area I don't want to screw around with. In other news, back in August I signed up for a track day on the 5-mile Thunderhill course, before the Miata broke. Since I couldn't take the Miata there, I decided to rent a car instead. I sat in Savington's rental, but I don't fit in it. In fact, I'm not sure I'll fit in any Miata with a full cage, the left side top bar on the cage is where my helmet wants to be. So I rented something a bit different instead: http://www.codrus.com/miata/fm2r/srf.jpg --Ian |
Anxiously awaiting the Monday update with track vids. I've not been on the 5 mile Thunderschleife as of yet :bigtu:
|
Originally Posted by EO2K
(Post 1183424)
Anxiously awaiting the Monday update with track vids. I've not been on the 5 mile Thunderschleife as of yet :bigtu:

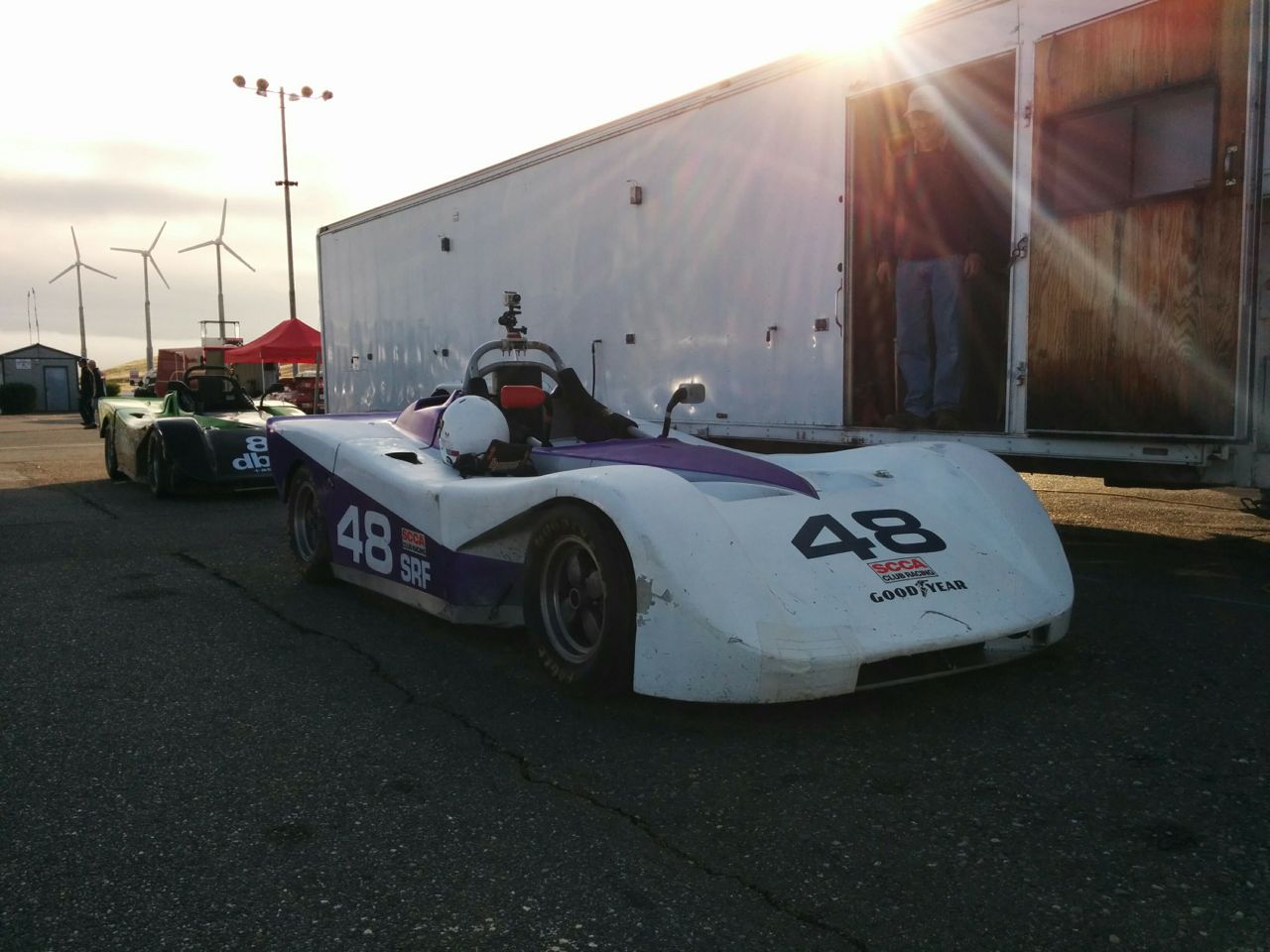

This is early on in the day with a car I've never driven on a track I've never driven, so my lines and braking points are far from ideal. :) Overall, I like the new west track, but I think I agree with the people who say that it's better as a standalone track than as an integrated 5-mile track. --Ian |
OK, why don't the youtube bracket delimiter thingeys work on that?
--Ian |
What did you think of the SRF?
|
Originally Posted by Efini~FC3S
(Post 1183467)
What did you think of the SRF?
The shift linkage on the one I drove was very vague and the gas pedal was low relative to the brake, which made it difficult for me to heel-and-toe. Downshifting from 3rd to 2nd was difficult, and a fair bit of time I'd wind up sitting in the middle of the corner with no drive, hunting for gears. There are two tight left-handers on the new course (don't remember the turn numbers now), plus turn 11 on which I wanted 2nd, eventually I quit trying and just left it in 3rd for them. It worked, but coming out of the corner at 2000 RPM was definitely not the fast way around. :) Presumably this is all stuff that could be fixed and tuned to the driver given a bit of time. I hadn't realized just how much wind buffeting there is on your helmet in an open car like this, going into turns 1 and 14 it's quite significant. Lap times for them on the 3-mile course is something like 2:05 IIRC, which is about 5-10 seconds faster than a Spec Miata. Grip levels from the slicks were pretty high, although I don't have any gee recordings. I was running well off that pace, however. I put in something like 2.5-3 hours driving it. This was an event with no run groups, which was a bit of a challenge since the SRF has no odometer, no fuel gauge, and no clock. With lap times approaching 4 minutes, it's hard to keep track of how long you've been out there, and I managed to run it out of fuel and had to be towed in. Doh! Fortunately it was right before lunch, so there wasn't much track time lost. All in all it was a lot of fun to drive, a taste of something different. I've done 50+ track days in the last 15 years, but except for a couple in my old B5 S4, they've all been in the Miata. I'm glad I rented it, but I don't think I want to own one. --Ian |
There's a new & improved SRF formula coming out soon, I think by 2016 it will be replacing what you drove at SCCA national competition. Modern engine, more modern other stuffs, and much more power.
The new formula sounds interesting, the old (current) ones never really interested me but I've always been curious to drive one. |
Originally Posted by Efini~FC3S
(Post 1183507)
There's a new & improved SRF formula coming out soon, I think by 2016 it will be replacing what you drove at SCCA national competition. Modern engine, more modern other stuffs, and much more power.
The new formula sounds interesting, the old (current) ones never really interested me but I've always been curious to drive one. The rental cost was a grand. Not cheap on an absolute scale, but not particularly expensive for an arrive-and-drive race car either, it's around the same level as the various rental Miatas I looked at. I was very happy with the service from Ric, and would recommend for someone local in NorCal who wants to give it a try. If you have a buddy who also wants to try it out, I think you can split the cost between two people on the same track day with a small premium to cover additional consumables used. --Ian |
I think initially they are going to restrict the Gen 3 cars to have performance comparable to the current cars, but I thought after a few years they were going to uncork them a bit.
I'm trying to remember from some random article I read a few months ago so my knowledge is extremely questionable and unreliable, at best. As long as they sound better I'll be happy. You always know when the SRF guys are racing because it sounds like 30 lawn tractors doing synchronized mowing... |
Ordered a BE pump from Savington earlier this week -- unfortunately it probably won't arrive til next week when I'm out of town, so that part of the build is stalled for a while. Ah well, the new valve shims should be arriving from Mazda tomorrow, so at least I can finish putting in the MSM cam.
--Ian |
Well, the rest of the shortblock can come together without the pump, right?
|
Originally Posted by EO2K
(Post 1184166)
Well, the rest of the shortblock can come together without the pump, right?
--Ian |
Originally Posted by codrus
(Post 1184182)
The rods, pistons, and crank are all installed already.
|
Originally Posted by EO2K
(Post 1184189)
Well, yeah. That's what I meant by shortblock. ;) Which Boundary pump did you decide to go with?
--Ian |
Good thread. I wasn't aware of FM's torque plate either, probably would have went that route.
Glad you went with BE pump. I mean why not at this point and horspower level? I went street/strip but wish I would have added shims. Looks solid. Keep up the god work. |
Originally Posted by williams805
(Post 1184354)
Glad you went with BE pump. I mean why not at this point and horspower level? I went street/strip but wish I would have added shims.

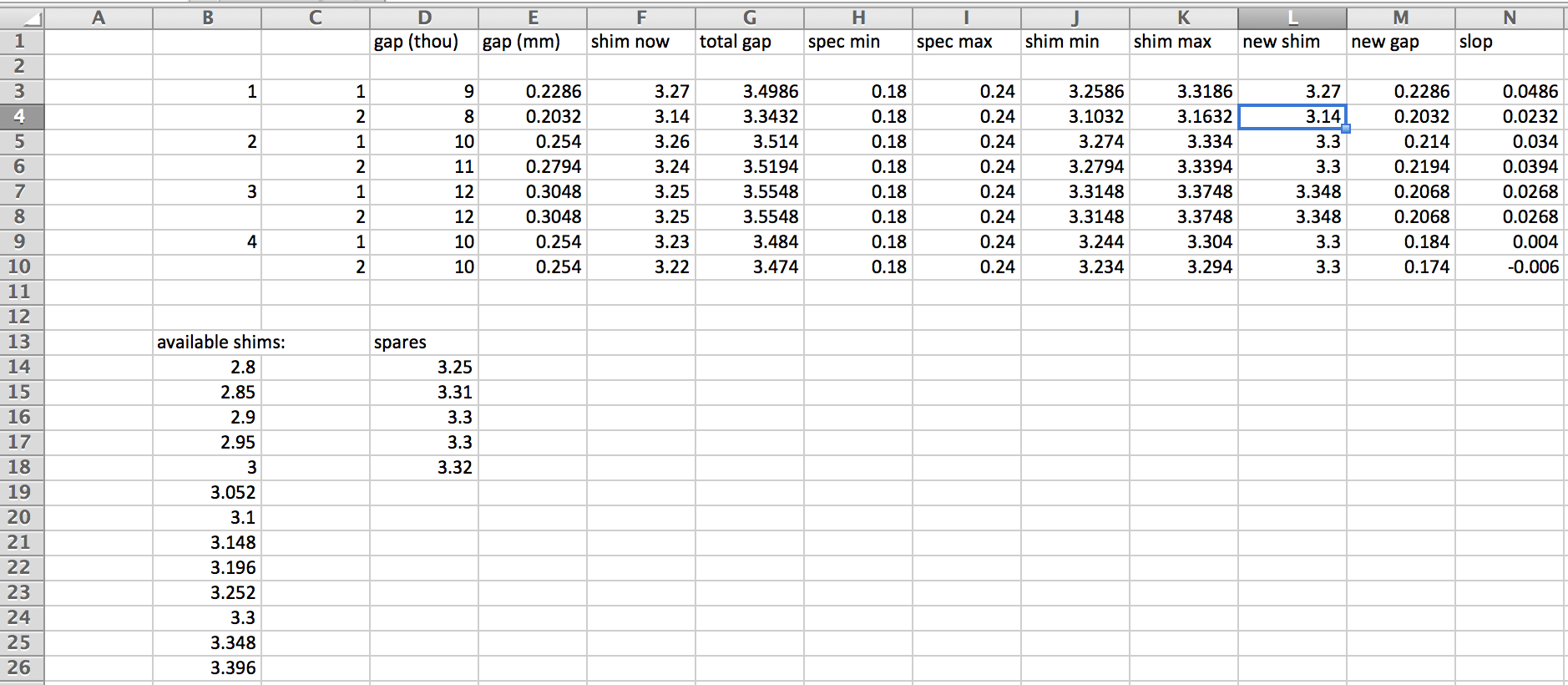

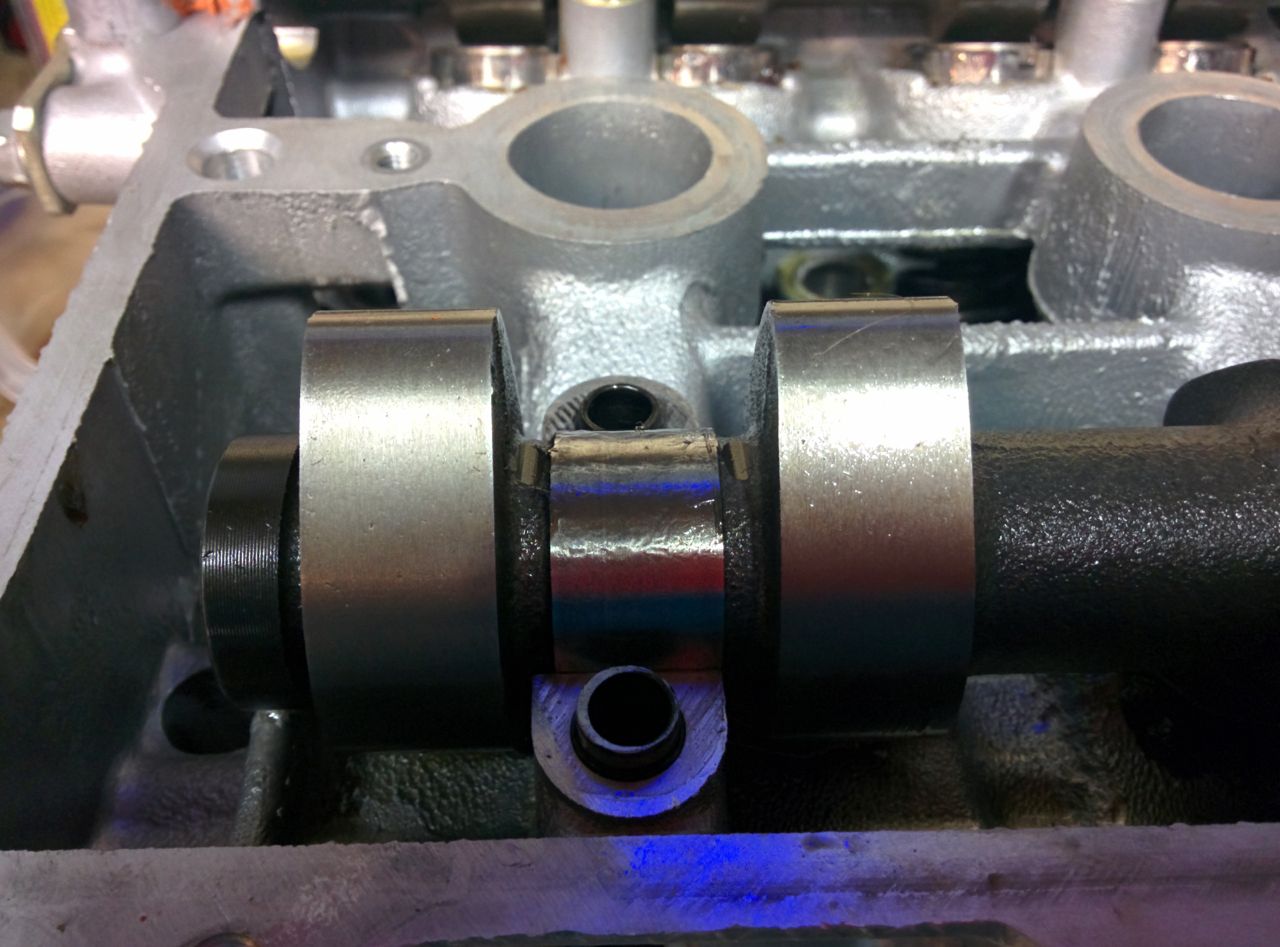

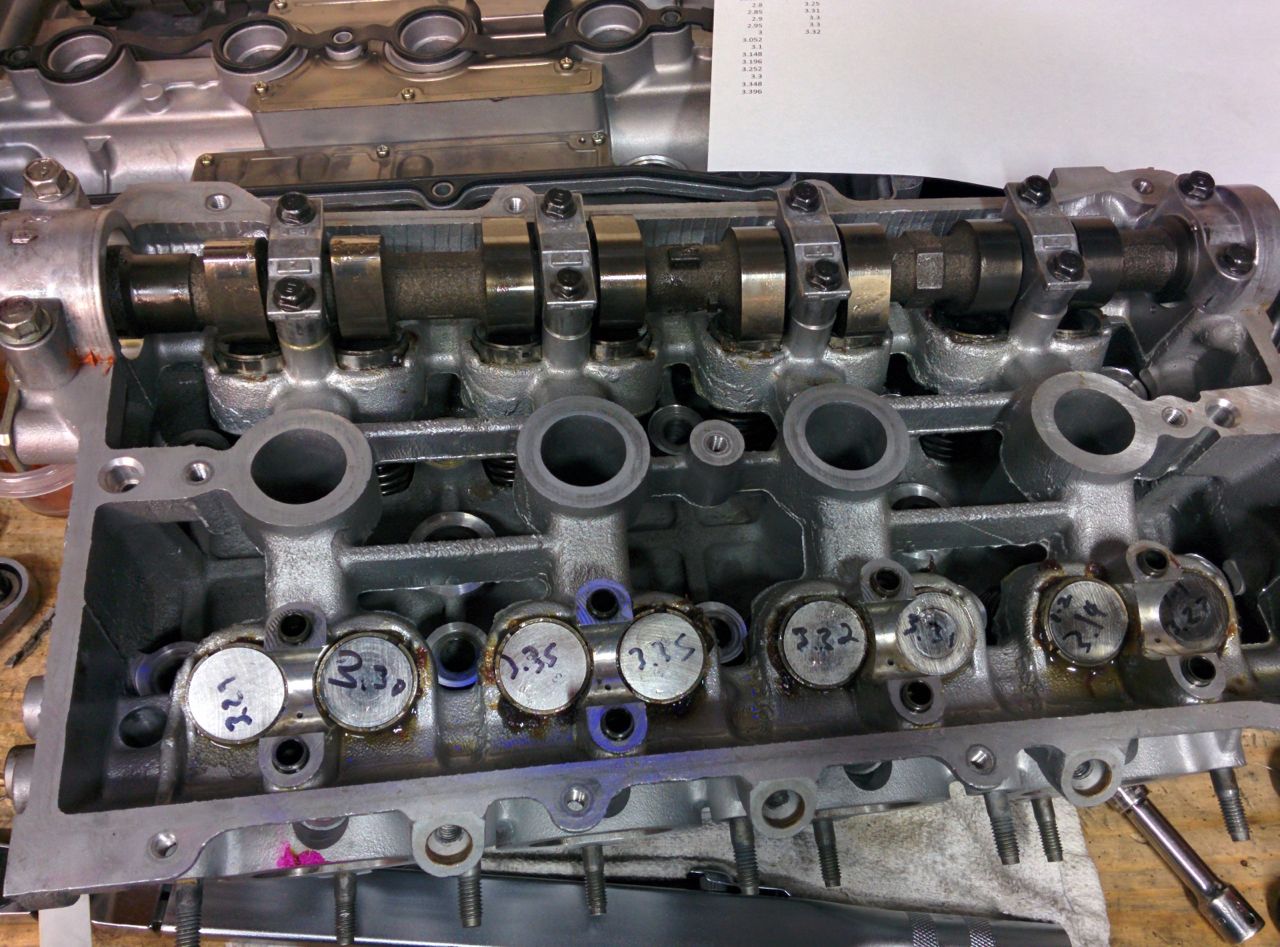

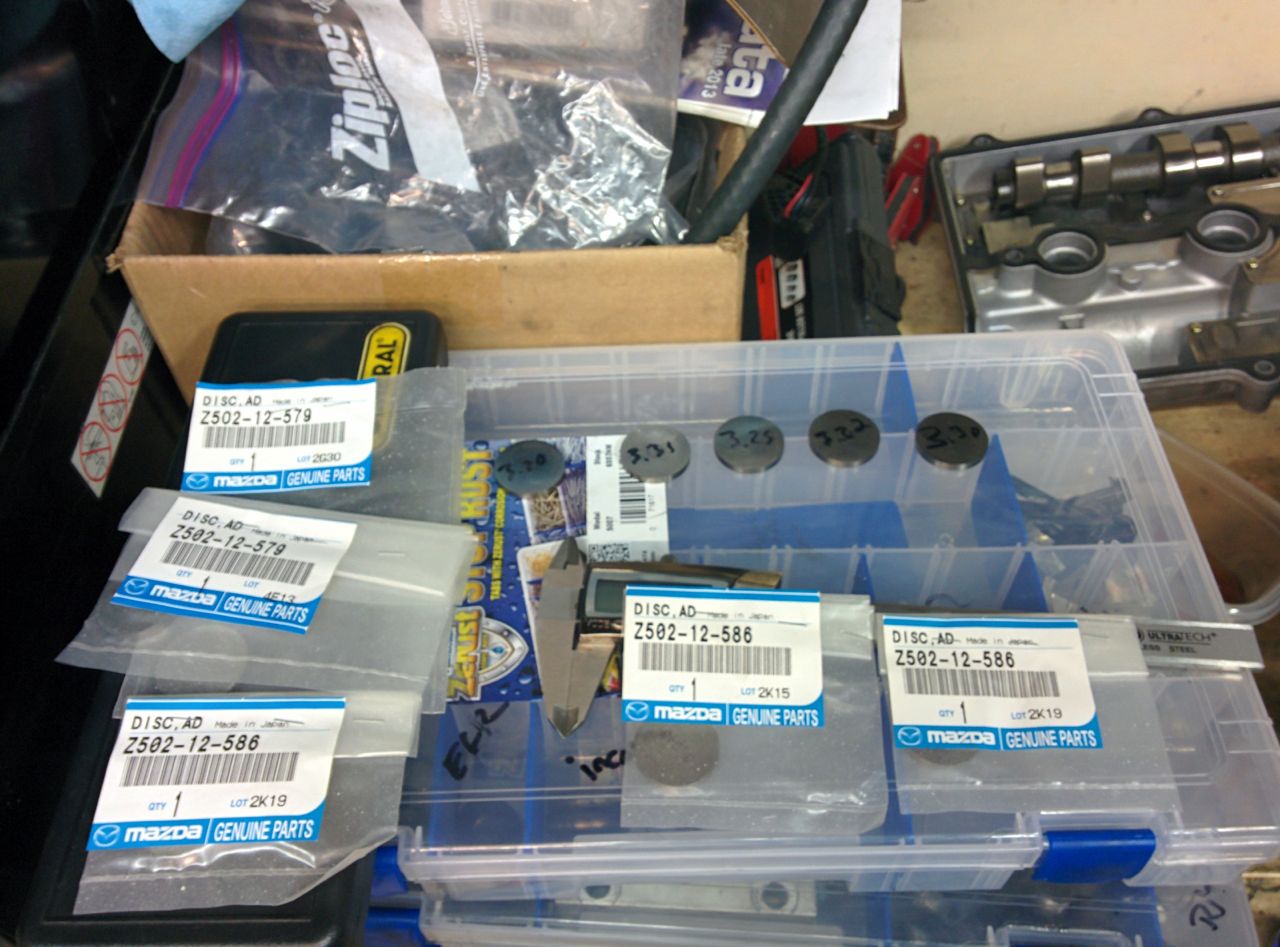

Speaking of equations, last weekend I cleaned the rust off the intake cam (scotch brite took care of most of it), and measured the lash using it with the shims that were already installed for the stock ones. Now-shiny MSM cam: http://www.codrus.com/miata/fm2r/msm-cam-cleaned.jpg And I wrote a spreadsheet to calculate the right shims to use http://www.codrus.com/miata/fm2r/valves.png And I ordered a few shims from Mazda. Here's the box they came in -- a cubic foot to hold 5 quarter-sized discs of metal? Seems a bit silly. :) http://www.codrus.com/miata/fm2r/shim-box.jpg And I put them in: http://www.codrus.com/miata/fm2r/shims-spare.jpg http://www.codrus.com/miata/fm2r/shims-installed.jpg Alas, after doing this, all six of the intake valves that I changed (the 2 for #1 were fine) are now slightly too tight. Grr. The spec is .21mm +/- .03 mm, so .18 to .24. That works out to .0071 to .0095 inches. I aimed for the low end of the spec, figuring the tighter the gap the more lift I'd get, and thus fractionally more power. Alas, I can now only get the .006 feeler gauge in, not the .007. I haven't quite decided what to do about this yet. --Ian |
