Half Bottle of JD and a 12mm wrench
#303
Elite Member
Thread Starter
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Heading to the shop tonight after i pick up some trans oil and an alternator belt.
change 3 wires, install intake manifold/fuel lines and put the new AEM file i made onto the EMS and see if it will start.
Once i get it running, i will finish the other **** like exhaust and new seat mounts.
Going to run the car all motor for the rest of the year. If i can get it running that is. When i do, i will be taking it to the dyno to see what kind of numbers i can make with my custom intake manifold and VVT tuning. I will 100% need a 6 speed though. 5 speed and 3.636 rear without boost will be lame.
change 3 wires, install intake manifold/fuel lines and put the new AEM file i made onto the EMS and see if it will start.
Once i get it running, i will finish the other **** like exhaust and new seat mounts.
Going to run the car all motor for the rest of the year. If i can get it running that is. When i do, i will be taking it to the dyno to see what kind of numbers i can make with my custom intake manifold and VVT tuning. I will 100% need a 6 speed though. 5 speed and 3.636 rear without boost will be lame.
Last edited by shlammed; 08-19-2011 at 03:44 PM.
#304
Elite Member
Thread Starter
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
it doesnt look like it, but i got a ton done today.

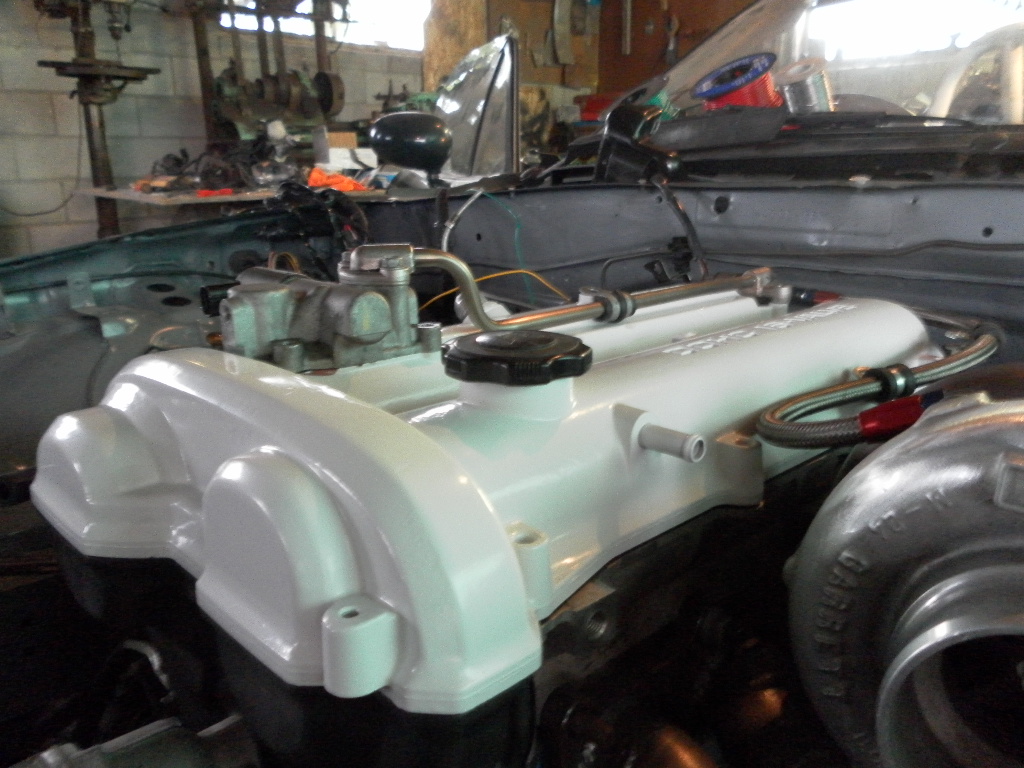

i refinished my valve cover since i only primered it before. In memory of my VW GTI, i painted it Candy White. I love that color.
![](https://www.miataturbo.net/attachments/build-threads-57/23175-half-bottle-jd-12mm-wrench-sam_0918.jpg?dateline=1313899046)

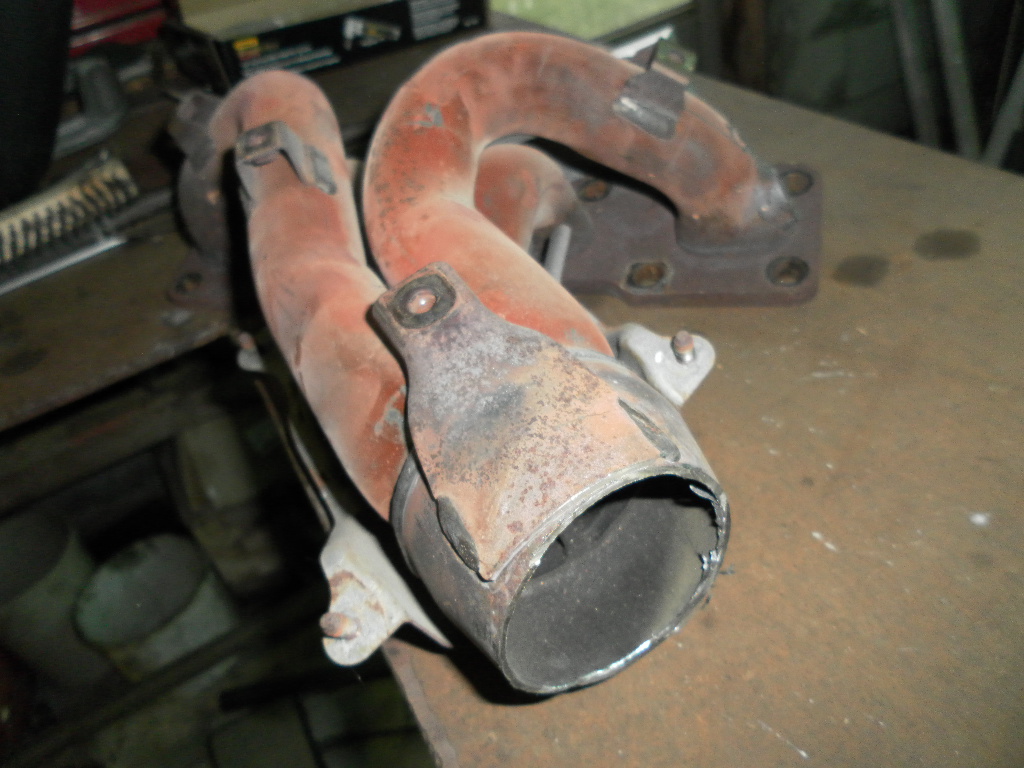

Hacked the flange off of the OEM header to fit a 3" pipe. Surprisingly good construction for an OEM header.
![](https://www.miataturbo.net/attachments/build-threads-57/23176-half-bottle-jd-12mm-wrench-sam_0915.jpg?dateline=1313899046)

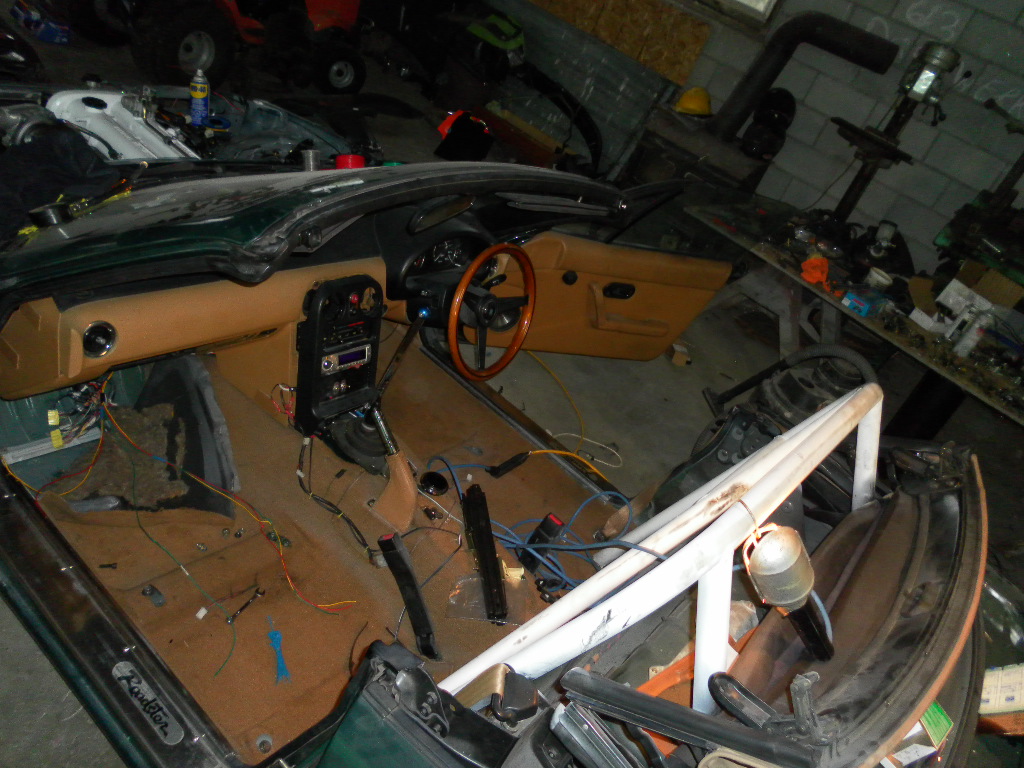

General cabin shot when im wiring to the EMS
![](https://www.miataturbo.net/attachments/build-threads-57/23177-half-bottle-jd-12mm-wrench-sam_0914.jpg?dateline=1313899046)

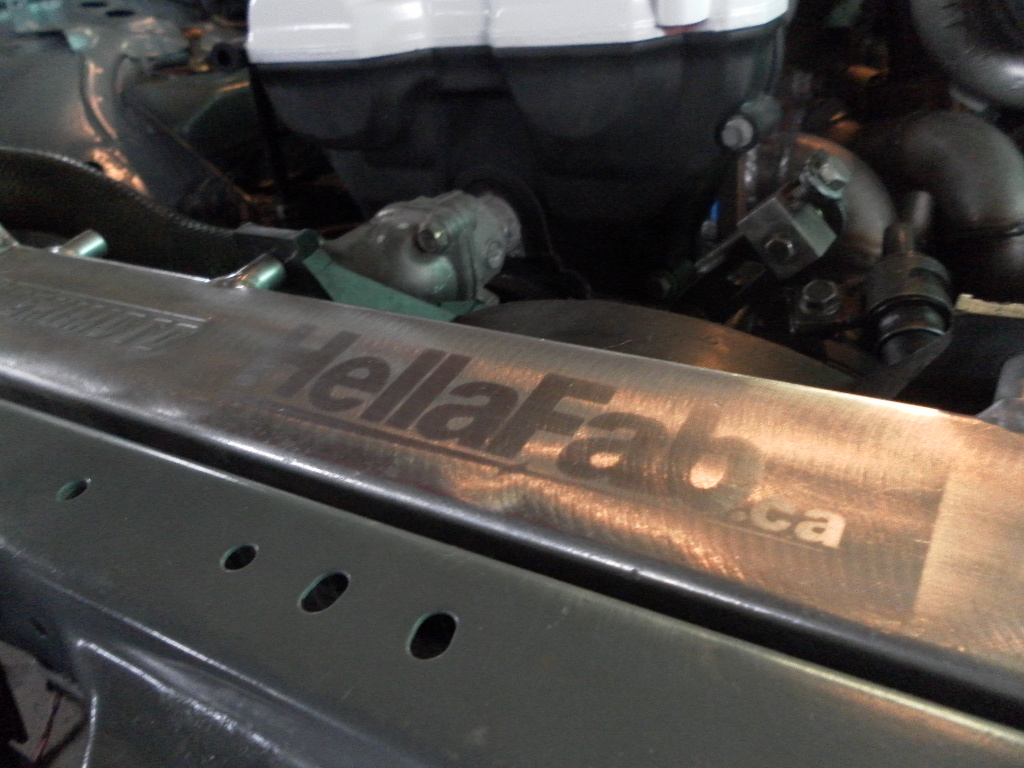

Vinyl negatives and steel wook work great for logos!
![](https://www.miataturbo.net/attachments/build-threads-57/23178-half-bottle-jd-12mm-wrench-sam_0911.jpg?dateline=1313899046)
Going forward, im still not happy with the wiring. I think that i would like to get some ECU plugs, an amphenol for the firewall and a summit racing chassis harness kit.
If anyone has any of those items, that would be great!
i refinished my valve cover since i only primered it before. In memory of my VW GTI, i painted it Candy White. I love that color.
![](https://www.miataturbo.net/attachments/build-threads-57/23175-half-bottle-jd-12mm-wrench-sam_0918.jpg?dateline=1313899046)
Hacked the flange off of the OEM header to fit a 3" pipe. Surprisingly good construction for an OEM header.
![](https://www.miataturbo.net/attachments/build-threads-57/23176-half-bottle-jd-12mm-wrench-sam_0915.jpg?dateline=1313899046)
General cabin shot when im wiring to the EMS
![](https://www.miataturbo.net/attachments/build-threads-57/23177-half-bottle-jd-12mm-wrench-sam_0914.jpg?dateline=1313899046)
Vinyl negatives and steel wook work great for logos!
![](https://www.miataturbo.net/attachments/build-threads-57/23178-half-bottle-jd-12mm-wrench-sam_0911.jpg?dateline=1313899046)
Going forward, im still not happy with the wiring. I think that i would like to get some ECU plugs, an amphenol for the firewall and a summit racing chassis harness kit.
If anyone has any of those items, that would be great!
#305
Elite Member
Thread Starter
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Can anyone confirm what size the factory fuel lines are in a miata?

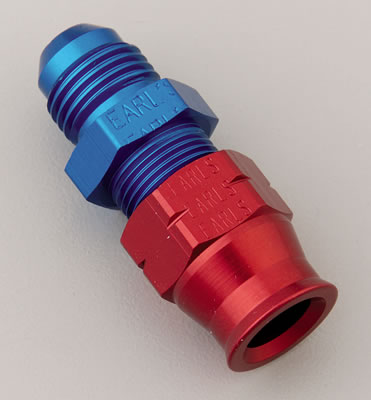

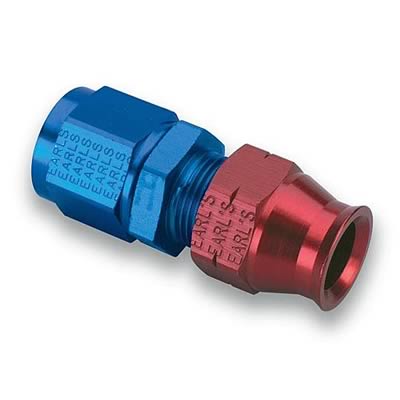

I am ordering Tube to AN adapters so i can do my custom fuel rail with aeromotive FPR.
My hacked setup leaks and im not risking a fire.
Ordering these:
![](https://www.miataturbo.net/attachments/build-threads-57/23379-half-bottle-jd-12mm-wrench-ear-165006erl_w.jpg?dateline=1314209178)
offered in: 3/8" and 5/16"
I am ordering Tube to AN adapters so i can do my custom fuel rail with aeromotive FPR.
My hacked setup leaks and im not risking a fire.
Ordering these:
![](https://www.miataturbo.net/attachments/build-threads-57/23379-half-bottle-jd-12mm-wrench-ear-165006erl_w.jpg?dateline=1314209178)
offered in: 3/8" and 5/16"
#311
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
http://www.summitracing.com/search/P...s&kr=tube+nuts
These are the nuts. The sleeves are usually in the 'related items' section in each item page.
5/16 is -5AN which is going to be a little difficult to find. Measure YOUR lines to make sure they're both 5/16 OD and I'll be happy to see how miuch they will be from my local line/ fitting dude (superhero, really). Be aware that I've done this on several cars and never found one that was both 5/16 feed and return. Usually it's 3/8" feed and 5/16" return on Japanesy stuff.
These are the nuts. The sleeves are usually in the 'related items' section in each item page.
5/16 is -5AN which is going to be a little difficult to find. Measure YOUR lines to make sure they're both 5/16 OD and I'll be happy to see how miuch they will be from my local line/ fitting dude (superhero, really). Be aware that I've done this on several cars and never found one that was both 5/16 feed and return. Usually it's 3/8" feed and 5/16" return on Japanesy stuff.
#312
Elite Member
Thread Starter
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks!
I will look into it.
Im going to get the car running and then order all of this. Having the car towed into town from my shop so i can work on it when i have a second instead of spending 2 hours driving to do 2 hours work.
I will look into it.
Im going to get the car running and then order all of this. Having the car towed into town from my shop so i can work on it when i have a second instead of spending 2 hours driving to do 2 hours work.
#313
Elite Member
Thread Starter
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

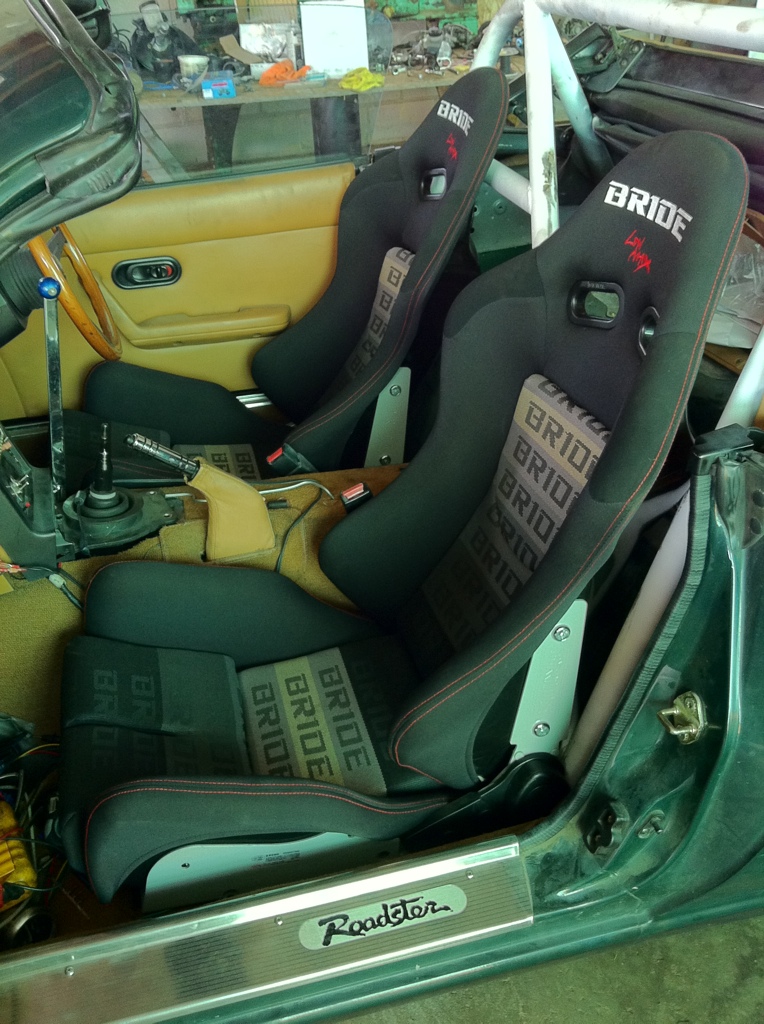

Bride reps. Fit good and sit REALLY low.
![](https://www.miataturbo.net/attachments/build-threads-57/24183-half-bottle-jd-12mm-wrench-92226a5e.jpg?dateline=1315090323)
They are so legit.

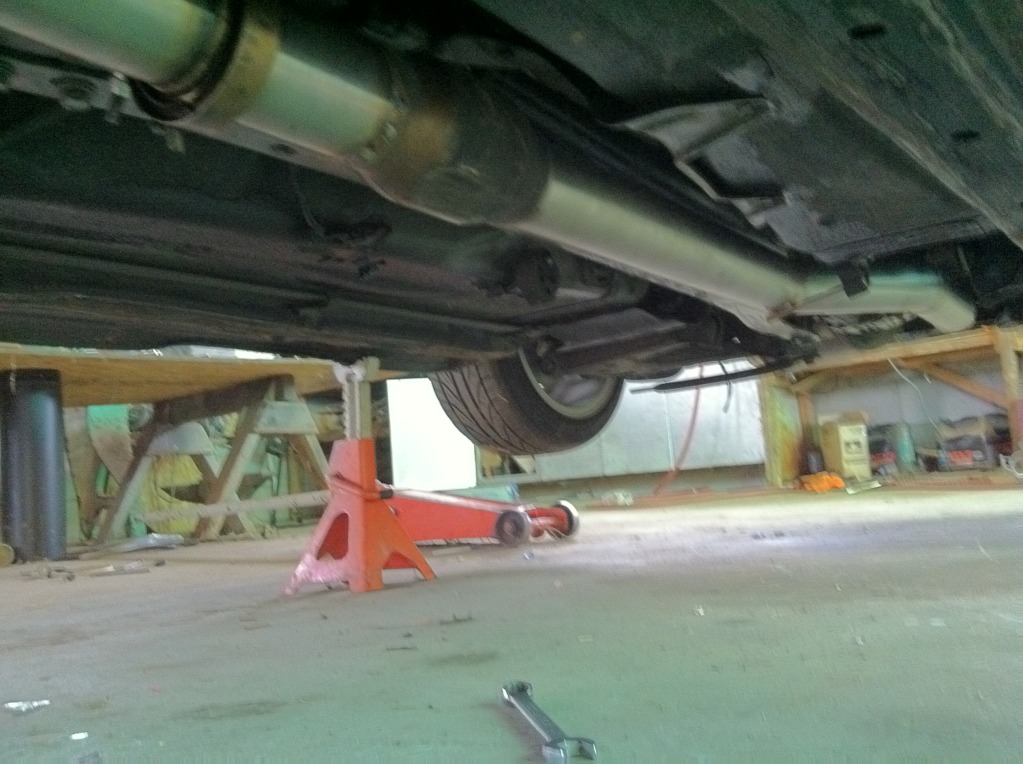

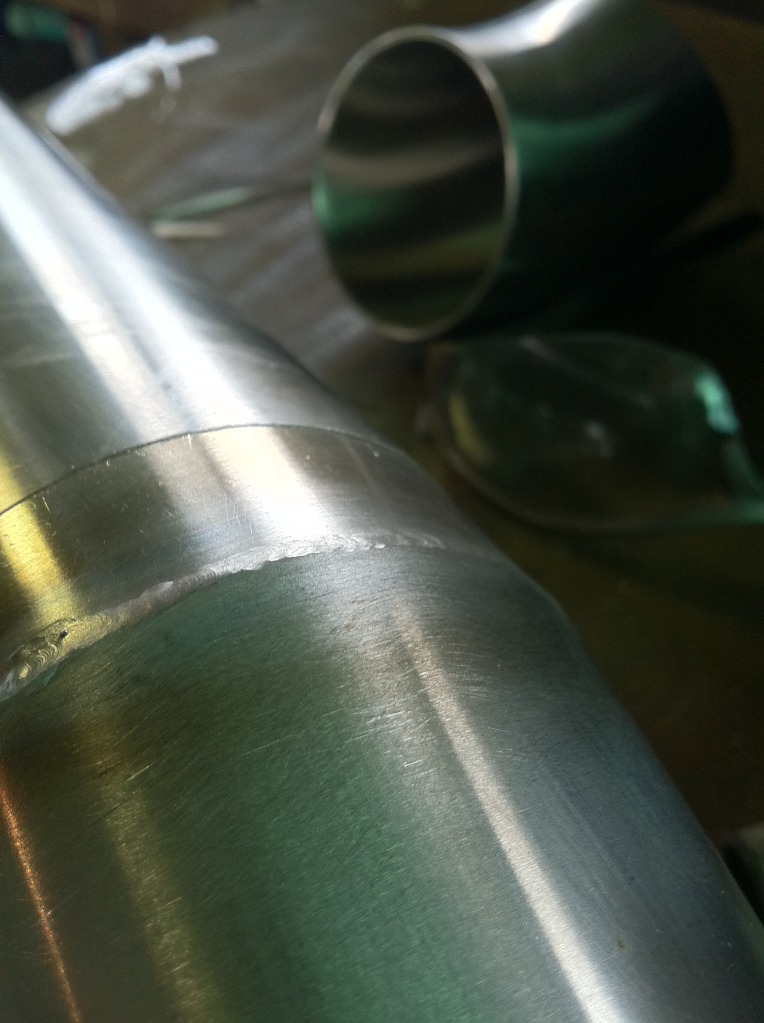

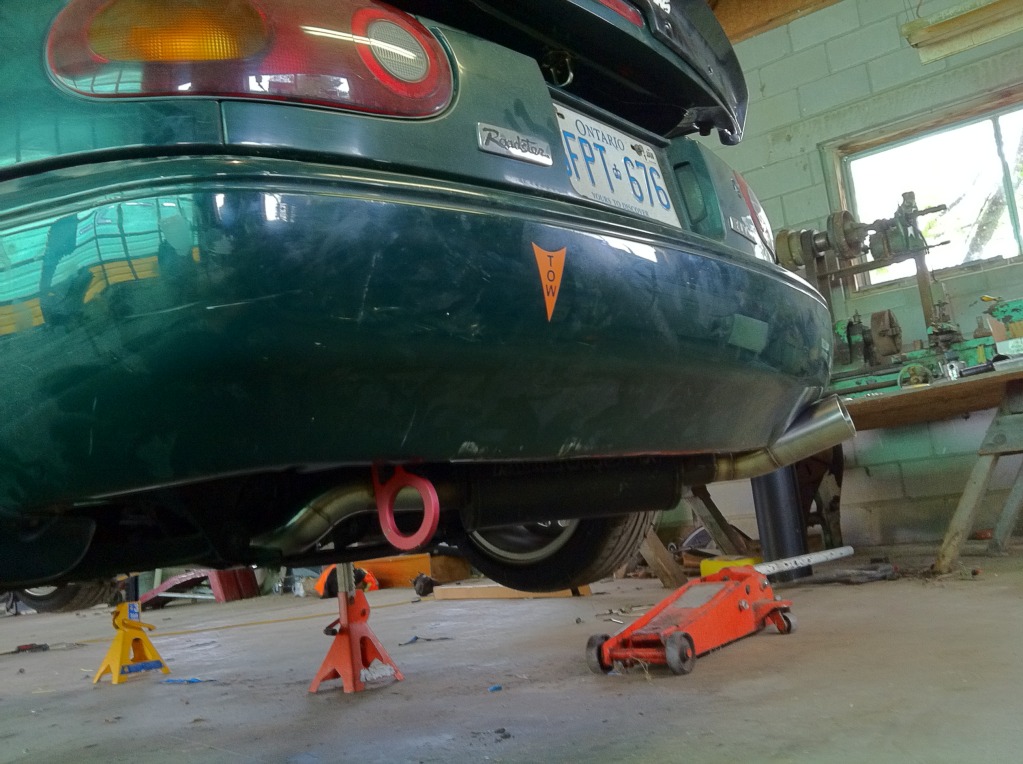

Also made egr blockoff plates and random bracketry. Putting most little stuff on tomorrow and finishing the exhaust before I tow the car into town to do the finishing details. Hope to be driving in 2 weeks!
![](https://www.miataturbo.net/attachments/build-threads-57/24183-half-bottle-jd-12mm-wrench-92226a5e.jpg?dateline=1315090323)
They are so legit.
Also made egr blockoff plates and random bracketry. Putting most little stuff on tomorrow and finishing the exhaust before I tow the car into town to do the finishing details. Hope to be driving in 2 weeks!
