Sounds good to me. Road trip. I started poking around there, when he was routing his intake through the radiator. Like actually through it. It would be even better if we could meet up at an event of some sort. He says he can tune my car for me, and make it run correctly. Whatever that means.
He actually seems like an ok guy, just spouts nonsense sometimes.
Last edited by ryansmoneypit; 06-24-2016 at 04:37 PM.

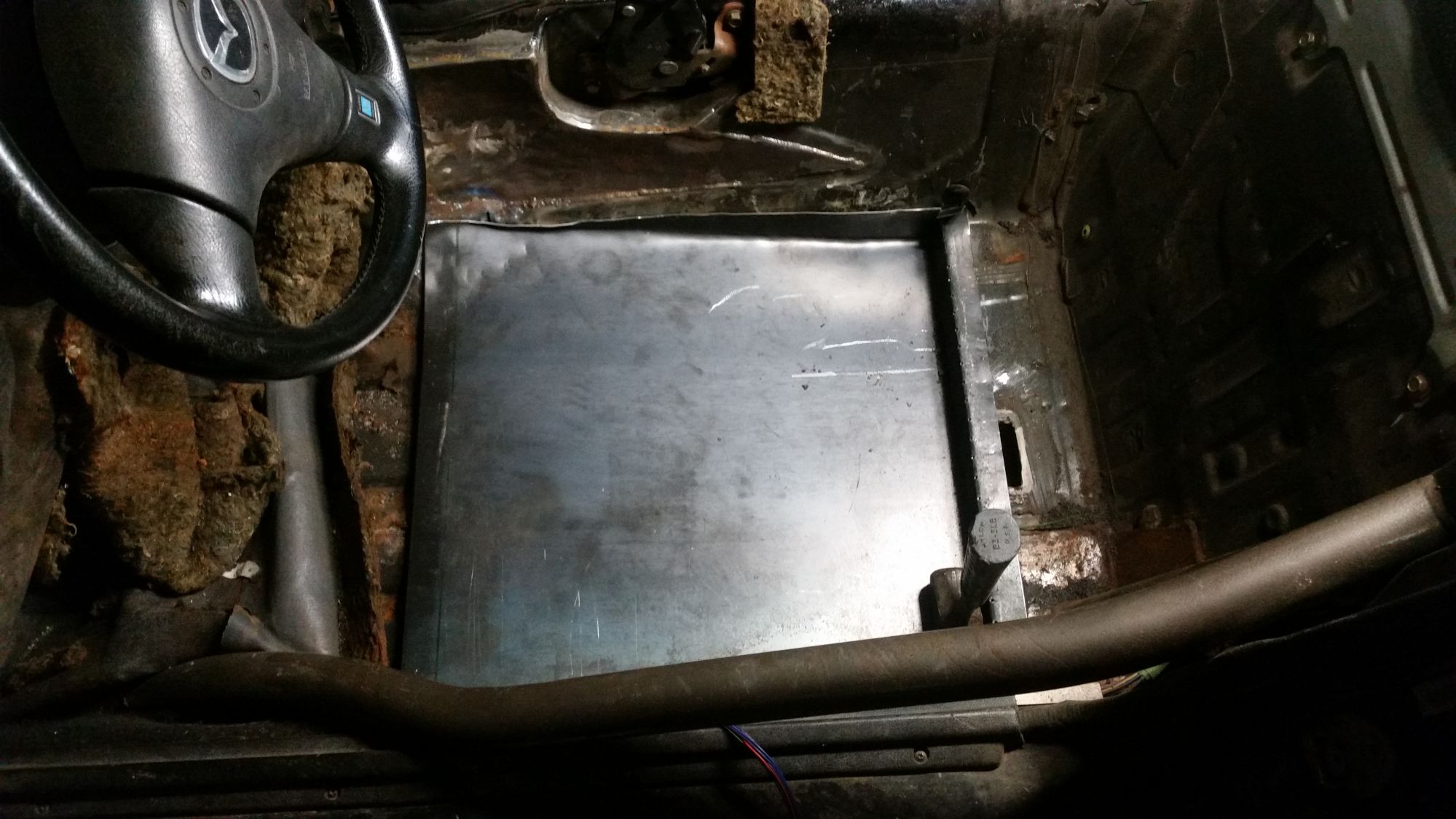

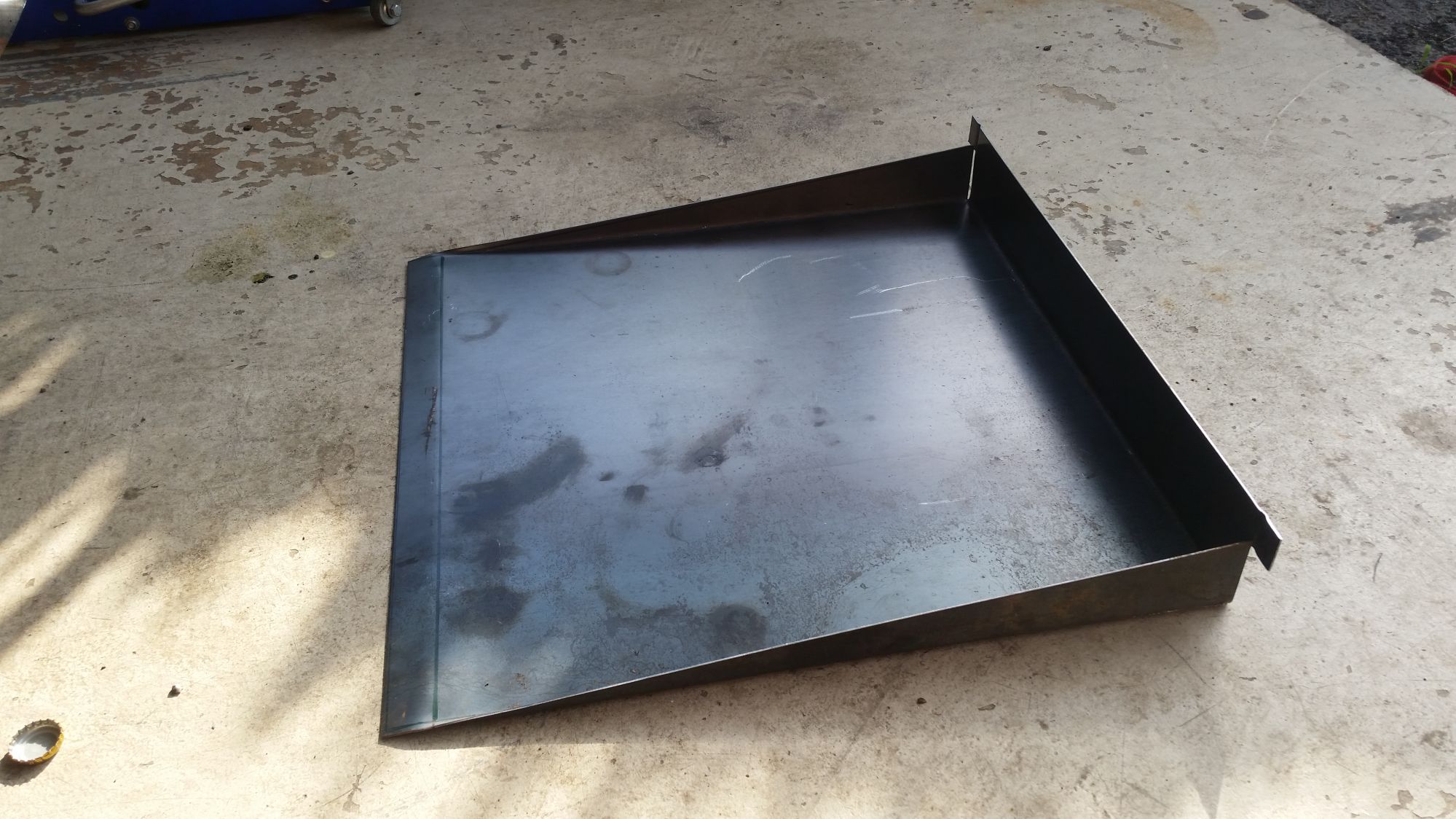

This tray is going in the hole. Not sure about the rail. It's tough because I wanted to get lower, but the rail is in the way. I have a pretty stout cage, so not sure how much the rail is even doing. I did bend up some replacement frame rail... we'll see.
Yeah, the small things drive me nuts and I can't let up. Cops showed up at my house tonight, dog was out roaming the neighborhood. had to shut down early. More progress tomorrow.
Things move at a snails pace sometimes. ..lots of motorcycle racing has sawed progress, but alas, there is progress. All this work, jizz to fit a sweet seat and sit low. Check out this home-made amateur seat mount ****.

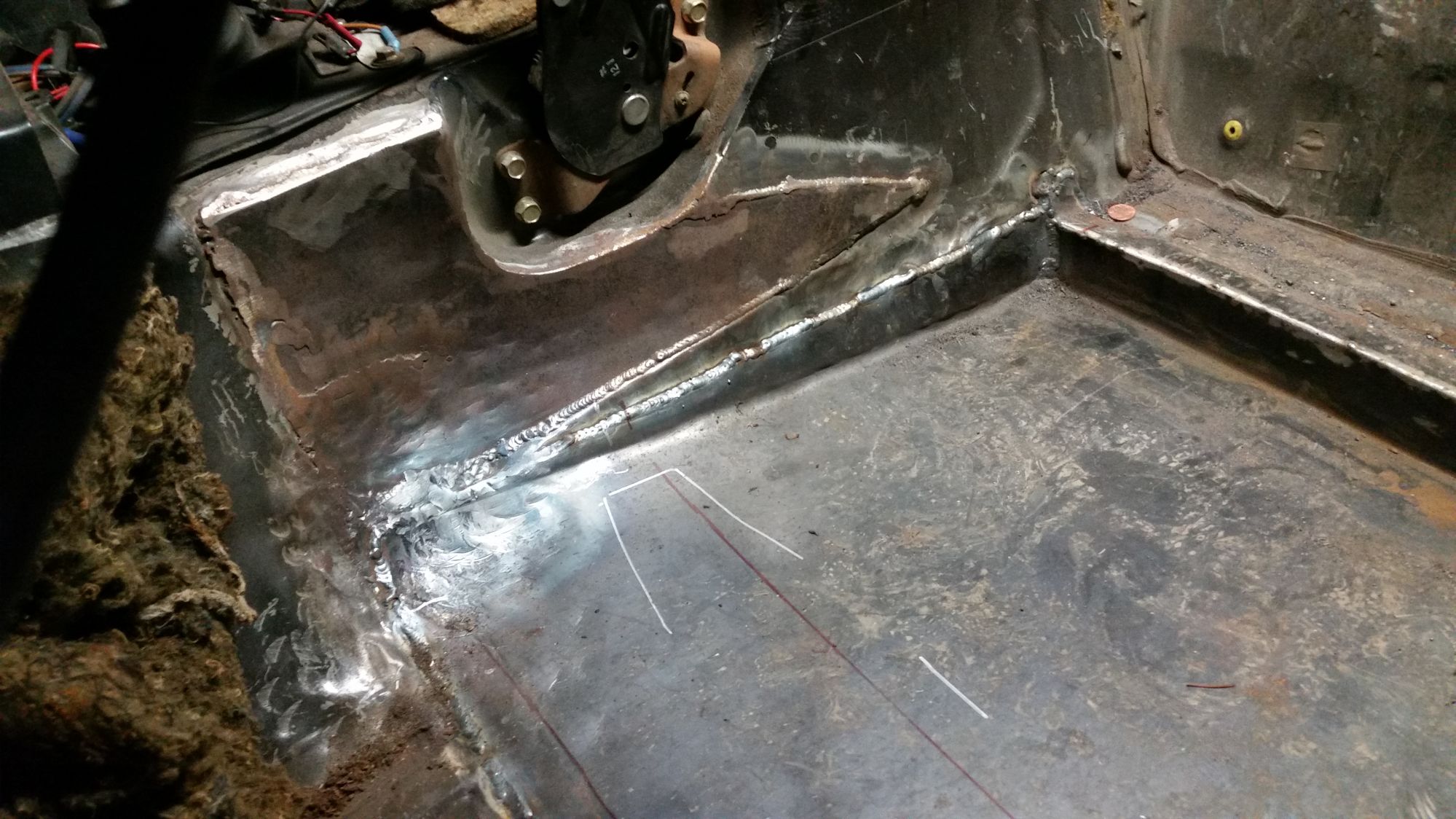

This is the new floor welded in place. As you can see, I had to remove a lot of material, and smash the rest with a hammer. This seat is just so big in the worst spots. The side rail-lip-thing that runs all around the perimeter of these seats, caused most of the problem.

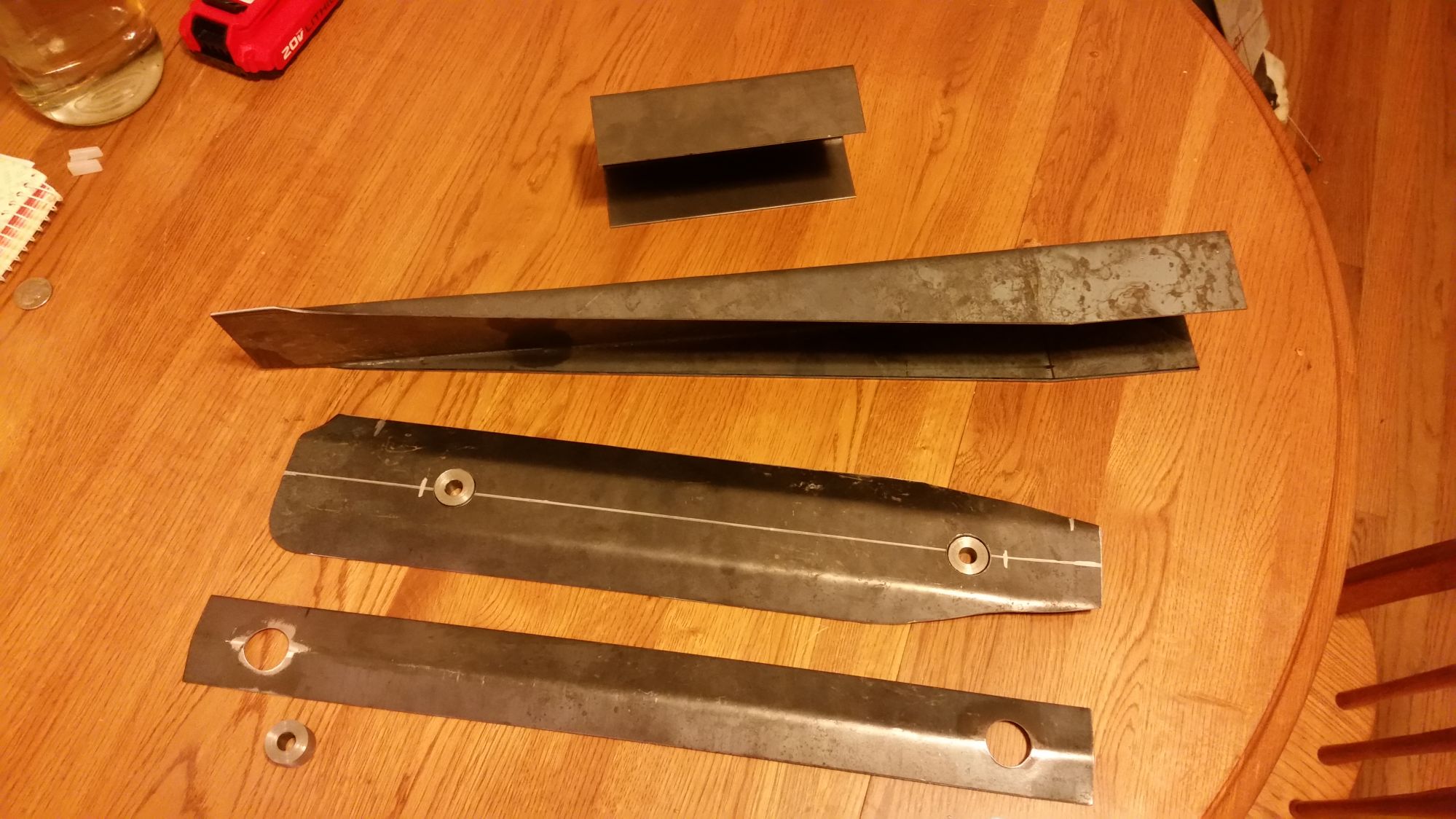

Some assorted parts. The wedge thing will replace the missing section of the frame rail I had to remove. The floor is already really solid, and the car has an 1-3/4" chromoly cage. Not too worried about flex, but F it. MOAR STIFF.

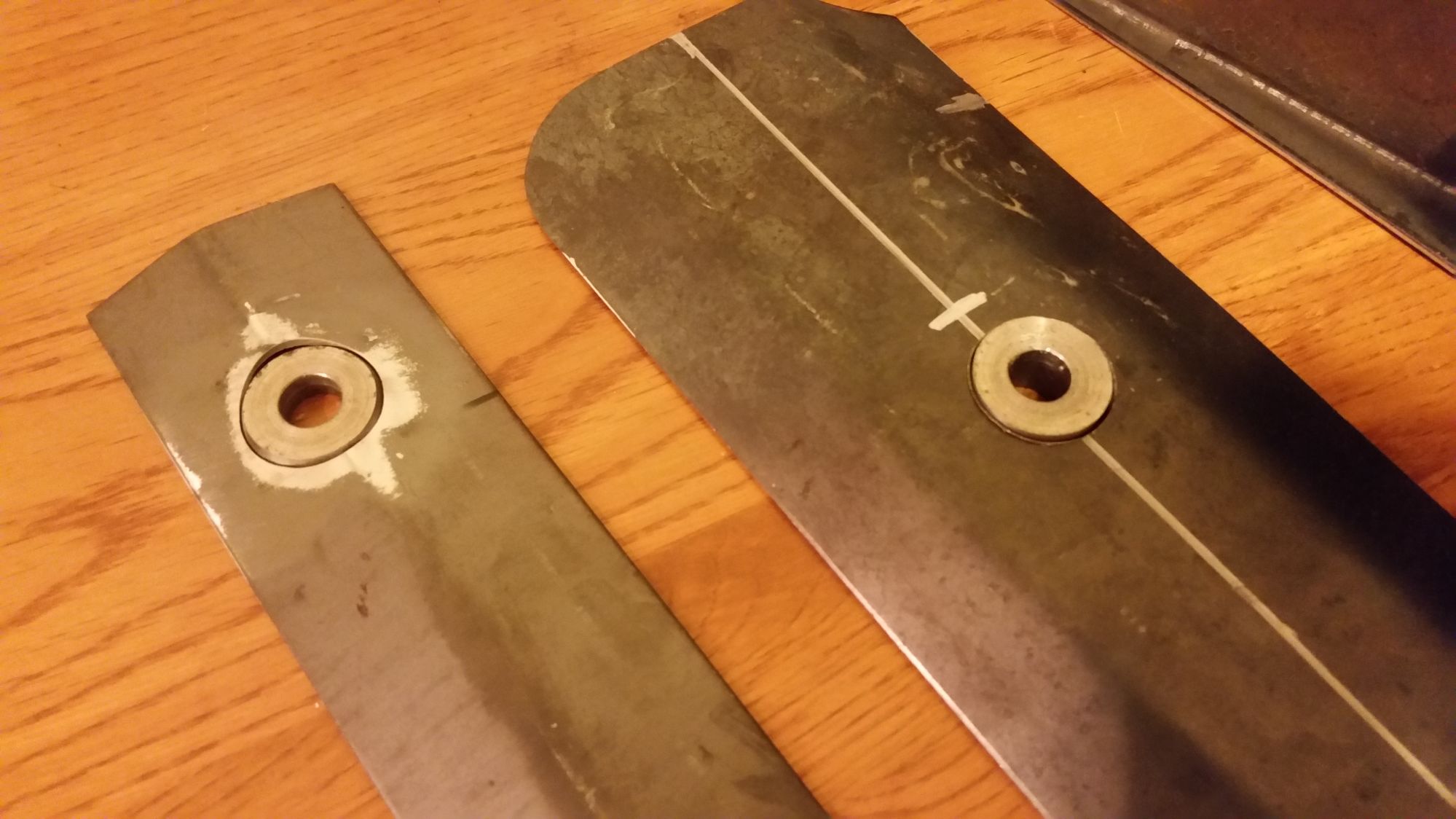

So the spars provide a little moar stiff, and the seat mount will be pulled tight against the solid lugs. I made a few different sizes, so I can stack them to achieve the desired seat height and recline angle.
Well I finished it. Rember this was to fit a Sparco evo 2, I'm 5'-10" ,car has a cage that fits just barely under the hard top and I wanted to clear the broomstick test with a helmet. This is not an easy task in the tiny little area.
**** lighting makes the welds look like poo. I'll get some better pics of everything later. The seat is bolted in now, but it needs to come back out. I mounted it a little too close, and tilted forward a bit much. Anyway, a pic .
Even with a large section of the frame rail missing, the cage makes up for it. I think. I do have a replacement section made. Just have to crawl under and weld it in. Motivation is low.
Jack placed at forward of cab to show, ohhh how stiff it is.
^^ Solution right tharr. Internal, under carpet barriers can help but keeping the heat from getting into the pan in the first place is key.
Thermo-Tec and DEI make some decent adhesive backed products that actually hold up. I'm using the DEI Floor and Tunnel Shield 2 in a couple of applications and it works great. I've got a huge roll waiting to go into the Miata the next time the drive-train comes out. Just make sure you are buying a barrier product that actually has a barrier in it, not just reflective foil with adhesive backer.
