Build Threads Building a motor? Post the progress here.

fail baboon goin for redemption in '012 - will just end up failing again

Thread Tools

Search this Thread

Old 03-03-2012 | 07:24 PM
  #21
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

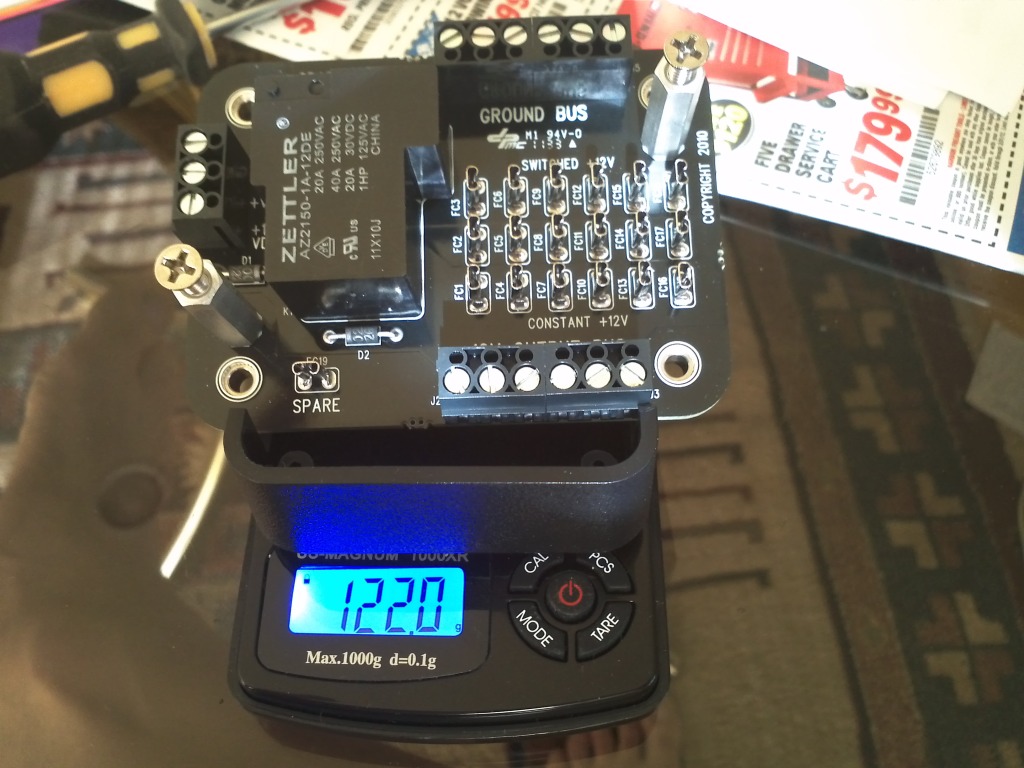

fuzeblock came today. it is tiny. seems to weigh same as the horn (fz-1= .27lb horn=.38lb)

strategized with a friend today on the rear subframe. ended up punting on the idea of modifying subframe in favor of making the ppf work.

i would like to take an informal survey. would anybody be interested in purchasing a kit to adapt a sr20 to miata? kit would consist of tranny <-> ppf adapter, motor mounts and oil pan. for sake of argument lets assume cost is < $1000.

Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-img_20120303_151146.jpg
Old 03-08-2012 | 11:33 AM
  #22
Seefo's Avatar
Elite Member
iTrader: (5)

Joined: Dec 2010
Posts: 1,961
Total Cats: 48
From: Raleigh, NC
Default

there was a kit available at some time before, cost was over 3k. I think there would be some interest in a kit. I know you will get "interest" at CR, but who will actually really pay? not sure.
Old 03-08-2012 | 12:23 PM
  #23
Faeflora's Avatar
Elite Member
iTrader: (2)

Joined: Jan 2007
Posts: 8,682
Total Cats: 130
From: Los Angeles, CA
Default

Sure I'll do it. But I want KA!
Old 03-08-2012 | 04:07 PM
  #24
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

woot woot first sale. actually i think ka is ok for 2 out of 3 parts. i'll take a look to make sure the tranny mounts are same (worst case you can swap bellhousings). motor mounts are same. oil pan hmm...

i dunno if the ka can handle all yer boosts. iirc the block cracks @ 425lb/ft at lowish rpms (< 4k).
Old 03-10-2012 | 01:15 AM
  #25
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

Takin' some fail out this weekend boy howdy.

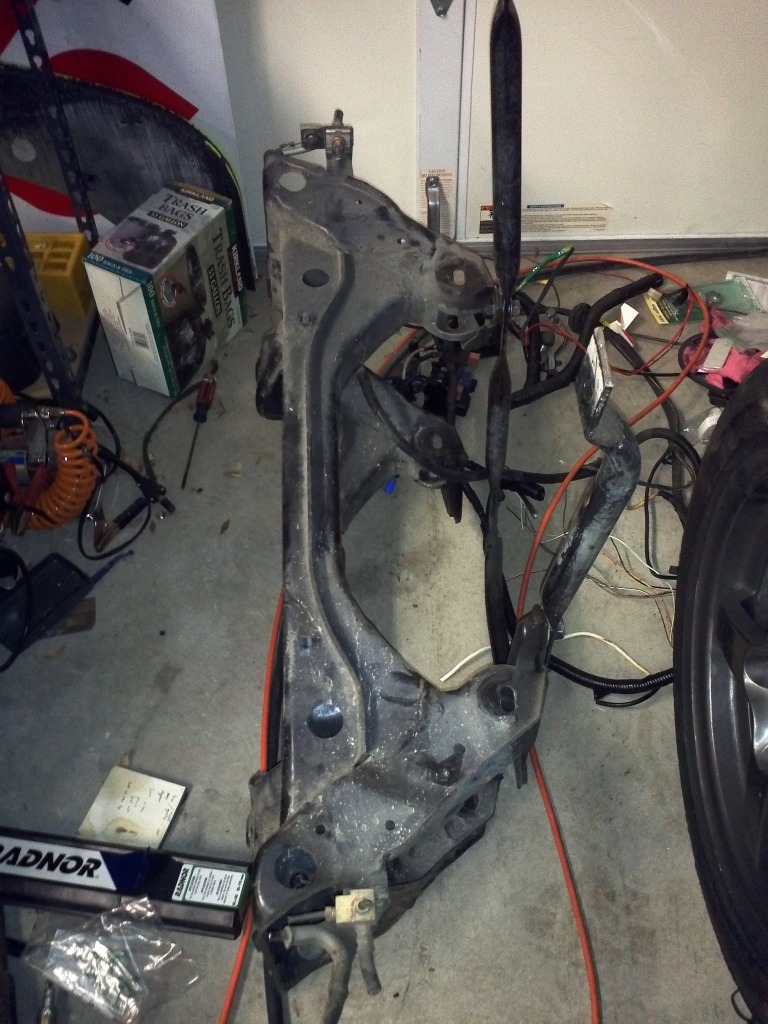

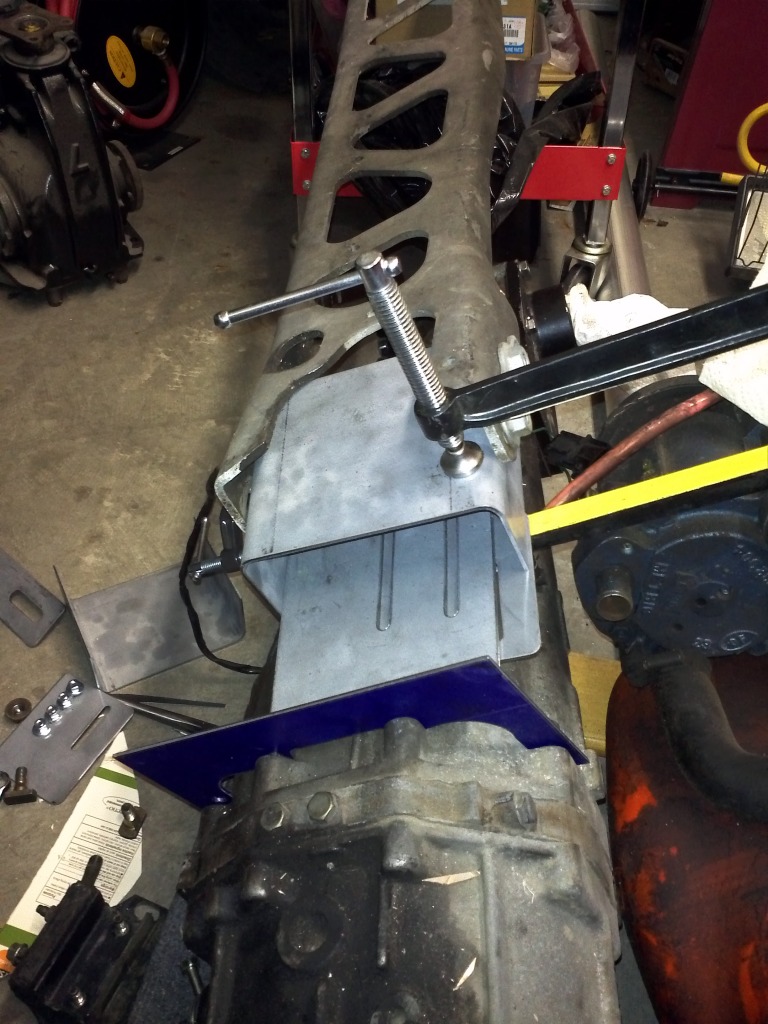

ima put this:



and crawl under the car and tack weld the fitment fixture in the right orientation. From this the final part can be produced.



ima be a happy puppy
Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-img_20120309_205225.jpg   fail baboon goin for redemption in '012 - will just end up failing again-img_20120309_205328.jpg
Old 03-26-2012 | 01:34 AM
  #26
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

rain gives me the lazies but have small update

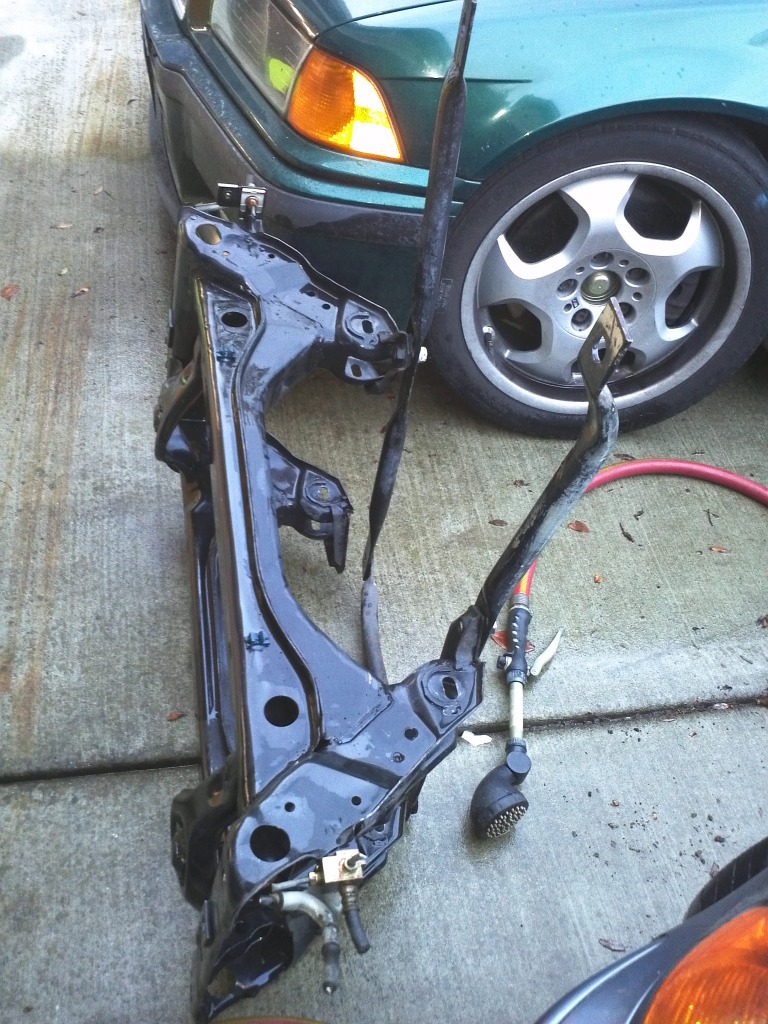

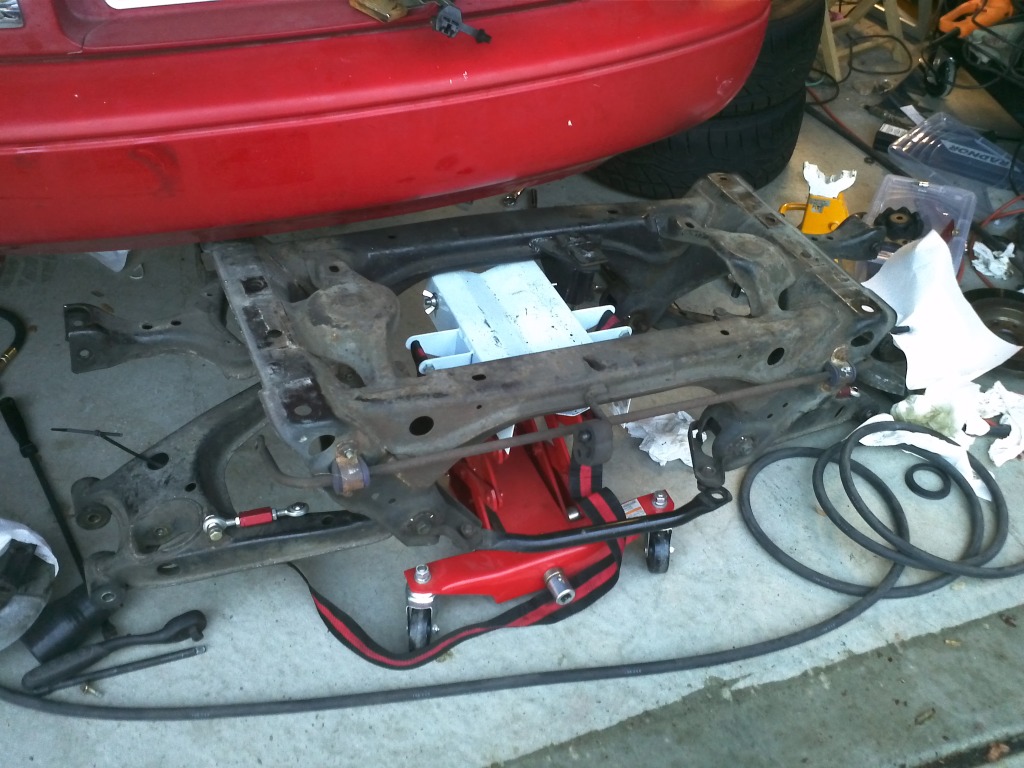

got the busted one out


new one washed and ready to go in
Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-img_20120325_190032.jpg   fail baboon goin for redemption in '012 - will just end up failing again-img_20120325_185859.jpg
Old 03-29-2012 | 02:10 AM
  #27
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

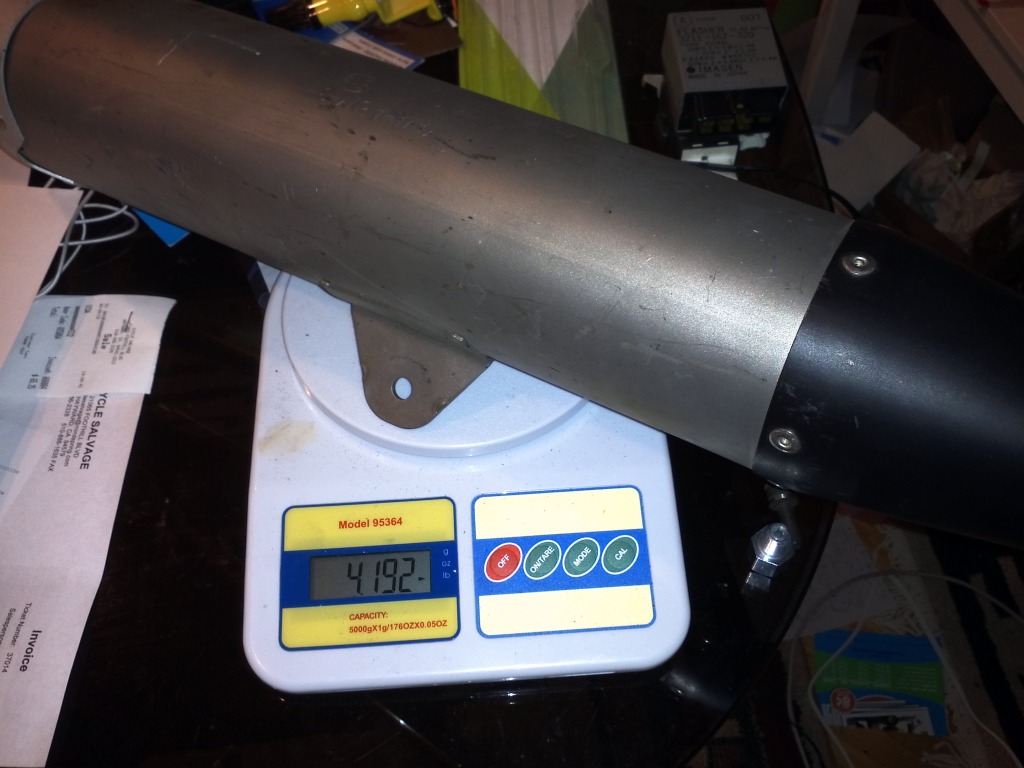

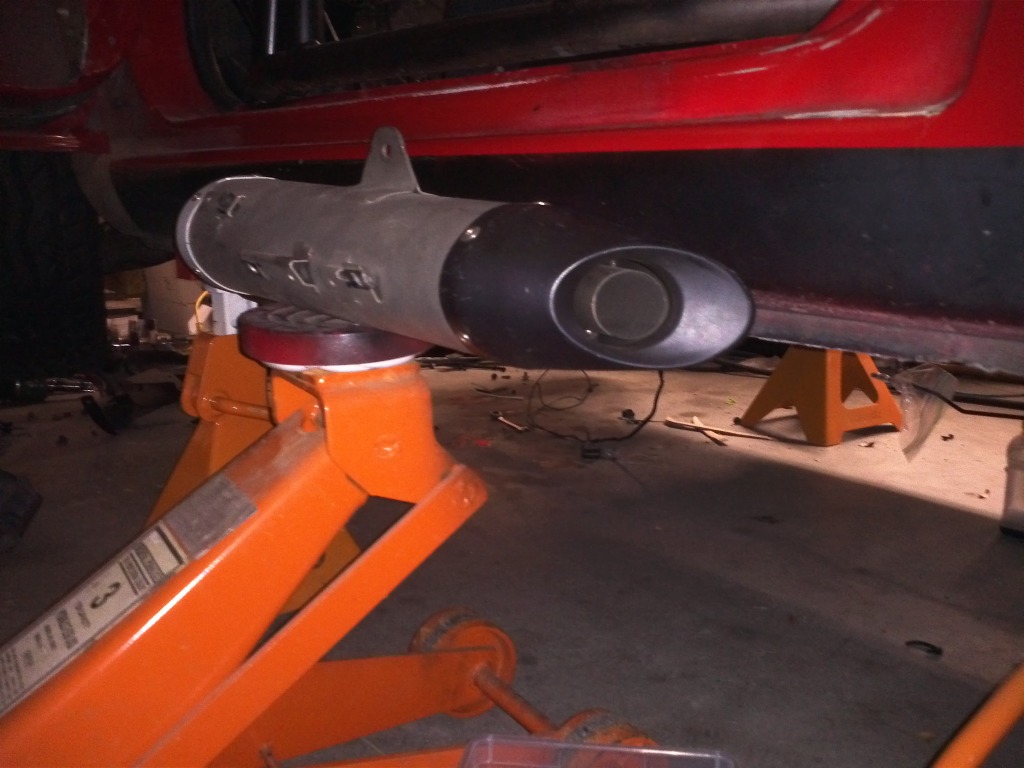

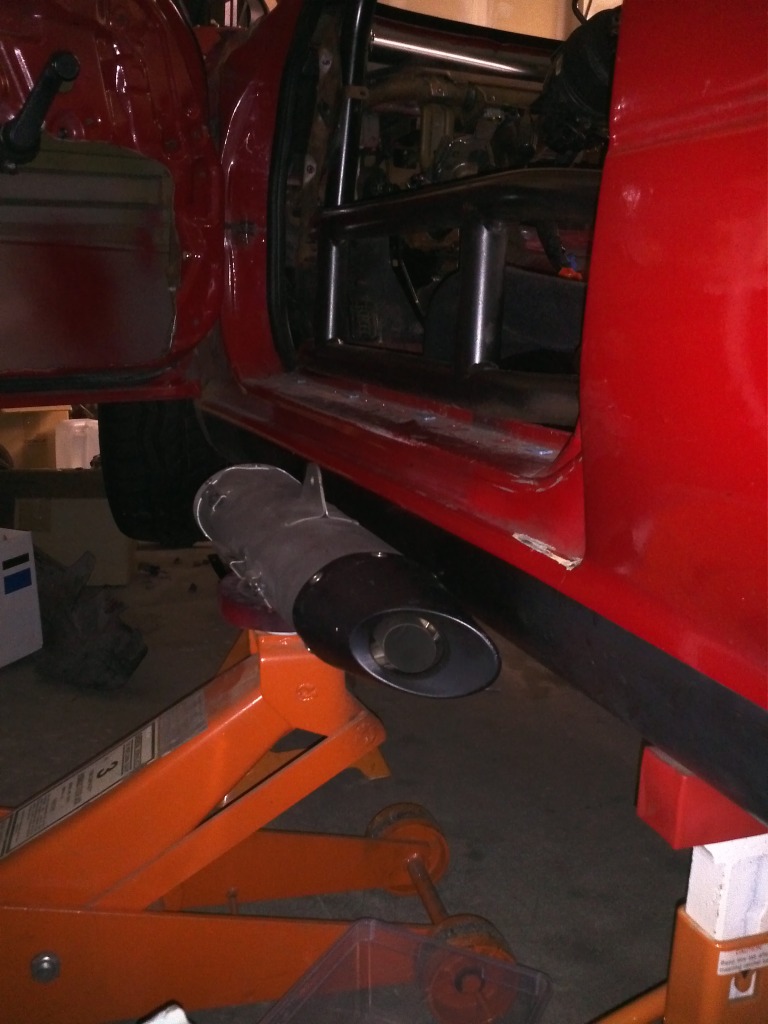

picked this up today to build my laguna seca exhaust. whatcha all think?

I gotta say, if stock bike take-offs are 10 times better than you can buy for a car, your doing it wrong.






Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-img_20120328_215840.jpg   fail baboon goin for redemption in '012 - will just end up failing again-img_20120328_215757.jpg   fail baboon goin for redemption in '012 - will just end up failing again-img_20120328_220210.jpg
Old 03-29-2012 | 10:38 AM
  #28
lub's Avatar
lub
Newb

Joined: Dec 2011
Posts: 14
Total Cats: -1
Default

that new exhaust looks fancy.
Old 03-29-2012 | 12:47 PM
  #29
devin mac's Avatar
Senior Member
iTrader: (2)

Joined: Mar 2006
Posts: 881
Total Cats: 4
From: MA
Default

Originally Posted by jasonb
fuzeblock came today. it is tiny. seems to weigh same as the horn (fz-1= .27lb horn=.38lb)

strategized with a friend today on the rear subframe. ended up punting on the idea of modifying subframe in favor of making the ppf work.

i would like to take an informal survey. would anybody be interested in purchasing a kit to adapt a sr20 to miata? kit would consist of tranny <-> ppf adapter, motor mounts and oil pan. for sake of argument lets assume cost is < $1000.

This pic would be be so much more fail-redeeming if it were on a triple-beam.



Loving the thread so far, looking froward to seeing the progress. I get a lot of ideas watching a lot of you guys work.
Old 03-29-2012 | 01:27 PM
  #30
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,448
Total Cats: 1,901
From: Very NorCal
Default

I'm digging this! Too bad it isn't ready for MRLS this weekend...

...or is it?!












Related: Sell me your old SR20 turbo
Old 03-29-2012 | 01:38 PM
  #31
triple88a's Avatar
Elite Member
iTrader: (2)

Joined: Apr 2006
Posts: 10,476
Total Cats: 1,813
From: Chicago, IL
Default

Lets go get our engines.
Old 04-15-2012 | 03:04 AM
  #32
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

Originally Posted by EO2K
I'm digging this! Too bad it isn't ready for MRLS this weekend...

...or is it?!

Related: Sell me your old SR20 turbo
no i didn't make it out. too bad, there aren't many chances to see everybody in one glorious weekend.

sure you can have the old turbo. it seems to be in fine condition.

I have a question for yous alls. I have stupid car completely disassembled and i'm looking at '95 rear subframe, 3.9 torsen, 99 axles, 1.6liter rear hubs and uprights. it looks like everything is ok for 350wheel but if i'm going to change anything, now is the time. I saw sav post that he is using a rx7 diff carrier. will the standard 99+ housing be ok for me?

ps: i don't know if i'll be 350 or not. planning on assembling then tuning at 14psi and see what i get.
Old 04-15-2012 | 10:06 PM
  #33
vehicular's Avatar
Elite Member
iTrader: (3)

Joined: Feb 2008
Posts: 1,855
Total Cats: 47
From: Huntsville, AL
Default

If you abuse it, none of that stuff will last long at 350whp. If you can keep from doing many clutch kick drift initiations you should be good with any 1.8L rear end and axles. I don't think any of them are significantly stronger or weaker than any others.
Old 04-18-2012 | 04:02 AM
  #34
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

i plan on being smooth, but it looks like you takes your chances at the end of the day. i guess if it starts getting expensive i'll back off on the power.

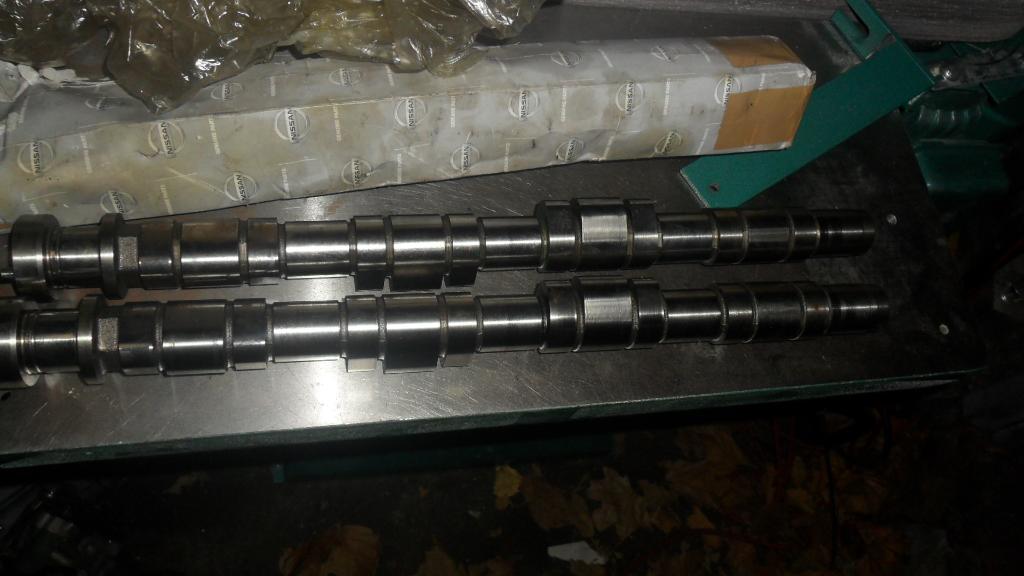

picked up these today, now i just need a head to put them into:
Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-sam_6419.jpg
Old 04-18-2012 | 12:01 PM
  #35
Faeflora's Avatar
Elite Member
iTrader: (2)

Joined: Jan 2007
Posts: 8,682
Total Cats: 130
From: Los Angeles, CA
Default

What cams are those?
Old 04-18-2012 | 12:06 PM
  #36
Stein's Avatar
Elite Member
iTrader: (46)

Joined: Dec 2007
Posts: 4,729
Total Cats: 166
From: Nebraska
Default

When I saw the thread title I thought I was in the politics section and it was an obummer re-election thread.

Glad to see I was wrong.
Old 04-18-2012 | 12:09 PM
  #37
vehicular's Avatar
Elite Member
iTrader: (3)

Joined: Feb 2008
Posts: 1,855
Total Cats: 47
From: Huntsville, AL
Default

1,2,3...,1,2,3... Wait a minute...
Old 04-19-2012 | 03:24 AM
  #38
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

Originally Posted by Stein
When I saw the thread title I thought I was in the politics section and it was an obummer re-election thread.

Glad to see I was wrong.
oooooooh thats harsh. nicely done

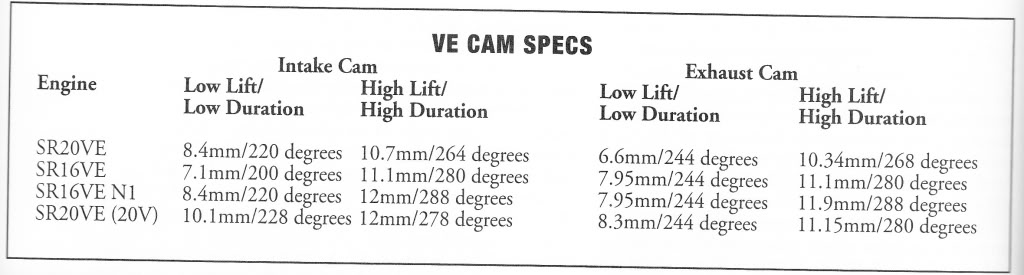

cams are 20v's from front drive nissan (primera iirc) which has a cut-n-paste of honda vtec. what kind of sick joke is it that the front drive commuters have all the best s h i t



Why bother?

A stock sr20det head flows 188.3 @ .300 lift. A stock VE head flows 329 @ .300. I'm hoping to get my hands on a newer version of the head (20v) which flows a little bit better than the 329 i think.
Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-vecamspecs.jpg

Last edited by jasonb; 04-19-2012 at 03:43 AM.
Old 06-17-2012 | 03:28 PM
  #39
jasonb's Avatar
Thread Starter
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

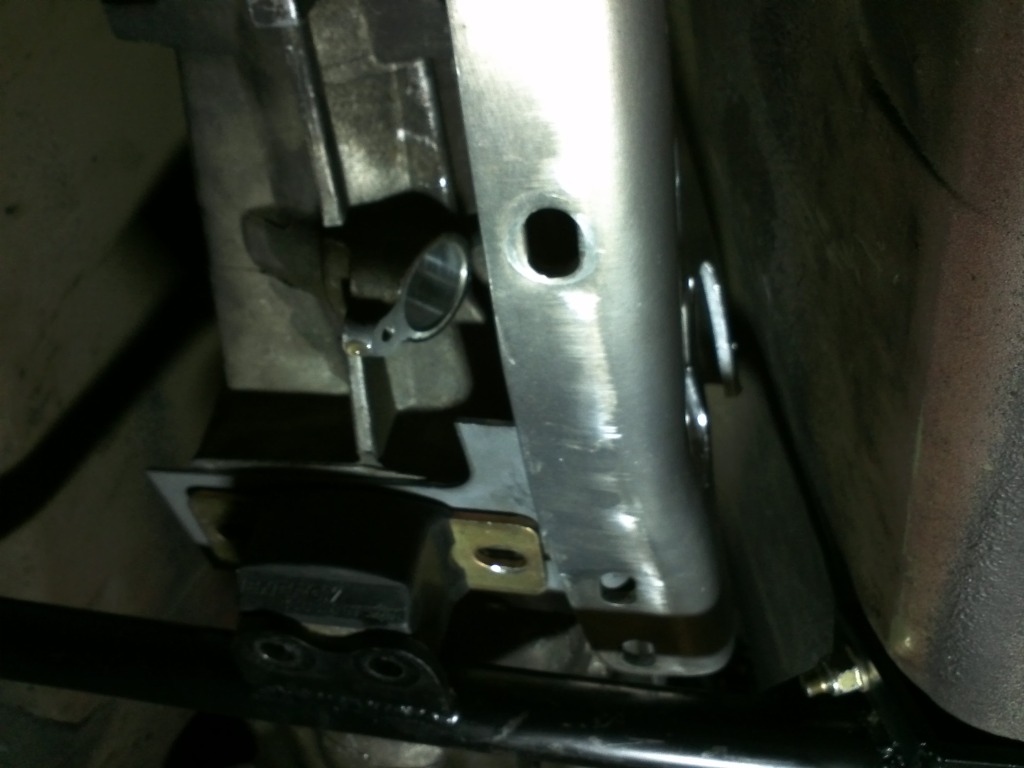

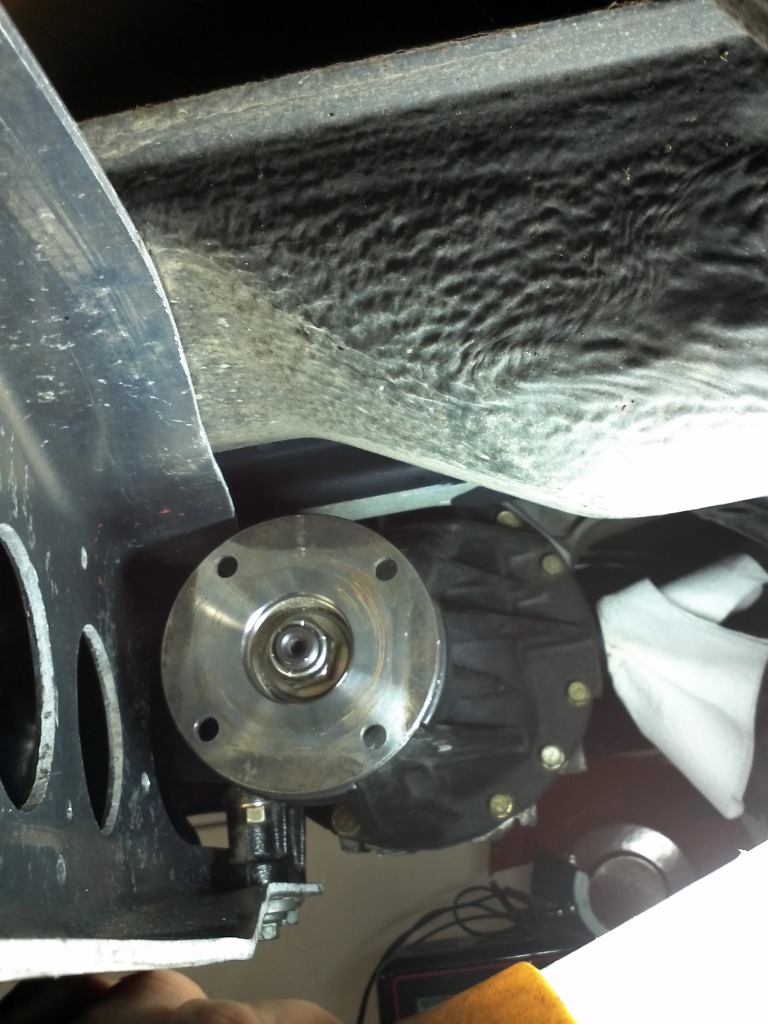

still dinking with the ppf stuff. got a design for the mount but i'm having trouble figuring out where the front end of the ppf should be. at the current position the ppf is hitting the gas tank. can yous help a brother out and measure your gas tank <-> ppf gap?



Attached Thumbnails fail baboon goin for redemption in '012 - will just end up failing again-img_20120617_111043.jpg   fail baboon goin for redemption in '012 - will just end up failing again-img_20120617_111130.jpg
Old 06-22-2012 | 02:26 PM
  #40
RavynX's Avatar
Junior Member
iTrader: (3)

Joined: Apr 2010
Posts: 410
Total Cats: 1
From: San Antonio, TX
Default

Now this looks like fun. Sub'ing for track vids when finished.
