Oh and goal is also happy fun track and autoxing hence the BBK and eventual XIDAs. And getting groceries...
#1284
Elite Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,682
Total Cats: 130
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Dang dude that sounds like a ton of meth.. ever heard of anyone blowing off all that meth/air mix and getting an explosion under the hood? Id think running a BOV dump tube out of the engine bay might be a good idea. I know nothing about meth but this is just me speculating.
I'm not sure if a BOV "dump tube" would be possible with the Tial design. Any recommendations for a killer BOV that I could weld a pipe onto?
#1286
2 Props,3 Dildos,& 1 Cat
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/smod.png)
iTrader: (8)
Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,338
Total Cats: 573
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
you want flow, not bling or noise.
Greddy Type R (not S, not RS, not anything else)
![](https://www.miataturbo.net/attachments/build-threads-57/21880-faelflora-breaks-his-promise-time-part-out-car-git-sawzall-bigbov.jpg?dateline=1311603775)
you can get 2" ID flanges somewhere I'm sure. It might also come with them, I forget. It comes with hose. I think Greddy sells a 42mm ID flange adapter. Don't settle for that 1.5" nonsense or smaller.
http://www.atpturbo.com/mm5/merchant...egory_Code=BOV
Greddy Type R (not S, not RS, not anything else)
![](https://www.miataturbo.net/attachments/build-threads-57/21880-faelflora-breaks-his-promise-time-part-out-car-git-sawzall-bigbov.jpg?dateline=1311603775)
you can get 2" ID flanges somewhere I'm sure. It might also come with them, I forget. It comes with hose. I think Greddy sells a 42mm ID flange adapter. Don't settle for that 1.5" nonsense or smaller.
http://www.atpturbo.com/mm5/merchant...egory_Code=BOV
#1287
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (9)
Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,922
Total Cats: 402
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
![](https://www.miataturbo.net/attachments/build-threads-57/21882-faelflora-breaks-his-promise-time-part-out-car-git-sawzall-qr2.jpg?dateline=1311606117)
From Tial's website:

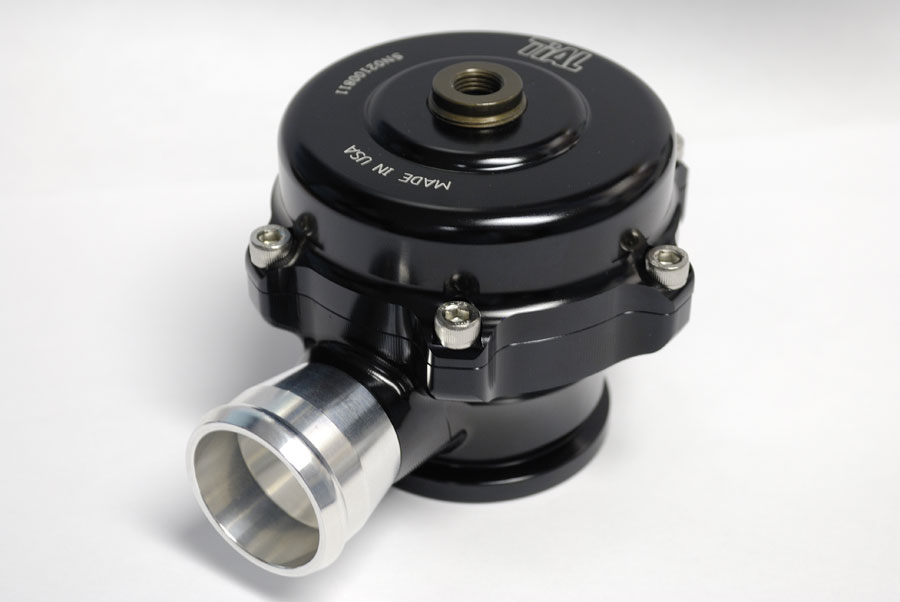

QR Blow Off Valve
A More Compact Recirculating BOV
Available now in silver and black, this Q based BOV comes in two different sizes, a 1.0" outlet common for most cars with a Bosch style bov, and a 1.34" outlet for Evo/DSM. Users can also switch this unit to a Q atmospheric bov by simply purchasing the bottom half of the Q BOV, all other parts are the same!
Spring pressures are the same for the QR and Q, so you will use the Q BOV spring pressure chart to make your selection.
Outlet port size must be specified at time of order.
A More Compact Recirculating BOV
Available now in silver and black, this Q based BOV comes in two different sizes, a 1.0" outlet common for most cars with a Bosch style bov, and a 1.34" outlet for Evo/DSM. Users can also switch this unit to a Q atmospheric bov by simply purchasing the bottom half of the Q BOV, all other parts are the same!
Spring pressures are the same for the QR and Q, so you will use the Q BOV spring pressure chart to make your selection.
Outlet port size must be specified at time of order.
![](https://www.miataturbo.net/attachments/build-threads-57/21883-faelflora-breaks-his-promise-time-part-out-car-git-sawzall-alphaq1.jpg?dateline=1311606117)

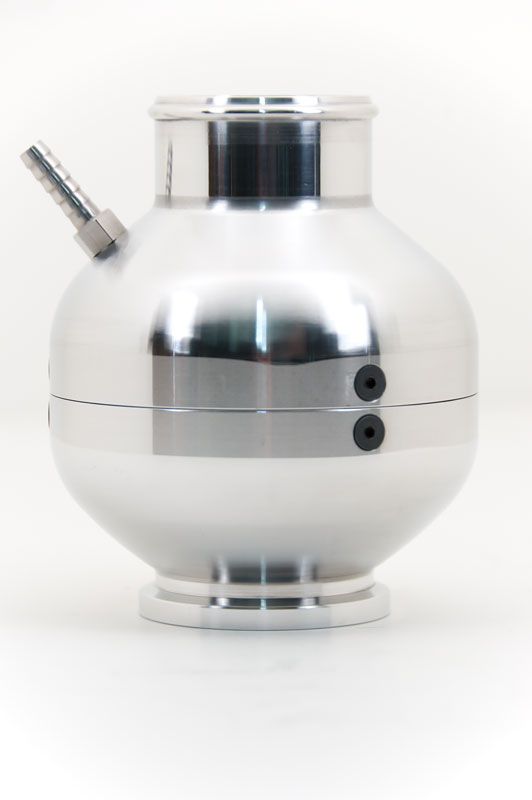

Alpha Q Recirculating Blow-Off-Valve
High Flow and a Happy MAF Sensor
New for 2008 is the first ever recirculating blow-off-valve offered by TiAL. This unique 50mm BOV flows 6% more than the current vent-to-atmosphere BOV we offer, bolts on to any standard TiAL 50mm flange (slip-fit beaded ends will also be available so you can run it in-line with couplers). It will be available in all current colors we offer. Check back for more information to be released.
High Flow and a Happy MAF Sensor
New for 2008 is the first ever recirculating blow-off-valve offered by TiAL. This unique 50mm BOV flows 6% more than the current vent-to-atmosphere BOV we offer, bolts on to any standard TiAL 50mm flange (slip-fit beaded ends will also be available so you can run it in-line with couplers). It will be available in all current colors we offer. Check back for more information to be released.
#1290
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Do you mean power or overall?
Regarding power, I'd like to see how much power this turbo can put down at 25psi. If 25psi doesn't put down over 500hp, something is wrong.
Plan to get there:
Borg S300SX3 66inducer/80exducer, .91 A/R turbine housing

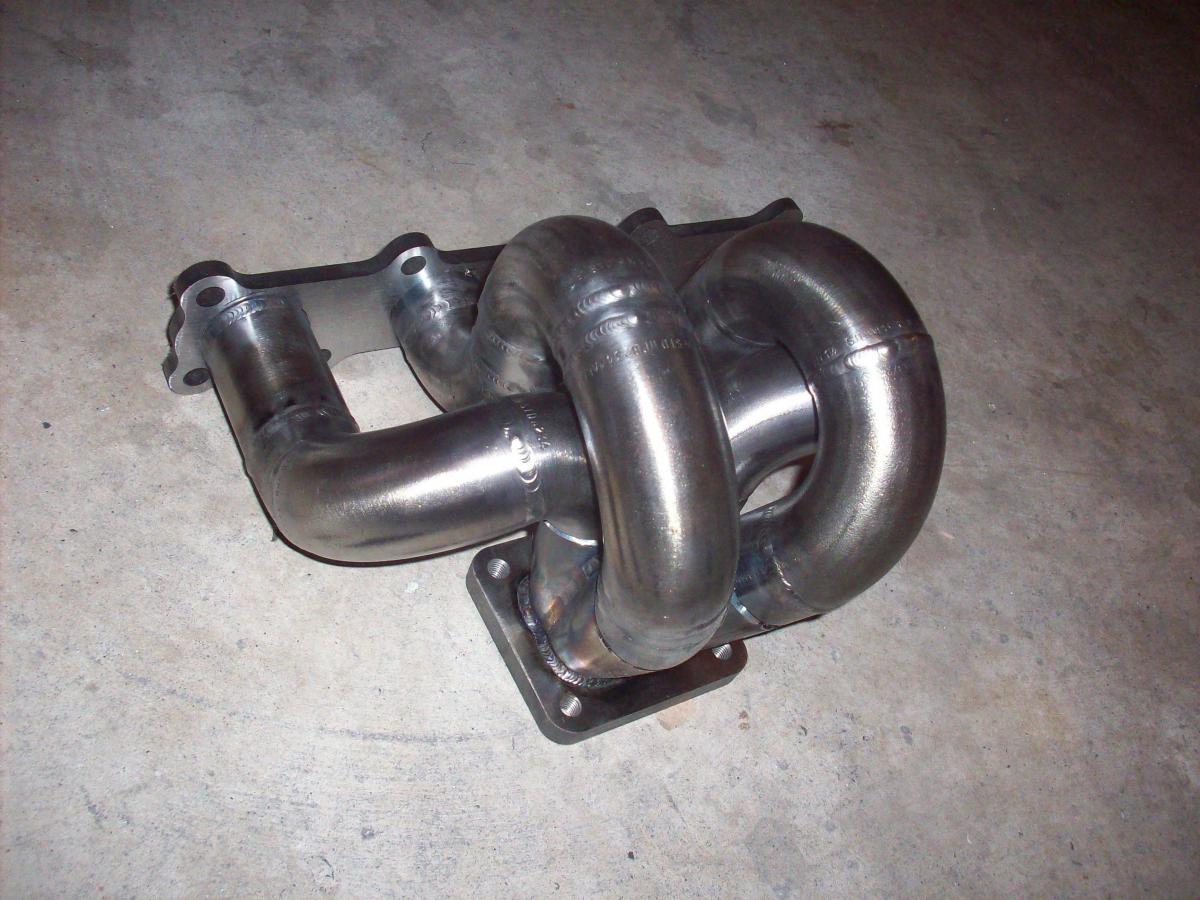

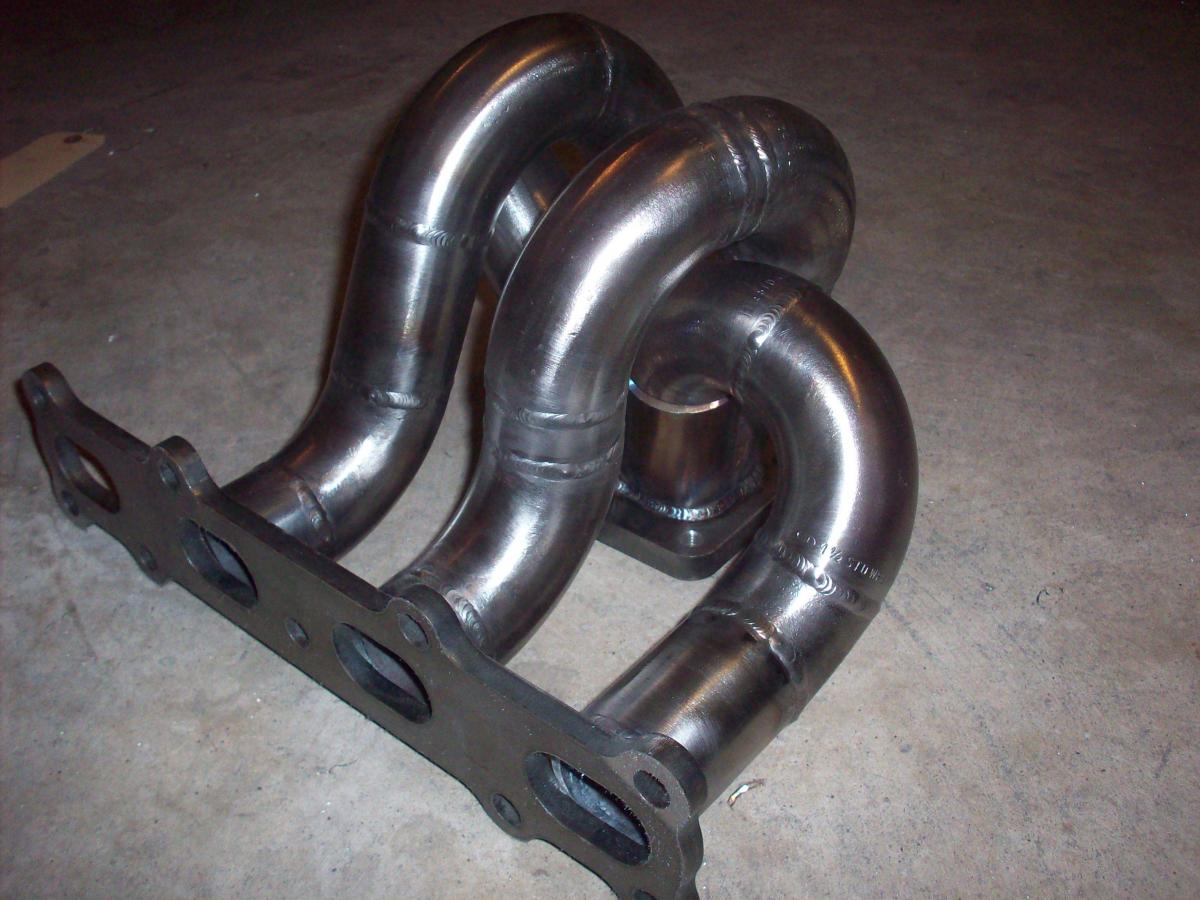

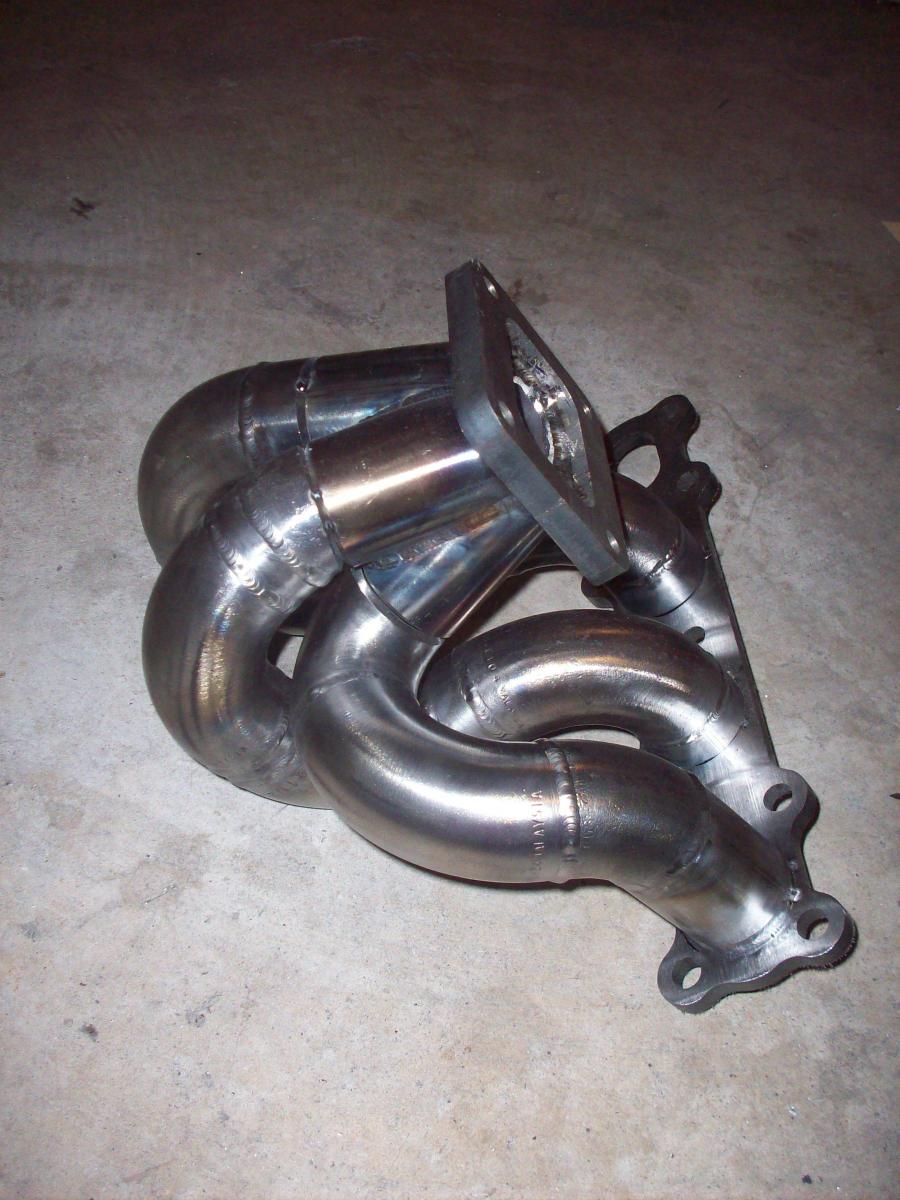

T4 ARTech ramhorn low mount
3.5 downpipe into 4" exhaust
Dual Bosch 044 fuel pumps
100% meth injection with six nozzles- 4 direct port, one post-IC, one pre-turbo
quick spool valve
biggest cams I can find for my VVT motor.
For now I'm going to keep the gutted intake, 2.5" IC piping, smallish begi "#3" IC.
Regarding power, I'd like to see how much power this turbo can put down at 25psi. If 25psi doesn't put down over 500hp, something is wrong.
Plan to get there:
Borg S300SX3 66inducer/80exducer, .91 A/R turbine housing
T4 ARTech ramhorn low mount
3.5 downpipe into 4" exhaust
Dual Bosch 044 fuel pumps
100% meth injection with six nozzles- 4 direct port, one post-IC, one pre-turbo
quick spool valve
biggest cams I can find for my VVT motor.
For now I'm going to keep the gutted intake, 2.5" IC piping, smallish begi "#3" IC.
#1297
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Looking great.
Talking to Fae earlier, I think we agreed this might be the largest turbo ever put on a miata. CEO barely squeezed his T04Z in there, but this will be a even bigger challenge.
EDIT: s366 turbine vs GT35 turbine
![](http://www.s2ki.com/s2000/gallery/page__module__images__section__img_ctrl__img__678549__file__med)
S366 vs. GT32
Talking to Fae earlier, I think we agreed this might be the largest turbo ever put on a miata. CEO barely squeezed his T04Z in there, but this will be a even bigger challenge.
EDIT: s366 turbine vs GT35 turbine
S366 vs. GT32
![](http://img.photobucket.com/albums/v240/theshodan/Borg-Warner/S366/DSC04415.jpg)
Last edited by viperormiata; 07-27-2011 at 01:19 PM.
#1299
Elite Member
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Oh, im not speaking the manifold down... if you arent running PS or AC, thats a completely acceptable place for it.
If it were my personal car, i would have top mounted it for the bling factor of that MASSIVE polished turbine housing...
If it were my personal car, i would have top mounted it for the bling factor of that MASSIVE polished turbine housing...
