Build Threads Building a motor? Post the progress here.

f20c engine conversion

Thread Tools

Search this Thread

Old 09-02-2010 | 10:51 PM
  #221
jasonb's Avatar
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

Originally Posted by hingstonwm
Since you are interested I will pull the cover and take a picture of my in tank setup.
muchas graz

Originally Posted by hingstonwm
As I said in an earlier post I am running a bosh 044 out of tank pump. I located the pump as close to the tank as possible in order to minimize the distance the pump needs to pull fuel. Since I am not running an in tank strainer, I mounted the filter between the pump and tank.
ah, i get it. i'd like to see your setup for the pickup too. i got fuel starvation once when i wasn't expecting it so i'd like to compare. maybe my pickup can be improved.

Originally Posted by hingstonwm
The tank access plate is covered in a zinc coating so make sure you sand it off. I used steel male AN fittings that are designed to be welded, 4 total, two on each side of the access cover. Check back in a few days for a posted photo, hope this helps.
when i mig plated stuff i usually just hold my breath but i wanted to try out the tig, so i'll take your advice and sand that stuff off. definitely helps, thanks for the detailed writeup. your fuel and turbo lines are dope!
Old 09-02-2010 | 11:13 PM
  #222
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

Originally Posted by baron340
Why didn't you just use bulkhead fittings? I'd also like to see the in tank shots. Mostly just to see how you did it, seeing as I'll probably never need a fuel system this robust.
Properly welded, there is no chance of a leak. Bulk head fittings are designed to allow a line to terminate on one side of a bulkhead/firewall then start again on the other side. Not really designed for leak proof design, even though there are some bulkhead fittings with seals.
Old 09-08-2010 | 03:52 AM
  #223
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

Here are a few pictures of the fuel rail, regulator, and a couple of shots of the in tank plumbing as promised.
Name:  P1010008-2.jpg
Views: 864
Size:  87.3 KB
Comparison shot of the new fuel rail compared to the stocker
Name:  P1010026-3.jpg
Views: 864
Size:  87.5 KB
Name:  P1010027-2.jpg
Views: 844
Size:  89.6 KB
Comparison of the diameter of the stock fuel pick up compared to the new pickup
Name:  P1010017-3.jpg
Views: 890
Size:  109.2 KB
Name:  P1010019-6.jpg
Views: 971
Size:  130.6 KB
Fuel rail fuel regulator on the engine.

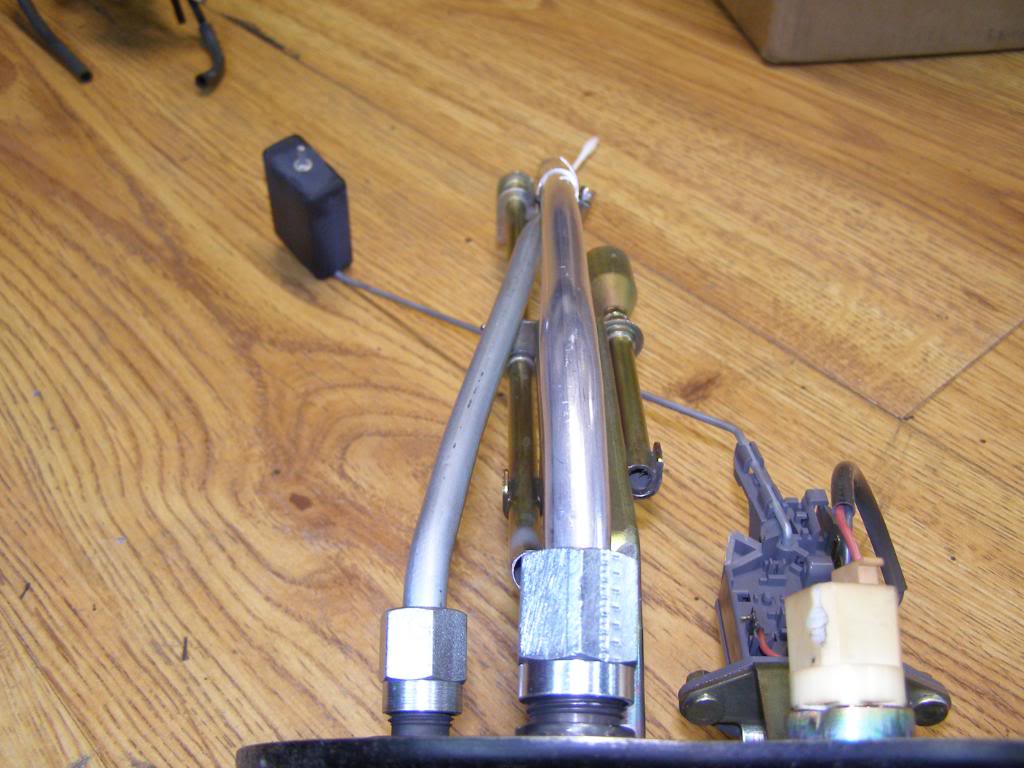

-6 return line and -8 pickup
Name:  P1010021-3.jpg
Views: 833
Size:  103.1 KB

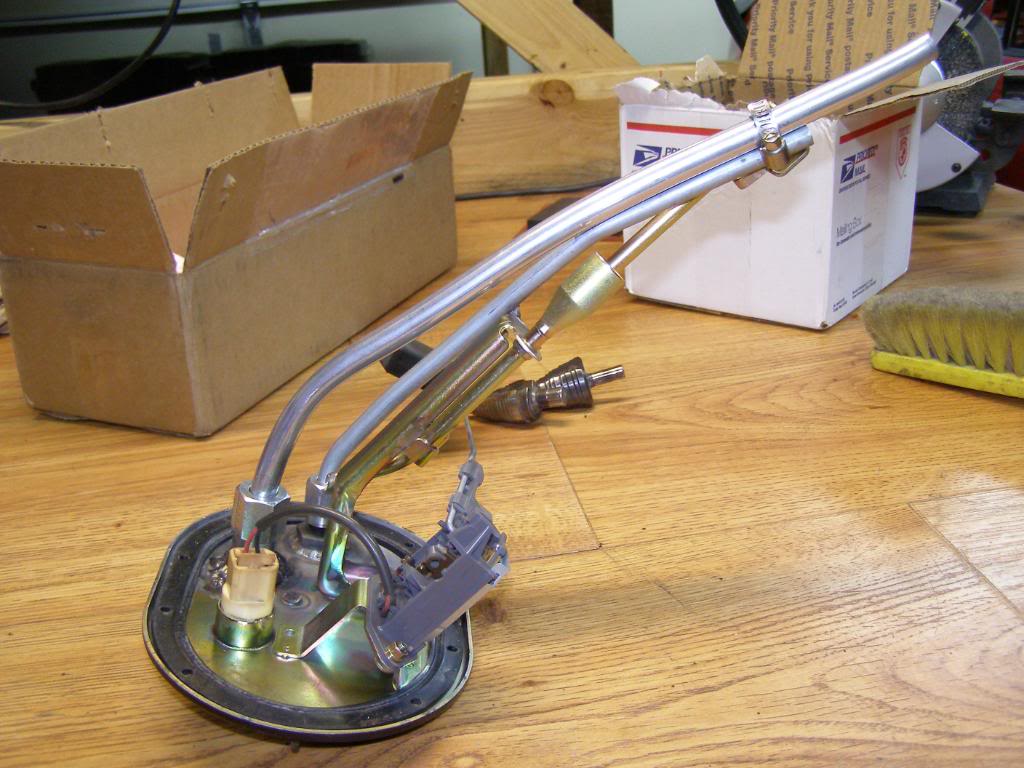

I cut the stock lines out of the fuel tank cover and welded up the holes then installed the -6 and -8 fittings and tubes
Name:  P1010022-5.jpg
Views: 835
Size:  118.5 KB

Last edited by hingstonwm; 09-11-2010 at 08:22 PM.
Old 09-10-2010 | 03:03 AM
  #224
18psi's Avatar
VladiTuned
iTrader: (76)

Joined: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

omg it just keeps getting better.
Old 09-10-2010 | 03:16 AM
  #225
kotomile's Avatar
Elite Member
iTrader: (24)

Joined: Oct 2006
Posts: 7,537
Total Cats: 42
From: Monterey, CA
Default

Can someone upload the pics here? Can't see photobucket. :(
Old 09-10-2010 | 04:27 AM
  #226
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

So I got a little more work done over the last few days. First off, let me say that I may have thought twice about going with AN lines had I realized what I was getting myself into. Hopefully, the end result will be worth all the effort.

Name:  P1010001-3.jpg
Views: 840
Size:  149.4 KB
Name:  P1010002-2.jpg
Views: 829
Size:  139.2 KB

Pics of the latest batch of fittings, the second shot includes -8 and -6 fuel line as well as -4 line for vacuum lines, turbo oil supply, small water lines ect.

Name:  P1010003-3.jpg
Views: 827
Size:  72.6 KB

I know there are a lot of different schools of thought on cutting braided line. My solution is an abrasive blade on a miter saw. I set up a fence that moves the lines out further, to ensure clean cuts.

Name:  P1010004-4.jpg
Views: 826
Size:  50.6 KB

A picture showing the quality of the cut from my set up

Name:  P1010005-4.jpg
Views: 851
Size:  133.8 KB

I had to get a little creative getting the supply line through the bulkhead. The fuel pump was mounted a little to low to go straight to a bulkhead
fitting, and I was a bit to tight on space as well. But I think I came up with a pretty decent solution, at least I am happy with it.

Name:  P1010006-2.jpg
Views: 891
Size:  147.6 KB
Name:  P1010007-2.jpg
Views: 888
Size:  145.2 KB

Finally a couple of pictures of the engine, with the supply line, the line from the manifold to the regulator, a small water line from the intake manifold to the throttle body. Some of you may also notice that I tapped the the manifold for a vacuum source behind the throttle body for the blow off valve,you can see the fitting on top of the manifold next to the MAP sensor. I also changed from a 90 degree fitting for the supply line to the fuel rail to a 180 degree. I didn't like the routing I was going to have to use for the 90.

I forgot to take a picture of the oil supply line for the turbo, but I guess if you have seen one supply line you have seen them all.

Last edited by hingstonwm; 09-23-2010 at 12:12 PM.
Old 09-10-2010 | 04:31 AM
  #227
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

I am trying to come up with an idea for a catch tank for oil and coolant overflow, any ideas would be welcome.
Old 09-10-2010 | 01:59 PM
  #228
viperormiata's Avatar
Elite Member
iTrader: (24)

Joined: Aug 2008
Posts: 6,110
Total Cats: 283
From: Key West
Default

Beautiful build.

May I ask where you are getting the black braided lines?
Old 09-10-2010 | 04:45 PM
  #229
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

^^^Thank You.

I am getting the black braided line from a local speed shop. The black line is available through both summit racing and jegs. I just wanted something other than braided steel, though I did use braided steel for both supply and return lines in the fuel system. I felt the braided steel offered more protection while the lines were under the car.

I also have quite a bit of the braided steel left over so I may use it for the oil cooler and oil relocate that I am planning. I haven't thought that far ahead. I do know that I will be using the black for my breather lines though.
Old 09-14-2010 | 04:49 AM
  #230
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

More goodies,
Name:  P1010002-3.jpg
Views: 866
Size:  79.9 KB
Injector Dynamics 1000 cc injectors


Omni 4 Bar MAP sensor

Name:  P1010008-3.jpg
Views: 868
Size:  121.0 KB
A comparison shot. Stock 1.6 miata, Injector Dynamics, Stock f20c
Old 09-20-2010 | 03:19 AM
  #231
jasonb's Avatar
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

thanks for the detailed fuel pickup pics as well as the stainless fuel line pics. i just suddenly got alot more interested in e85 when i discovered the chevron station near where i store my trailer has it now (montague ave, san jose CA). as i understand it, ethanol is hygroscopic, and hence is hard on fuel lines. is this why you used stainless? is it required?


heres kind of a neat turbo catch can using a scavenge pump so the turbo can be mounted low, but i would guess one of these would be easier http://www.optionimports.com/items.asp?Cc=oil_catch_can

Name:  img1230490475762.jpg
Views: 1193
Size:  37.7 KB

offtopic, but i thought this was trick, tilton hydraulic clutch without the lever:

Name:  img1240732388962.jpg
Views: 906
Size:  272.3 KB

ref: http://forums.bimmerforums.com/forum....php?t=1272563
Old 09-20-2010 | 12:36 PM
  #232
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

I went with the stainless to offer a little more protection to the lines while they are under the car. I could have gone to hard line then back to braided line but the cost savings would have been minimal and more of a pain in the *** to run. As far as being harder on the rubber, I don't have comment on that. I will have to do a little research, and see what is being written. I like the forkless throwout setup.
Old 09-23-2010 | 05:43 AM
  #233
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

Here is another little update. I am getting close to start up, but noted a couple of items that needed taking care of. I noticed that several of the vband clamps did not seat completely after pulling everything apart and checking level I found several flanges were slightly warped. They are now getting resurfaced flat.

The vband housing at the header to turbine housing is not fitting properly either. The header vband flange has a small ring on it that fits inside a recess in the turbine flange. The problem is the recess is just about 1 mm to small in circumference, which of course means that the joint is going to leak. I will take a dremel tool with a drum sander on it, and open up the recess just enough for proper fit.

The ring
Name:  P1010020-7.jpg
Views: 834
Size:  90.9 KB
The recess
Name:  P1010021-4.jpg
Views: 872
Size:  143.3 KB
The poor fit and potential leak.

I installed oil pressure, water temp, and boost gauges
Name:  P1010011.jpg
Views: 843
Size:  116.7 KB
Name:  P1010012.jpg
Views: 844
Size:  125.3 KB
I also plumbed the blow off valve and waste gate.
Name:  P1010014-1.jpg
Views: 859
Size:  150.7 KB
Name:  P1010015-3.jpg
Views: 840
Size:  98.9 KB
Name:  P1010016-2.jpg
Views: 840
Size:  126.4 KB
Finally, here is a pic of the fitting coming off the block for the turbo oil supply, and the supply to the oil pressure gauge

Last edited by hingstonwm; 09-23-2010 at 12:08 PM.
Old 09-23-2010 | 11:09 AM
  #234
leatherface24's Avatar
Elite Member
iTrader: (10)

Joined: Dec 2006
Posts: 4,064
Total Cats: 10
From: Pembroke Pines
Default

This is all coming together really nice! I wanna put an S2k dash in my car :(
Old 09-23-2010 | 12:05 PM
  #235
hingstonwm's Avatar
Thread Starter
Senior Member
iTrader: (2)

Joined: Jan 2010
Posts: 904
Total Cats: 14
From: Denver
Default

I bet you could get it to work. You have electronic signal for the spedo, fuel level was plug and play in my conversion. The low fuel warning light, would require you to isolate the right pin from the miata ecu, same with the tach, and water temp. But I bet a motivated guy could get it to work pretty easily.
Old 09-23-2010 | 12:54 PM
  #236
leatherface24's Avatar
Elite Member
iTrader: (10)

Joined: Dec 2006
Posts: 4,064
Total Cats: 10
From: Pembroke Pines
Default

Hhhhmmmmmmmmm
Old 09-23-2010 | 02:12 PM
  #237
jasonb's Avatar
Junior Member

Joined: Mar 2010
Posts: 413
Total Cats: 2
From: onion city,ca
Default

Originally Posted by hingstonwm
The problem is the recess is just about 1 mm to small in circumference, which of course means that the joint is going to leak. I will take a dremel tool with a drum sander on it, and open up the recess just enough for proper fit.
this doesn't sound right - they're machined surfaces. i'd get the lip side good and cold and see if it slips on before removing metal.
Old 09-23-2010 | 02:24 PM
  #238
Splitime's Avatar
Miotta FTW!
iTrader: (24)

Joined: Jun 2006
Posts: 4,290
Total Cats: 31
From: Chicagoland, IL
Default

Originally Posted by jasonb
this doesn't sound right - they're machined surfaces. i'd get the lip side good and cold and see if it slips on before removing metal.
My friend had the same thing happen with some older OBX flanged V-bands. He dremeled off a hair and they worked fine after that.

When I did the OBX flanged Vband on mine, I made sure to have it all clamped together through All the welding. It fits perfectly... of course they might have enlarged the tolerances since my friend used them last.
Old 09-23-2010 | 02:31 PM
  #239
18psi's Avatar
VladiTuned
iTrader: (76)

Joined: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

Oh boy I cannot wait for videos of this thing.

High revving/flowing engine + very well sorted big turbo setup + light car =
Old 09-23-2010 | 02:51 PM
  #240
shlammed's Avatar
Elite Member
iTrader: (8)

Joined: Dec 2008
Posts: 2,910
Total Cats: 51
From: Kingston, Ontario
Default

My Tial didnt have this issue.... strange.

edit... do you have a low pressure 'pusher' pump, or just the external with the new feed in the tank?

Last edited by shlammed; 09-23-2010 at 03:05 PM.
