Aidan's loose oily bunghole actually runs a track lap
#902
#904
Supporting Vendor
![](/mt2011/images_td/ranks/vendor.png)
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (1)
Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,968
Total Cats: 1,014
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Oooo... Fun times.
Good luck at the dyno tomorrow, I look forward to hearing about it after. LMK when you're heading my way, I'll probably be ready for a lunch break by the time you get here.
Good luck at the dyno tomorrow, I look forward to hearing about it after. LMK when you're heading my way, I'll probably be ready for a lunch break by the time you get here.
#913
SADFab Destructive Testing Engineer
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/moderator.png)
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So far seems like just more dents, bumper has more paint chipped off. And I'm missing my fog lights and air ducting up front. Luckily I had pulled off my undertray to install the oil cooler so that is saved. I need to take a rubber mallet to the fenders though.
#915
Cpt. Slow
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (25)
Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,326
Total Cats: 1,181
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

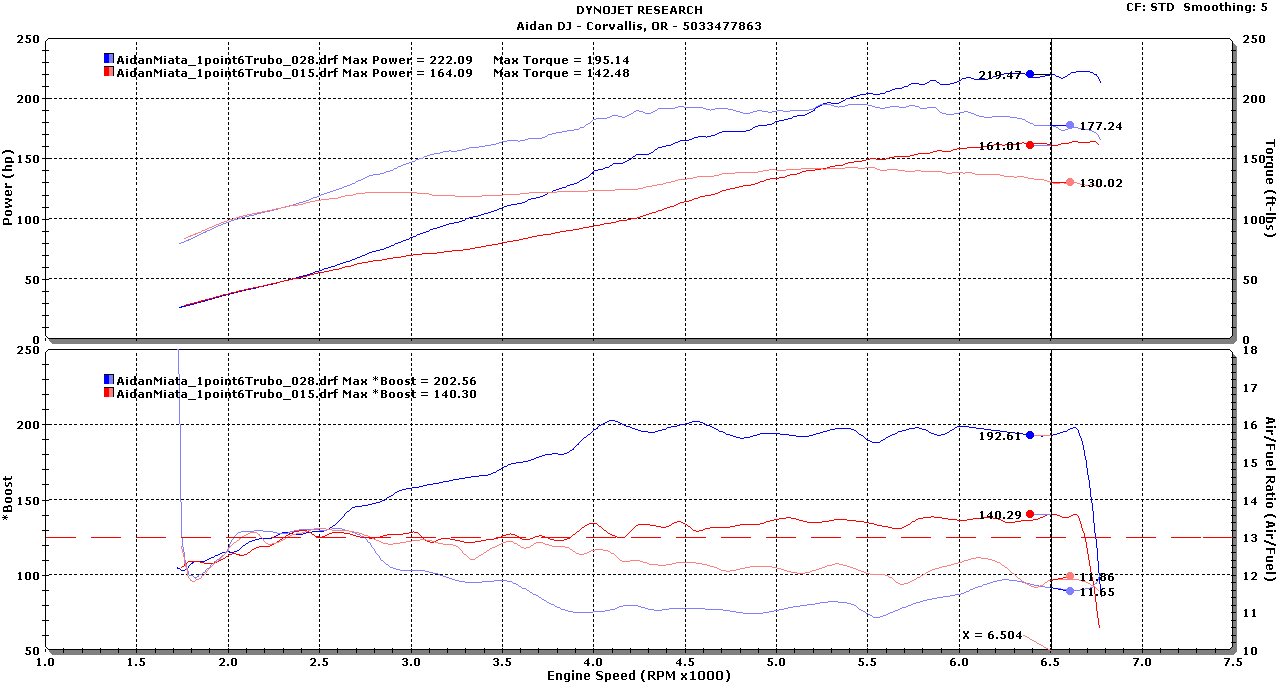

Laz's 1.6 continues to impress me. With it's turbo, it had more power and torque than a recently tuned N/A VVT starting at 2500rpm. And that's the goal really, turbo a 1.6 until it's faster than a 1.8.
Granted, at 1700rpms said VVT had nearly 30 more ft/lbs and 10 more hp, but still.
Granted, at 1700rpms said VVT had nearly 30 more ft/lbs and 10 more hp, but still.
#917
SADFab Destructive Testing Engineer
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/moderator.png)
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So now its time for closed loop EBC. My plan for this is to look over all the dyno plots and figure out what boost where makes what power. Decide what I want my power/boost curve to look like and then make my boost target table. To actually hit that target table though I am using the beta firmware which has I bias duty table. To fill this I look at all the dyno logs and determine what boost duty cycle at what RPM gives me what boost. I use these numbers to populate the boost duty table. After that I will probably bump it down a couple percentage to save me from overboost on cold mornings/nights and the tune the PID loop.

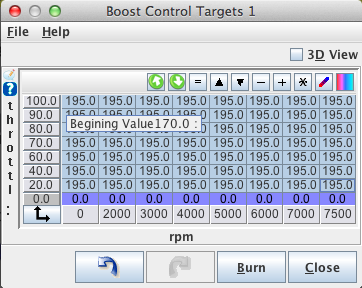

Target table:
Looking at dyno plots, I'm pretty happy using 195kpa all the way across. That keeps me within half a psi of my max power but gives me a little bit of wiggle room.
![](https://www.miataturbo.net/attachments/build-threads-57/139163-aidans-loose-oily-bunghole-actually-runs-track-lap-ofvz4bf.png?dateline=1430755895)
The reason I set them all to 195 is because my TPS sensor is wonky. If I had a perfect TPS sensor then I would ramp up boost as TPS increased.

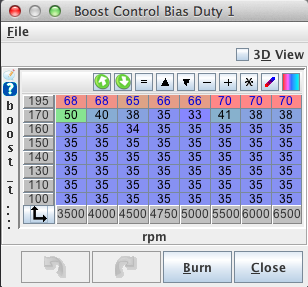

Bias Duty Table:
![](https://www.miataturbo.net/attachments/build-threads-57/139164-aidans-loose-oily-bunghole-actually-runs-track-lap-mvdspfp.png?dateline=1430755895)
Compared logs and found what duty cycle gives me 195 where ever I could.
Another thing the dyno let me do is use the log to find the right settings in virtual dyno. I can match my log to the dyno output and then use that to see how these changes affect things.
Target table:
Looking at dyno plots, I'm pretty happy using 195kpa all the way across. That keeps me within half a psi of my max power but gives me a little bit of wiggle room.
![](https://www.miataturbo.net/attachments/build-threads-57/139163-aidans-loose-oily-bunghole-actually-runs-track-lap-ofvz4bf.png?dateline=1430755895)
The reason I set them all to 195 is because my TPS sensor is wonky. If I had a perfect TPS sensor then I would ramp up boost as TPS increased.
Bias Duty Table:
![](https://www.miataturbo.net/attachments/build-threads-57/139164-aidans-loose-oily-bunghole-actually-runs-track-lap-mvdspfp.png?dateline=1430755895)
Compared logs and found what duty cycle gives me 195 where ever I could.
Another thing the dyno let me do is use the log to find the right settings in virtual dyno. I can match my log to the dyno output and then use that to see how these changes affect things.
