Tossed some sphericals in Mobius's rear uprights.
![Name: fgzVlDL.jpg
Views: 13
Size: 213.4 KB](https://www.miataturbo.net/attachments/build-threads-57/235850d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-fgzvldl.jpg)

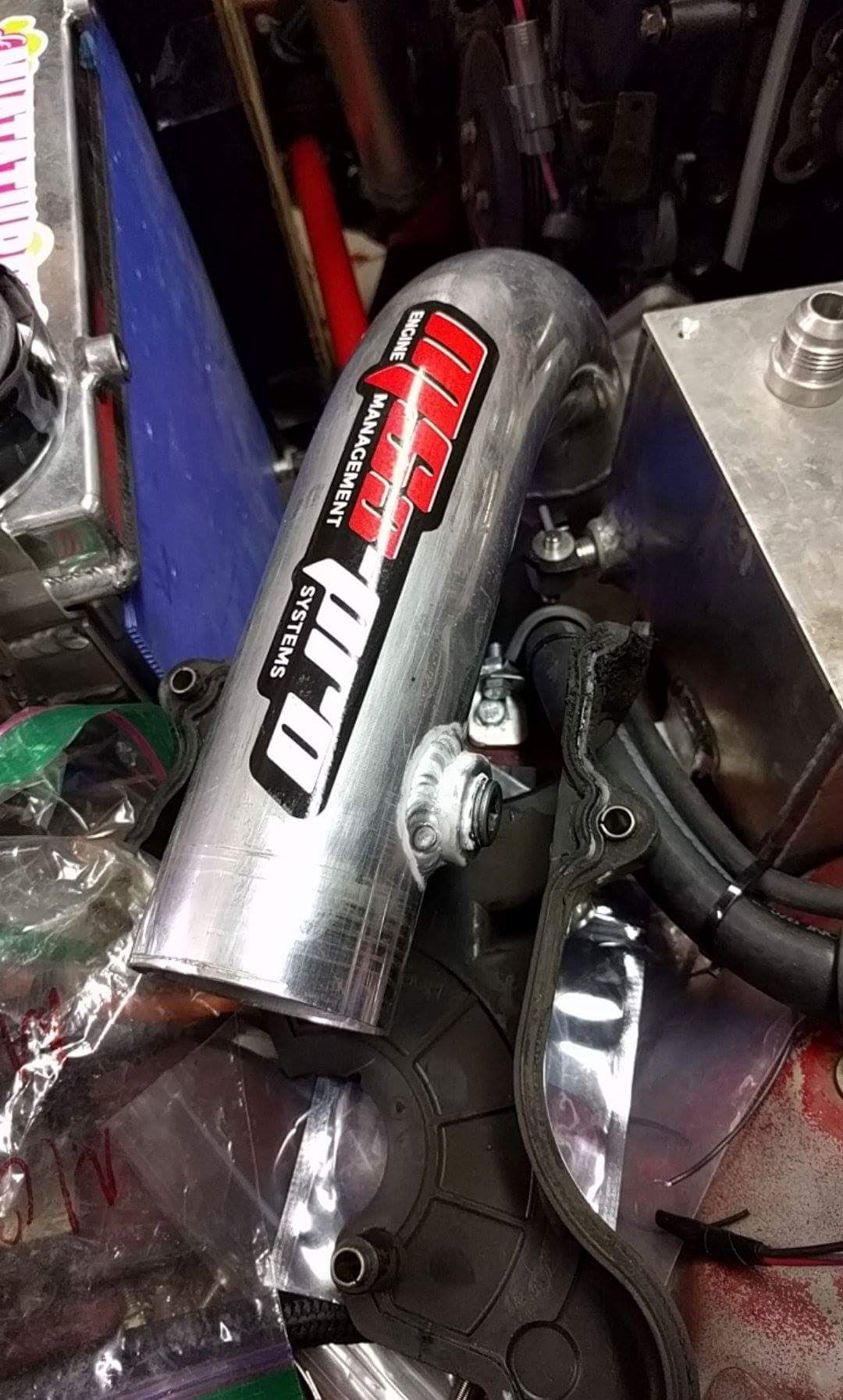

Added another temp bung...I'm running out of things to do. But at least now I have exterior temperature?
![Name: KamKZPs.jpg
Views: 12
Size: 260.2 KB](https://www.miataturbo.net/attachments/build-threads-57/235851d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-kamkzps.jpg)

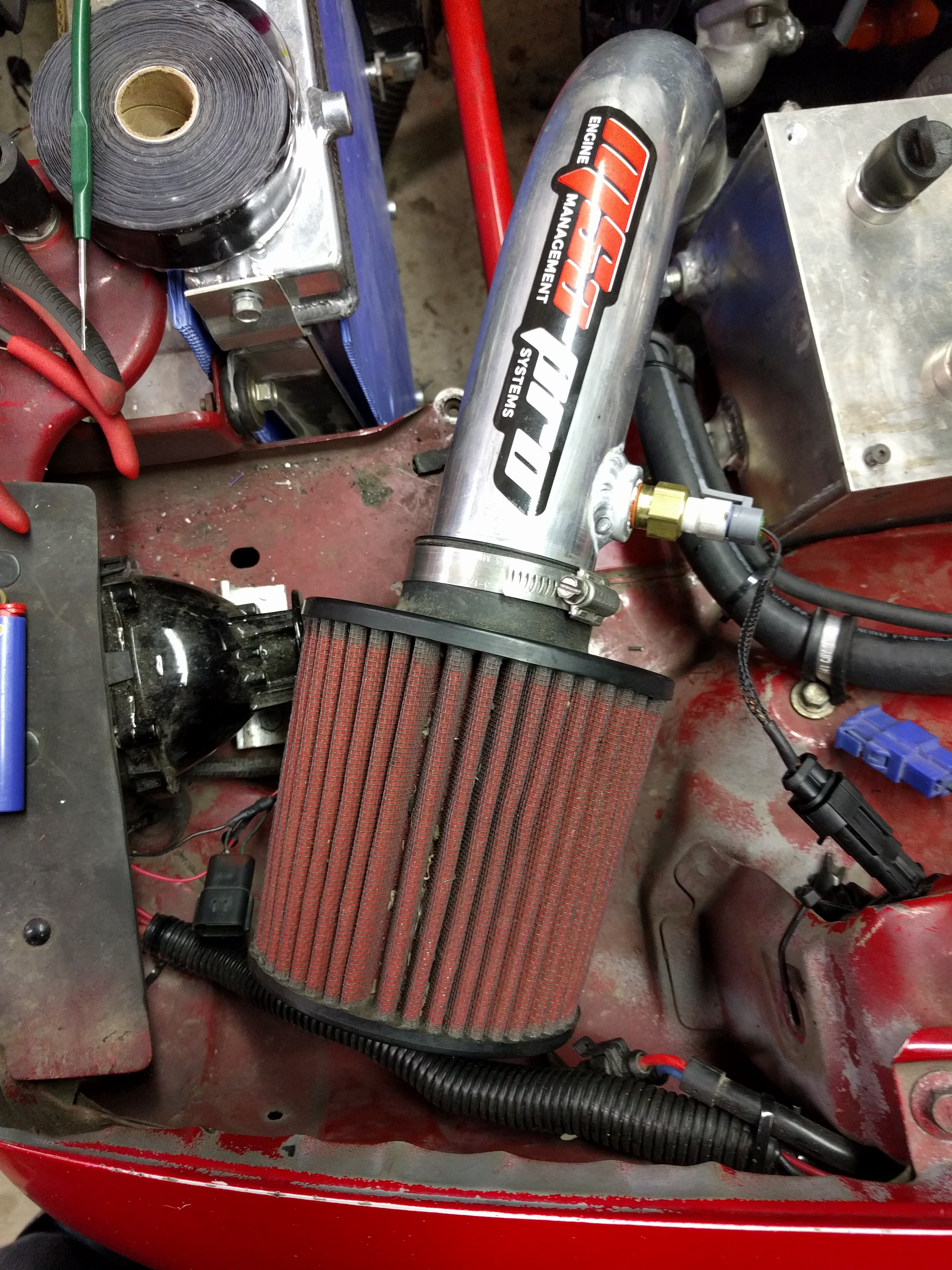

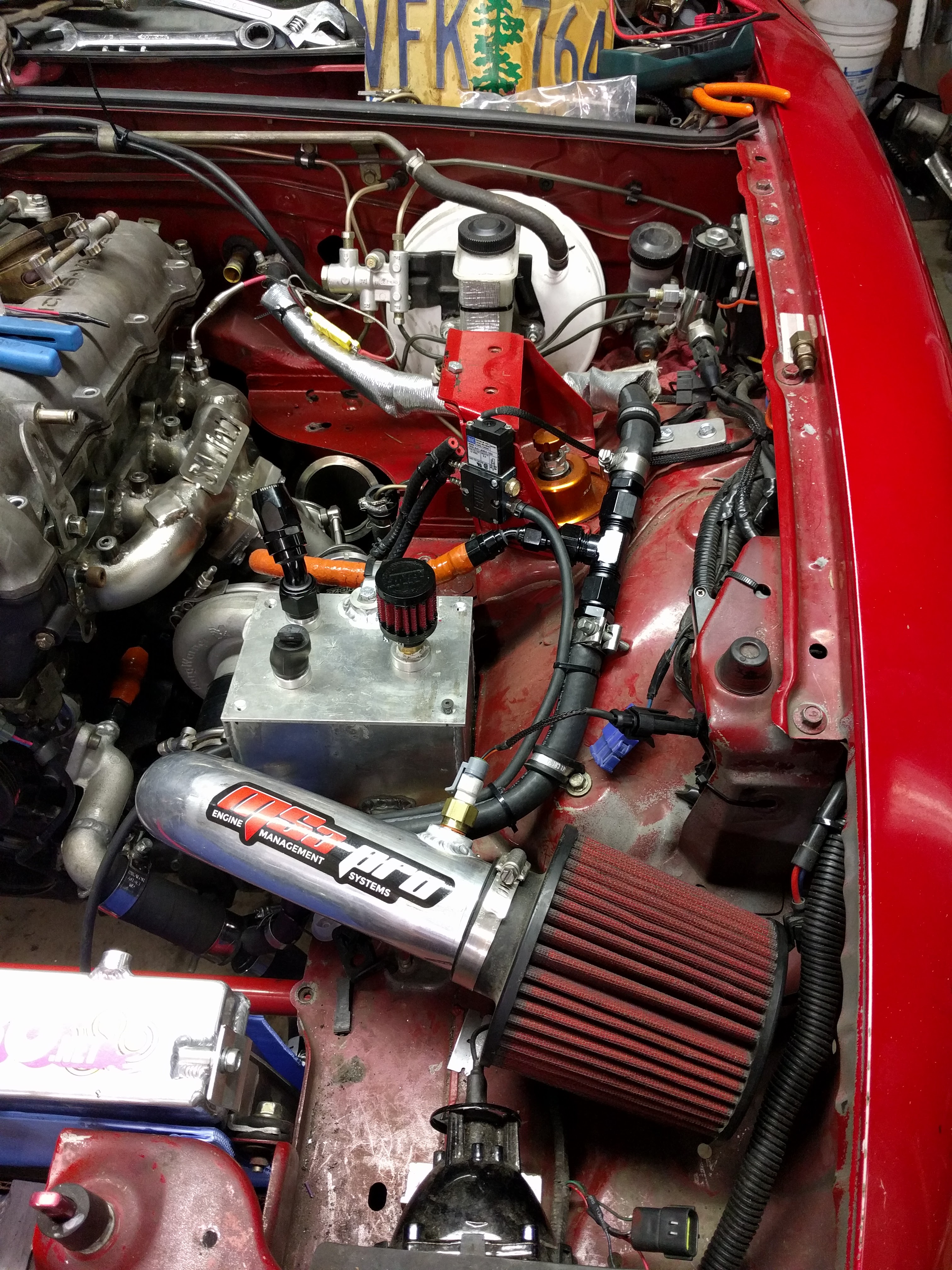

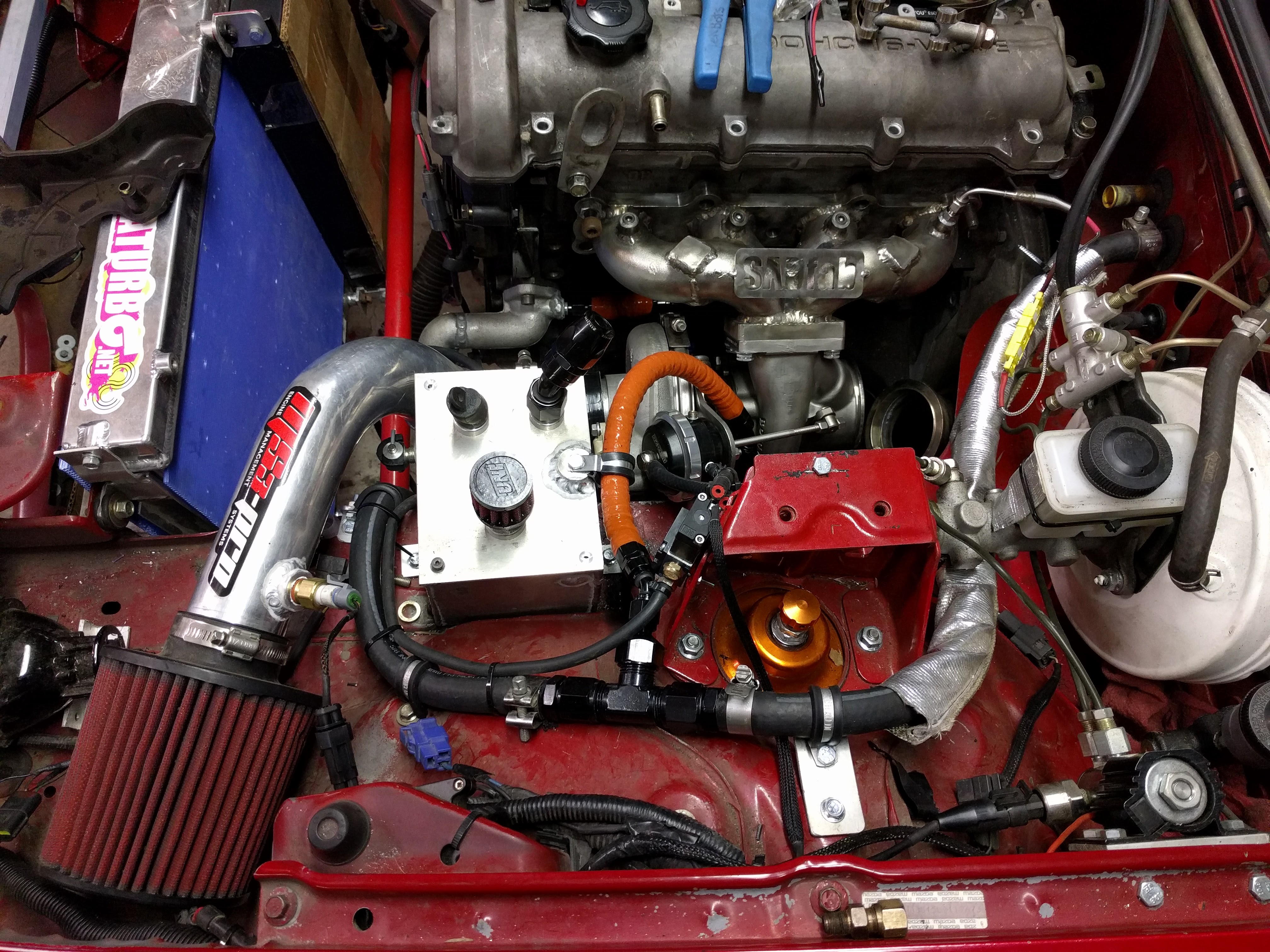

And here is the completed hotside. Everything is done here except the valve cover breather and the oil feed line.
![Name: 93z8Fd6.jpg
Views: 13
Size: 2.11 MB](https://www.miataturbo.net/attachments/build-threads-57/235852d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-93z8fd6.jpg)
![Name: Eu3KBSc.jpg
Views: 13
Size: 2.39 MB](https://www.miataturbo.net/attachments/build-threads-57/235853d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-eu3kbsc.jpg)
![Name: fgzVlDL.jpg
Views: 13
Size: 213.4 KB](https://www.miataturbo.net/attachments/build-threads-57/235850d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-fgzvldl.jpg)
Added another temp bung...I'm running out of things to do. But at least now I have exterior temperature?
![Name: KamKZPs.jpg
Views: 12
Size: 260.2 KB](https://www.miataturbo.net/attachments/build-threads-57/235851d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-kamkzps.jpg)
And here is the completed hotside. Everything is done here except the valve cover breather and the oil feed line.
![Name: 93z8Fd6.jpg
Views: 13
Size: 2.11 MB](https://www.miataturbo.net/attachments/build-threads-57/235852d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-93z8fd6.jpg)
![Name: Eu3KBSc.jpg
Views: 13
Size: 2.39 MB](https://www.miataturbo.net/attachments/build-threads-57/235853d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-eu3kbsc.jpg)
![Name: rAhWvQH.jpg
Views: 14
Size: 2.25 MB](https://www.miataturbo.net/attachments/build-threads-57/235854d1683054438-aidans-loose-oily-bunghole-actually-runs-track-lap-rahwvqh.jpg)
#8877
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
DTM restrictor is 2x28mm -- total area of 1230 mm^2. That gives them around 460 hp. If you run the numbers on various other series, it's around 1 hp per 3 mm^2.
A 2.5" inlet is 3165 mm^2, or about 2.5x the size of the DTM one. Since that's good for something like a thousand horsepower, I think it's safe to say that nobody has ever built a Miata engine that would stretch the power limits of that inlet.
--Ian
A 2.5" inlet is 3165 mm^2, or about 2.5x the size of the DTM one. Since that's good for something like a thousand horsepower, I think it's safe to say that nobody has ever built a Miata engine that would stretch the power limits of that inlet.
--Ian
#8879
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
AEM dryflow is the best filter on the market. 3" is probably the minimum you want to run on that 6758. I'm going to attempt to fit 3.5 on my setup.
Remember restriction from diameter is over the length. And its not the power supporting capacity you're after its reducing pressure drop at the compressor inlet.
Remember restriction from diameter is over the length. And its not the power supporting capacity you're after its reducing pressure drop at the compressor inlet.
#8880
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
DTM restrictor is 2x28mm -- total area of 1230 mm^2. That gives them around 460 hp. If you run the numbers on various other series, it's around 1 hp per 3 mm^2.
A 2.5" inlet is 3165 mm^2, or about 2.5x the size of the DTM one. Since that's good for something like a thousand horsepower, I think it's safe to say that nobody has ever built a Miata engine that would stretch the power limits of that inlet.
--Ian
A 2.5" inlet is 3165 mm^2, or about 2.5x the size of the DTM one. Since that's good for something like a thousand horsepower, I think it's safe to say that nobody has ever built a Miata engine that would stretch the power limits of that inlet.
--Ian
![](https://cimg8.ibsrv.net/gimg/www.miataturbo.net-vbulletin/320x240/w1mxr_dc35b040eb60d4e8fe8d3cece24a4e193225e52b.gif)
AEM dryflow is the best filter on the market. 3" is probably the minimum you want to run on that 6758. I'm going to attempt to fit 3.5 on my setup.
Remember restriction from diameter is over the length. And its not the power supporting capacity you're after its reducing pressure drop at the compressor inlet.
Remember restriction from diameter is over the length. And its not the power supporting capacity you're after its reducing pressure drop at the compressor inlet.
