1990 Eunos Build
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Well finally getting around to writing up something of a Build thread for this car.
I'm missing a lot of stuff but this is just so I can keep track.
This is 1.6 that i had intentions on autox'ing but im not sure about its future anymore
Mods to date:
Suspension/Wheels/brakes

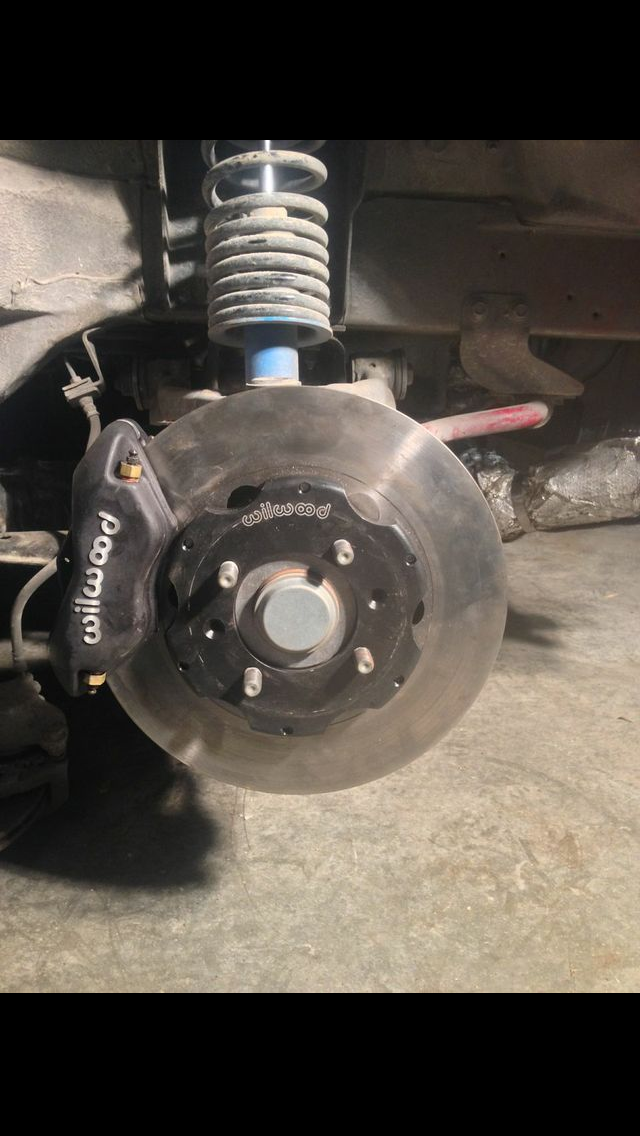

wilwood 4 piston up front and hawk pads on the back
RS*R Race springs (can't remember the spring rate, but they're stiff as ****)
Tokico blue dampers
Eibach 24mm fron sway bar (solid)
Suspension Techniques rear sway (solid)
Tanabe Strut bar (front)
Enkei RPF1 15x7 / work cr01 15x9/9.5
Wheel Spacers (can't remember what size or who made them)
Body/Interior
AK Fast back, Wide body, Shorty console, hood
rennenmetal Spec Miata hardtop brackets
Momo Hub, Random Crappy JDM Wheel
Engine and stuff.
GReddy turbo kit with vibrant front-mount intercooler and custom plumbing
HKS SSQV bov

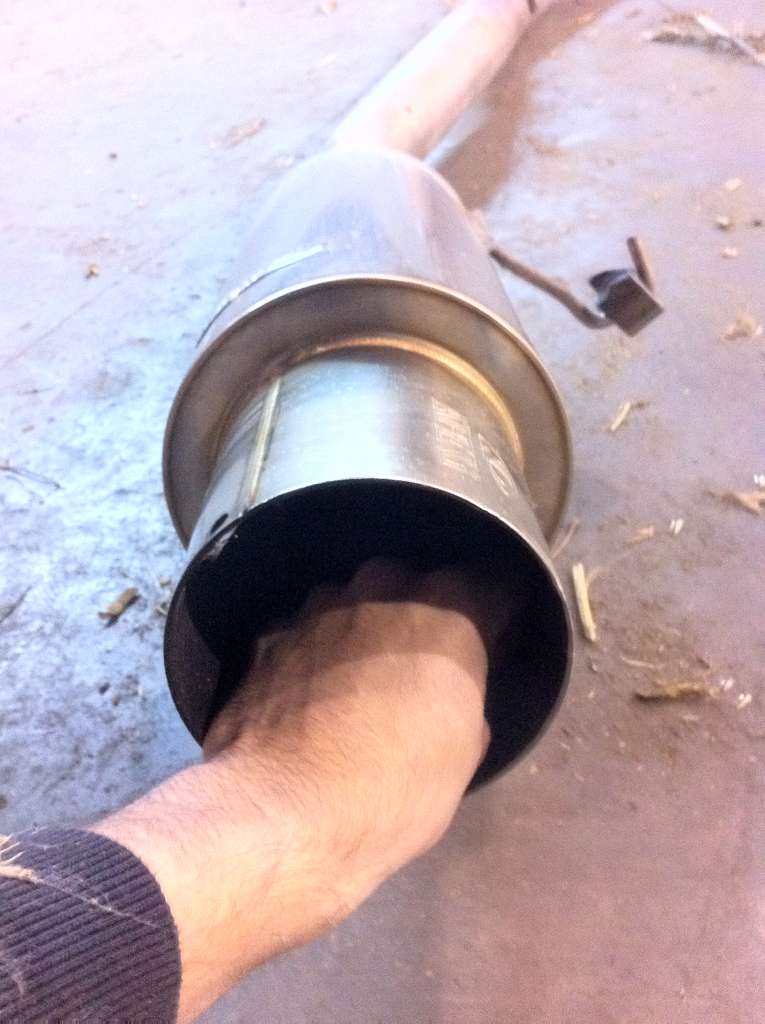

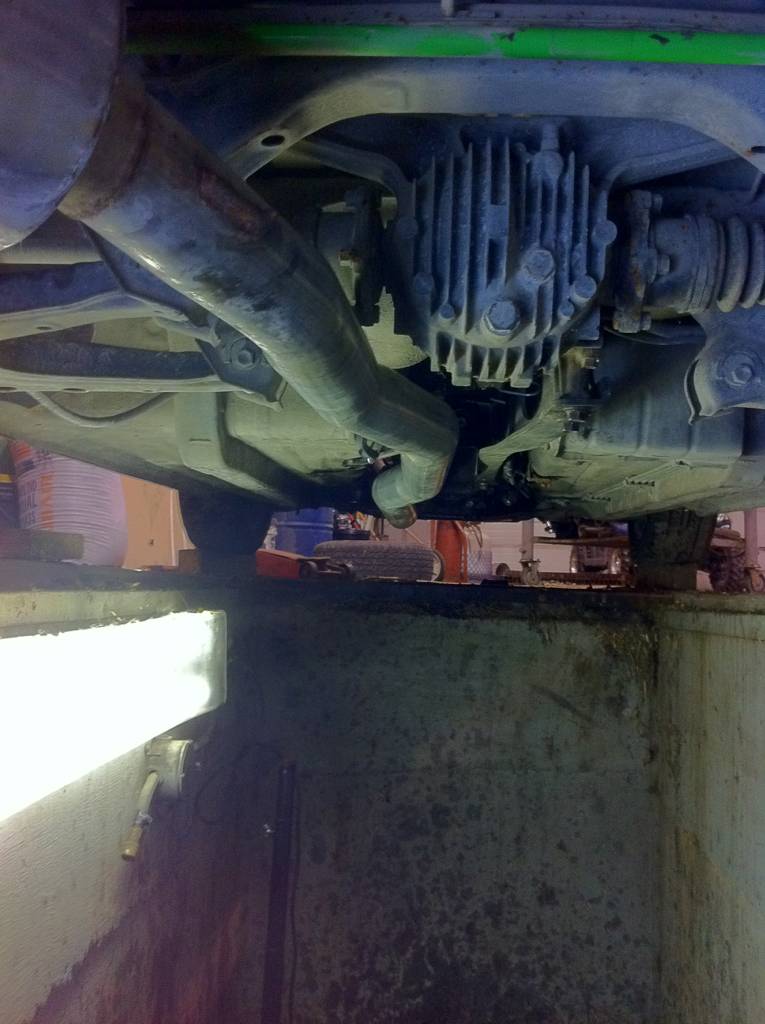

DIY 3" exhaust & downpipe with A'PEXi N1 turbo muffler
CenterForce dual friction clutch kit
Fidanza Flywheel

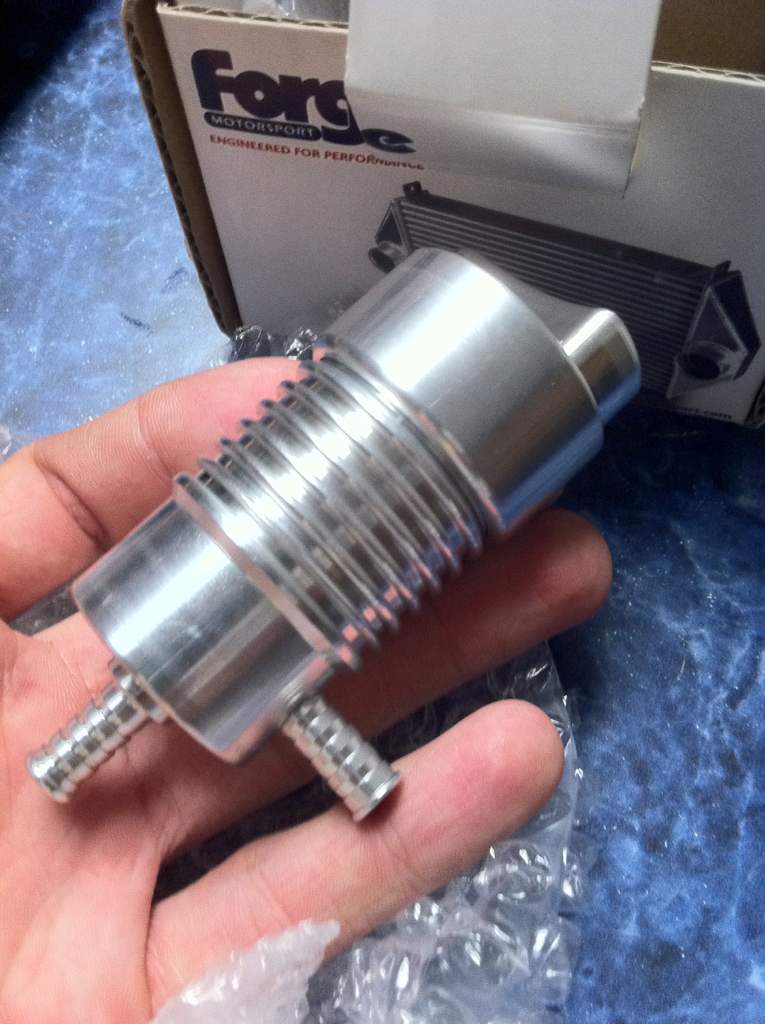

Aeromotive fpr (not installed yet)

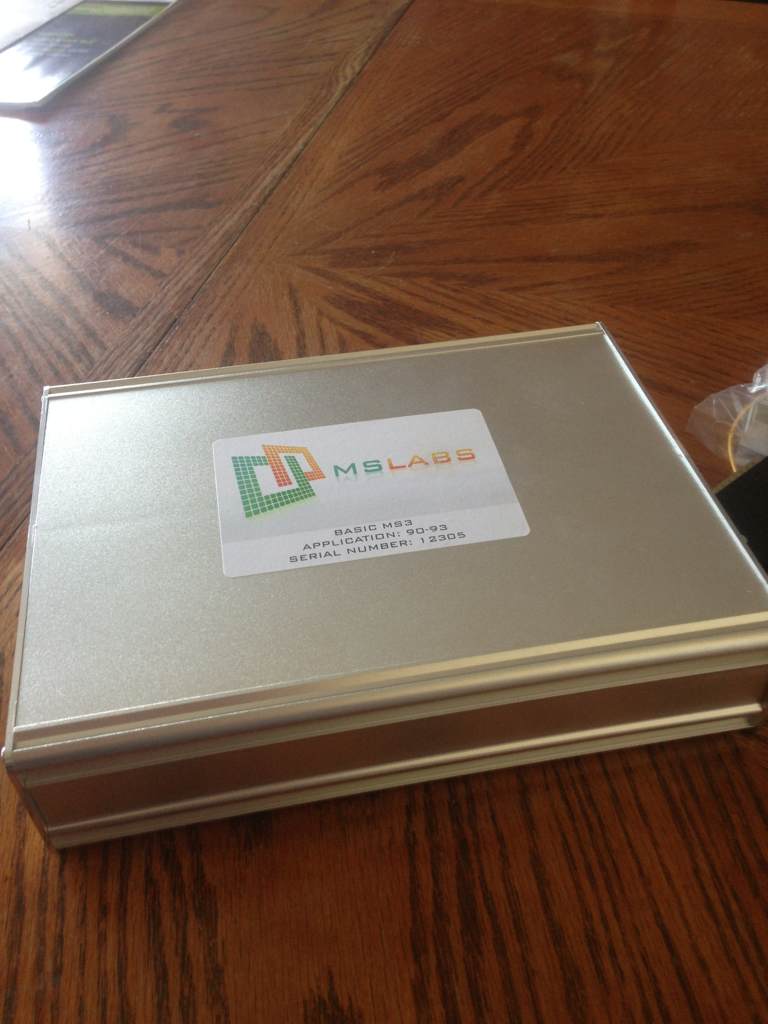

Rev built ms3 (not installed yet)
AEM Uego wideband

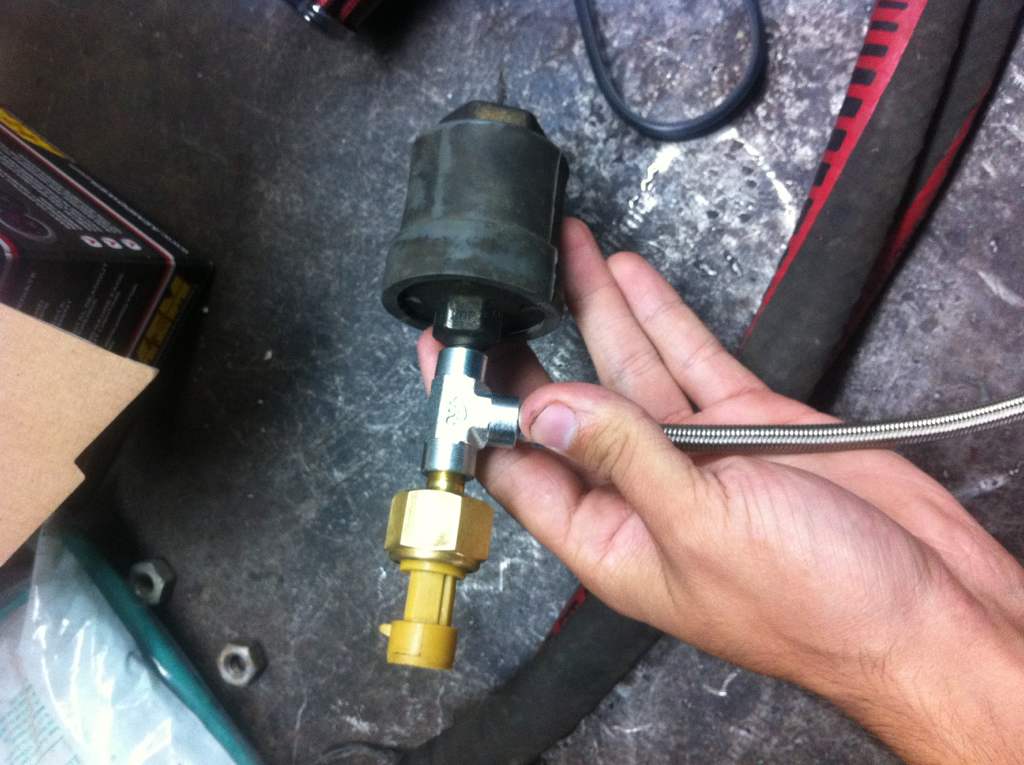

AEM oil pressure
AEM Coolant gauge
defi boost gauge and control unit
M-tuned coolant reroute
Mishimoto Rad
and here we go...

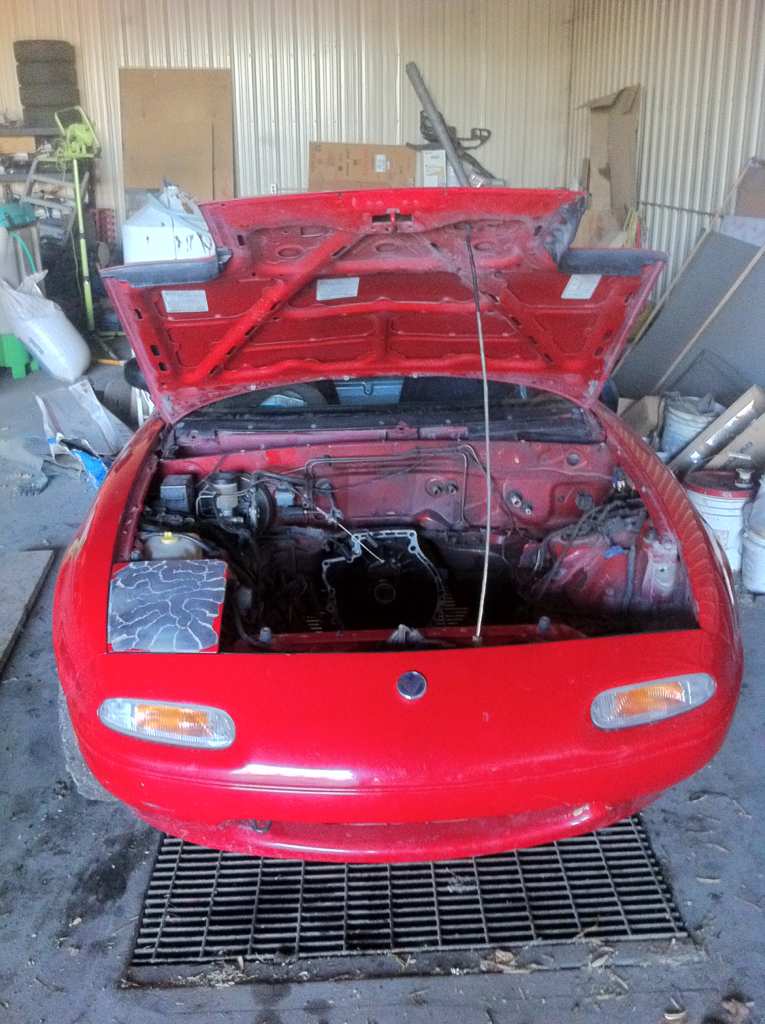

Picked it up a couple years with a blown motor that was taken out and no idea what i was getting into.
![](https://www.miataturbo.net/attachments/build-threads-57/93394-1990-eunos-build-40388df3-e00e-179f.jpg?dateline=1383292354)
Since I hadn't had experience on building a car or anything like the car just sat while I built motivation to do something with it.

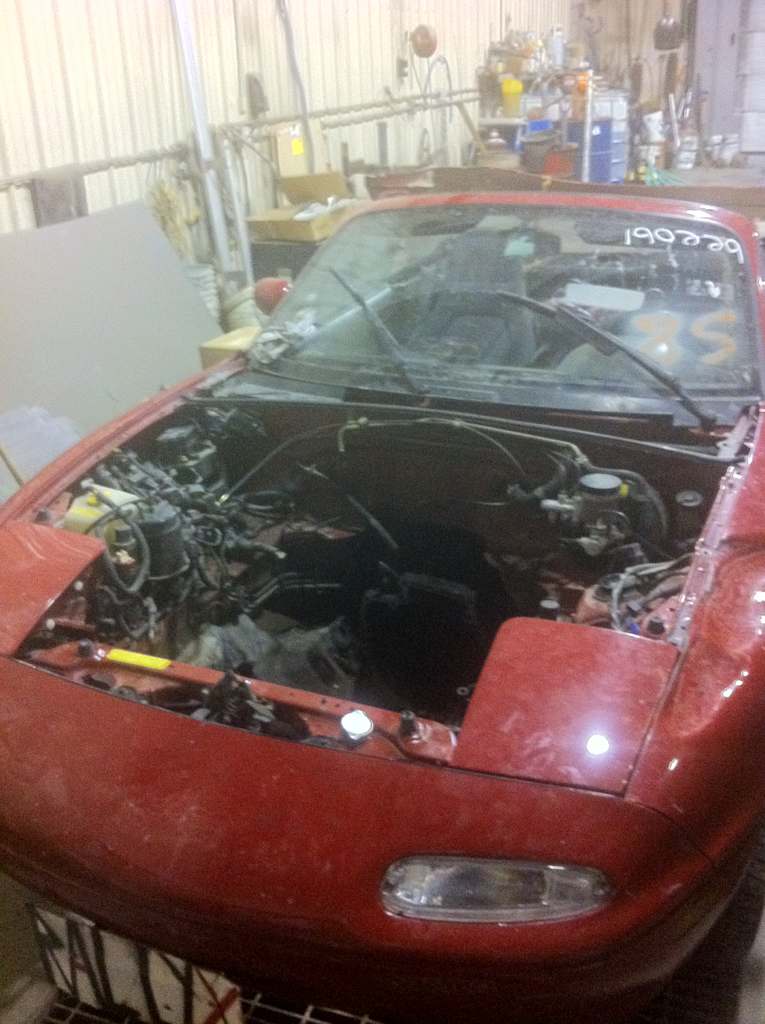

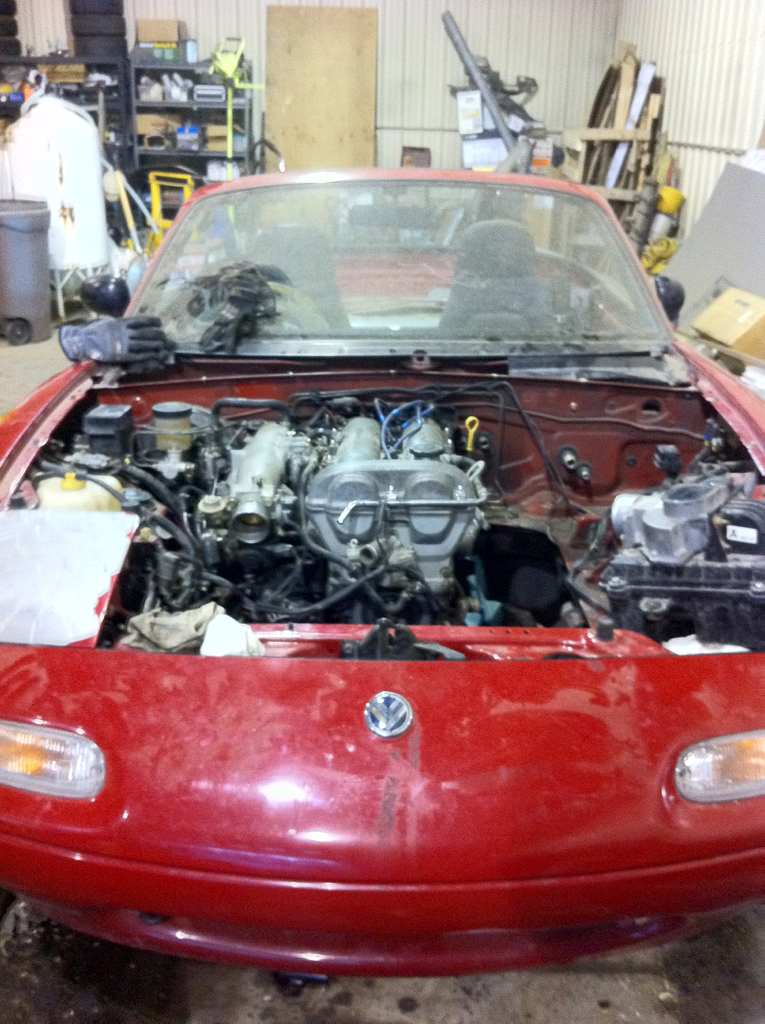

So one day a beat up Miata came along at a salvage auction with another 1.6
which was motivation enough to start dicking around with it
![](https://www.miataturbo.net/attachments/build-threads-57/93396-1990-eunos-build-40388df3-e1d8-32ab.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93398-1990-eunos-build-4ac696ad-e33e-104d.jpg?dateline=1383292354)

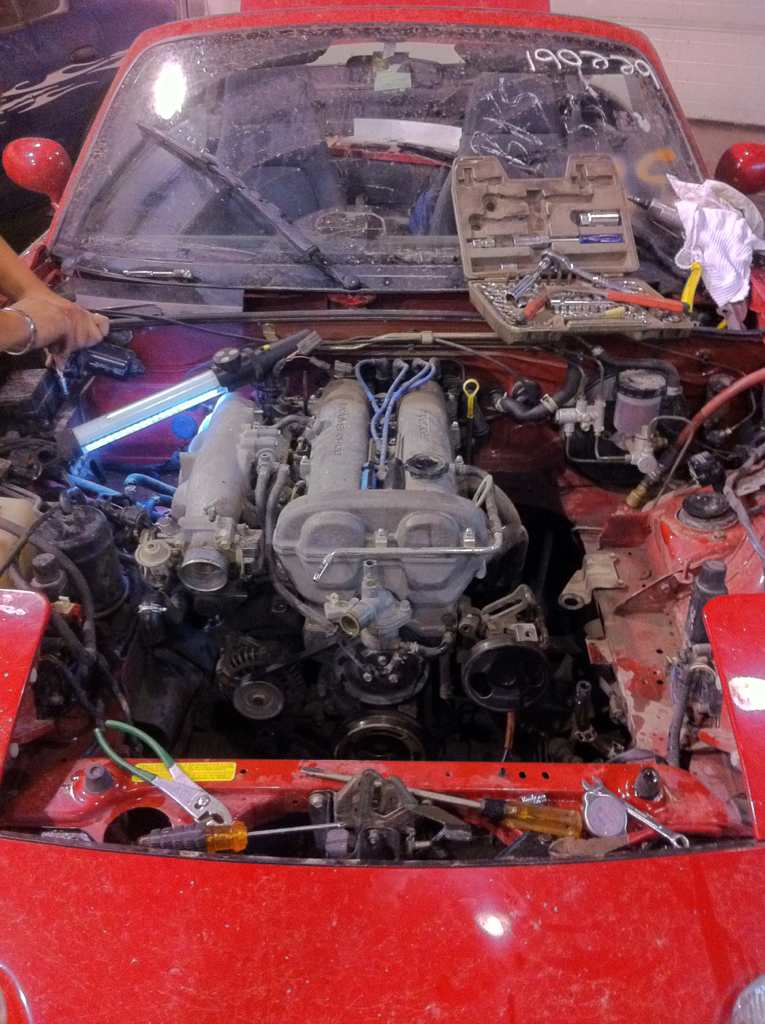

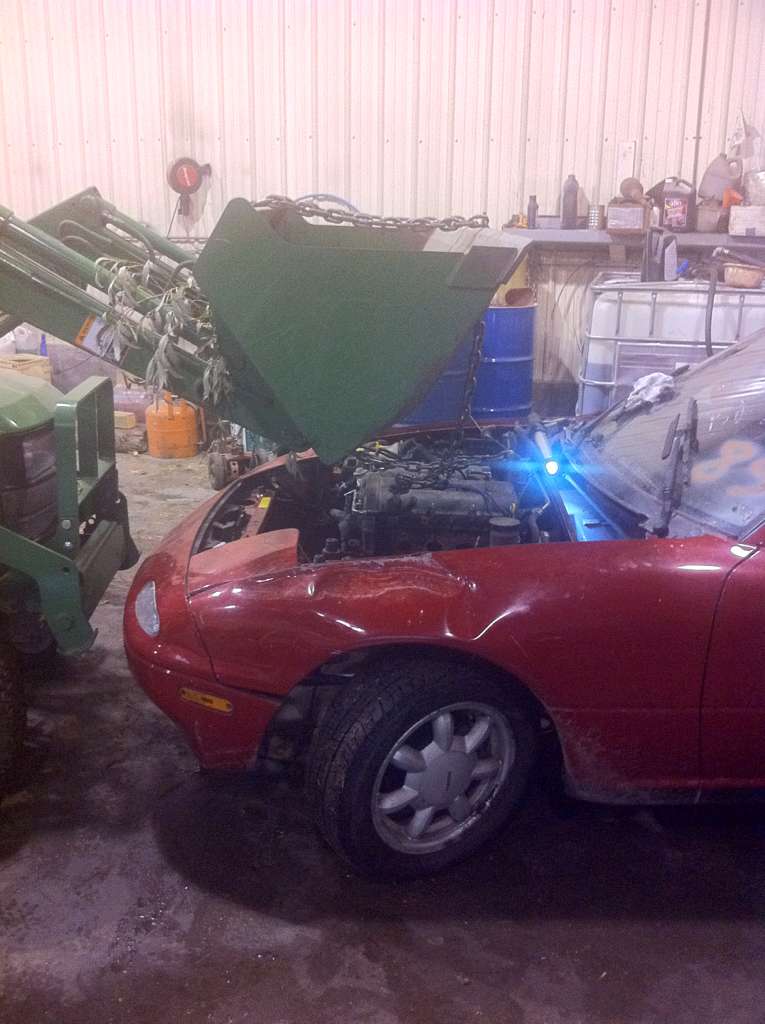

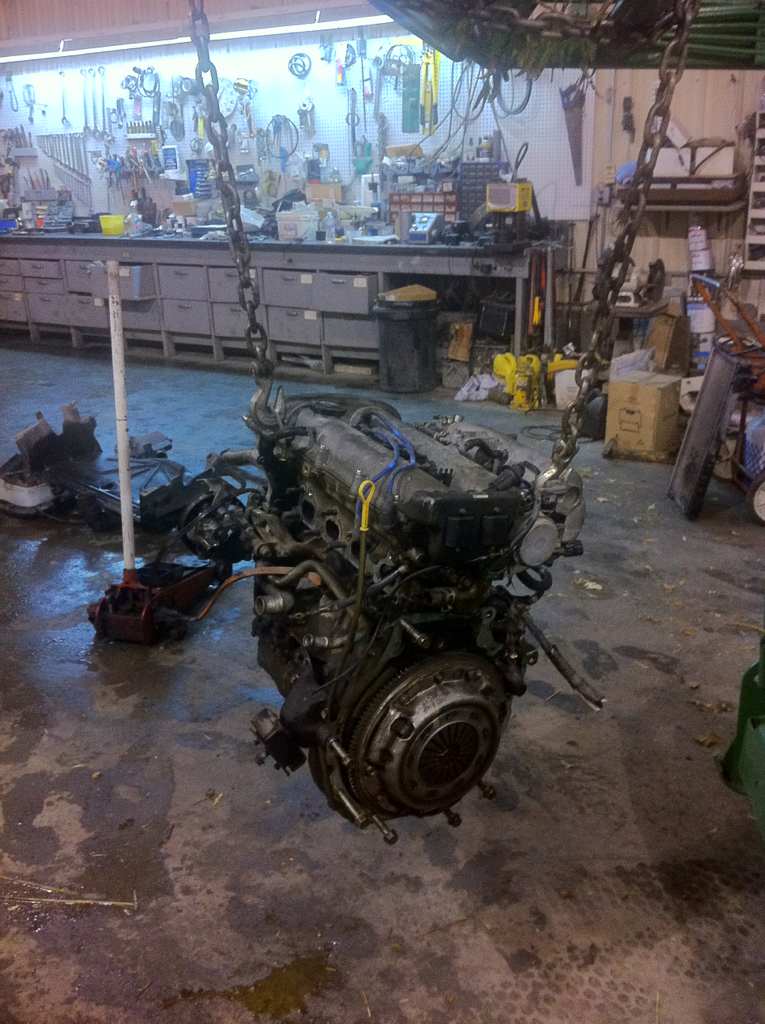

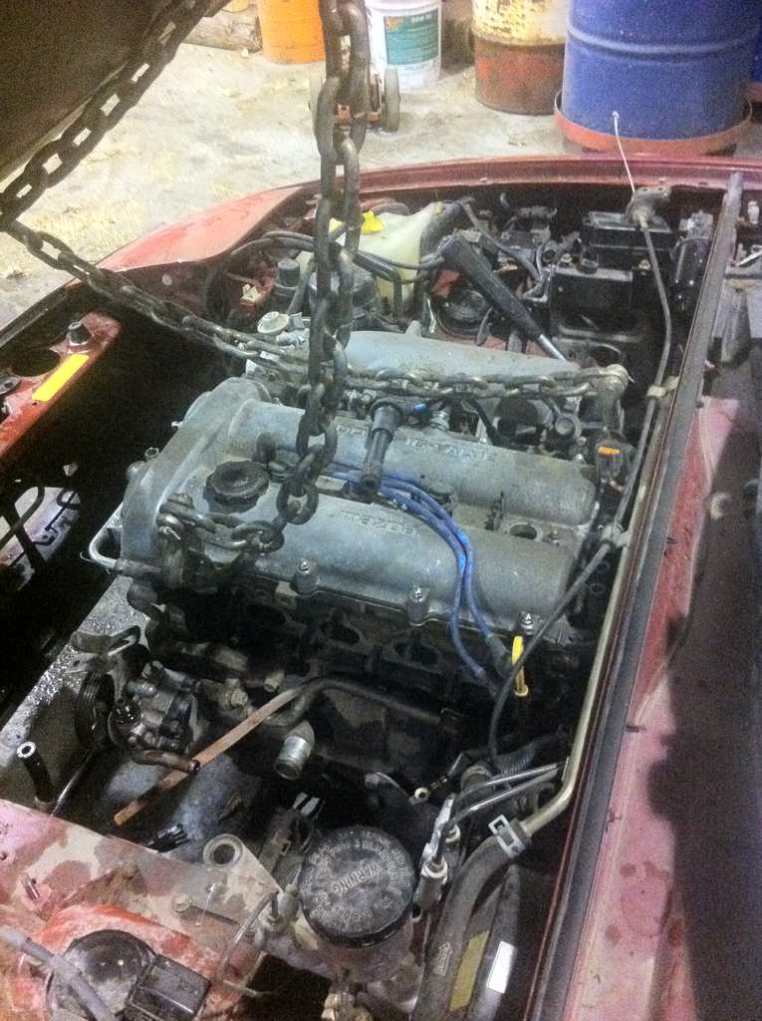

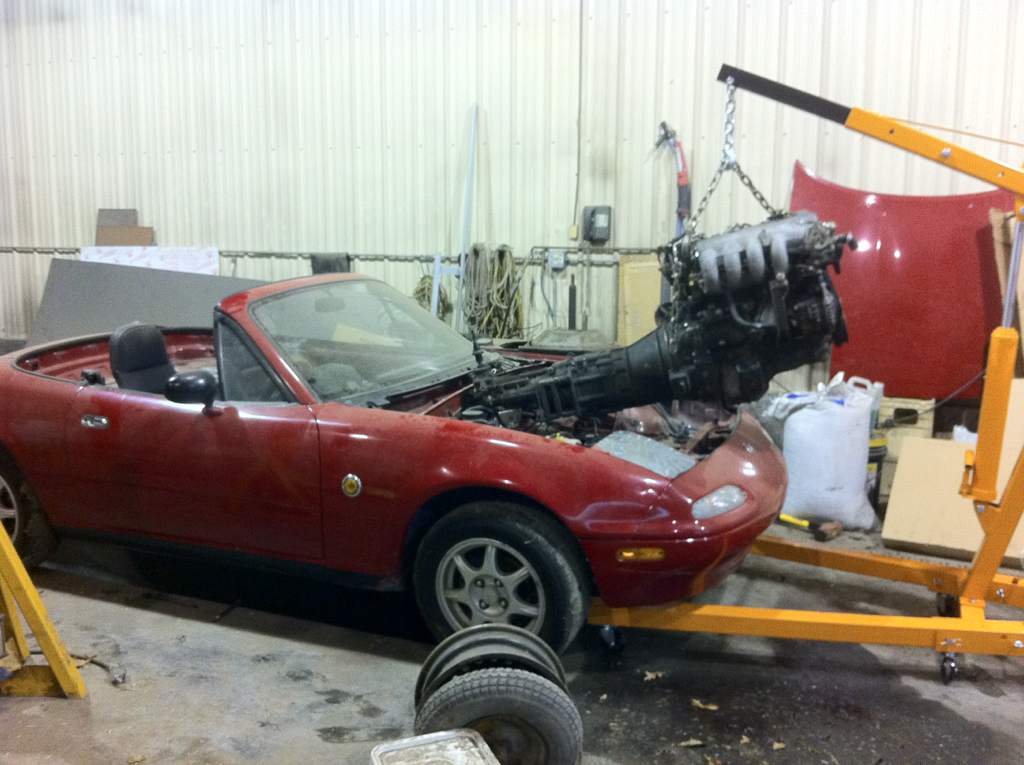

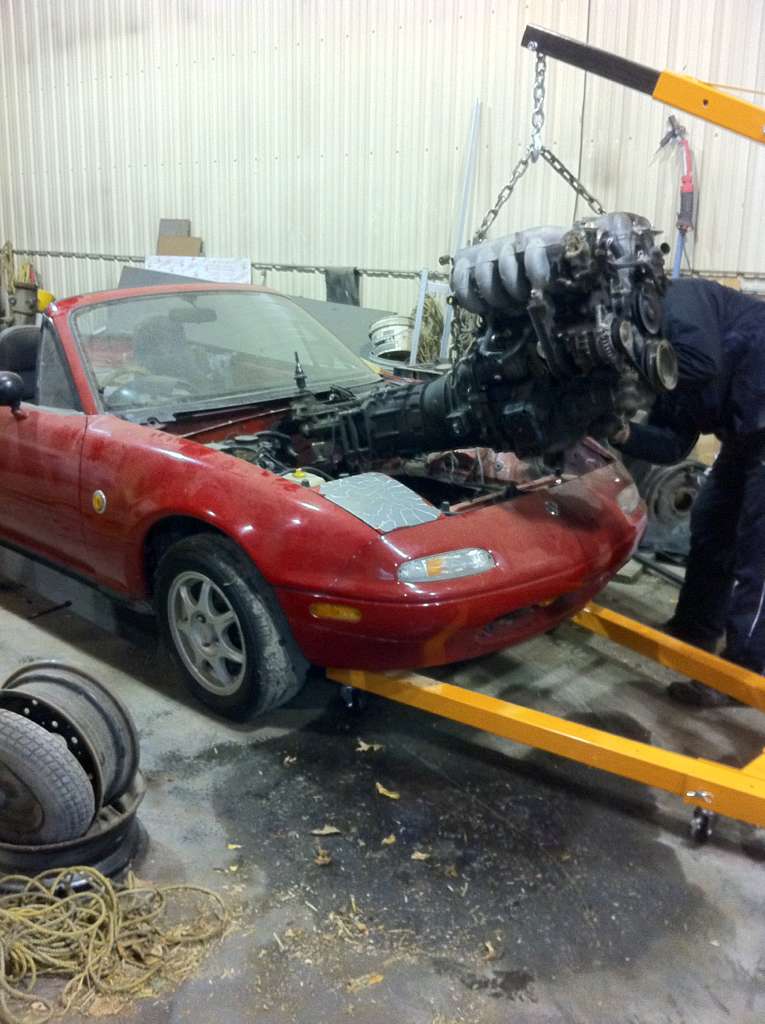

I didn't have an engine crane at the time so we just used what we had, lol.
![](https://www.miataturbo.net/attachments/build-threads-57/93400-1990-eunos-build-4ac696ad-e401-d298.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93402-1990-eunos-build-4ac696ad-e425-a724.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93404-1990-eunos-build-4ac696ad-e466-28d8.jpg?dateline=1383292354)
Since I had it I figured might as well do a few things.
So I took the power steering pump and brackets off.

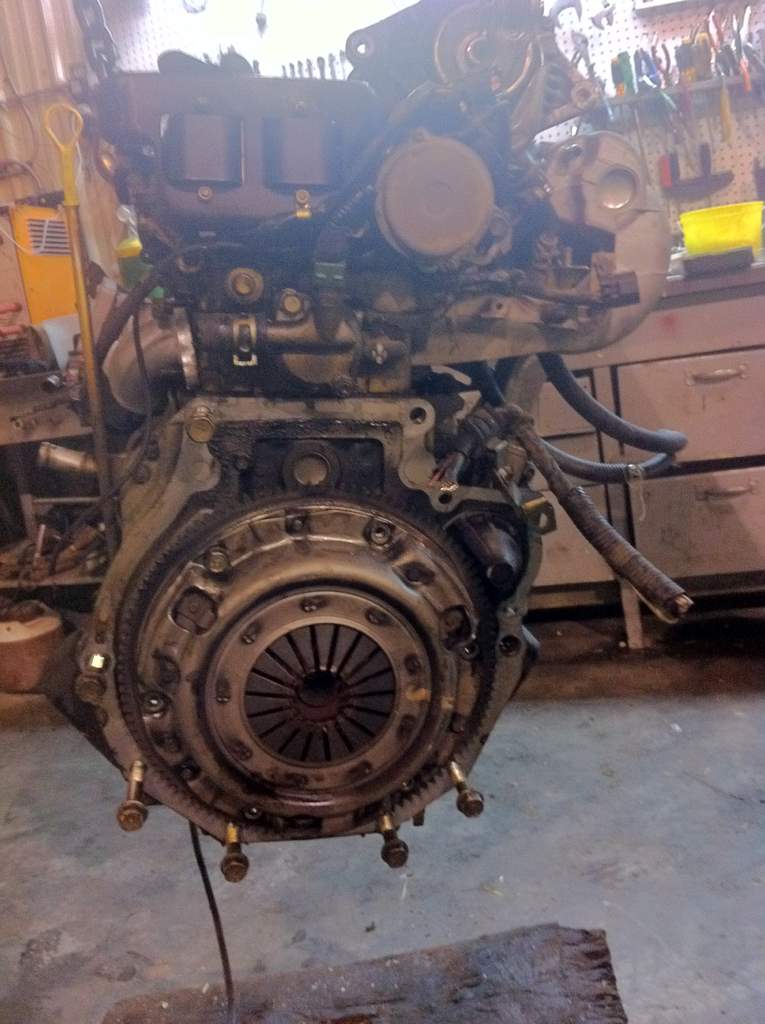

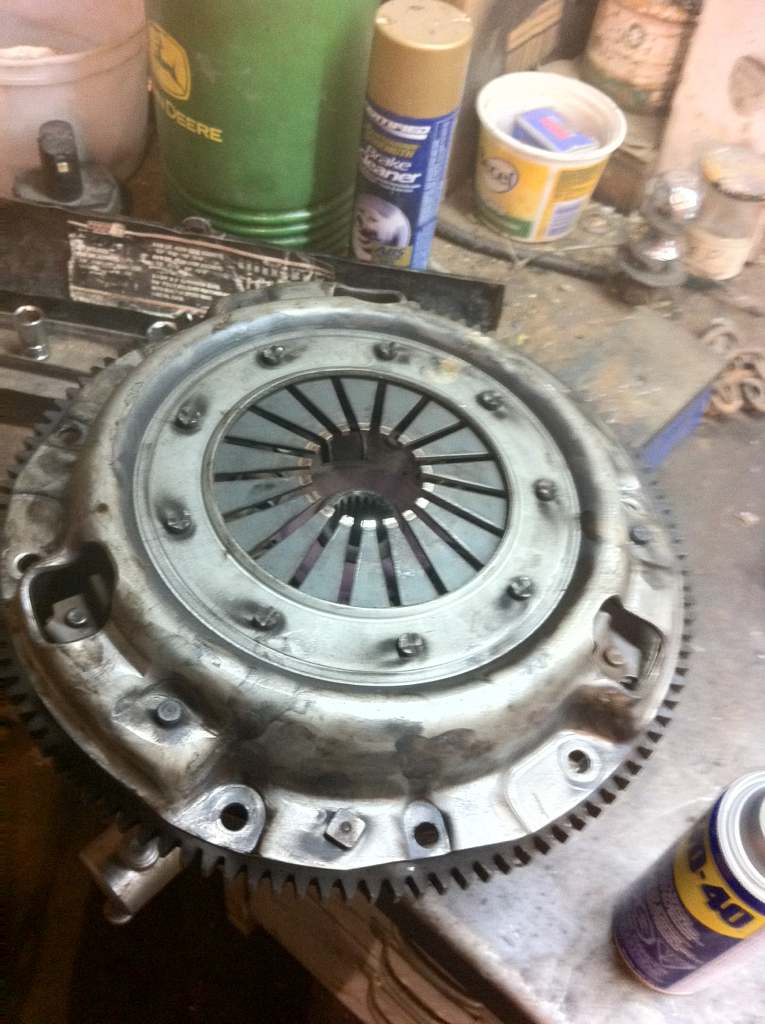

Took the clutch off to take a look at it
![](https://www.miataturbo.net/attachments/build-threads-57/93406-1990-eunos-build-4ac696ad-e4e2-394c.jpg?dateline=1383292354)

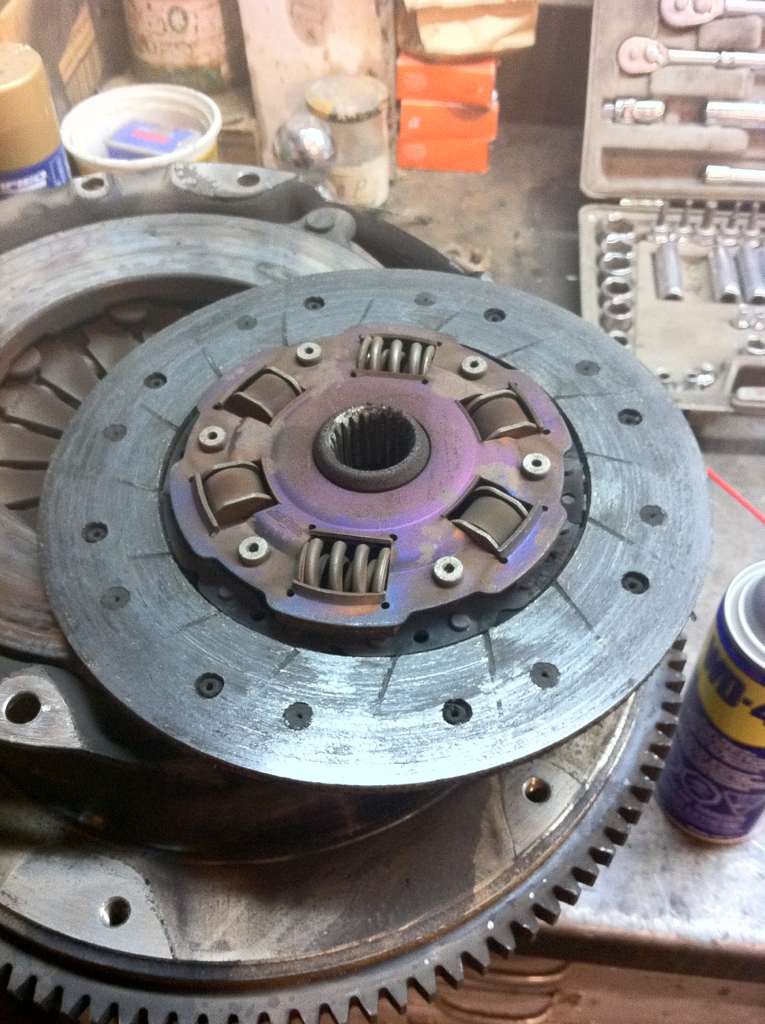

Which didn't look that great.
![](https://www.miataturbo.net/attachments/build-threads-57/93408-1990-eunos-build-4ac696ad-e54f-e914.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93410-1990-eunos-build-4ac696ad-e562-0e21.jpg?dateline=1383292354)

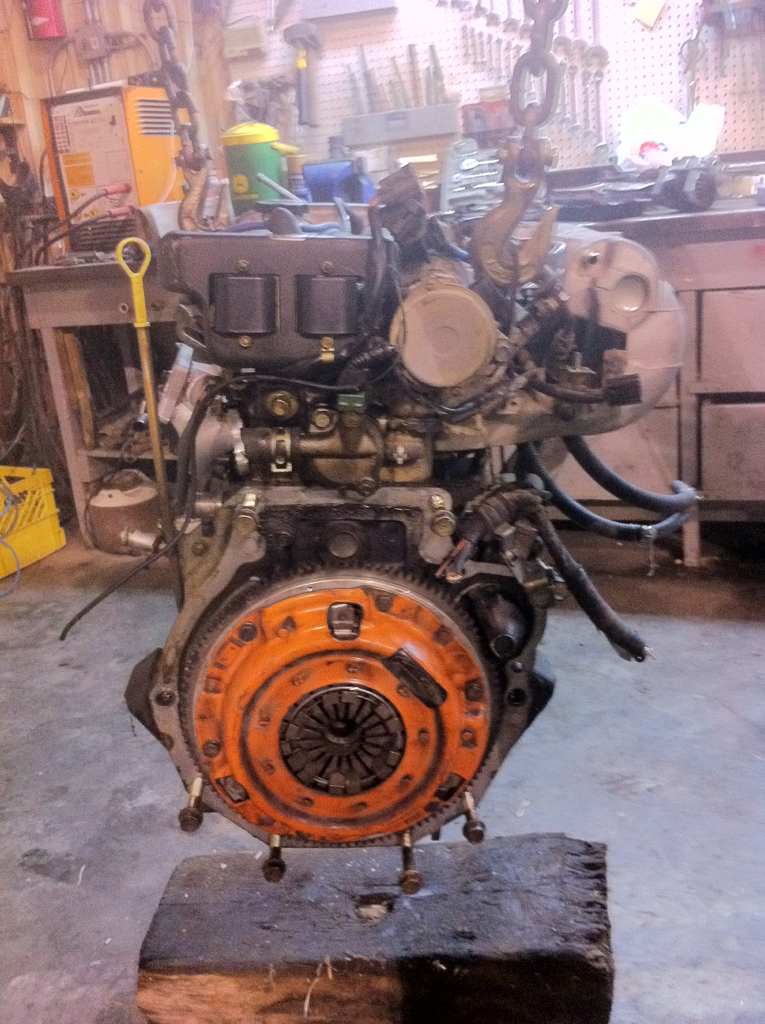

So I replaced that clutch with a
-fidanza lightweight flywheel
-exedy disc
-center force pressure plate

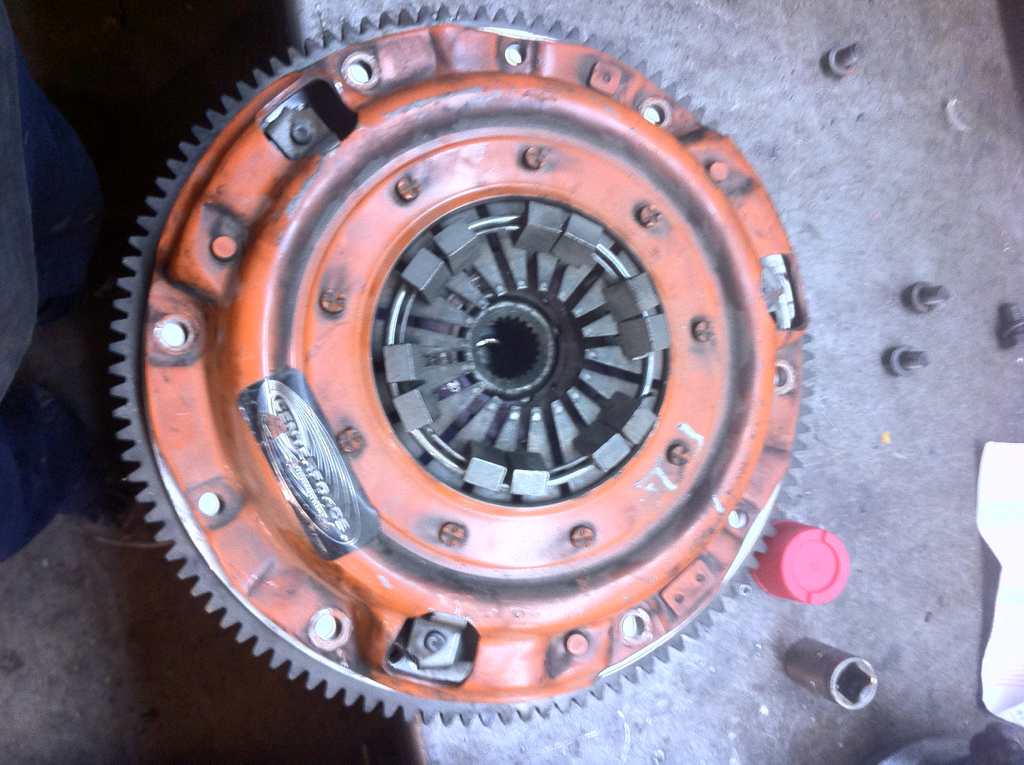

![](https://www.miataturbo.net/attachments/build-threads-57/93412-1990-eunos-build-4ac696ad-e5c5-634e.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93414-1990-eunos-build-4ac696ad-e5ff-1da3.jpg?dateline=1383292354)

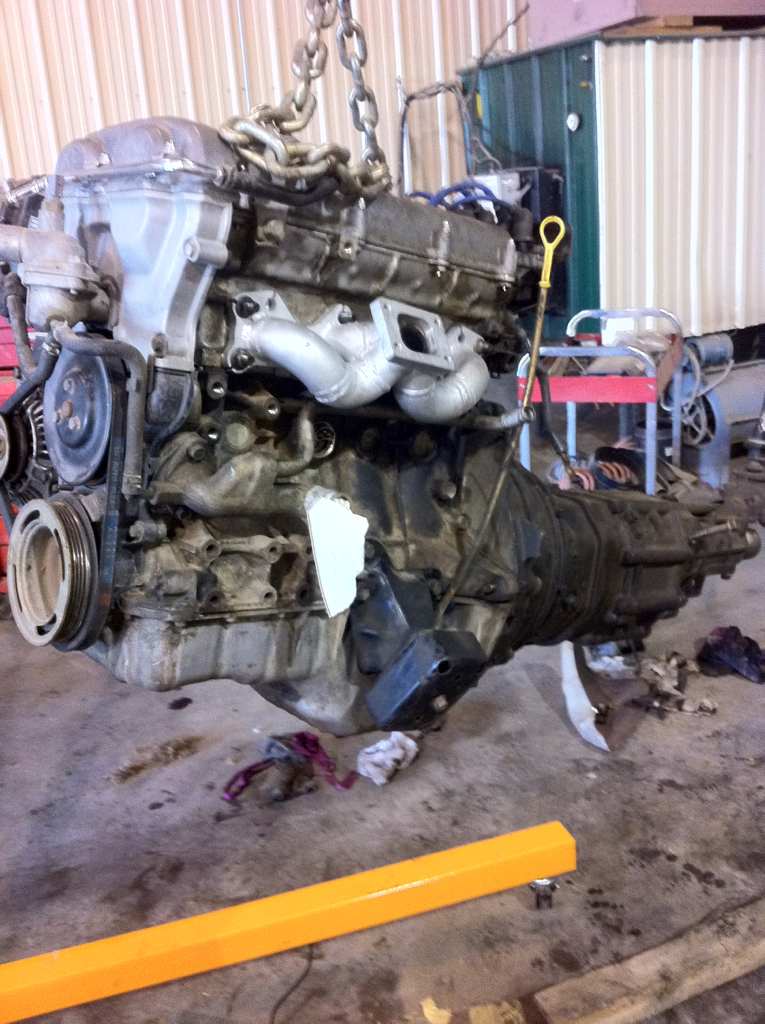

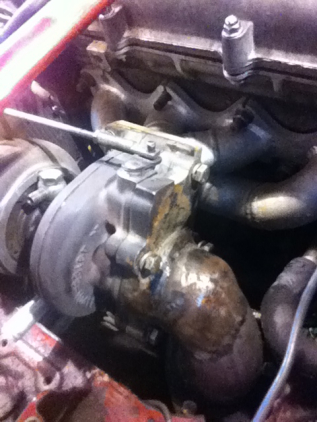

After that i threw on the td04 turbo/etd shorty manifold that came with the car.
![](https://www.miataturbo.net/attachments/build-threads-57/93416-1990-eunos-build-4ac696ad-e6ad-30c8.jpg?dateline=1383292354)

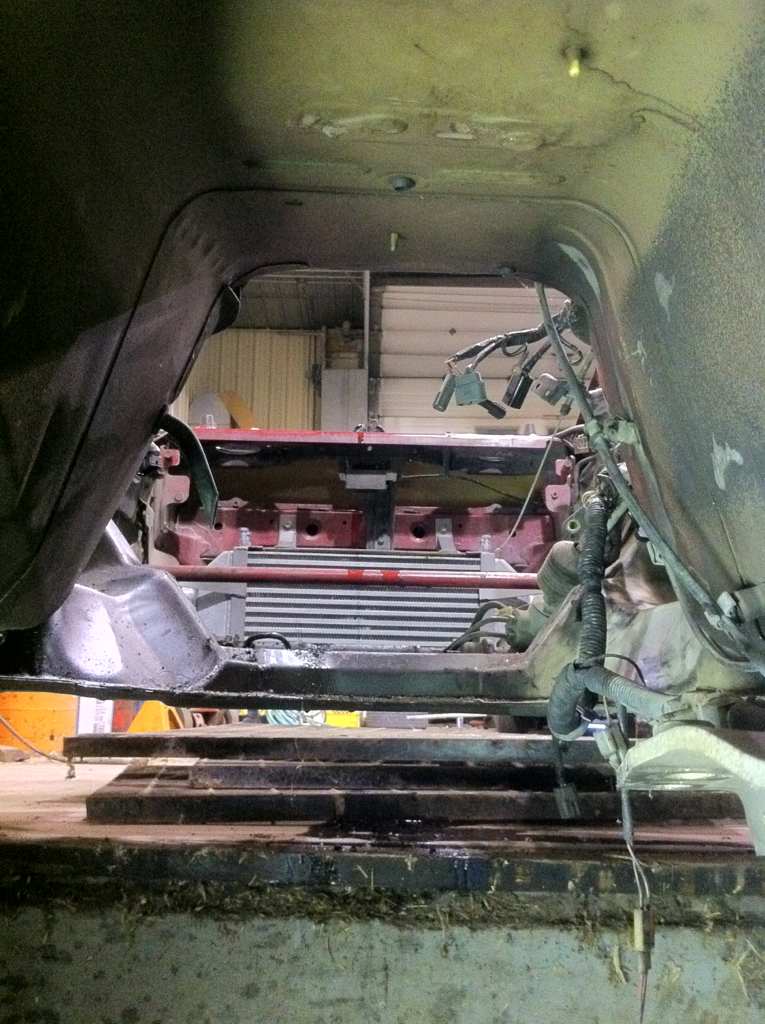

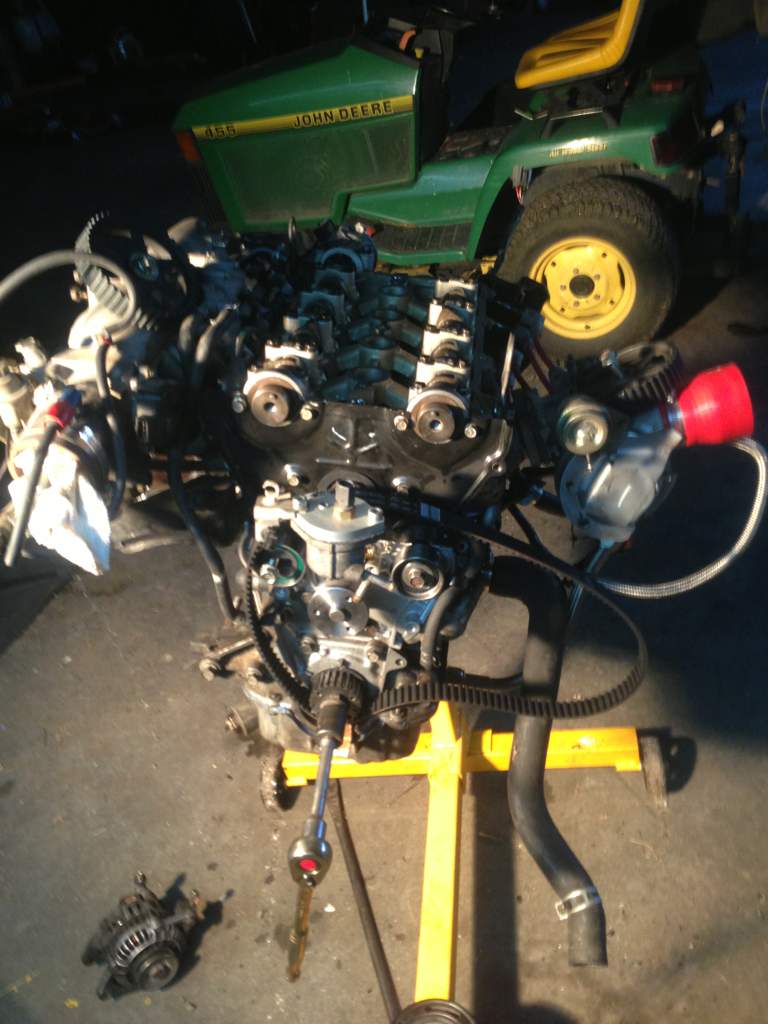

time to stuff it in..
![](https://www.miataturbo.net/attachments/build-threads-57/93418-1990-eunos-build-4ac696ad-e6f4-8047.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93420-1990-eunos-build-4ac696ad-e715-b29f.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93422-1990-eunos-build-4ac696ad-e72b-fde2.jpg?dateline=1383292354)
Hurray.
![](https://www.miataturbo.net/attachments/build-threads-57/93424-1990-eunos-build-4ac696ad-e751-5a56.jpg?dateline=1383292354)

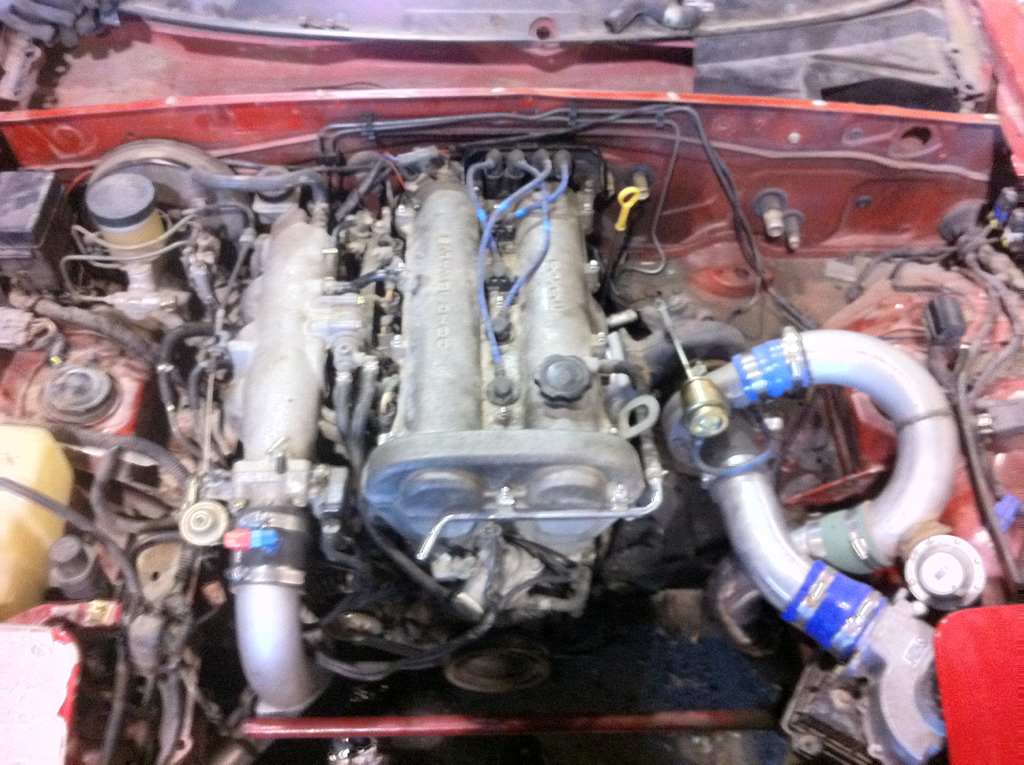

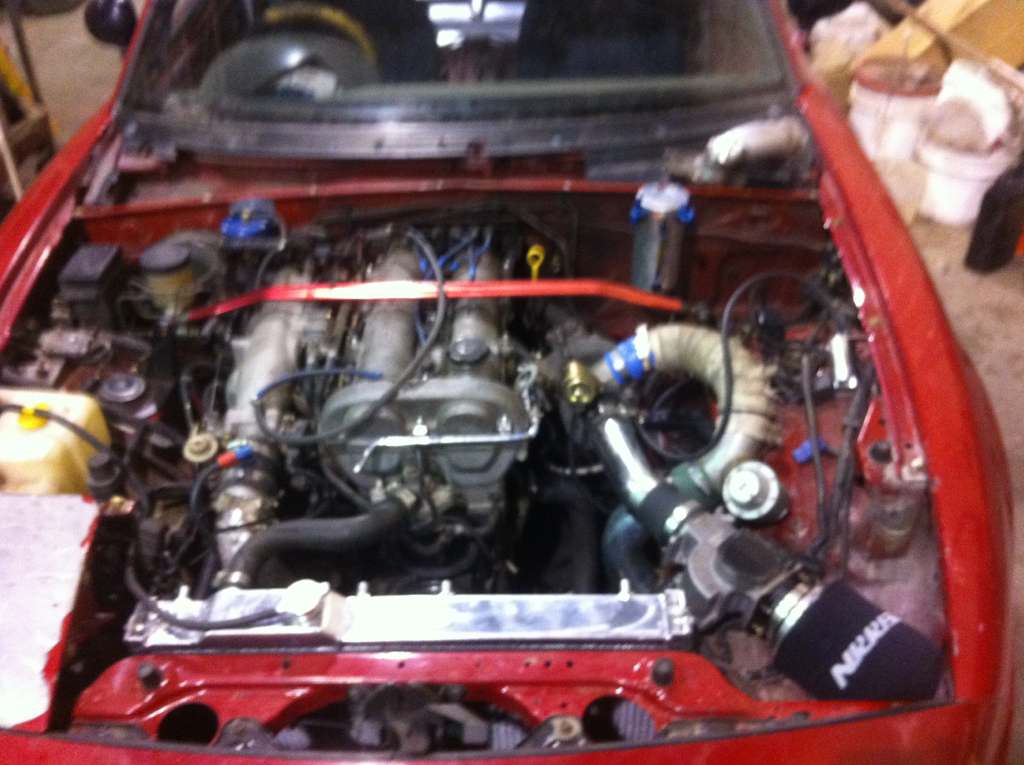

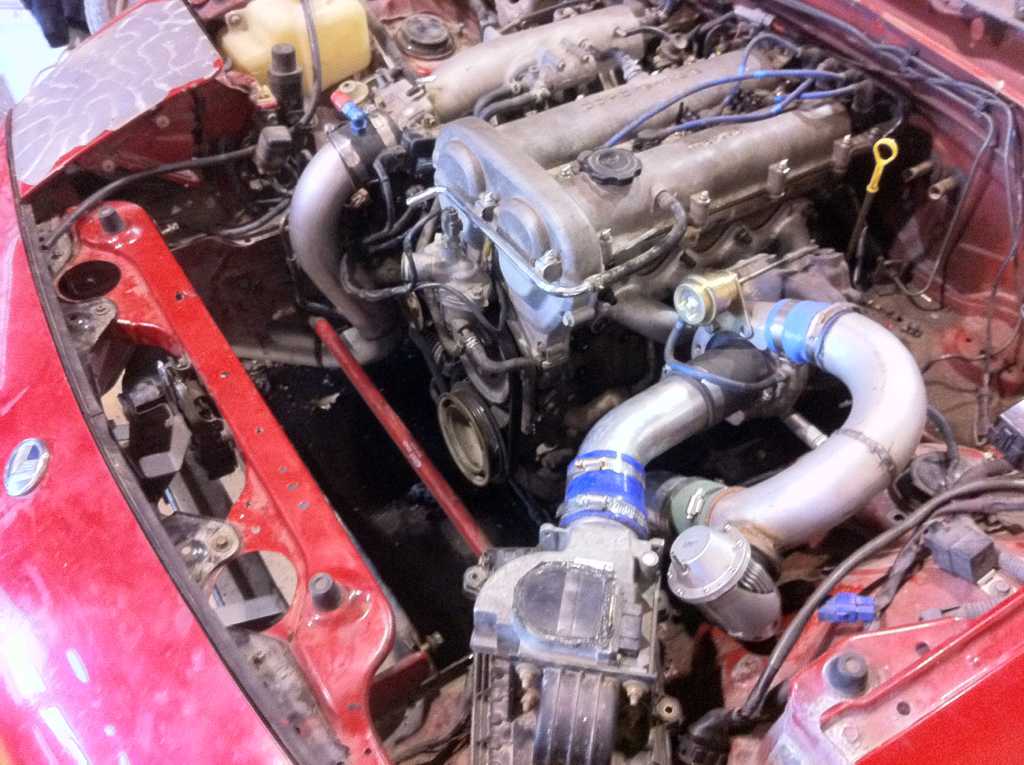

Now it was time to throw on the turbo and the IC piping that was custom made by some exhaust shop from the previous owner, very inefficient
![](https://www.miataturbo.net/attachments/build-threads-57/93426-1990-eunos-build-4ac696ad-e7f6-0fae.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93427-1990-eunos-build-4ac696ad-e823-cbbe.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93430-1990-eunos-build-4ac696ad-e83b-76d0.jpg?dateline=1383292354)

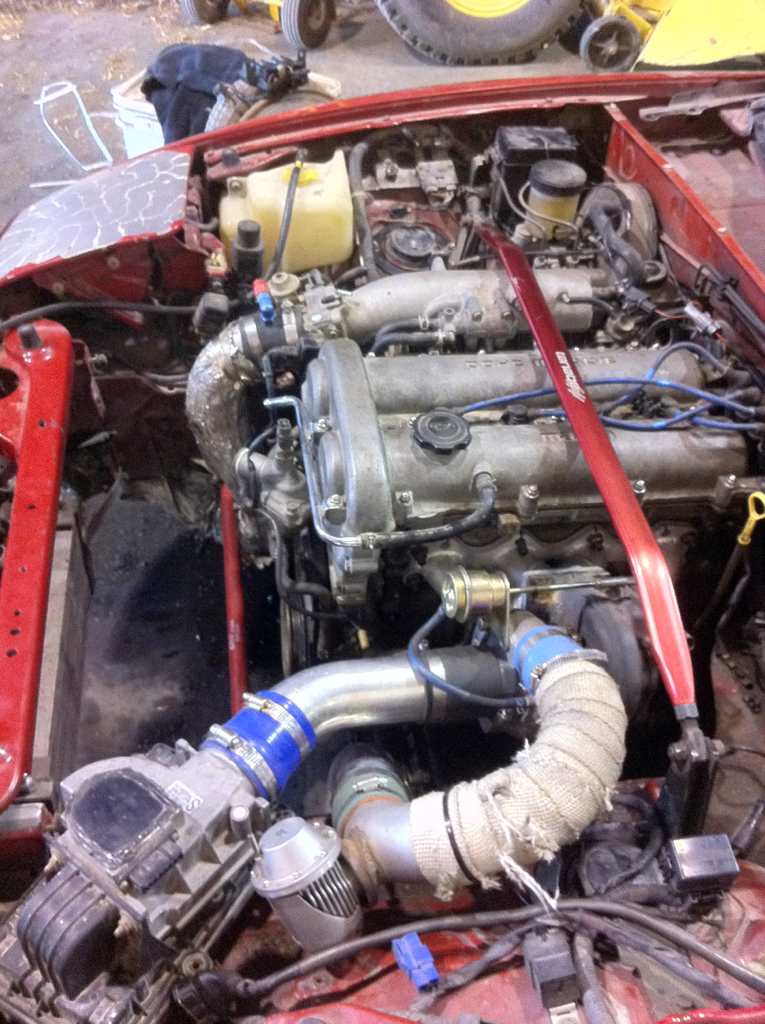

Tied up little odds and ends's added cold wrap on the coldside and mounted Tanabe strut tower brace.
![](https://www.miataturbo.net/attachments/build-threads-57/93431-1990-eunos-build-4ac696ad-e86c-87a4.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93432-1990-eunos-build-4ac696ad-e8f7-480f.jpg?dateline=1383292354)

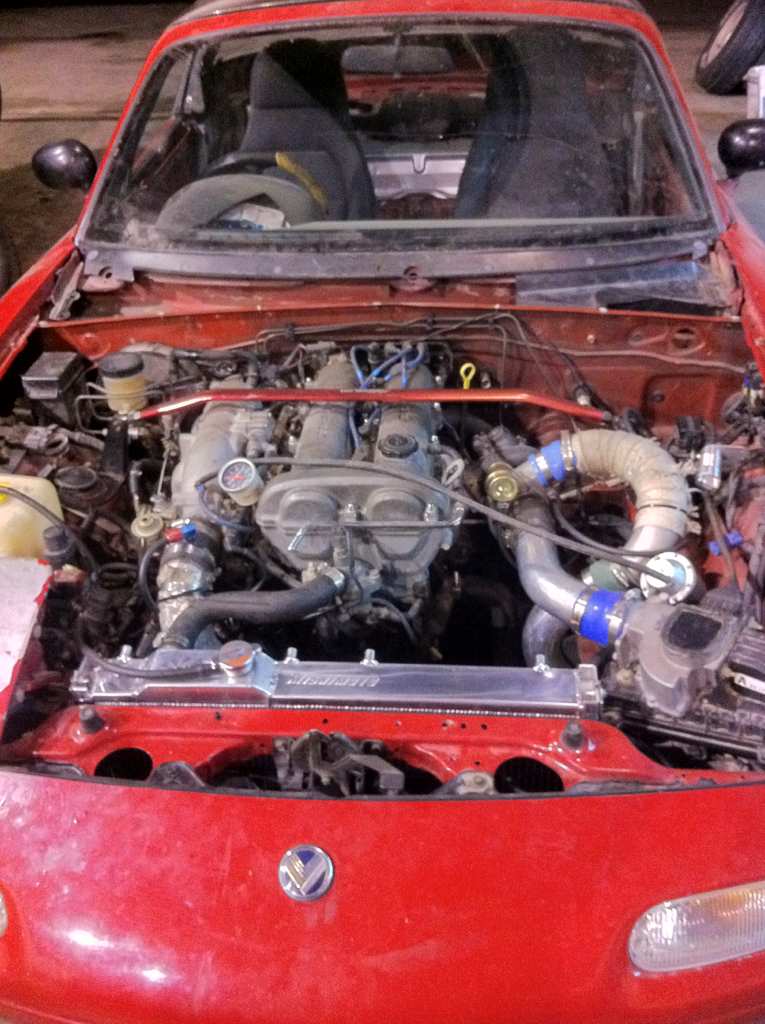

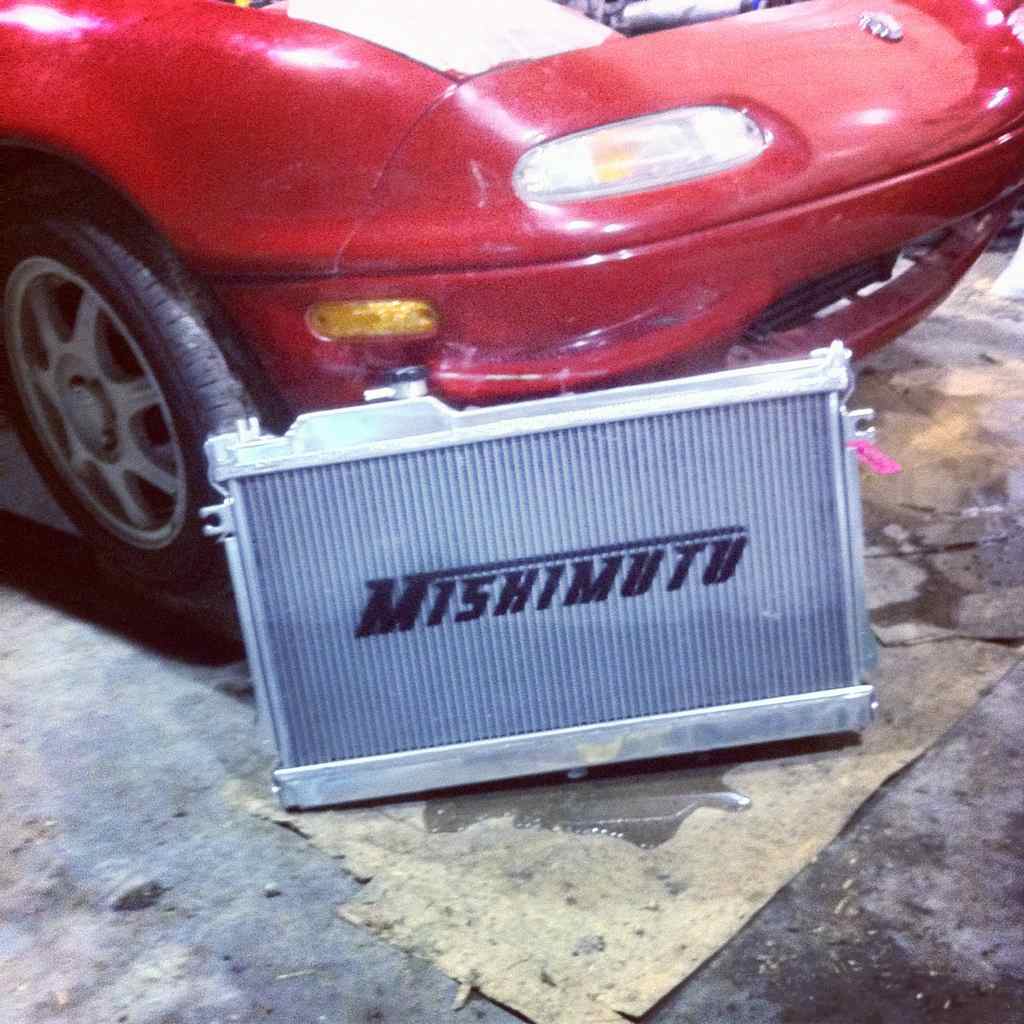

picked up a mishimoto aluminum rad
![](https://www.miataturbo.net/attachments/build-threads-57/93433-1990-eunos-build-4ac696ad-e93d-94f8.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93434-1990-eunos-build-4ac696ad-e961-cd9e.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93435-1990-eunos-build-4ac696ad-e9d3-4b37.jpg?dateline=1383292354)

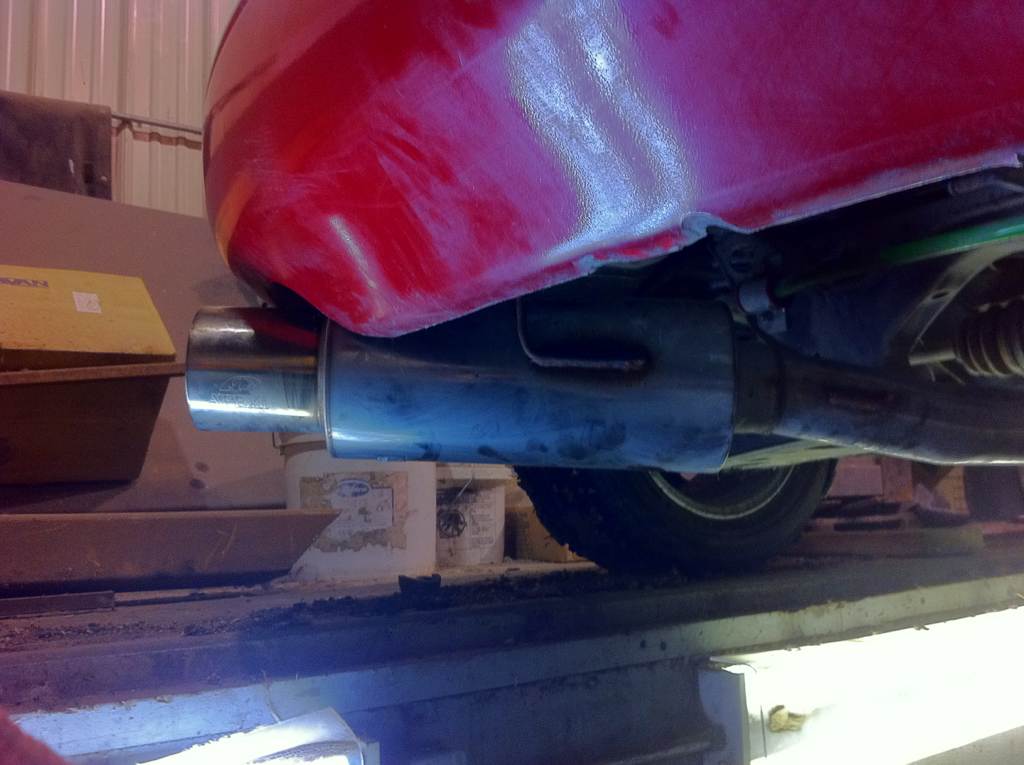

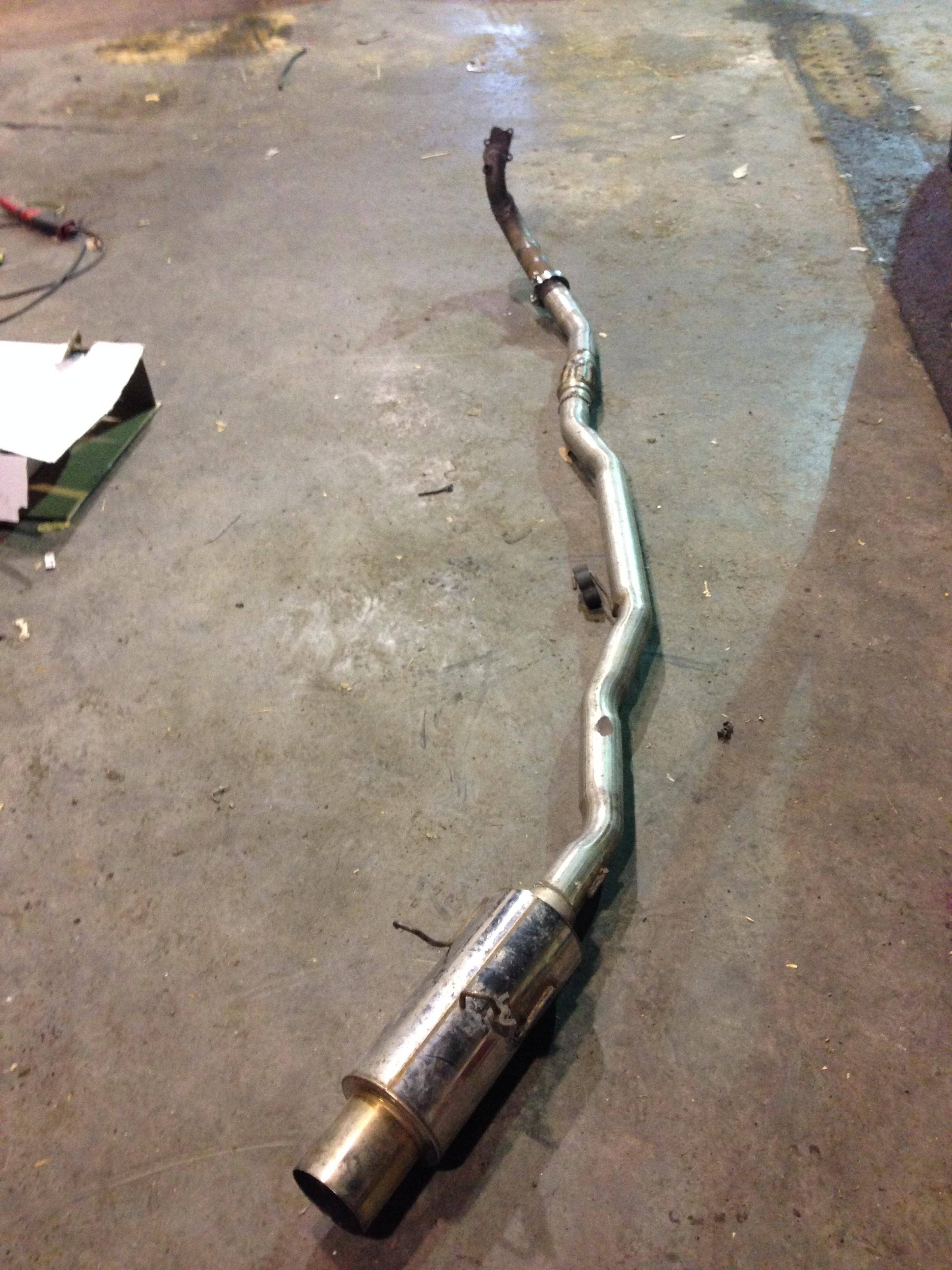

exhaust junk
Threw that on as a test fit.
![](https://www.miataturbo.net/attachments/build-threads-57/93436-1990-eunos-build-4ac696ad-ea13-9e57.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93437-1990-eunos-build-4ac696ad-ea36-16f2.jpg?dateline=1383292354)

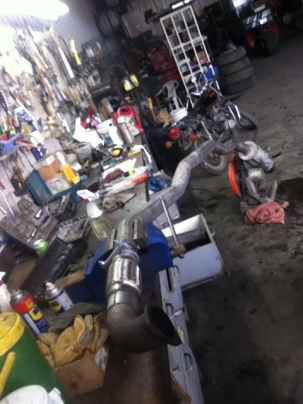

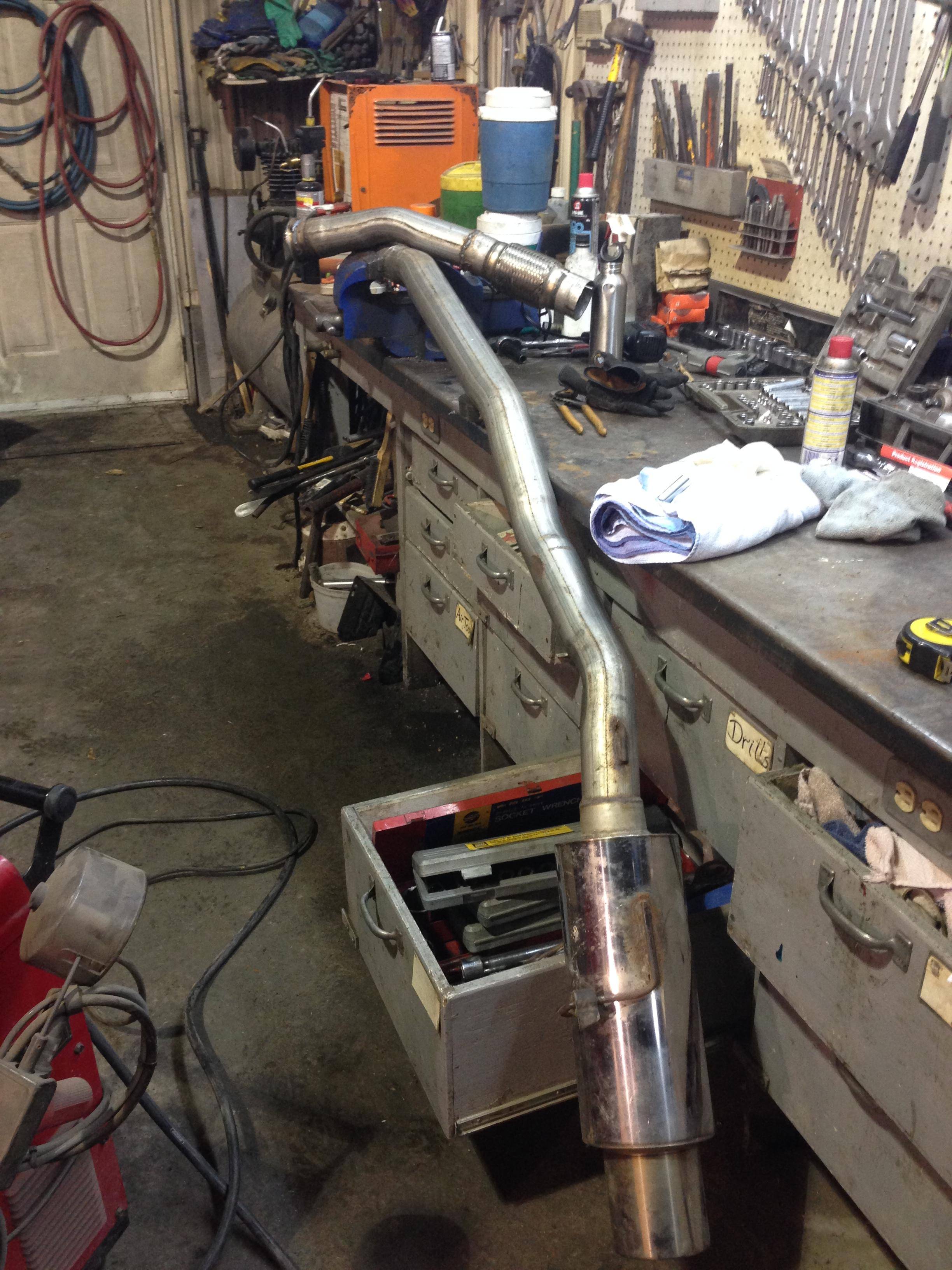

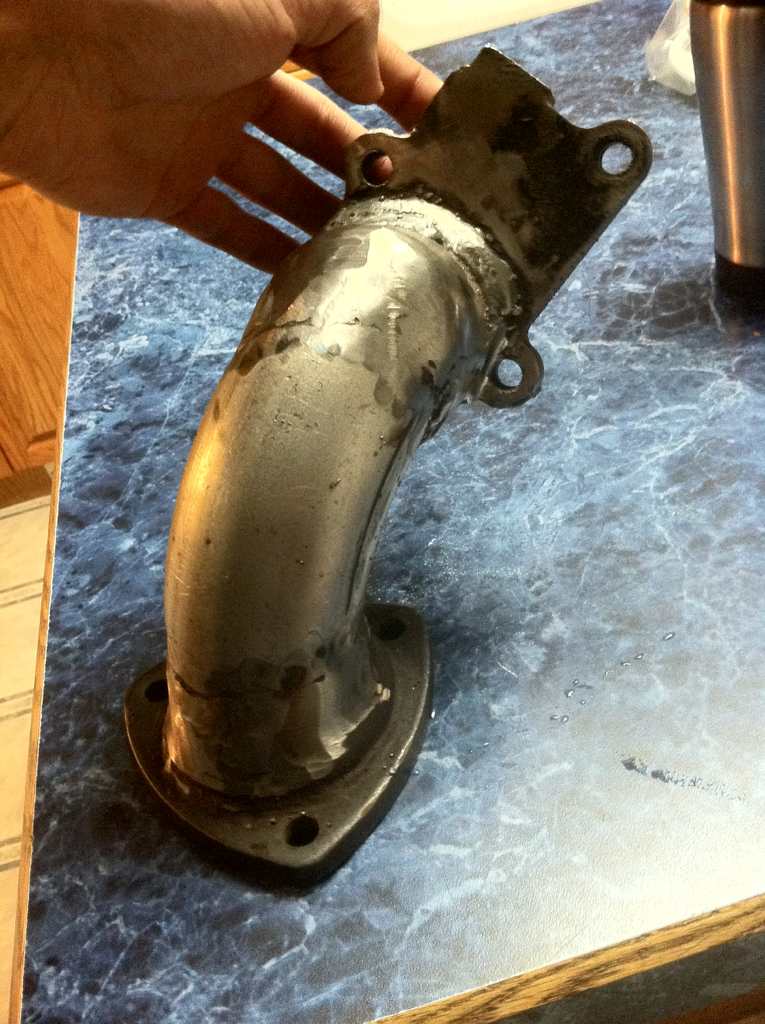

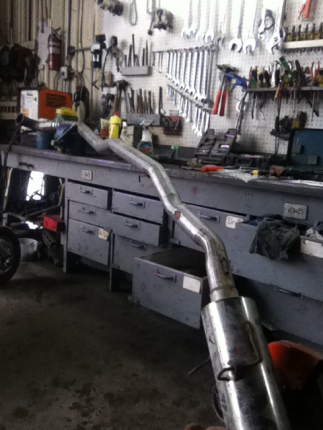

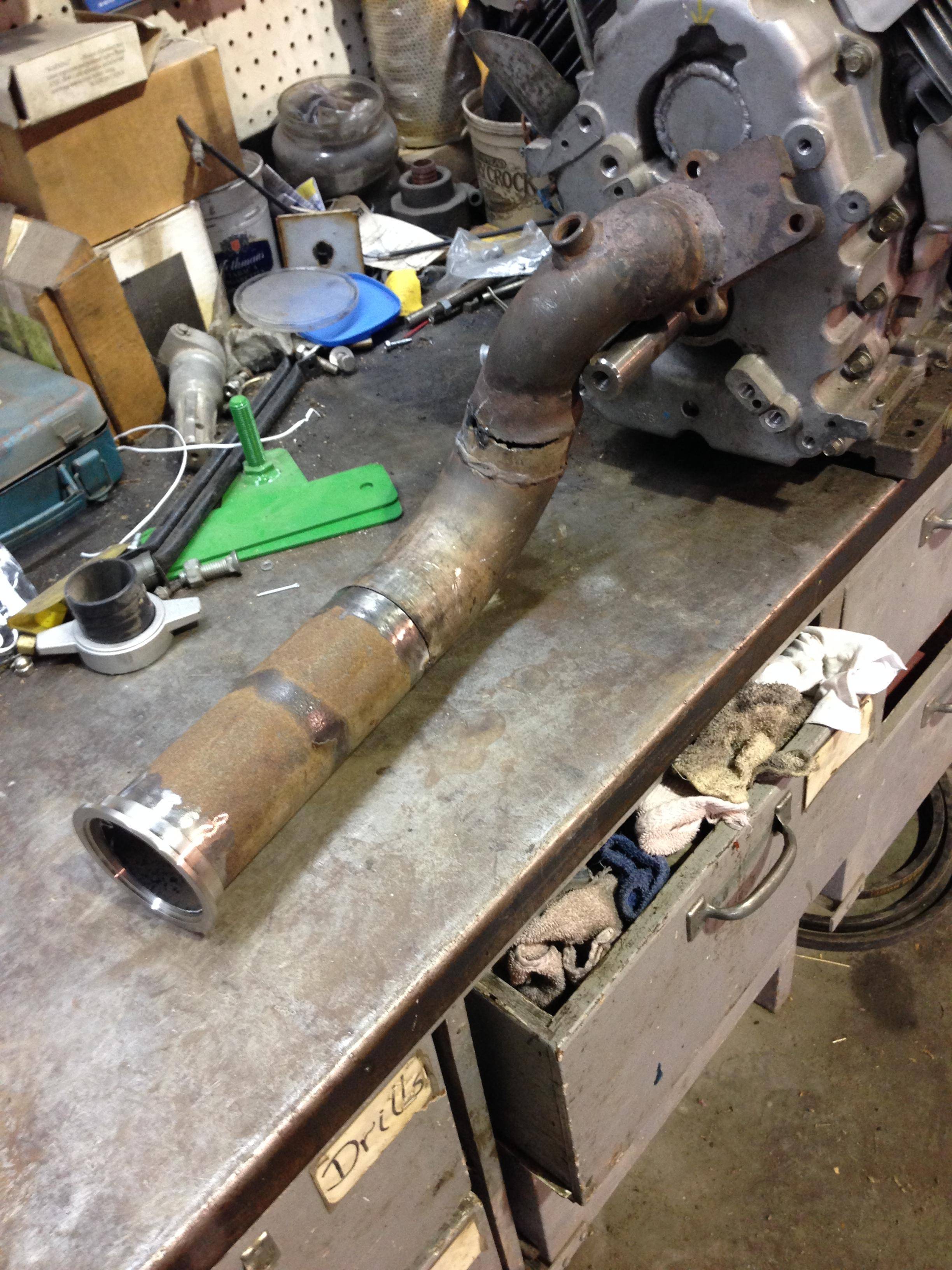

made my first (probably last) downpipe
![](https://www.miataturbo.net/attachments/build-threads-57/93438-1990-eunos-build-4ac696ad-ea83-ede9.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93439-1990-eunos-build-4ac696ad-eaf2-c2e0.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93440-1990-eunos-build-4ac696ad-eb1b-0fc8.jpg?dateline=1383292354)
Made sure that it fit on the car and moved on
![](https://www.miataturbo.net/attachments/build-threads-57/93441-1990-eunos-build-4ac696ad-eb43-076c.jpg?dateline=1383292354)

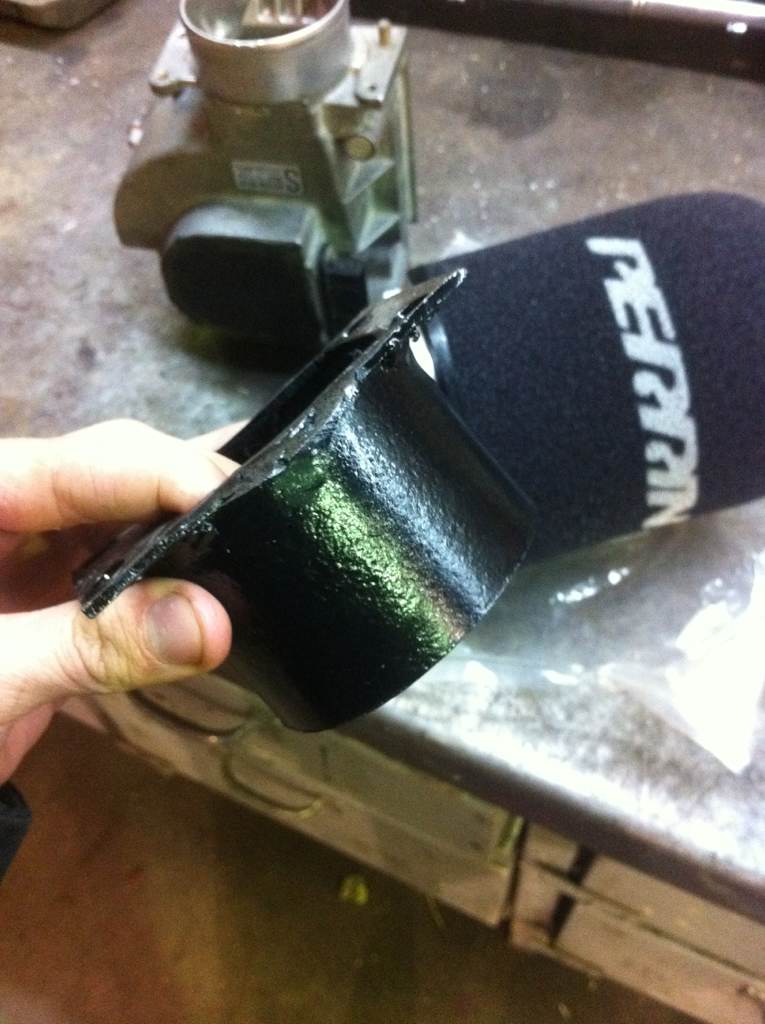

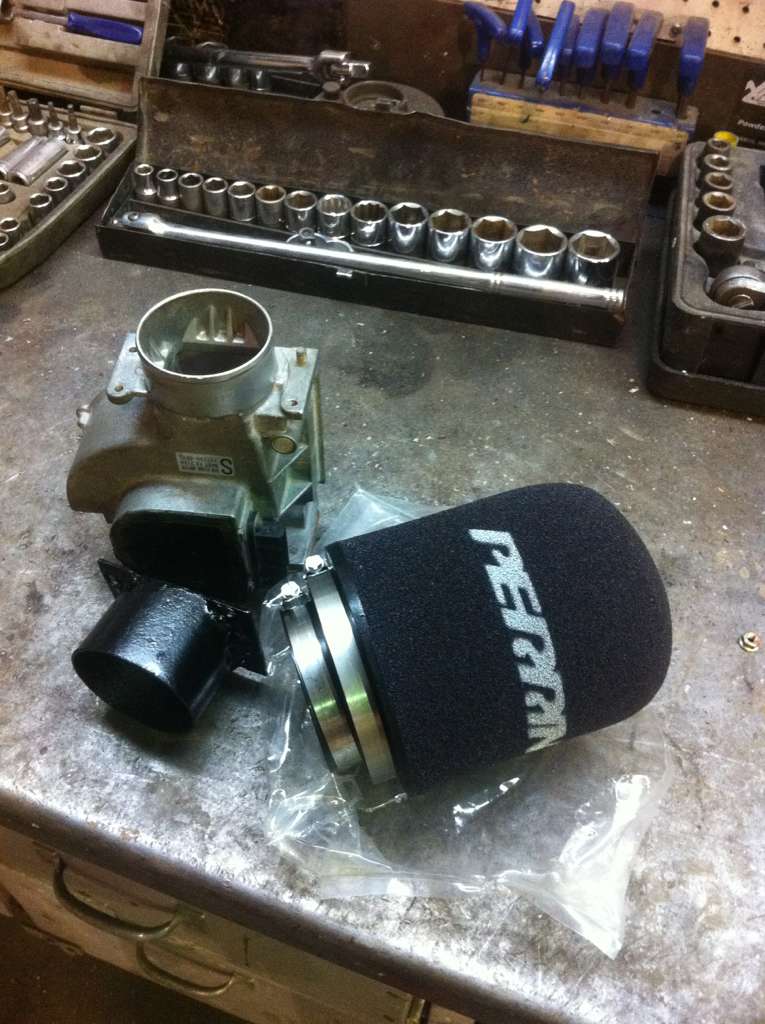

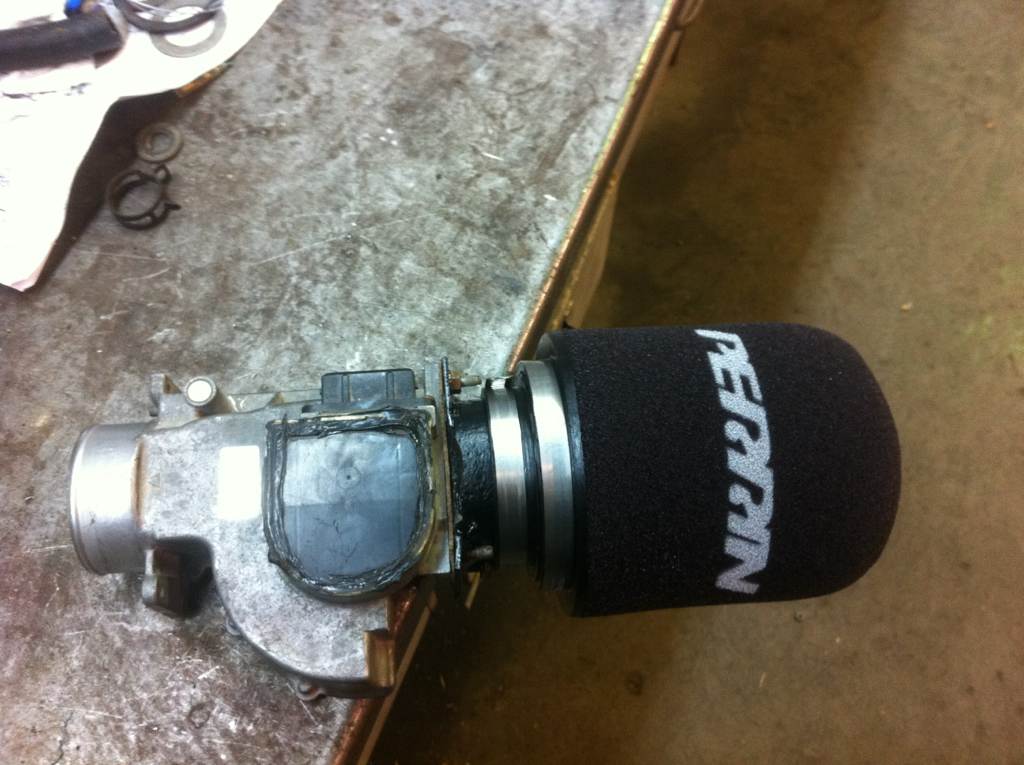

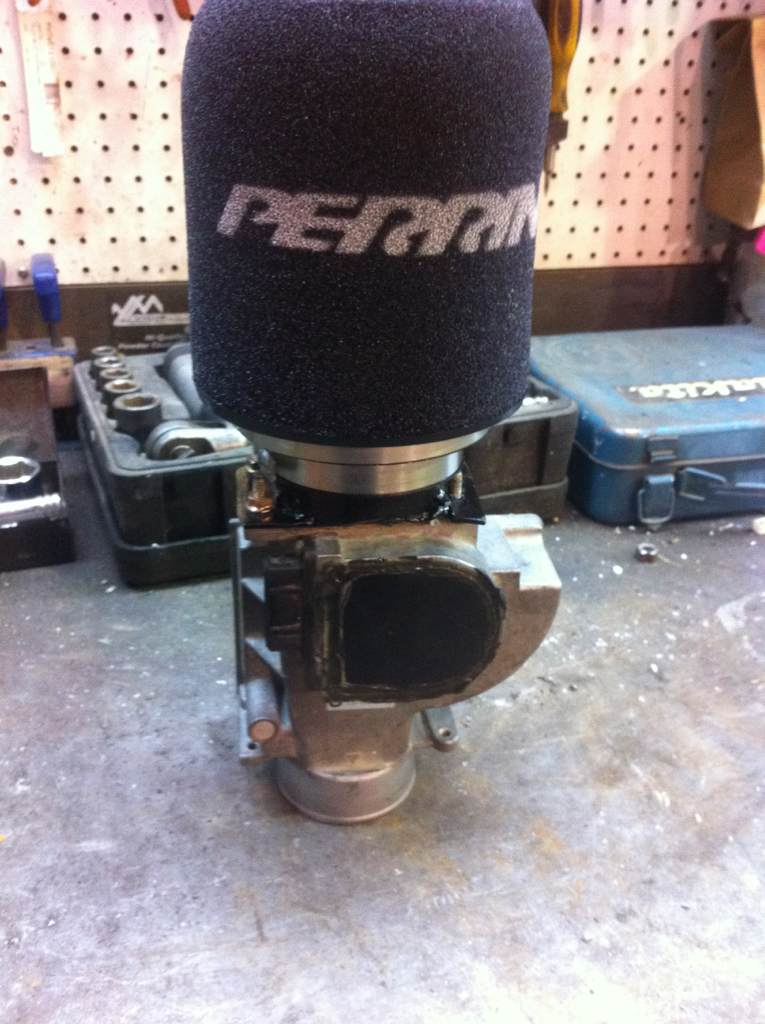

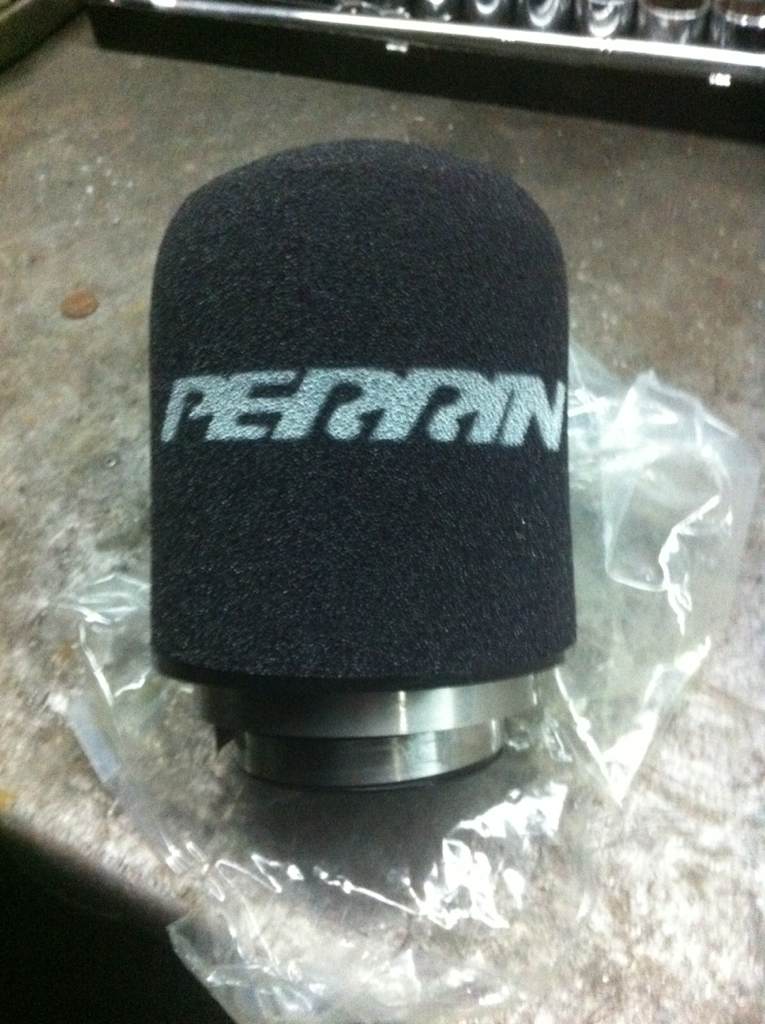

Picked up a perrin foam filter but needed and adapter plate to fit on the MAF so quickly made one with 3inch exhaust pipe hah.
![](https://www.miataturbo.net/attachments/build-threads-57/93442-1990-eunos-build-4ac696ad-eb89-f582.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93443-1990-eunos-build-4ac696ad-ebae-2ce5.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93444-1990-eunos-build-4ac696ad-ebbe-261d.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93445-1990-eunos-build-4ac696ad-ebcd-18d6.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93446-1990-eunos-build-4ac696ad-ebe5-28a8.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93447-1990-eunos-build-4ac696ad-ec10-ffb6.jpg?dateline=1383292354)

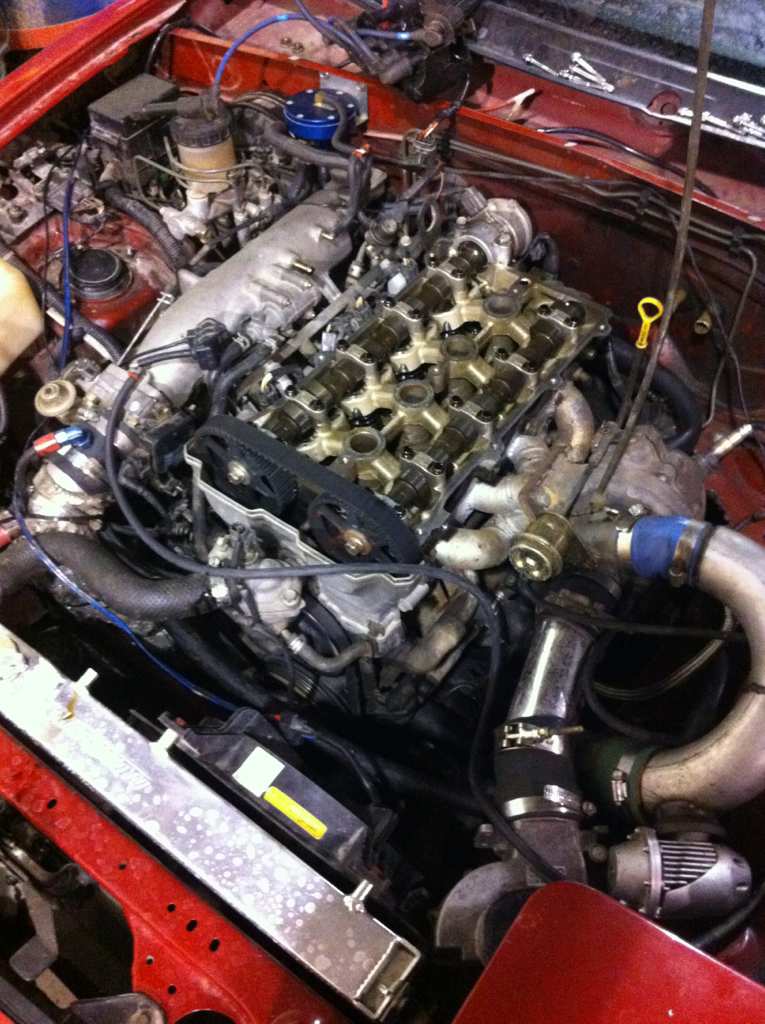

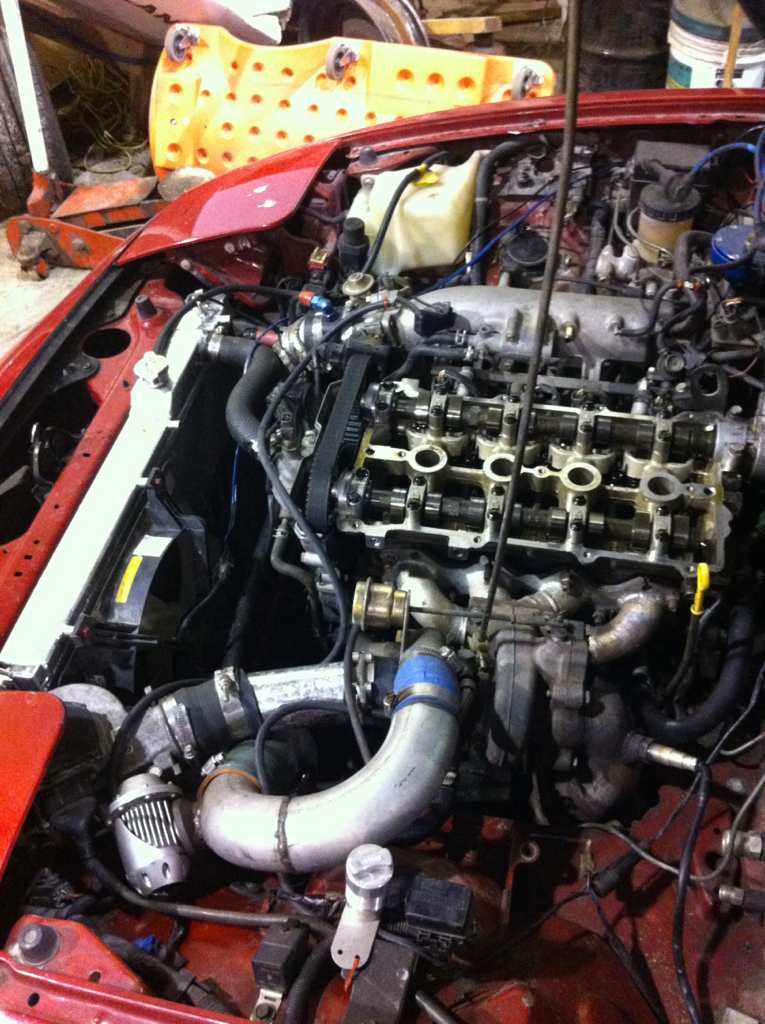

Hurray, valve cover was pissing out oil like crazy so had to replace that
![](https://www.miataturbo.net/attachments/build-threads-57/93448-1990-eunos-build-4ac696ad-ece3-04f3.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93449-1990-eunos-build-4ac696ad-ed07-976a.jpg?dateline=1383292354)

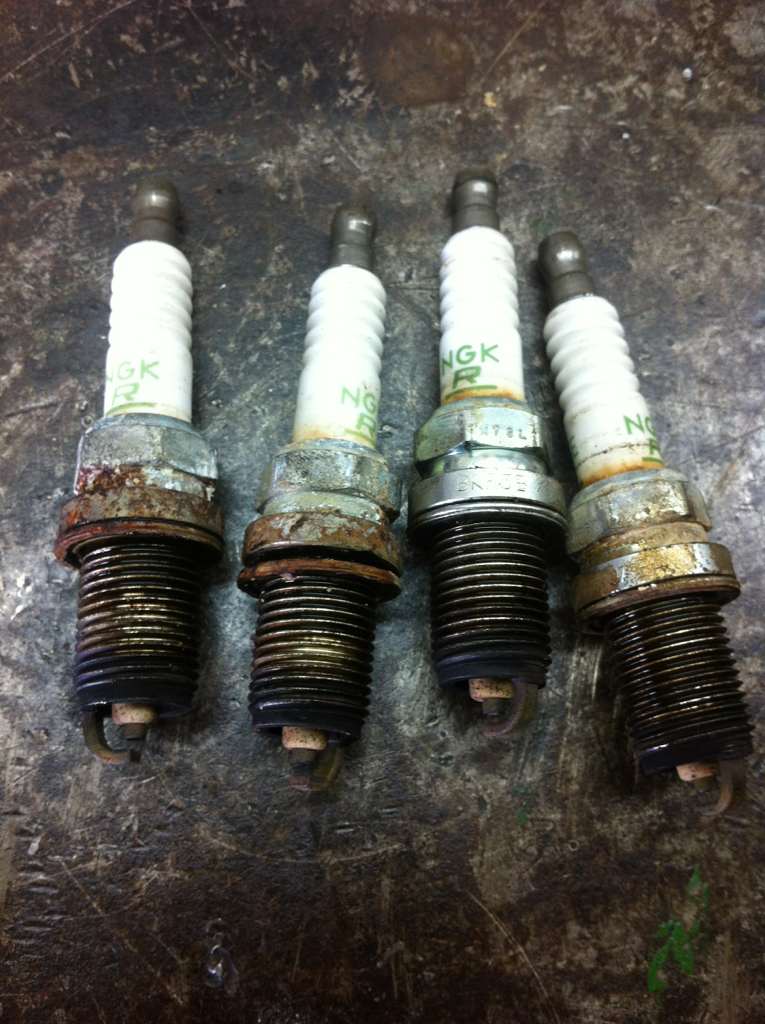

Checked the plugs and they were disgusting so I changed those too and added MSD 8.5 high conductance wires
![](https://www.miataturbo.net/attachments/build-threads-57/93450-1990-eunos-build-4ac696ad-ed59-d1ff.jpg?dateline=1383292354)

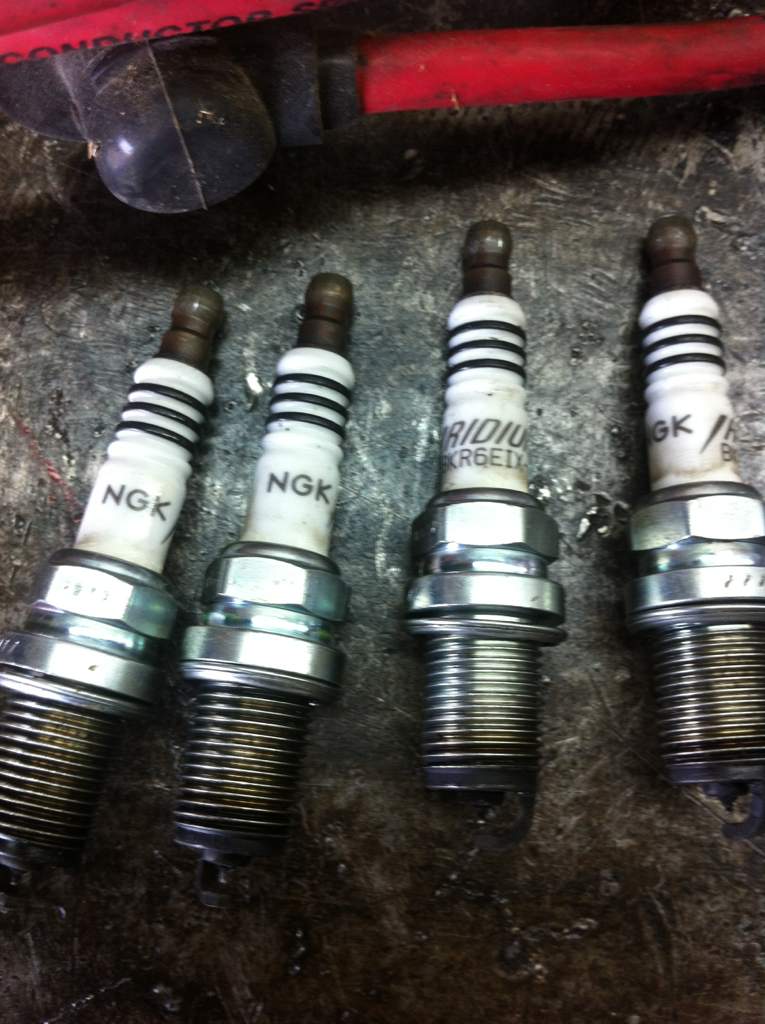

Also went with a bit colder plugs
![](https://www.miataturbo.net/attachments/build-threads-57/93451-1990-eunos-build-4ac696ad-ed94-78ec.jpg?dateline=1383292354)

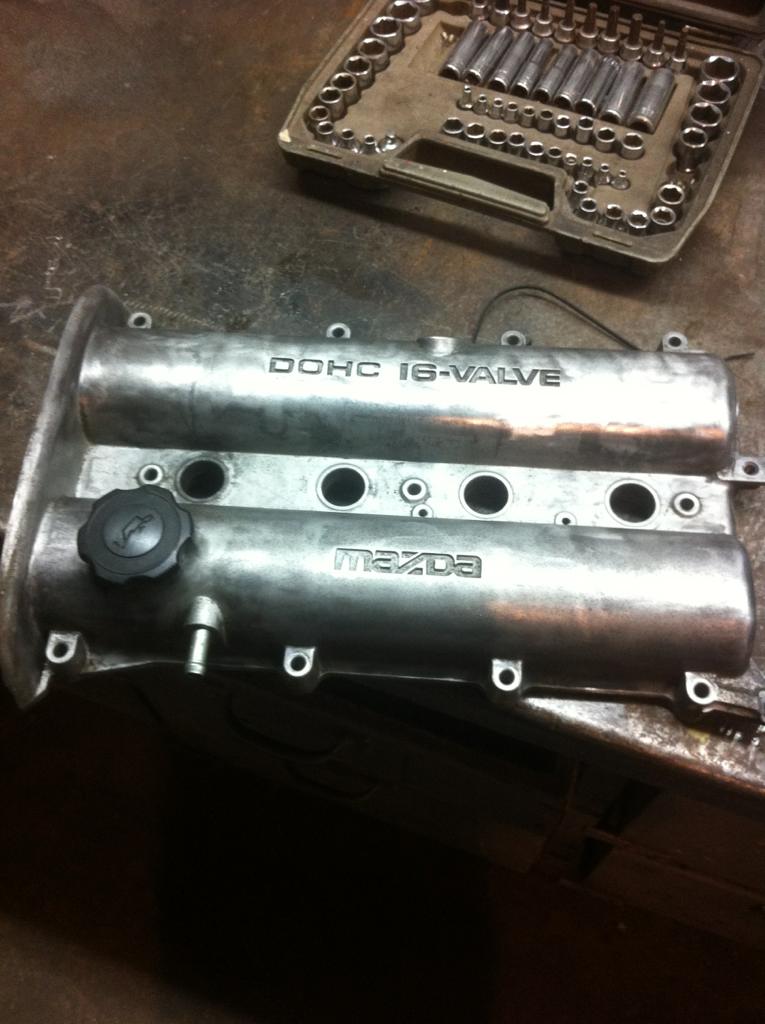

Poorly polished the valve cover poorly and cut the timing belt cover off
![](https://www.miataturbo.net/attachments/build-threads-57/93452-1990-eunos-build-4ac696ad-ee96-b292.jpg?dateline=1383292354)

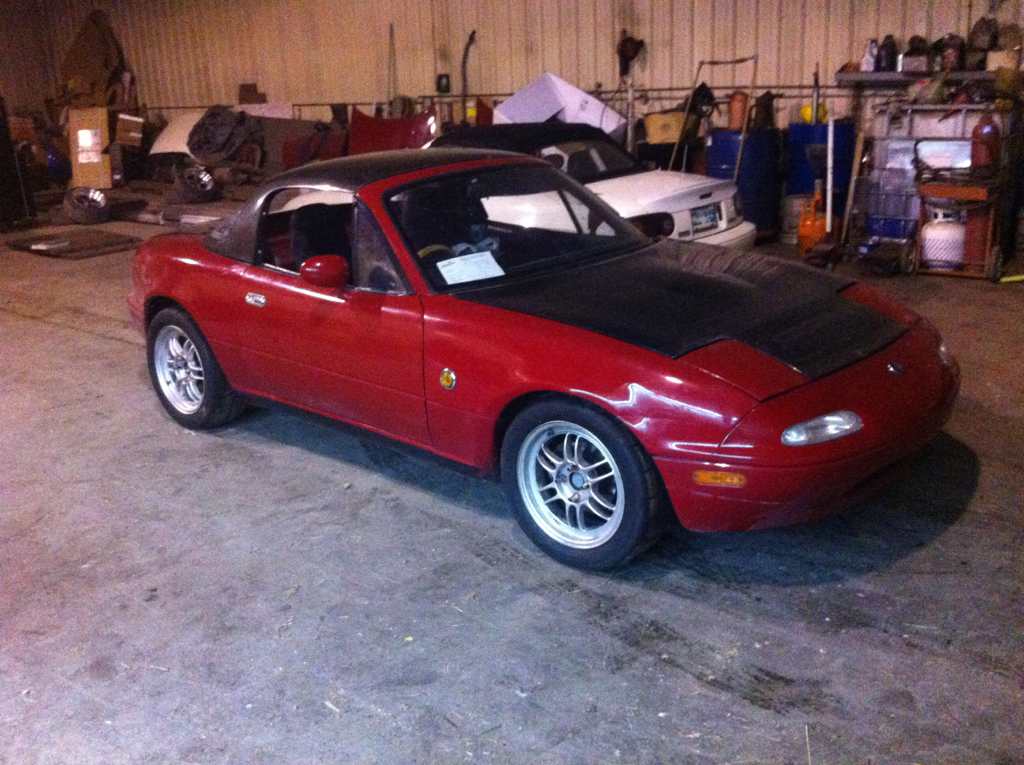

yada yada this is how it sat in 2012
![](http://farm9.staticflickr.com/8170/8055414306_bfc4394201_c.jpg)
![](http://farm9.staticflickr.com/8449/8055413589_265179e63e_c.jpg)
![](https://scontent-a-lax.xx.fbcdn.net/hphotos-ash2/375971_10152171361185503_1527319562_n.jpg)
![](https://fbcdn-sphotos-f-a.akamaihd.net/hphotos-ak-prn1/313612_10152029023960503_2063951960_n.jpg)
![](https://www.miataturbo.net/attachments/build-threads-57/93453-1990-eunos-build-4ac696ad-eefb-757d.jpg?dateline=1383292354)
also dyno'd it at some point.
made 227.23/179 @11psi ish (no tune) (yes i was an idiot)
since then i've pulled the motor and did a few seals then popped it back in.
but i will update a bit later.
I'm missing a lot of stuff but this is just so I can keep track.
This is 1.6 that i had intentions on autox'ing but im not sure about its future anymore
Mods to date:
Suspension/Wheels/brakes
wilwood 4 piston up front and hawk pads on the back
RS*R Race springs (can't remember the spring rate, but they're stiff as ****)
Tokico blue dampers
Eibach 24mm fron sway bar (solid)
Suspension Techniques rear sway (solid)
Tanabe Strut bar (front)
Enkei RPF1 15x7 / work cr01 15x9/9.5
Wheel Spacers (can't remember what size or who made them)
Body/Interior
AK Fast back, Wide body, Shorty console, hood
rennenmetal Spec Miata hardtop brackets
Momo Hub, Random Crappy JDM Wheel
Engine and stuff.
GReddy turbo kit with vibrant front-mount intercooler and custom plumbing
HKS SSQV bov
DIY 3" exhaust & downpipe with A'PEXi N1 turbo muffler
CenterForce dual friction clutch kit
Fidanza Flywheel
Aeromotive fpr (not installed yet)
Rev built ms3 (not installed yet)
AEM Uego wideband
AEM oil pressure
AEM Coolant gauge
defi boost gauge and control unit
M-tuned coolant reroute
Mishimoto Rad
and here we go...
Picked it up a couple years with a blown motor that was taken out and no idea what i was getting into.
![](https://www.miataturbo.net/attachments/build-threads-57/93394-1990-eunos-build-40388df3-e00e-179f.jpg?dateline=1383292354)
Since I hadn't had experience on building a car or anything like the car just sat while I built motivation to do something with it.
So one day a beat up Miata came along at a salvage auction with another 1.6
which was motivation enough to start dicking around with it
![](https://www.miataturbo.net/attachments/build-threads-57/93396-1990-eunos-build-40388df3-e1d8-32ab.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93398-1990-eunos-build-4ac696ad-e33e-104d.jpg?dateline=1383292354)
I didn't have an engine crane at the time so we just used what we had, lol.
![](https://www.miataturbo.net/attachments/build-threads-57/93400-1990-eunos-build-4ac696ad-e401-d298.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93402-1990-eunos-build-4ac696ad-e425-a724.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93404-1990-eunos-build-4ac696ad-e466-28d8.jpg?dateline=1383292354)
Since I had it I figured might as well do a few things.
So I took the power steering pump and brackets off.
Took the clutch off to take a look at it
![](https://www.miataturbo.net/attachments/build-threads-57/93406-1990-eunos-build-4ac696ad-e4e2-394c.jpg?dateline=1383292354)
Which didn't look that great.
![](https://www.miataturbo.net/attachments/build-threads-57/93408-1990-eunos-build-4ac696ad-e54f-e914.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93410-1990-eunos-build-4ac696ad-e562-0e21.jpg?dateline=1383292354)
So I replaced that clutch with a
-fidanza lightweight flywheel
-exedy disc
-center force pressure plate
![](https://www.miataturbo.net/attachments/build-threads-57/93412-1990-eunos-build-4ac696ad-e5c5-634e.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93414-1990-eunos-build-4ac696ad-e5ff-1da3.jpg?dateline=1383292354)
After that i threw on the td04 turbo/etd shorty manifold that came with the car.
![](https://www.miataturbo.net/attachments/build-threads-57/93416-1990-eunos-build-4ac696ad-e6ad-30c8.jpg?dateline=1383292354)
time to stuff it in..
![](https://www.miataturbo.net/attachments/build-threads-57/93418-1990-eunos-build-4ac696ad-e6f4-8047.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93420-1990-eunos-build-4ac696ad-e715-b29f.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93422-1990-eunos-build-4ac696ad-e72b-fde2.jpg?dateline=1383292354)
Hurray.
![](https://www.miataturbo.net/attachments/build-threads-57/93424-1990-eunos-build-4ac696ad-e751-5a56.jpg?dateline=1383292354)
Now it was time to throw on the turbo and the IC piping that was custom made by some exhaust shop from the previous owner, very inefficient
![](https://www.miataturbo.net/attachments/build-threads-57/93426-1990-eunos-build-4ac696ad-e7f6-0fae.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93427-1990-eunos-build-4ac696ad-e823-cbbe.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93430-1990-eunos-build-4ac696ad-e83b-76d0.jpg?dateline=1383292354)
Tied up little odds and ends's added cold wrap on the coldside and mounted Tanabe strut tower brace.
![](https://www.miataturbo.net/attachments/build-threads-57/93431-1990-eunos-build-4ac696ad-e86c-87a4.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93432-1990-eunos-build-4ac696ad-e8f7-480f.jpg?dateline=1383292354)
picked up a mishimoto aluminum rad
![](https://www.miataturbo.net/attachments/build-threads-57/93433-1990-eunos-build-4ac696ad-e93d-94f8.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93434-1990-eunos-build-4ac696ad-e961-cd9e.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93435-1990-eunos-build-4ac696ad-e9d3-4b37.jpg?dateline=1383292354)
exhaust junk
Threw that on as a test fit.
![](https://www.miataturbo.net/attachments/build-threads-57/93436-1990-eunos-build-4ac696ad-ea13-9e57.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93437-1990-eunos-build-4ac696ad-ea36-16f2.jpg?dateline=1383292354)
made my first (probably last) downpipe
![](https://www.miataturbo.net/attachments/build-threads-57/93438-1990-eunos-build-4ac696ad-ea83-ede9.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93439-1990-eunos-build-4ac696ad-eaf2-c2e0.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93440-1990-eunos-build-4ac696ad-eb1b-0fc8.jpg?dateline=1383292354)
Made sure that it fit on the car and moved on
![](https://www.miataturbo.net/attachments/build-threads-57/93441-1990-eunos-build-4ac696ad-eb43-076c.jpg?dateline=1383292354)
Picked up a perrin foam filter but needed and adapter plate to fit on the MAF so quickly made one with 3inch exhaust pipe hah.
![](https://www.miataturbo.net/attachments/build-threads-57/93442-1990-eunos-build-4ac696ad-eb89-f582.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93443-1990-eunos-build-4ac696ad-ebae-2ce5.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93444-1990-eunos-build-4ac696ad-ebbe-261d.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93445-1990-eunos-build-4ac696ad-ebcd-18d6.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93446-1990-eunos-build-4ac696ad-ebe5-28a8.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93447-1990-eunos-build-4ac696ad-ec10-ffb6.jpg?dateline=1383292354)
Hurray, valve cover was pissing out oil like crazy so had to replace that
![](https://www.miataturbo.net/attachments/build-threads-57/93448-1990-eunos-build-4ac696ad-ece3-04f3.jpg?dateline=1383292354)
![](https://www.miataturbo.net/attachments/build-threads-57/93449-1990-eunos-build-4ac696ad-ed07-976a.jpg?dateline=1383292354)
Checked the plugs and they were disgusting so I changed those too and added MSD 8.5 high conductance wires
![](https://www.miataturbo.net/attachments/build-threads-57/93450-1990-eunos-build-4ac696ad-ed59-d1ff.jpg?dateline=1383292354)
Also went with a bit colder plugs
![](https://www.miataturbo.net/attachments/build-threads-57/93451-1990-eunos-build-4ac696ad-ed94-78ec.jpg?dateline=1383292354)
Poorly polished the valve cover poorly and cut the timing belt cover off
![](https://www.miataturbo.net/attachments/build-threads-57/93452-1990-eunos-build-4ac696ad-ee96-b292.jpg?dateline=1383292354)

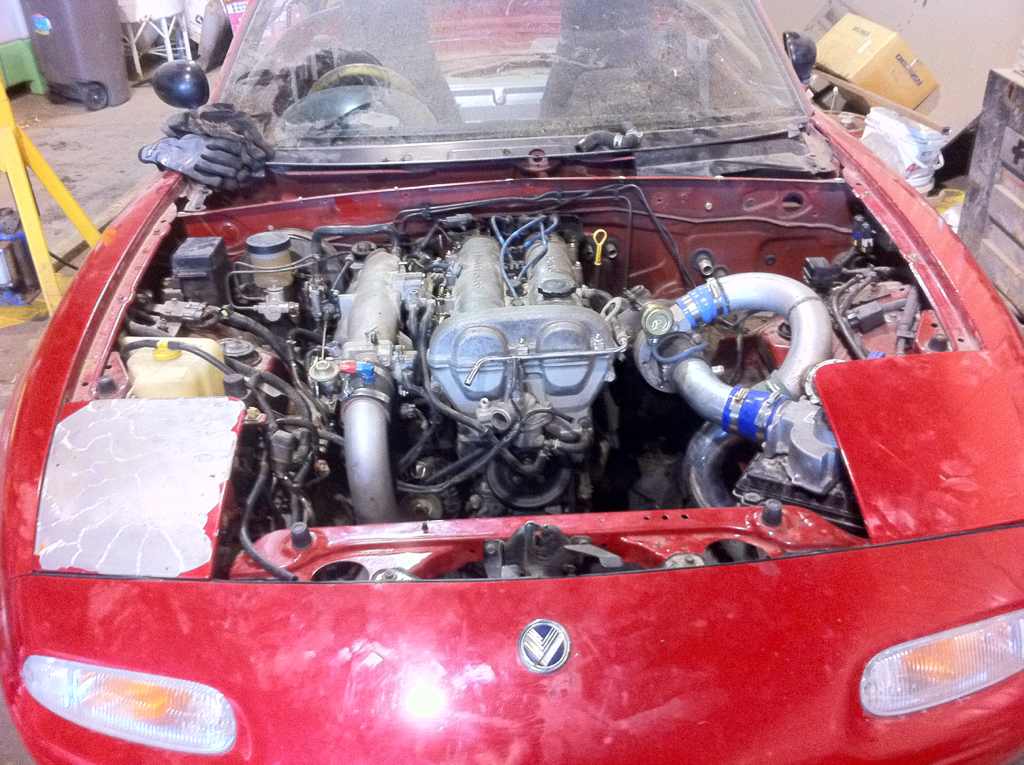

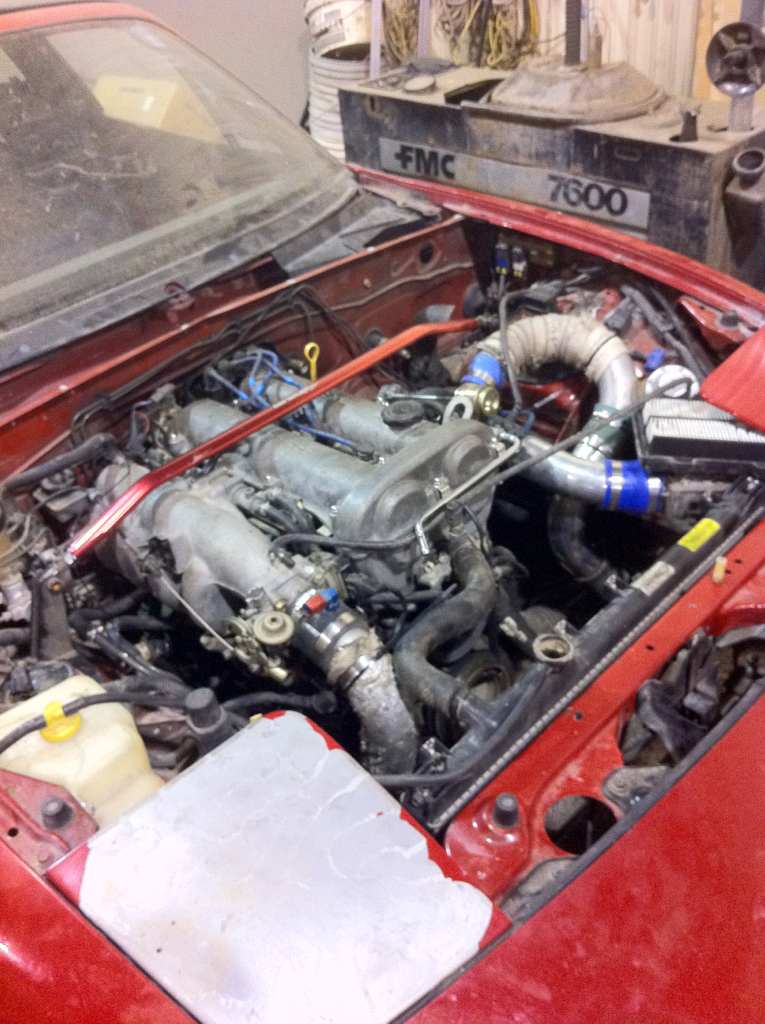

yada yada this is how it sat in 2012
![](http://farm9.staticflickr.com/8170/8055414306_bfc4394201_c.jpg)
![](http://farm9.staticflickr.com/8174/8055416078_3f752d3db5_c.jpg)
![](http://farm9.staticflickr.com/8449/8055413589_265179e63e_c.jpg)
![](https://scontent-a-lax.xx.fbcdn.net/hphotos-ash2/375971_10152171361185503_1527319562_n.jpg)
![](https://fbcdn-sphotos-f-a.akamaihd.net/hphotos-ak-prn1/313612_10152029023960503_2063951960_n.jpg)
![](https://www.miataturbo.net/attachments/build-threads-57/93453-1990-eunos-build-4ac696ad-eefb-757d.jpg?dateline=1383292354)
also dyno'd it at some point.
made 227.23/179 @11psi ish (no tune) (yes i was an idiot)
since then i've pulled the motor and did a few seals then popped it back in.
but i will update a bit later.
#7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
and for fenders i went with Autokonexion 40mm fenders from the GT kit and the new 30mm ones they just made.. will post pics soon.
But for management all it had was the Vortech FMU, you can hear it ping like a bastard on the dyno but hopefully i didnt do too much damage.
Ended clocking the turbo and making the IC piping a little more efficient as well.
#8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

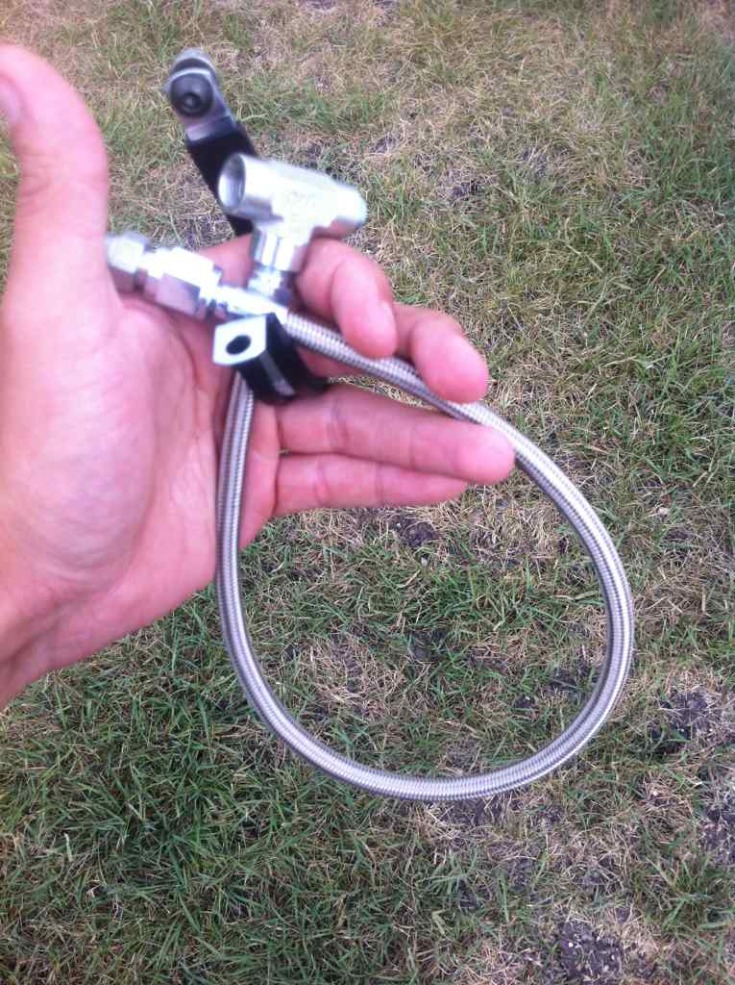

adopted the relocation kitSo I could use my stock and AEM sensor Oil pressure stuffs
![](https://www.miataturbo.net/attachments/build-threads-57/99817-1990-eunos-build-yhagusa9.jpg?dateline=1389746380)
Stock on the right and AEM on the left haha.
![](https://www.miataturbo.net/attachments/build-threads-57/99818-1990-eunos-build-japamepe.jpg?dateline=1389746380)

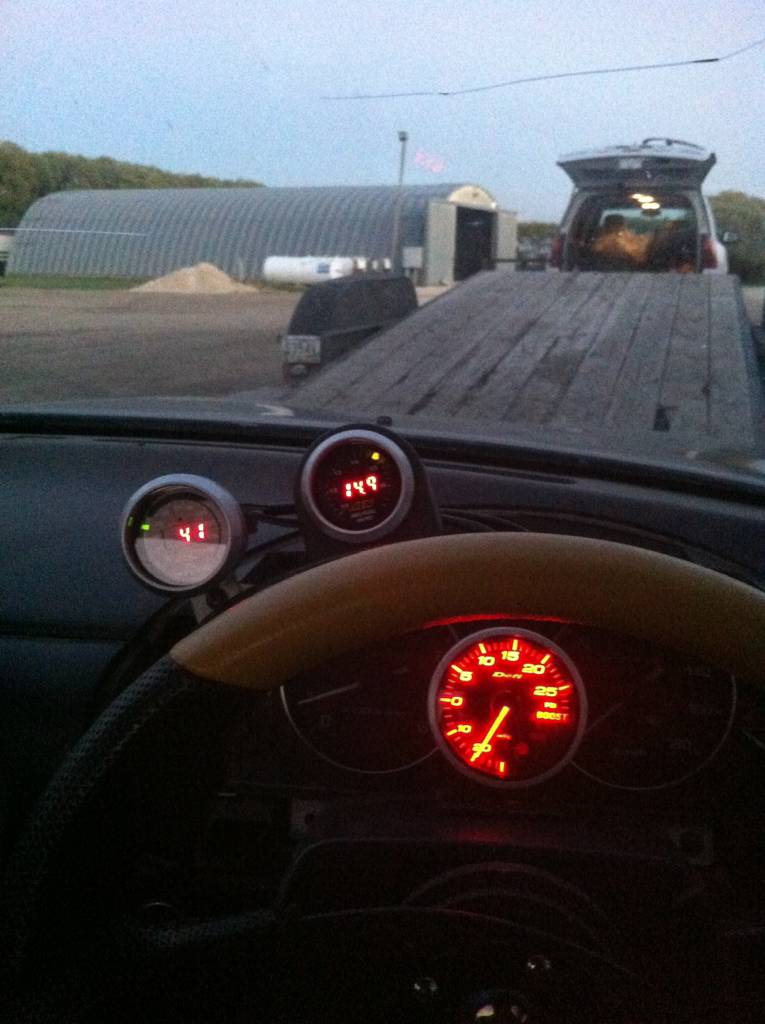

Also changed the faces to look better and match the defi/stock cluster
![](https://www.miataturbo.net/attachments/build-threads-57/99819-1990-eunos-build-etyqy3y6.jpg?dateline=1389746380)
couple things i wanted to refresh while motor was out
Mazda OEM HLA
![](https://www.miataturbo.net/attachments/build-threads-57/99820-1990-eunos-build-a8ynyvy5.jpg?dateline=1389746380)

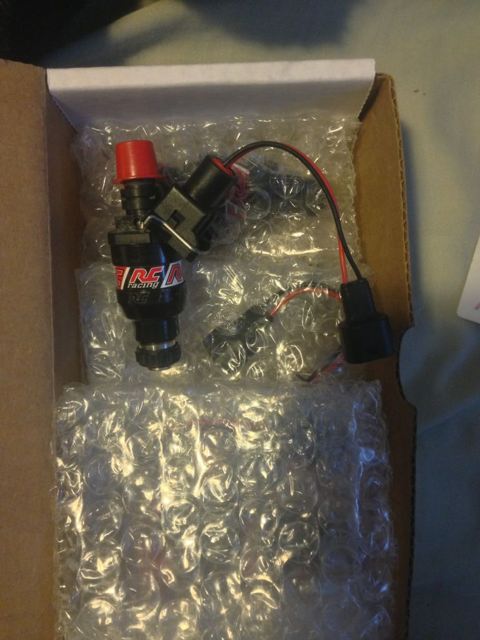

RC 750cc injectors (shitty i know but they were too cheap to say no)
![](https://www.miataturbo.net/attachments/build-threads-57/99821-1990-eunos-build-5u9uze6u.jpg?dateline=1389746380)

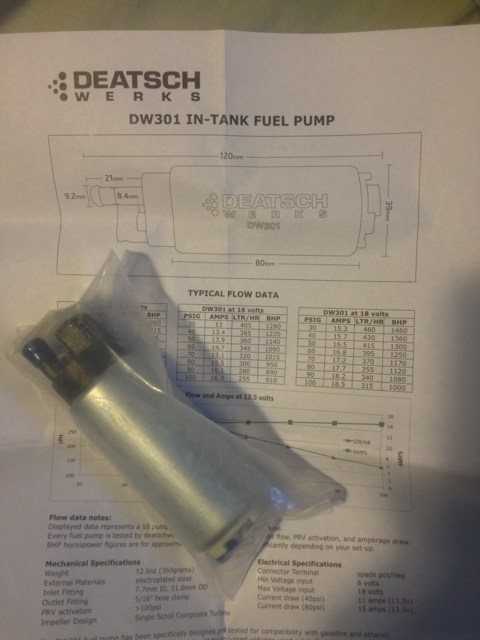

DW 301 fuel pump to replace the walbro 255
![](https://www.miataturbo.net/attachments/build-threads-57/99822-1990-eunos-build-8ugezu7u.jpg?dateline=1389746380)

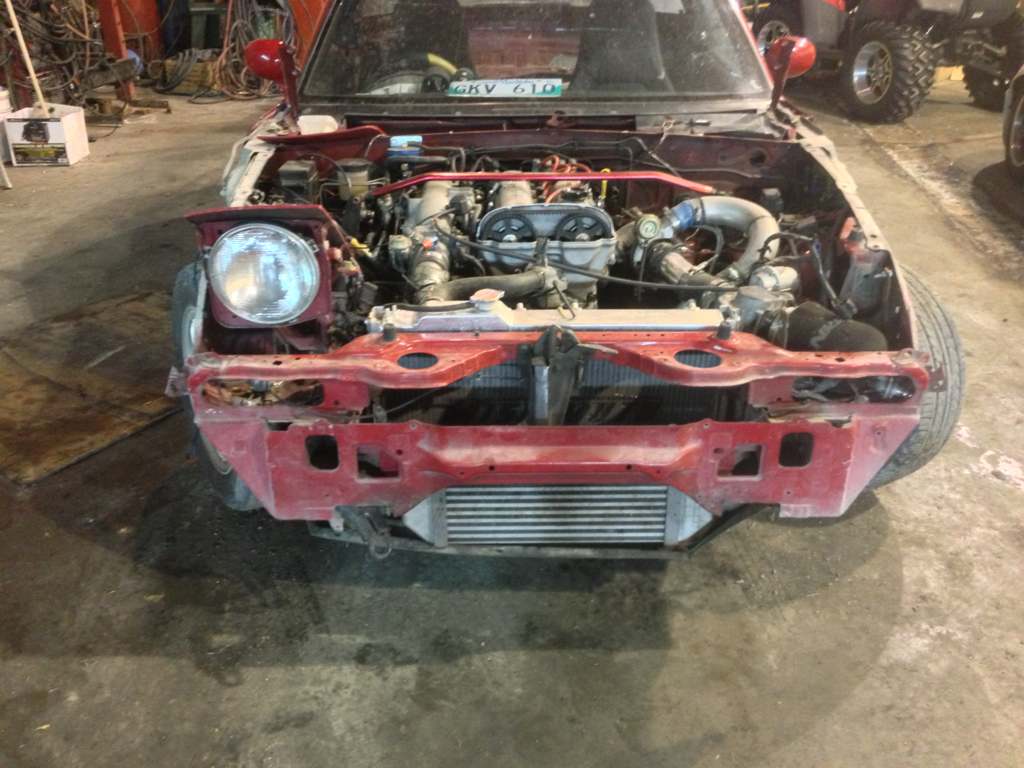

started taking all the crap off to pull the motor
![](https://www.miataturbo.net/attachments/build-threads-57/99823-1990-eunos-build-a6ubu3e2.jpg?dateline=1389746380)

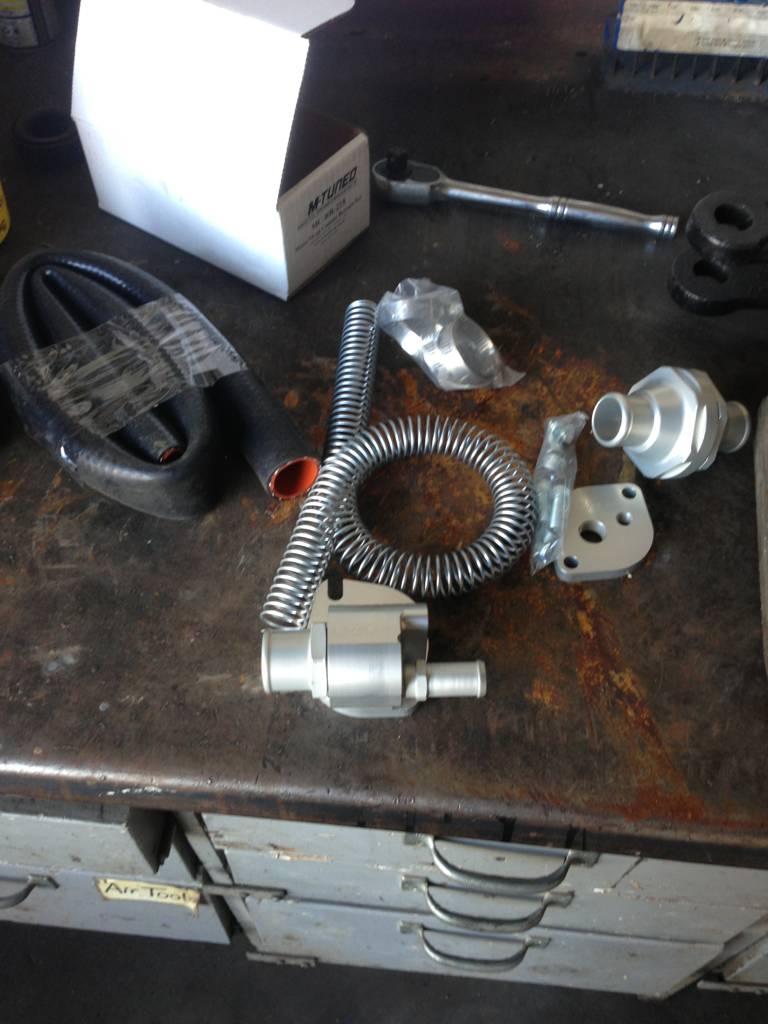

grabbed a coolant reroute from a member on here
![](https://www.miataturbo.net/attachments/build-threads-57/99824-1990-eunos-build-ute6esys.jpg?dateline=1389746380)

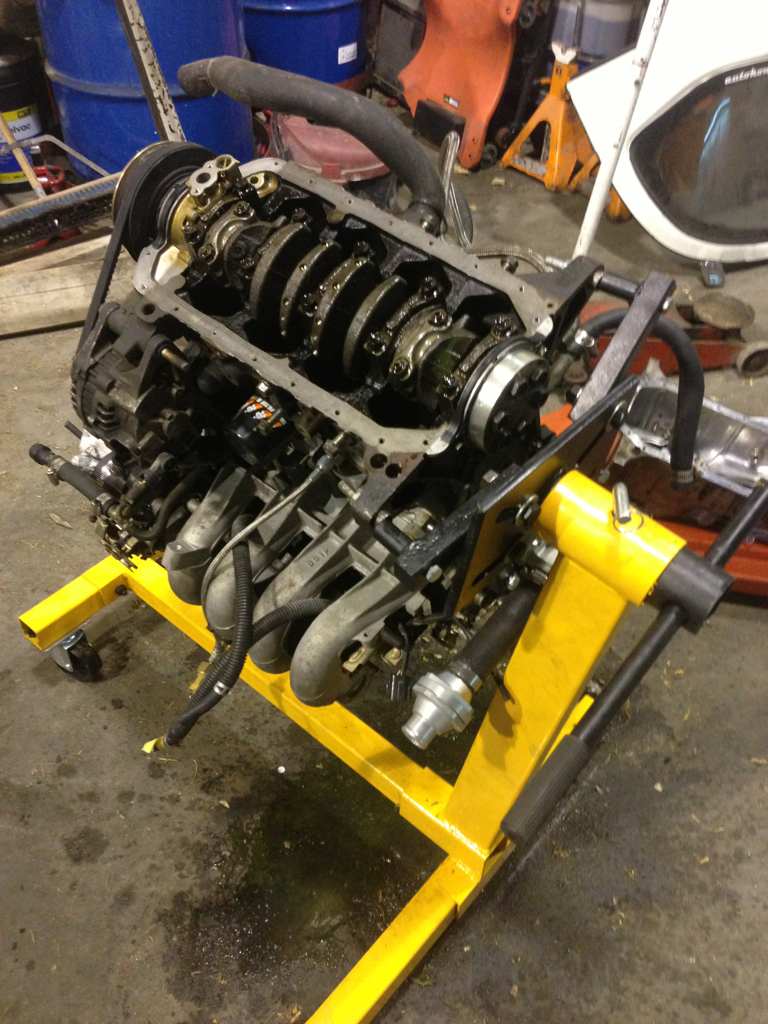

pulled the motor... dropped Oil pan & baffle off and started cleaning up
![](https://www.miataturbo.net/attachments/build-threads-57/99825-1990-eunos-build-abuju7e2.jpg?dateline=1389746380)
![](https://www.miataturbo.net/attachments/build-threads-57/99826-1990-eunos-build-ynanurud.jpg?dateline=1389746380)
![](https://www.miataturbo.net/attachments/build-threads-57/99827-1990-eunos-build-3u4y7ezy.jpg?dateline=1389746380)

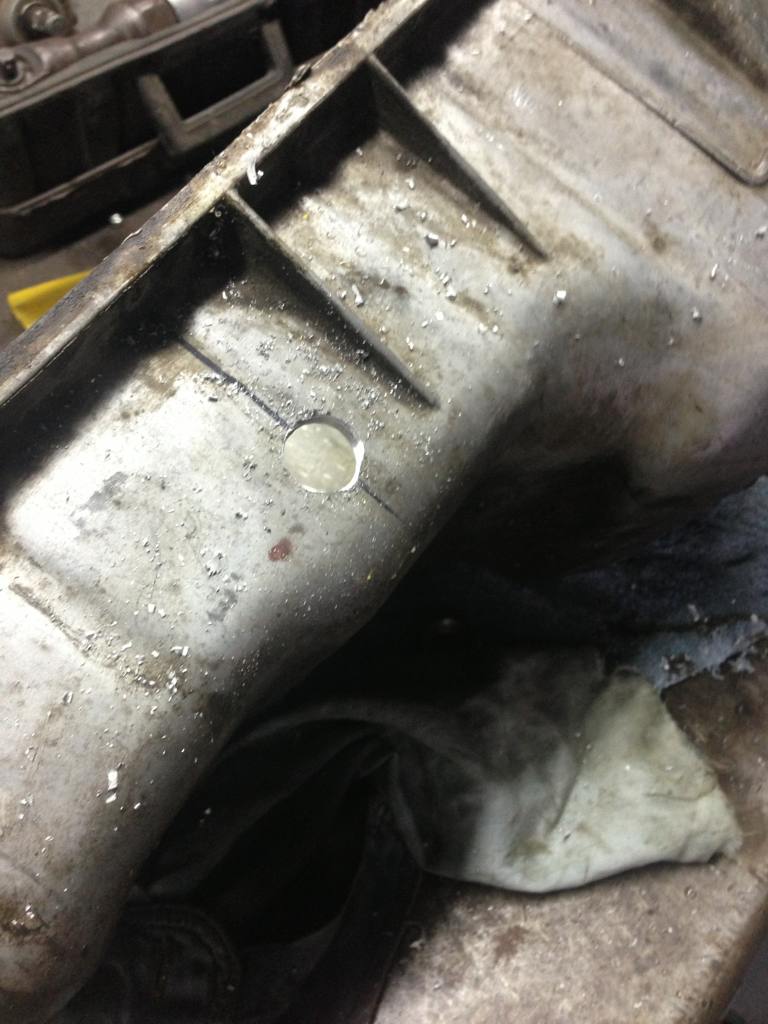

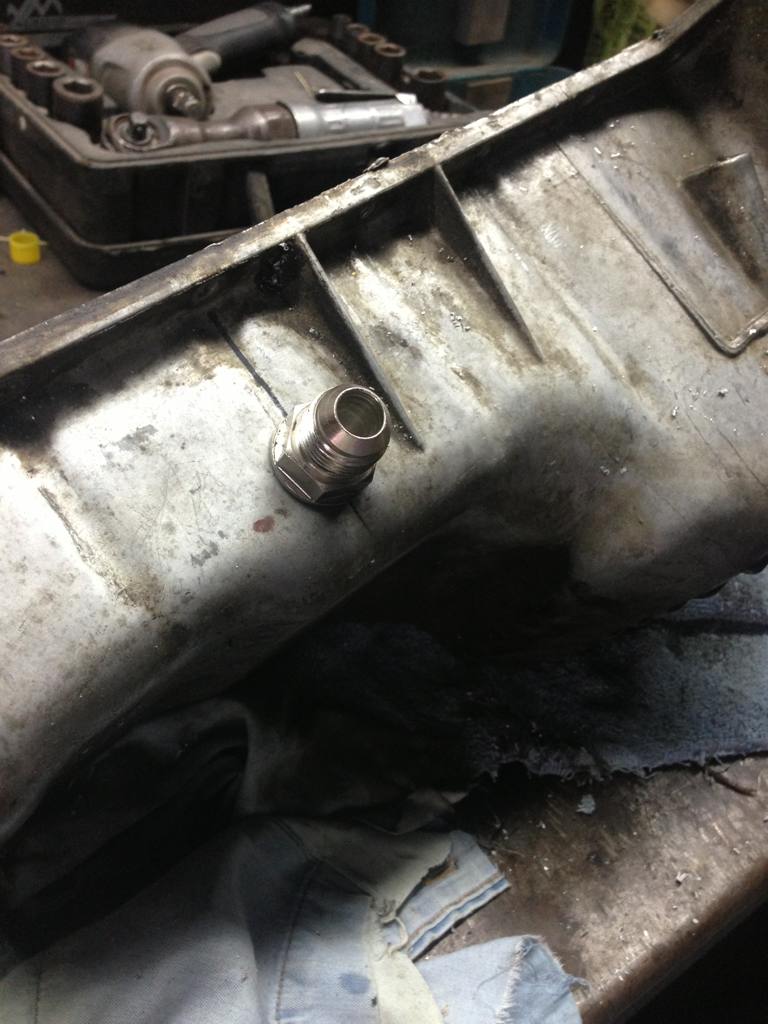

Drilled and tapped it with -8 fitting
![](https://www.miataturbo.net/attachments/build-threads-57/99828-1990-eunos-build-syjuseda.jpg?dateline=1389746380)

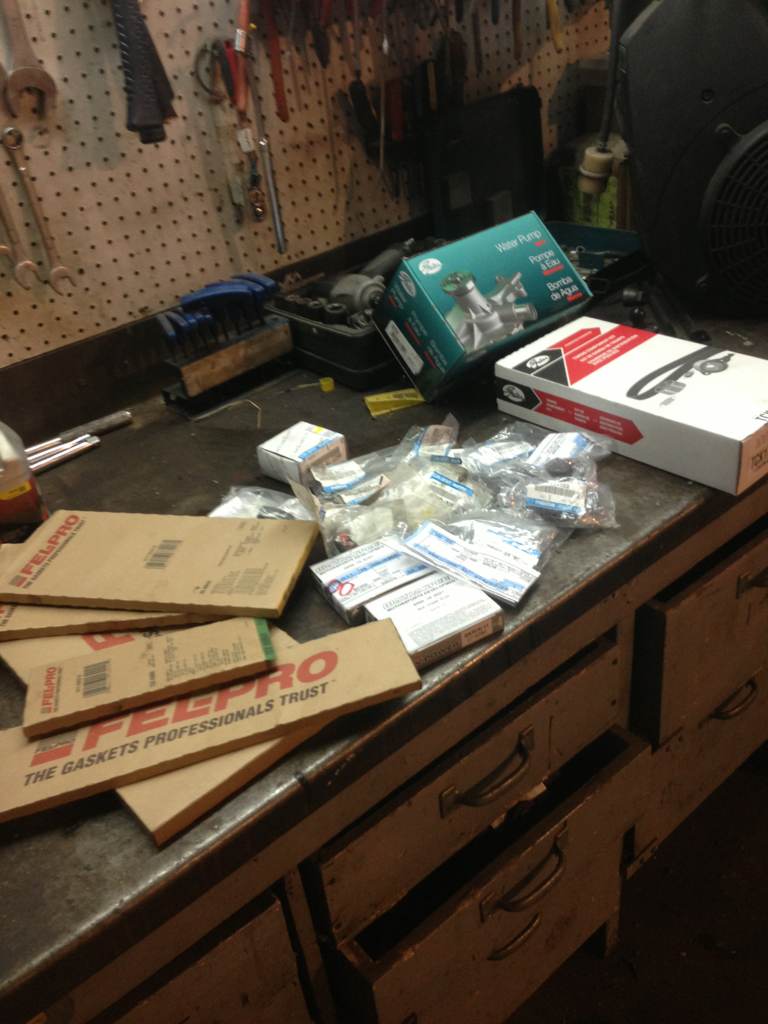

And getting ready to replace a few seals.
![](https://www.miataturbo.net/attachments/build-threads-57/99829-1990-eunos-build-evyhu9ut.jpg?dateline=1389746380)
Mojo was helping me out the other night
![](https://www.miataturbo.net/attachments/build-threads-57/99830-1990-eunos-build-5y7ebe8a.jpg?dateline=1389746380)

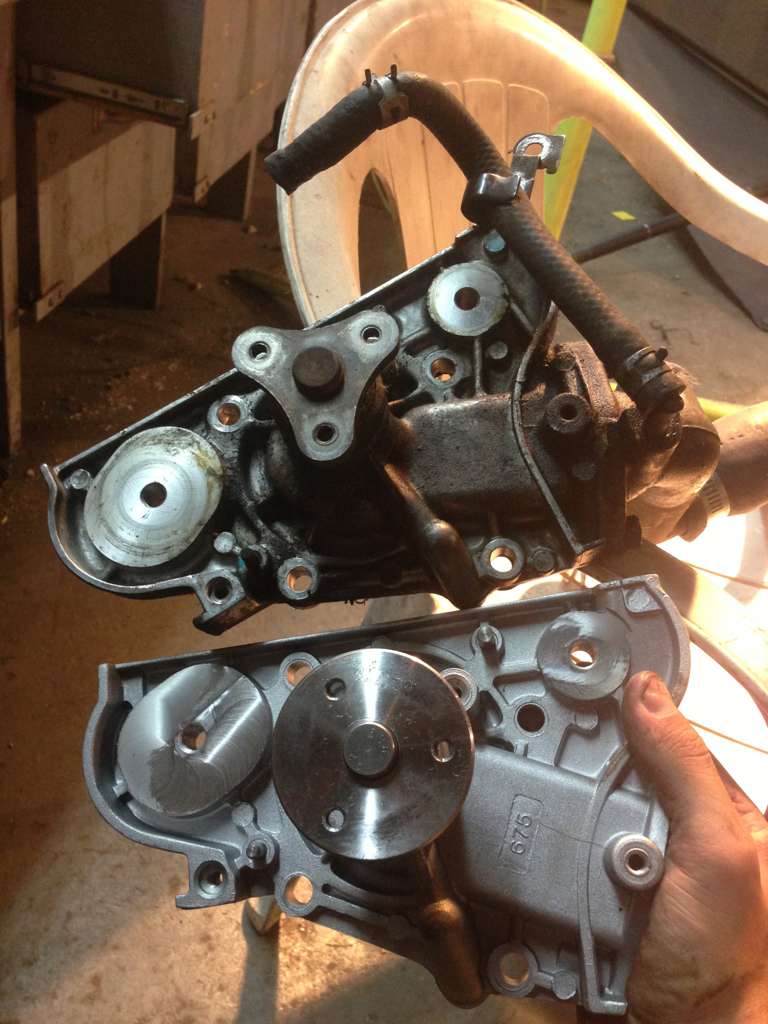

Put in the gates water pump.
![](https://www.miataturbo.net/attachments/build-threads-57/99831-1990-eunos-build-usequzed.jpg?dateline=1389746380)
![](https://www.miataturbo.net/attachments/build-threads-57/99832-1990-eunos-build-upehy8e5.jpg?dateline=1389746380)

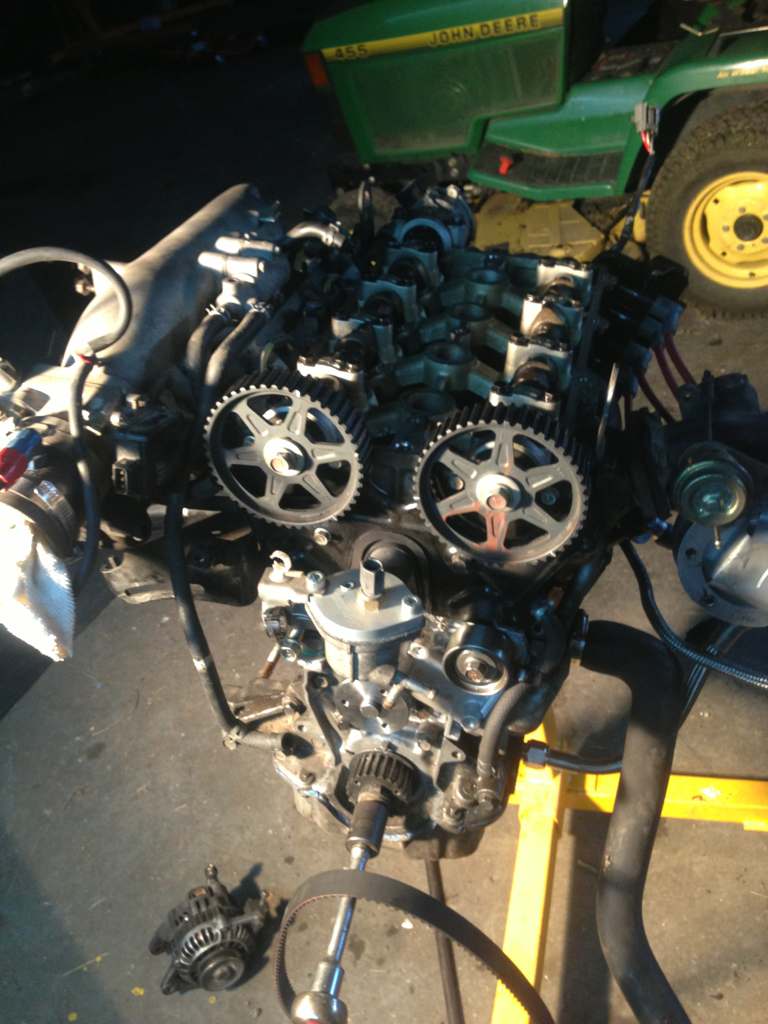

Did the timing belt, looked like it was off a little bit some how. But it's gerd nao
![](https://www.miataturbo.net/attachments/build-threads-57/99833-1990-eunos-build-epava6yn.jpg?dateline=1389746380)

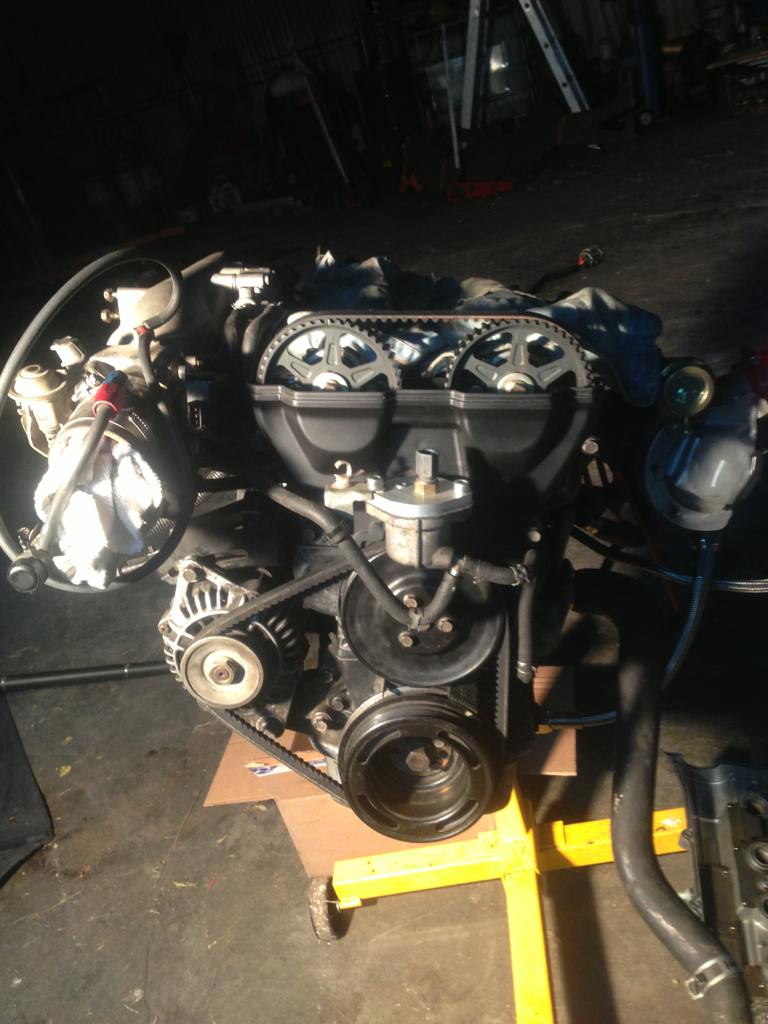

All the seals are in, just need to paint the valve cover, put the injectors in and few others fings
Seals/gaskets
-cam seals
-front crank
-rear crank
-timing belt, idler pulley and tensioner
-water pump & gaskets
-valve cover
-oil pan
-trans input
-trans output
-spark plugs
-throw out bearing
![](https://www.miataturbo.net/attachments/build-threads-57/99834-1990-eunos-build-ubu7upun.jpg?dateline=1389746380)
MS3 also came in, getting ready to party
![](https://www.miataturbo.net/attachments/build-threads-57/99817-1990-eunos-build-yhagusa9.jpg?dateline=1389746380)
Stock on the right and AEM on the left haha.
![](https://www.miataturbo.net/attachments/build-threads-57/99818-1990-eunos-build-japamepe.jpg?dateline=1389746380)
Also changed the faces to look better and match the defi/stock cluster
![](https://www.miataturbo.net/attachments/build-threads-57/99819-1990-eunos-build-etyqy3y6.jpg?dateline=1389746380)
couple things i wanted to refresh while motor was out
Mazda OEM HLA
![](https://www.miataturbo.net/attachments/build-threads-57/99820-1990-eunos-build-a8ynyvy5.jpg?dateline=1389746380)
RC 750cc injectors (shitty i know but they were too cheap to say no)
![](https://www.miataturbo.net/attachments/build-threads-57/99821-1990-eunos-build-5u9uze6u.jpg?dateline=1389746380)
DW 301 fuel pump to replace the walbro 255
![](https://www.miataturbo.net/attachments/build-threads-57/99822-1990-eunos-build-8ugezu7u.jpg?dateline=1389746380)
started taking all the crap off to pull the motor
![](https://www.miataturbo.net/attachments/build-threads-57/99823-1990-eunos-build-a6ubu3e2.jpg?dateline=1389746380)
grabbed a coolant reroute from a member on here
![](https://www.miataturbo.net/attachments/build-threads-57/99824-1990-eunos-build-ute6esys.jpg?dateline=1389746380)
pulled the motor... dropped Oil pan & baffle off and started cleaning up
![](https://www.miataturbo.net/attachments/build-threads-57/99825-1990-eunos-build-abuju7e2.jpg?dateline=1389746380)
![](https://www.miataturbo.net/attachments/build-threads-57/99826-1990-eunos-build-ynanurud.jpg?dateline=1389746380)
![](https://www.miataturbo.net/attachments/build-threads-57/99827-1990-eunos-build-3u4y7ezy.jpg?dateline=1389746380)
Drilled and tapped it with -8 fitting
![](https://www.miataturbo.net/attachments/build-threads-57/99828-1990-eunos-build-syjuseda.jpg?dateline=1389746380)
And getting ready to replace a few seals.
![](https://www.miataturbo.net/attachments/build-threads-57/99829-1990-eunos-build-evyhu9ut.jpg?dateline=1389746380)
Mojo was helping me out the other night
![](https://www.miataturbo.net/attachments/build-threads-57/99830-1990-eunos-build-5y7ebe8a.jpg?dateline=1389746380)
Put in the gates water pump.
![](https://www.miataturbo.net/attachments/build-threads-57/99831-1990-eunos-build-usequzed.jpg?dateline=1389746380)
![](https://www.miataturbo.net/attachments/build-threads-57/99832-1990-eunos-build-upehy8e5.jpg?dateline=1389746380)
Did the timing belt, looked like it was off a little bit some how. But it's gerd nao
![](https://www.miataturbo.net/attachments/build-threads-57/99833-1990-eunos-build-epava6yn.jpg?dateline=1389746380)
All the seals are in, just need to paint the valve cover, put the injectors in and few others fings
Seals/gaskets
-cam seals
-front crank
-rear crank
-timing belt, idler pulley and tensioner
-water pump & gaskets
-valve cover
-oil pan
-trans input
-trans output
-spark plugs
-throw out bearing
![](https://www.miataturbo.net/attachments/build-threads-57/99834-1990-eunos-build-ubu7upun.jpg?dateline=1389746380)
MS3 also came in, getting ready to party
#11
Elite Member
iTrader: (12)
Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,516
Total Cats: 20
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Fuel pump should be great. I am a big fan of too much pump rather than not enough. The aeromotive FPR is an awesome unit and should control your pressure just fine. Great progress and I cant wait to see how this thing turns out.
#13
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Finished up the exhaust, not that pretty but whatever. Crush bent 3in that came with the car
![1990 Eunos Build-image-224324285.jpg](https://www.miataturbo.net/attachments/build-threads-57/109137d1467840566t-1990-eunos-build-image-224324285.jpg)
![1990 Eunos Build-image-1574242785.jpg](https://www.miataturbo.net/attachments/build-threads-57/109138d1467840566t-1990-eunos-build-image-1574242785.jpg)
Also cut these out and switched to v-band clamps (never going back lol)
![1990 Eunos Build-image-4231636757.jpg](https://www.miataturbo.net/attachments/build-threads-57/109139d1467840566t-1990-eunos-build-image-4231636757.jpg)
Basically have the motor in and running and all that.

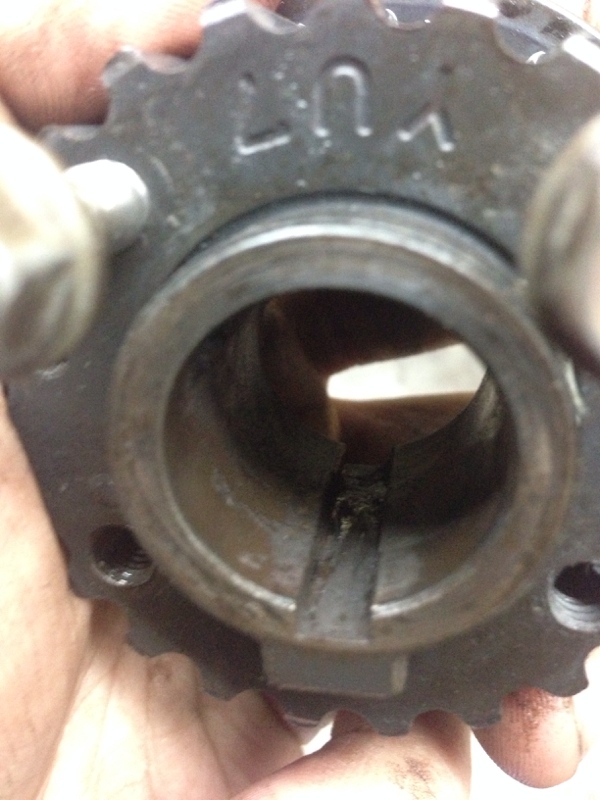

Ended up getting a wobbly crank, and found out it was from a used cog I had got from when I accidentally dropped mine and it had chipped lol...bah
![1990 Eunos Build-image-2214663809.jpg](https://www.miataturbo.net/attachments/build-threads-57/109140d1467840566t-1990-eunos-build-image-2214663809.jpg)
![1990 Eunos Build-image-3736321407.jpg](https://www.miataturbo.net/attachments/build-threads-57/109141d1467840566t-1990-eunos-build-image-3736321407.jpg)

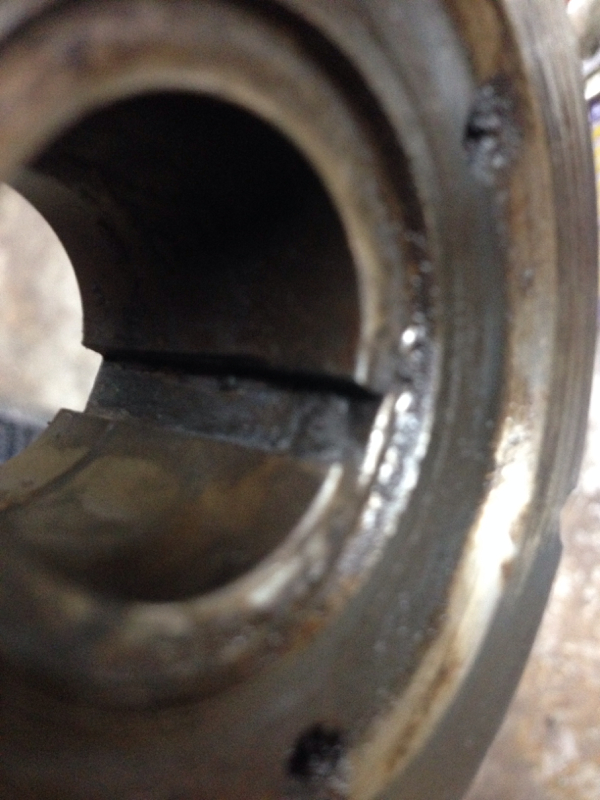

this was probably why.. haha going to order a new one this week hopefully... along with some cam seals and front crank looks like it started leaking too... for whatever reason... maybe the cam seals need rtv
![1990 Eunos Build-image-224324285.jpg](https://www.miataturbo.net/attachments/build-threads-57/109137d1467840566t-1990-eunos-build-image-224324285.jpg)
![1990 Eunos Build-image-1574242785.jpg](https://www.miataturbo.net/attachments/build-threads-57/109138d1467840566t-1990-eunos-build-image-1574242785.jpg)
Also cut these out and switched to v-band clamps (never going back lol)
![1990 Eunos Build-image-4231636757.jpg](https://www.miataturbo.net/attachments/build-threads-57/109139d1467840566t-1990-eunos-build-image-4231636757.jpg)
Basically have the motor in and running and all that.
Ended up getting a wobbly crank, and found out it was from a used cog I had got from when I accidentally dropped mine and it had chipped lol...bah
![1990 Eunos Build-image-2214663809.jpg](https://www.miataturbo.net/attachments/build-threads-57/109140d1467840566t-1990-eunos-build-image-2214663809.jpg)
![1990 Eunos Build-image-3736321407.jpg](https://www.miataturbo.net/attachments/build-threads-57/109141d1467840566t-1990-eunos-build-image-3736321407.jpg)
this was probably why.. haha going to order a new one this week hopefully... along with some cam seals and front crank looks like it started leaking too... for whatever reason... maybe the cam seals need rtv
#14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Frog arms installed
![](https://www.dropbox.com/s/x4lm5hopuhof4l9/2013-11-05%2017.03.49.jpg)

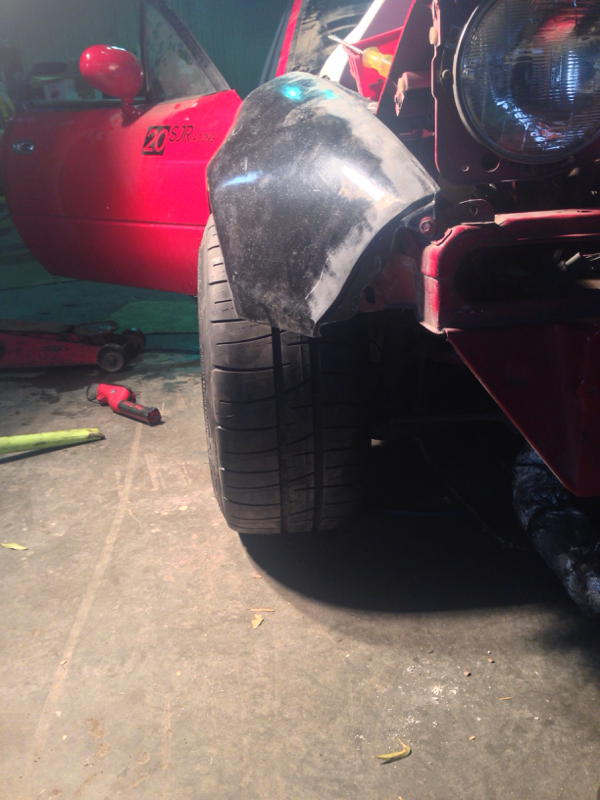

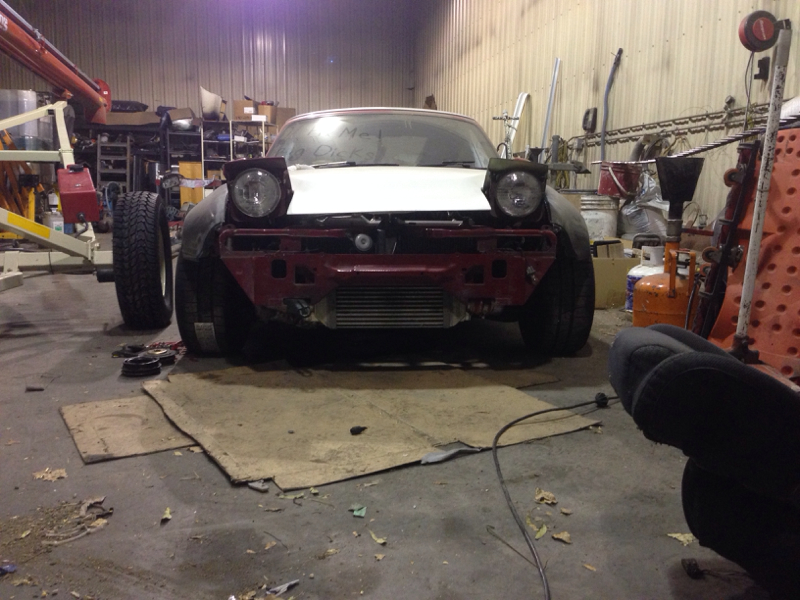

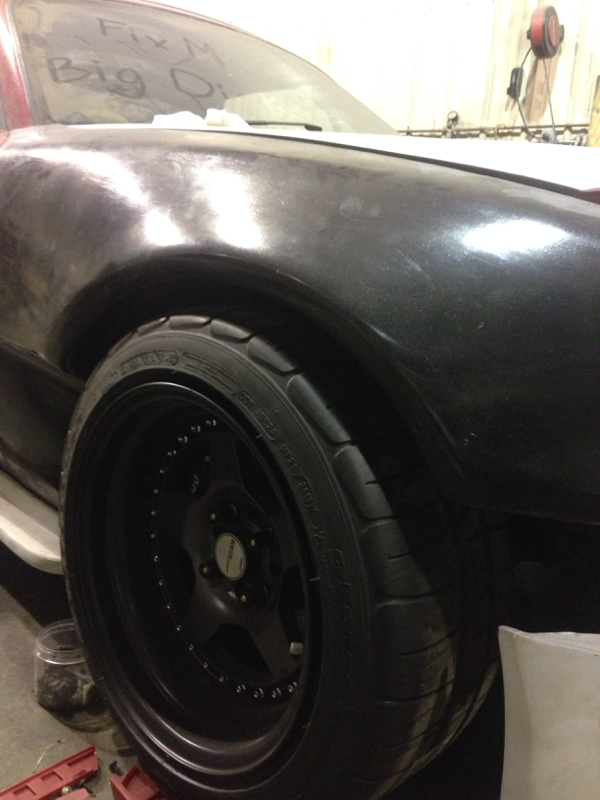

Picture from the front with the new autokonexion fenders installed
![1990 Eunos Build-image-3815741454.jpg](https://www.miataturbo.net/attachments/build-threads-57/109154d1467840566t-1990-eunos-build-image-3815741454.jpg)
![1990 Eunos Build-image-112449357.jpg](https://www.miataturbo.net/attachments/build-threads-57/109155d1467840566t-1990-eunos-build-image-112449357.jpg)
![1990 Eunos Build-image-2821268427.jpg](https://www.miataturbo.net/attachments/build-threads-57/109145d1467840566t-1990-eunos-build-image-2821268427.jpg)

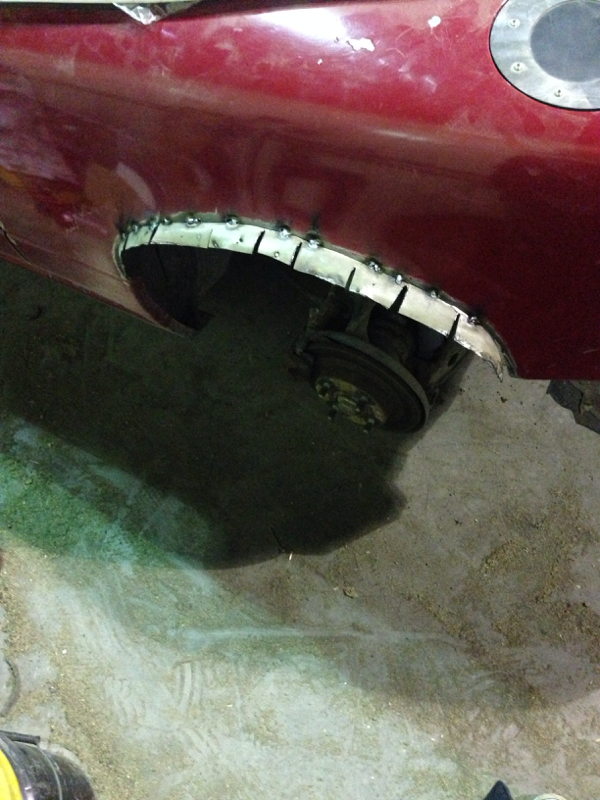

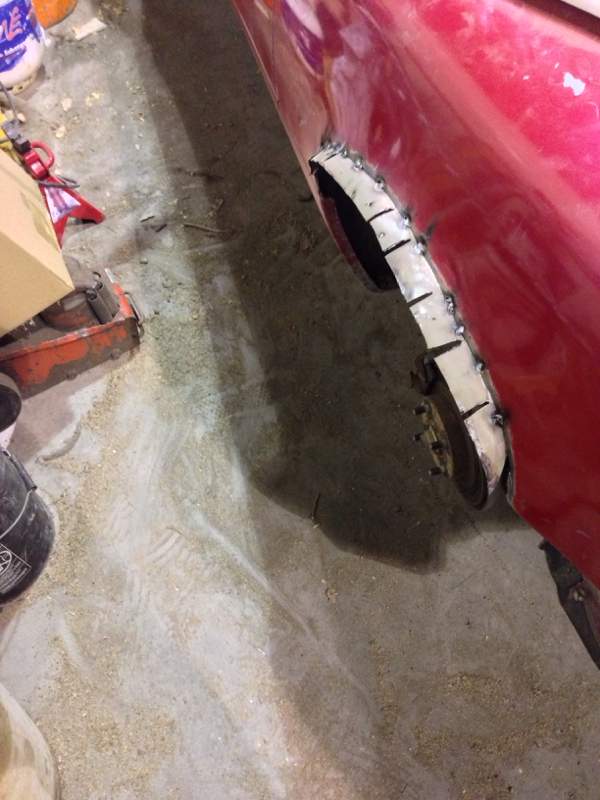

Started on the rear overs
[IMG]ttps://www.dropbox.com/s/9nzv58pcr3dkph1/2013-10-19%2023.54.22.jpg[/IMG]
didnt take too many pictures of the process unfortunately
![1990 Eunos Build-image-1922489039.jpg](https://www.miataturbo.net/attachments/build-threads-57/109147d1467840566t-1990-eunos-build-image-1922489039.jpg)
![1990 Eunos Build-image-3786352161.jpg](https://www.miataturbo.net/attachments/build-threads-57/109148d1467840566t-1990-eunos-build-image-3786352161.jpg)
![1990 Eunos Build-image-1006496361.jpg](https://www.miataturbo.net/attachments/build-threads-57/109149d1467840566t-1990-eunos-build-image-1006496361.jpg)

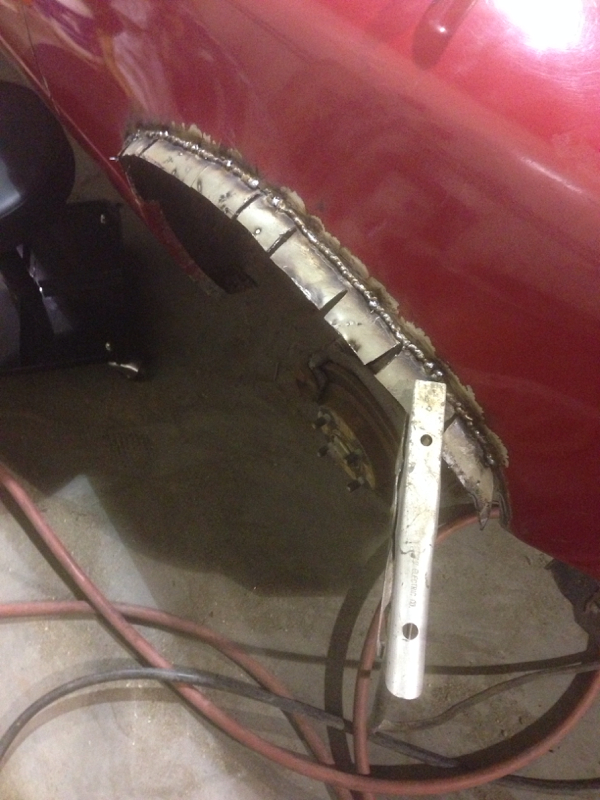

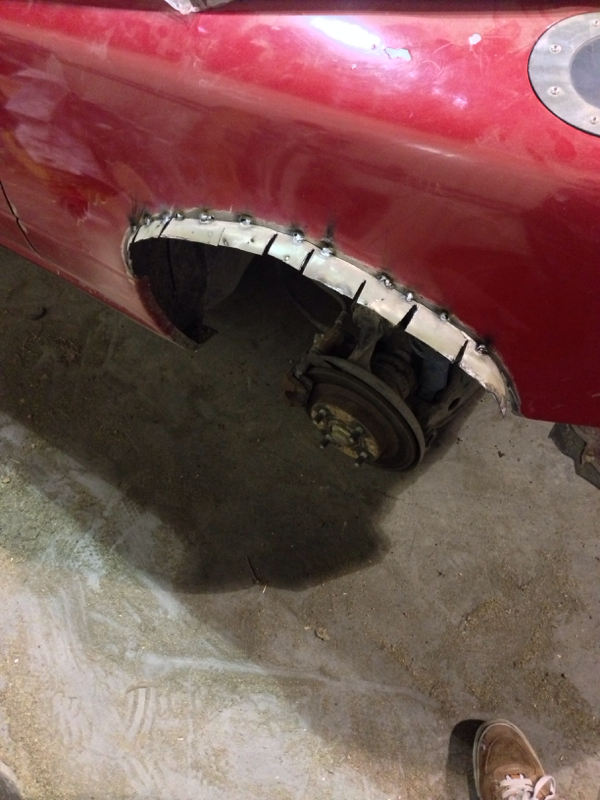

Excuse my welding, never been good at it, and with the metal being so thin and trying not to wrap it didn't help.
![](https://www.dropbox.com/s/x4lm5hopuhof4l9/2013-11-05%2017.03.49.jpg)
Picture from the front with the new autokonexion fenders installed
![1990 Eunos Build-image-3815741454.jpg](https://www.miataturbo.net/attachments/build-threads-57/109154d1467840566t-1990-eunos-build-image-3815741454.jpg)
![1990 Eunos Build-image-112449357.jpg](https://www.miataturbo.net/attachments/build-threads-57/109155d1467840566t-1990-eunos-build-image-112449357.jpg)
![1990 Eunos Build-image-2821268427.jpg](https://www.miataturbo.net/attachments/build-threads-57/109145d1467840566t-1990-eunos-build-image-2821268427.jpg)
Started on the rear overs
[IMG]ttps://www.dropbox.com/s/9nzv58pcr3dkph1/2013-10-19%2023.54.22.jpg[/IMG]
didnt take too many pictures of the process unfortunately
![1990 Eunos Build-image-1922489039.jpg](https://www.miataturbo.net/attachments/build-threads-57/109147d1467840566t-1990-eunos-build-image-1922489039.jpg)
![1990 Eunos Build-image-3786352161.jpg](https://www.miataturbo.net/attachments/build-threads-57/109148d1467840566t-1990-eunos-build-image-3786352161.jpg)
![1990 Eunos Build-image-1006496361.jpg](https://www.miataturbo.net/attachments/build-threads-57/109149d1467840566t-1990-eunos-build-image-1006496361.jpg)
Excuse my welding, never been good at it, and with the metal being so thin and trying not to wrap it didn't help.
#15
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
another small update:
Finished up with my exhaust stuff:
![Name: c1AVJOq.jpg
Views: 16
Size: 814.1 KB](https://www.miataturbo.net/attachments/build-threads-57/239175d1683056094-1990-eunos-build-c1avjoq.jpg)
hated the fitment of old one i made, was basically rubbing on the front sub frame, and was a nightmare to bolt back on.
![Name: 5FHCYuF.jpg
Views: 17
Size: 794.7 KB](https://www.miataturbo.net/attachments/build-threads-57/239176d1683056094-1990-eunos-build-5fhcyuf.jpg)

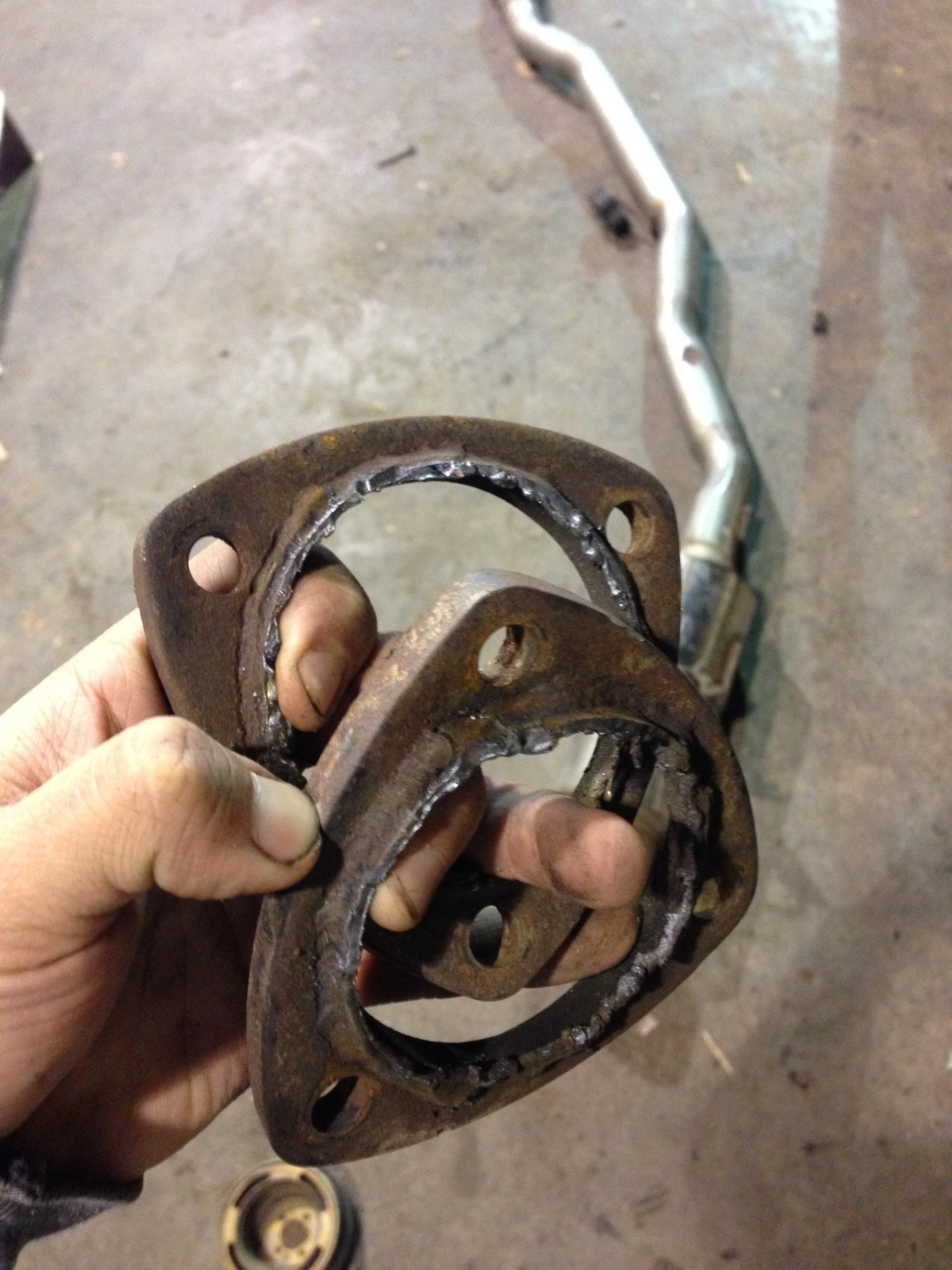

was using this collector flange initially
![Name: su8GTlI.jpg
Views: 17
Size: 700.7 KB](https://www.miataturbo.net/attachments/build-threads-57/239177d1683056094-1990-eunos-build-su8gtli.jpg)
and switched it out for some ebay v-band flanges
![Name: aelujTo.jpg
Views: 17
Size: 753.4 KB](https://www.miataturbo.net/attachments/build-threads-57/239178d1683056094-1990-eunos-build-aelujto.jpg)
exhaust is just a crush bent 3in (cause cheap) and basically 2.5 in DP

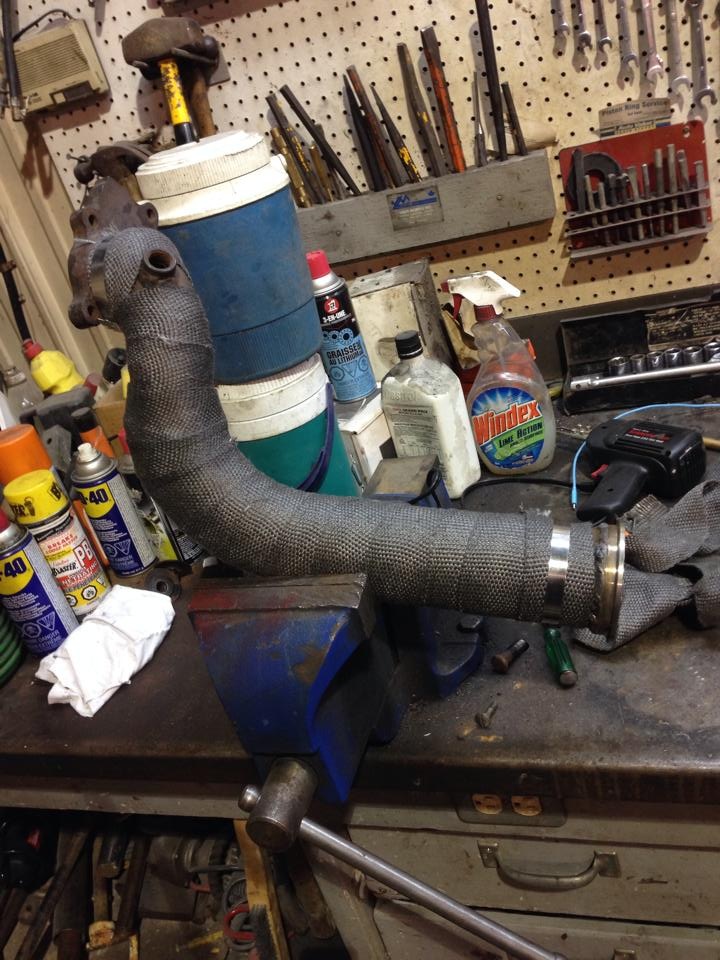

then i wrapped it up, cause it looks pretty now
![](https://www.miataturbo.net/attachments/build-threads-57/116815-1990-eunos-build-rtdja2q.jpg?dateline=1404069134)
started rebuilding my front end a bit.
did:
-ball joints (upper/lower)
-tie rod end
-poly bushings in the UCA/LCA
-ARP extended studs
![Name: 8B7Jjxk.jpg
Views: 17
Size: 792.9 KB](https://www.miataturbo.net/attachments/build-threads-57/239179d1683056094-1990-eunos-build-8b7jjxk.jpg)

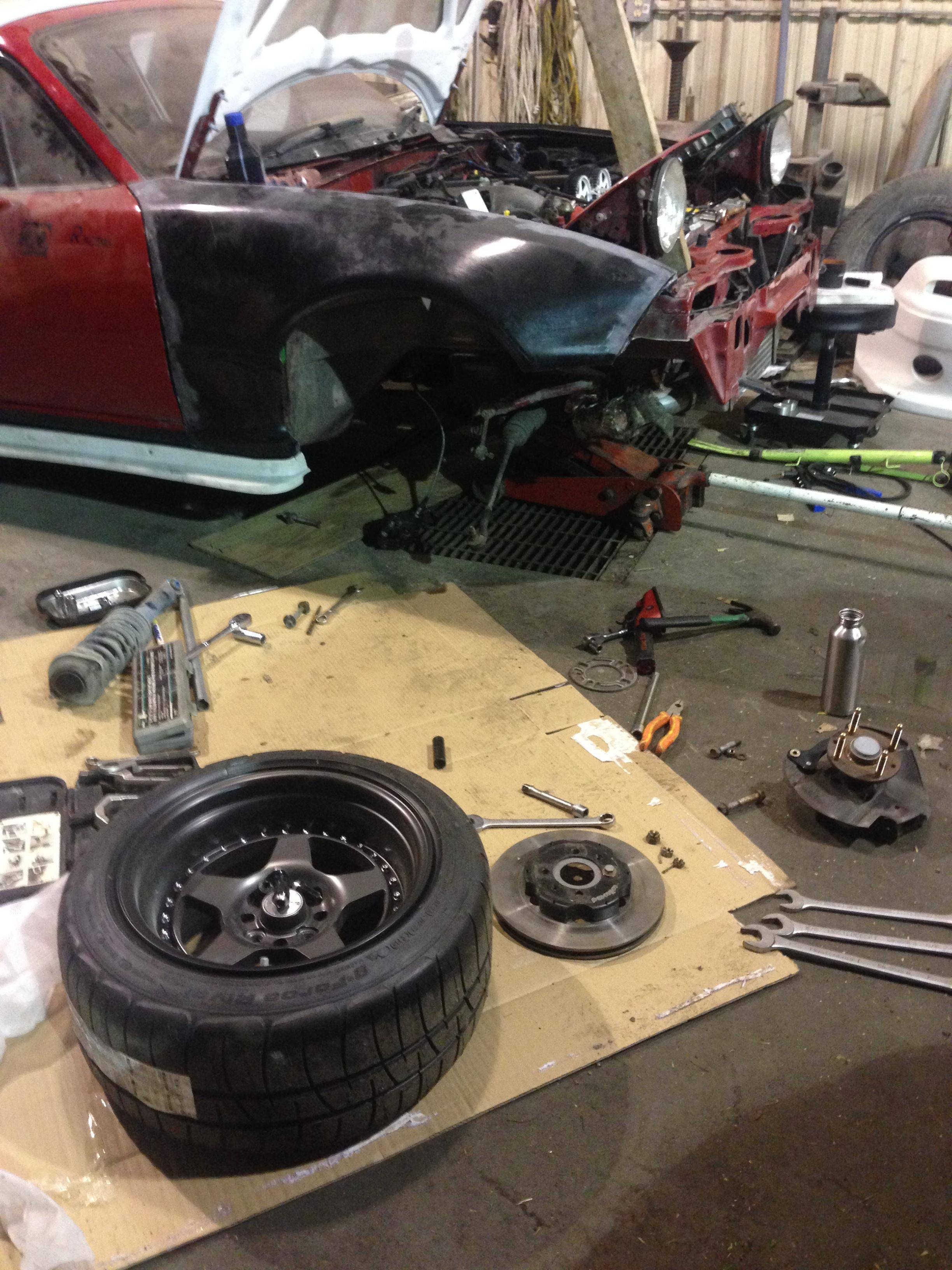

along with throwing on the wildwood kit i had bought from a member on here:
![](https://www.miataturbo.net/attachments/build-threads-57/116816-1990-eunos-build-jdsvitz.png?dateline=1404069134)

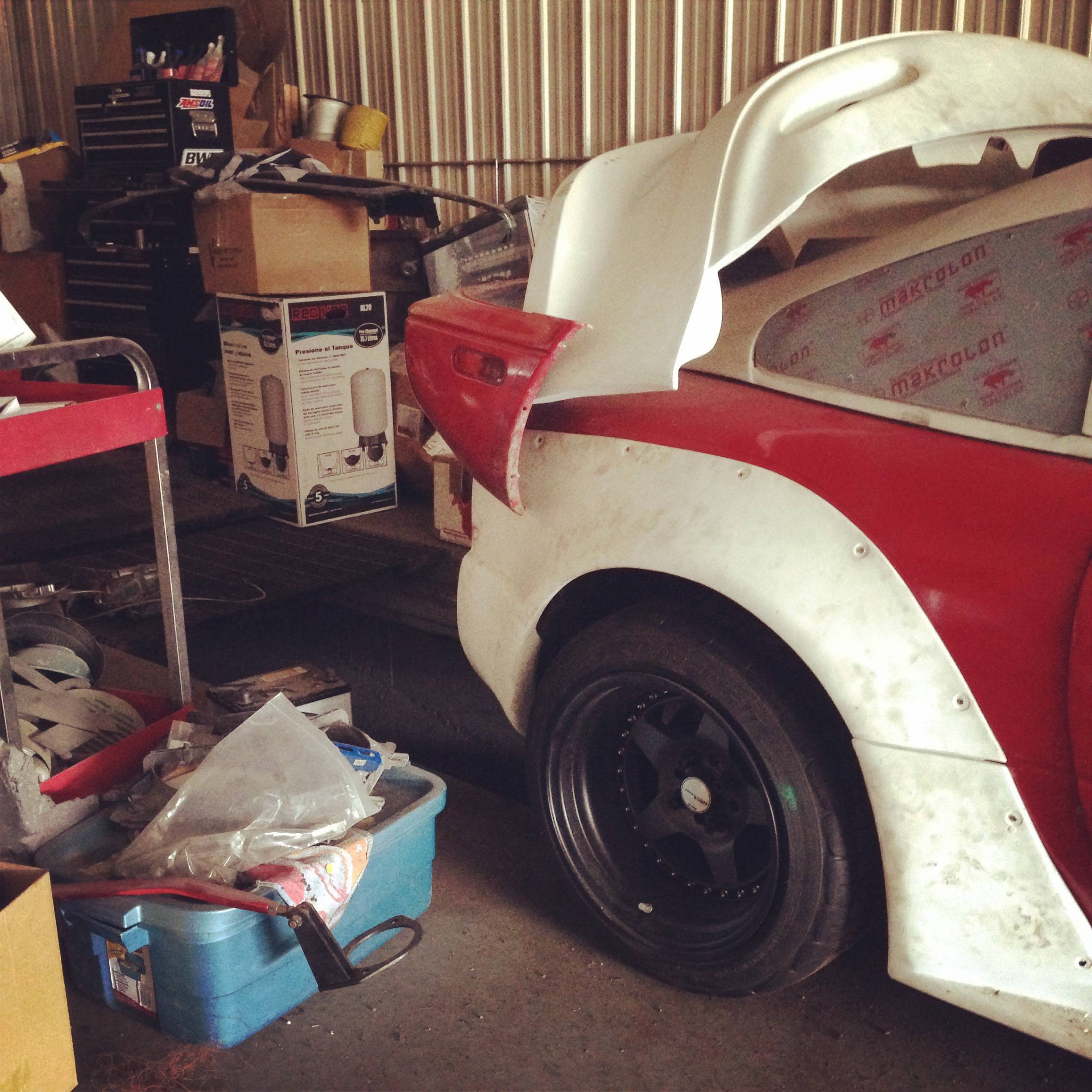

quick shot of the rear overs thrown on:
Finished up with my exhaust stuff:
![Name: c1AVJOq.jpg
Views: 16
Size: 814.1 KB](https://www.miataturbo.net/attachments/build-threads-57/239175d1683056094-1990-eunos-build-c1avjoq.jpg)
hated the fitment of old one i made, was basically rubbing on the front sub frame, and was a nightmare to bolt back on.
![Name: 5FHCYuF.jpg
Views: 17
Size: 794.7 KB](https://www.miataturbo.net/attachments/build-threads-57/239176d1683056094-1990-eunos-build-5fhcyuf.jpg)
was using this collector flange initially
![Name: su8GTlI.jpg
Views: 17
Size: 700.7 KB](https://www.miataturbo.net/attachments/build-threads-57/239177d1683056094-1990-eunos-build-su8gtli.jpg)
and switched it out for some ebay v-band flanges
![Name: aelujTo.jpg
Views: 17
Size: 753.4 KB](https://www.miataturbo.net/attachments/build-threads-57/239178d1683056094-1990-eunos-build-aelujto.jpg)
exhaust is just a crush bent 3in (cause cheap) and basically 2.5 in DP
then i wrapped it up, cause it looks pretty now
![](https://www.miataturbo.net/attachments/build-threads-57/116815-1990-eunos-build-rtdja2q.jpg?dateline=1404069134)
started rebuilding my front end a bit.
did:
-ball joints (upper/lower)
-tie rod end
-poly bushings in the UCA/LCA
-ARP extended studs
![Name: 8B7Jjxk.jpg
Views: 17
Size: 792.9 KB](https://www.miataturbo.net/attachments/build-threads-57/239179d1683056094-1990-eunos-build-8b7jjxk.jpg)
along with throwing on the wildwood kit i had bought from a member on here:
![](https://www.miataturbo.net/attachments/build-threads-57/116816-1990-eunos-build-jdsvitz.png?dateline=1404069134)
quick shot of the rear overs thrown on:
![Name: VGzO0eq.jpg
Views: 18
Size: 538.1 KB](https://www.miataturbo.net/attachments/build-threads-57/239180d1683056094-1990-eunos-build-vgzo0eq.jpg)
#18
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Few new things:

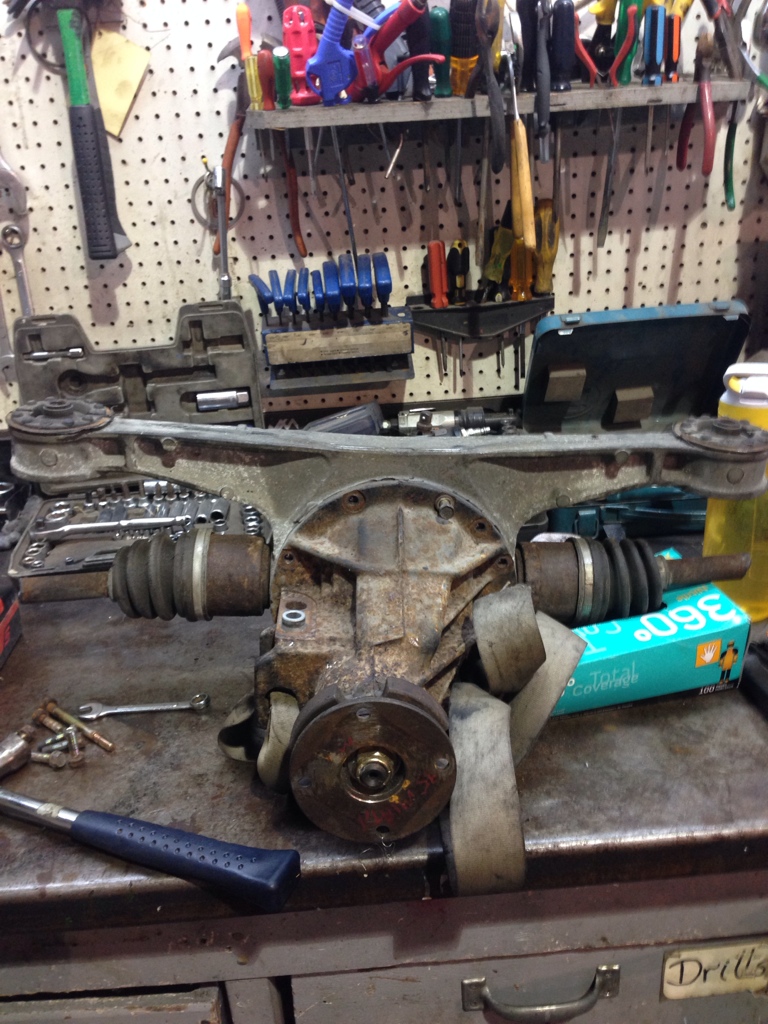

Bought a 96+ Miata diff via ebay for a good price and driveshaft/axles from some other dude.
![](https://www.miataturbo.net/attachments/build-threads-57/119202-1990-eunos-build-7aduhuvy.jpg?dateline=1406558256)
Seeing as they had just cut the stub shafts off and he wasn't really sure whether it had a Torsen or not I wasn't too thrilled about grabbing it but for the price (about the same price as a typical 94+ open diff) I went for it anyways,

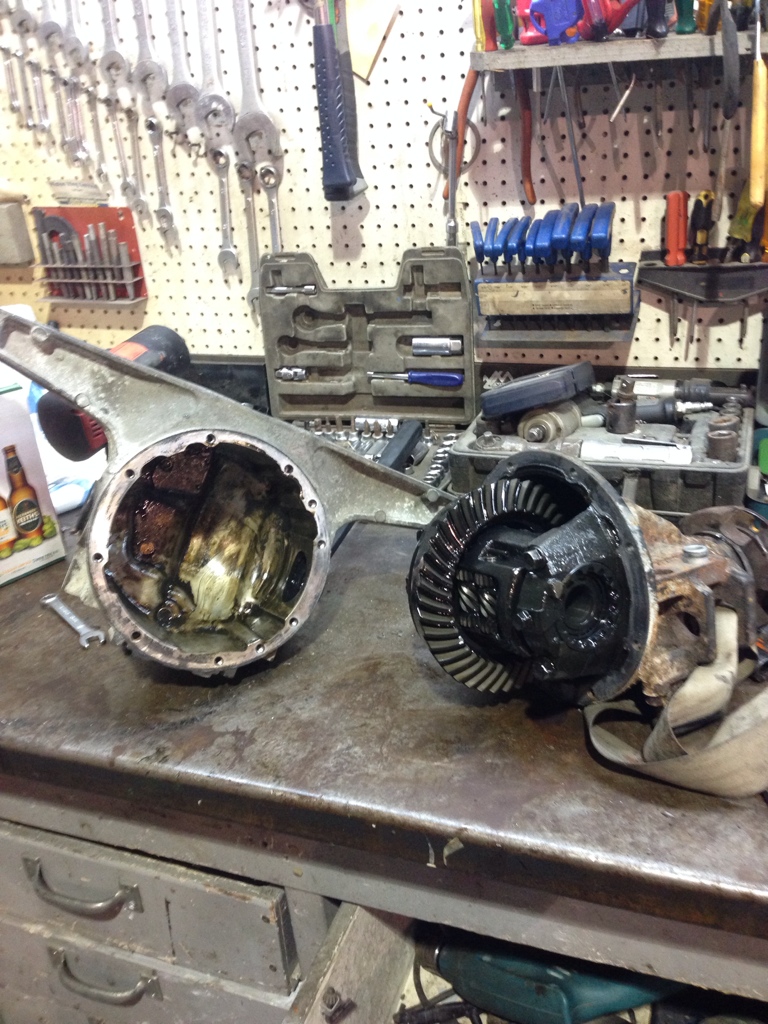

With some help got the stub shafts out and cracked it open
![](https://www.miataturbo.net/attachments/build-threads-57/119203-1990-eunos-build-y5a3e2uz.jpg?dateline=1406558256)
Thankfully it contained a Torsen in hopefully good condition.
Couldn't break the 25 year old axle nuts free that night but I'll take another crack at it this week and throw it together.
Bought a 96+ Miata diff via ebay for a good price and driveshaft/axles from some other dude.
![](https://www.miataturbo.net/attachments/build-threads-57/119202-1990-eunos-build-7aduhuvy.jpg?dateline=1406558256)
Seeing as they had just cut the stub shafts off and he wasn't really sure whether it had a Torsen or not I wasn't too thrilled about grabbing it but for the price (about the same price as a typical 94+ open diff) I went for it anyways,
With some help got the stub shafts out and cracked it open
![](https://www.miataturbo.net/attachments/build-threads-57/119203-1990-eunos-build-y5a3e2uz.jpg?dateline=1406558256)
Thankfully it contained a Torsen in hopefully good condition.
Couldn't break the 25 year old axle nuts free that night but I'll take another crack at it this week and throw it together.

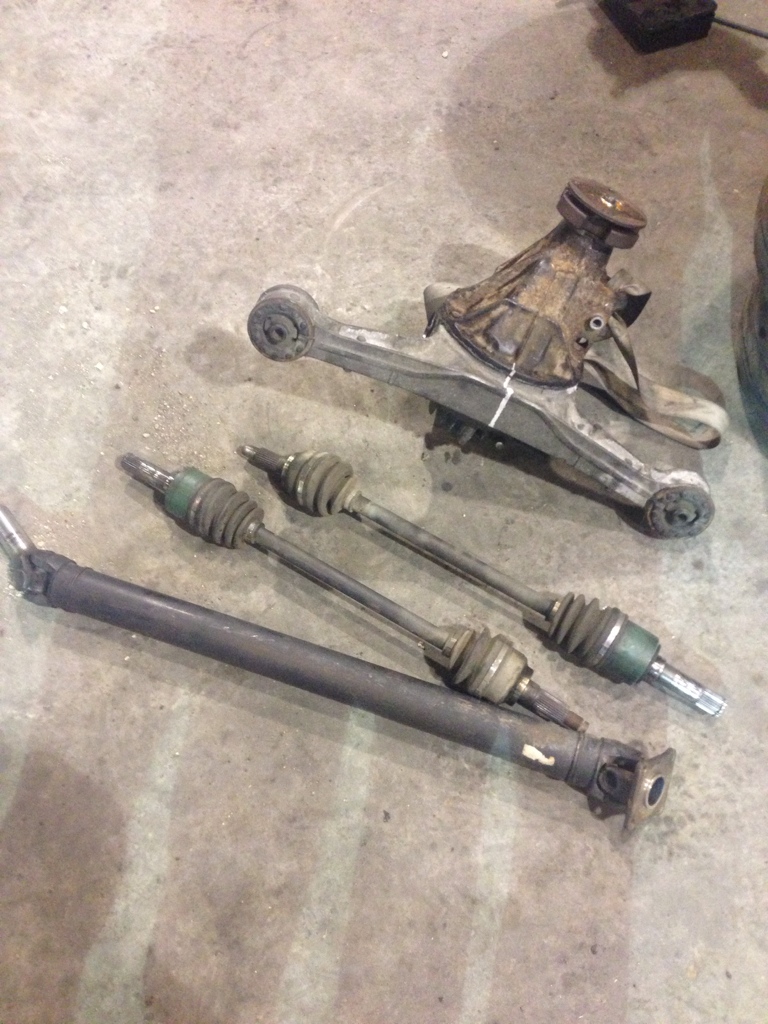

![](https://www.miataturbo.net/attachments/build-threads-57/119204-1990-eunos-build-qezuqugu.jpg?dateline=1406558256)
Thread
Thread Starter
Forum
Replies
Last Post
Frank_and_Beans
Supercharger Discussion
13
09-12-2016 08:17 PM
