Post your DIY aero pics
#1087
Supporting Vendor
iTrader: (3)
Join Date: Jul 2006
Location: San Diego
Posts: 3,304
Total Cats: 1,222

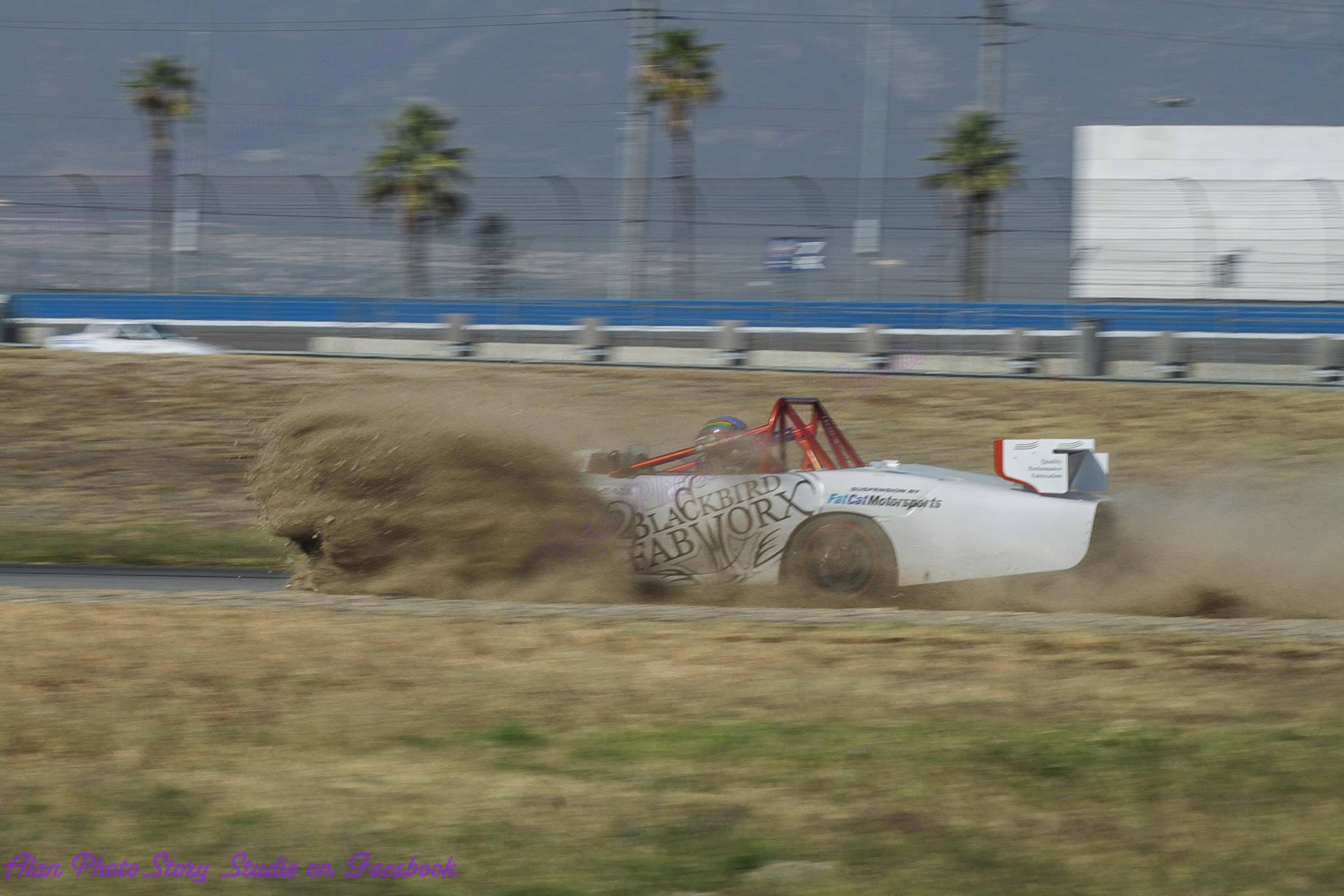

I think Moti performed the most unequivocal test of these splitter mounts when he went off into a loose dirt area and the whole front of the car "shoveled" in:
No damage to the splitter or frame. He came back to the pits with a pile of dirt on the splitter, we all had a good laugh, and then he brushed it all off and ran the rest of the day.
Mind you, there are lots of examples out there of DIY solid splitter mounts that are not strong enough to survive big offs, and even for a well-designed splitter mount, there are some offs where for one factor or another the splitter just doesn't stand a chance, but yes in a nut shell solid mount is the way to go.
#1089
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Sean's splitter was so well documented and easy to remove that I will probably just mimic that. The Z bracket with tabs. I'll have to dig back and see if there were any other supports.
I'm just tired of ripping off bits of my bumper when the GV lip gets ripped off lol.
I'm just tired of ripping off bits of my bumper when the GV lip gets ripped off lol.
#1090
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Using bamboo is like walking on the moon. You're the pioneer. You're pushing boundaries. I wouldn't pick a thickness until I saw them in person. My guess is that these will be much stronger and more resilient than even birch. If the 5 ply was 3/8", I'd guess that would work.
#1092
Strength and Durability
Thanks to its unique composition, bamboo is naturally designed for strength…
Unlike wood, bamboo has no rays or knots, allowing it to withstand more stress throughout the length of each stalk.
Bamboo’s sectional anatomy, both as a cane and on a microscopic fiber level, enhances its structural integrity.
The high silica content in bamboo fibers means the material cannot be digested by termites.
Bamboo contains different chemical extractives than hardwood, which make it better suited for gluing.
It's also supposed to have a higher strength to weight ratio than graphite.
Thanks to its unique composition, bamboo is naturally designed for strength…
Unlike wood, bamboo has no rays or knots, allowing it to withstand more stress throughout the length of each stalk.
Bamboo’s sectional anatomy, both as a cane and on a microscopic fiber level, enhances its structural integrity.
The high silica content in bamboo fibers means the material cannot be digested by termites.
Bamboo contains different chemical extractives than hardwood, which make it better suited for gluing.
It's also supposed to have a higher strength to weight ratio than graphite.
#1093
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
I like the sound of it. I'm going to call them tomorrow and pick some brains. They seem somewhat knowledgable.
But I am seeing prices around $130-$150 for a 4x8. Unless I can pick it up for a lot less I might stick to birch. We'll see.
But I am seeing prices around $130-$150 for a 4x8. Unless I can pick it up for a lot less I might stick to birch. We'll see.
#1094
Supporting Vendor
iTrader: (3)
Join Date: Jul 2006
Location: San Diego
Posts: 3,304
Total Cats: 1,222
To me the big question is: how flexible is the sheet? I shot them an email this morning but you may get more info by phone. Then again, since this goes down the road of applications it was never originally intended for, you may not get a definitive enough answer without just buying it and getting it in your hands.
#1095
SADFab Destructive Testing Engineer
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
If its not horribly expensive I'll buy a sheet.
Current plan is to build a splitter using a frame like sean's, but only have the splitter extend to the front of the GV lip. More of an undertray. I don't have any rear aero so it will more be for protection and some air ducting. Then when I work on rear aero I can just unbolt the smaller one, and put on the bigger one. Or just build another frame and be able to swap small for the street, big for the track.
Current plan is to build a splitter using a frame like sean's, but only have the splitter extend to the front of the GV lip. More of an undertray. I don't have any rear aero so it will more be for protection and some air ducting. Then when I work on rear aero I can just unbolt the smaller one, and put on the bigger one. Or just build another frame and be able to swap small for the street, big for the track.
